3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ..................................... 3-1
Indicator and warning lights ................................ 3-2
Multi-function display ........................................... 3-6
Tachometer ........................................................ 3-11
Anti-theft alarm (optional) .................................. 3-11
Handlebar switches ........................................... 3-11
Clutch lever ........................................................ 3-13
Shift pedal .......................................................... 3-13
Brake lever ......................................................... 3-13
Brake pedal ........................................................ 3-14
Fuel tank cap ..................................................... 3-14
Fuel .................................................................... 3-15Fuel tank breather hose .................................... 3-16
Catalytic converter ............................................ 3-16
Seats ................................................................. 3-17
Helmet holders .................................................. 3-18
Storage compartment ....................................... 3-19
Adjusting the front fork ...................................... 3-19
Adjusting the shock absorber assembly ............ 3-21
Luggage strap holders ...................................... 3-23
EXUP system .................................................... 3-24
Sidestand .......................................................... 3-24
Ignition circuit cut-off system ............................. 3-25
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM
Page 16 of 120
3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU04562
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
NOTE:_ The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF”, even if
the engine stalls. _
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM
Page 18 of 120
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU04894
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.3 L. When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:_ This model is also equipped with a self-
diagnosis device for the fuel level de-
tection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning light
will flash eight times, then go off for
2.5 seconds. If this occurs, have a
Yamaha dealer check the motorcycle. _
EAU04895
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:_
Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.
This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated
until the malfunction is corrected:
The oil level warning light will flash
ten times, then go off for 2.5 sec-
onds. If this occurs, have a
Yamaha dealer check the motor-
cycle.
_
1. Right turn signal indicator light “”
2. Fuel level warning light “”
3. Oil level warning light “”
4. Neutral indicator light “”
5. Engine trouble warning light “”
6. High beam indicator light “”
7. Left turn signal indicator light “”U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM
Page 19 of 120
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU04896
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-7
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not
come on for a few seconds, then go off,
have a Yamaha dealer check the elec-
trical circuit.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU04924
Engine speed indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit. (See pages 3-8–3-10 for a de-
tailed explanation of the function of this
indicator light and on how to set it.)
EAU04923
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EC000002
CAUTION:_ Do not operate the engine if it is
overheated. _
1. Engine speed indicator light
2. Coolant temperature warning light “”
3. Coolant temperature display
U5PWE1.book Page 4 Monday, July 8, 2002 10:28 AM
Page 22 of 120
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km.
Clock mode
Turn the key to “ON”.
To change the display to the clock
mode, push the “SELECT” button for at
least one second.
To change the display back to the prior
mode, push the “SELECT” button.
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set
the hours.3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Self-diagnosis device
This model is equipped with a self-di-
agnosis device for various electrical cir-
cuits.
If any of those circuits are defective,
the engine trouble warning light will
come on, and then the multi-function
display will indicate a two-digit error
code (e.g., 11, 12, 13).
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the motorcycle.
ECA00127
CAUTION:_ If the display indicates an error
code, the motorcycle should be
checked as soon as possible in or-
der to avoid engine damage. _
U5PWE1.book Page 7 Monday, July 8, 2002 10:28 AM
Page 28 of 120
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU00152
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition
circuit cut-off system. (See page 3-25
for an explanation of the ignition circuit
cut-off system.)
EAU00157
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU00161
Brake lever The brake lever is located at the right
handlebar grip. To apply the front brake,
pull the lever toward the handlebar grip.
The brake lever is equipped with a posi-
tion adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the arrow mark on
the brake lever.
1. Clutch lever
1. Shift pedal
1. Brake lever
2. Brake lever position adjusting dial
3. Arrow mark
a. Distance between brake lever and handlebar
grip
U5PWE1.book Page 13 Monday, July 8, 2002 10:28 AM
Page 39 of 120
INSTRUMENT AND CONTROL FUNCTIONS
3-24
3
EAU01571
EXUP system This motorcycle is equipped with
Yamaha’s EXUP (EXhaust Ultimate
Power valve) system. This system
boosts engine power by means of a
valve that regulates the diameter of the
exhaust pipe. The EXUP system valve
is constantly adjusted in accordance
with the engine speed by a computer-
controlled servomotor.
EC000027
CAUTION:_
The EXUP system has been set
and extensively tested at the
Yamaha factory. Changing
these settings without sufficient
technical knowledge may result
in poor performance of or dam-
age to the engine.
If the EXUP system does not op-
erate, have a Yamaha dealer
check it.
_
EAU00330
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:_ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) _
EW000044
WARNING
_ The motorcycle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up), oth-
erwise the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control. Yamaha’s ignition circuit
cut-off system has been designed to
assist the operator in fulfilling the
responsibility of raising the side-
stand before starting off. Therefore,
check this system regularly as de-
scribed below and have a Yamaha
dealer repair it if it does not function
properly. _
U5PWE1.book Page 24 Monday, July 8, 2002 10:28 AM
Page 40 of 120

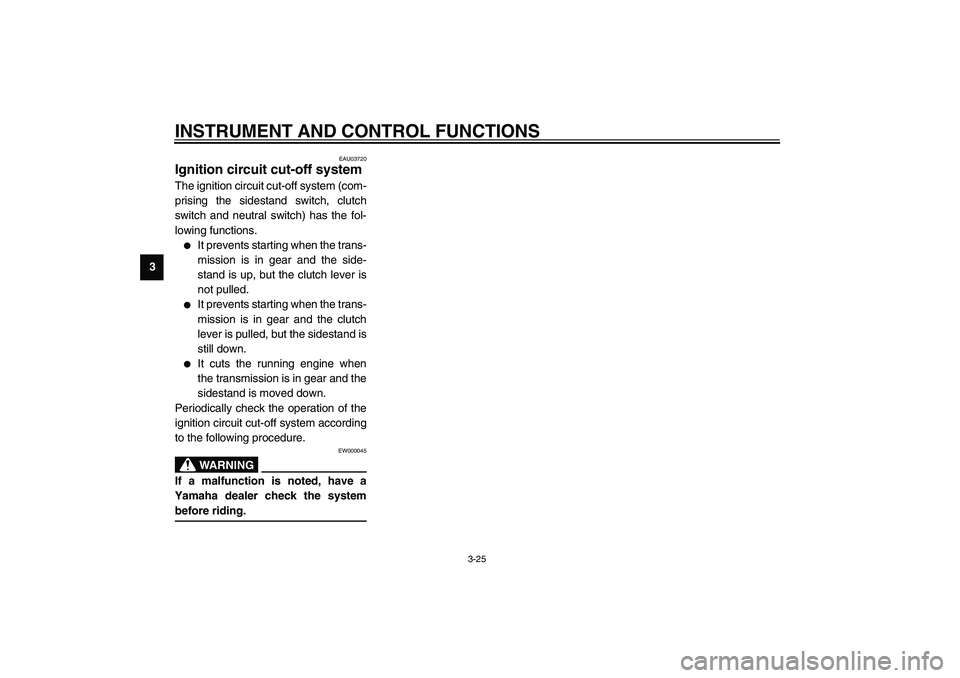

INSTRUMENT AND CONTROL FUNCTIONS
3-25
3
EAU03720
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.
It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_ If a malfunction is noted, have a
Yamaha dealer check the system
before riding. _U5PWE1.book Page 25 Monday, July 8, 2002 10:28 AM
