2003 YAMAHA YFM350R check engine

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-5
Model label ........................................... 3-7
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Handlebar switches .............................. 4-5
Throttle lever ........................................ 4-9
Speed limiter ...................................... 4-11
Clutch lever ........................................ 4-13
Brake lever ......................................... 4-13
Brake pedal ........................................ 4-15
Parking brake ..................................... 4-17
Shift pedal .......................................... 4-21
Drive select lever ................................ 4-21
1234
Fuel tank cap ..................................... 4-23
Fuel cock............................................ 4-23
Starter (choke) ................................... 4-25
Seat.................................................... 4-27
Front shock absorber adjustment ...... 4-29
Rear shock absorber adjustment ....... 4-31
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Chain.................................................. 5-15
Throttle lever ...................................... 5-17
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Battery................................................ 5-19
Tires ................................................... 5-19
How to measure tire pressure ............ 5-23
Tire wear limit..................................... 5-25
5
U5NF62.book Page 1 Wednesday, May 8, 2002 1:40 PM

OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Shifting ................................................6-15
To start out and accelerate: ................6-17
To decelerate: .....................................6-21
Engine break-in ...................................6-23
Parking ................................................6-27
Parking on a slope ..............................6-29
Accessories and loading .....................6-31
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good
judgement ...........................................7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-67
Sliding and skidding ............................7-69
What to do if ........................................7-73
67
What to do .......................................... 7-73
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Engine oil ............................................ 8-15
Spark plug inspection ......................... 8-25
Air filter cleaning ................................. 8-29
Carburetor adjustment ........................ 8-35
Idle speed adjustment ........................ 8-37
Throttle lever adjustment .................... 8-39
Valve clearance adjustment ............... 8-39
Front and rear brake pad
inspection ......................................... 8-41
Brake fluid level check ........................ 8-43
Brake fluid replacement ...................... 8-47
Front brake lever free play.................. 8-49
Brake pedal height adjustment ........... 8-51
Parking brake adjustment ................... 8-53
Adjusting the rear brake light switch ... 8-57
Clutch lever free play adjustment ....... 8-59
Drive chain slack check ...................... 8-61
Drive chain slack adjustment .............. 8-63
Lubricating the drive chain.................. 8-65
Cable inspection and lubrication......... 8-67
8
U5NF62.book Page 2 Wednesday, May 8, 2002 1:40 PM

4-9 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
U5NF62.book Page 9 Wednesday, May 8, 2002 1:40 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-41–8-51
ClutchCheck operation, condition and lever free play. 8-59
Parking brakeCheck operation, condition and cable length. 8-53–8-55
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13–5-15,
8-15–8-23
Drive chainCheck chain slack and condition.
Adjust if necessary.5-15, 8-61–8-65
ThrottleCheck for proper throttle cable operation and free play. 5-17, 8-39
Wheels and tiresCheck tire pressure, wear and damage.5-19–5-25,
8-73–8-75
Fittings and fastenersCheck all fittings and fasteners. 5-17
Lights and switchesCheck for proper operation. 5-17, 8-57, 8-87–8-97
BatteryCheck fluid level.
Fill with distilled water if necessary.5-19, 8-77–8-83
U5NF62.book Page 1 Wednesday, May 8, 2002 1:40 PM

5-15
CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of
“CD” or oils of a higher quality than spec-
ified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_
EBU00498
Chain
Check the general condition of the chain and check
the chain slack before every ride. Lubricate and ad-
just the chain as necessary. (See pages 8-61–8-65
for details.)Oil quantity:
Periodic oil change:
2.4 L
With oil filter element replacement:
2.5 L
Total amount:
3.2 L
U5NF62.book Page 15 Wednesday, May 8, 2002 1:40 PM

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00538
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.NOTE:When the parking brake is used, engine speed is
limited to 2,300 r/min. Be sure the parking brake is
released before moving the throttle lever. Other-
wise, the engine will misfire, preventing normal op-
eration.
U5NF62.book Page 9 Wednesday, May 8, 2002 1:40 PM

8-7
EBU00262

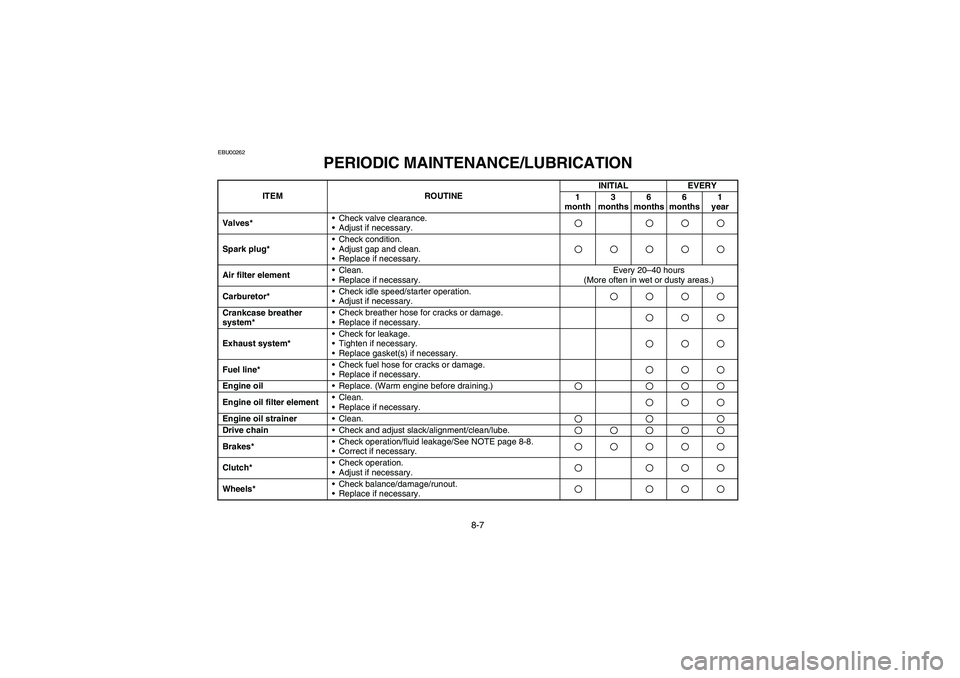

5-PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Spark plug*•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter element•Clean.
•Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*•Check idle speed/starter operation.
•Adjust if necessary.Crankcase breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Tighten if necessary.
•Replace gasket(s) if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil•Replace. (Warm engine before draining.)Engine oil filter element•Clean.
•Replace if necessary.Engine oil strainer•Clean.Drive chain•Check and adjust slack/alignment/clean/lube.Brakes*•Check operation/fluid leakage/See NOTE page 8-8.
•Correct if necessary.Clutch*•Check operation.
•Adjust if necessary.Wheels*•Check balance/damage/runout.
•Replace if necessary.U5NF62.book Page 7 Wednesday, May 8, 2002 1:40 PM

8-15 1. Dipstick 2. Maximum level mark
3. Minimum level mark
1. Jauge 2. Repère de niveau maximum
3. Repère de niveau minimum
1. Varilla 2. Marca de nivel máximo
3. Marca de nivel mínimo
EBU01181
Engine oil
Engine oil level measurement
1. Place the ATV on a level surface.
2. Warm up the engine for several minutes, and
then stop it.
3. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag. Insert
the dipstick in the filler hole without screwing
it in.NOTE:_ Wait a few minutes until the oil level settles before
checking. _4. Remove the dipstick, and then check the oil
level.NOTE:_ The oil level should be between the maximum and
minimum level marks. _
U5NF62.book Page 15 Wednesday, May 8, 2002 1:40 PM
