2003 YAMAHA XJR 1300 drain bolt

2-1
2
EAU00026

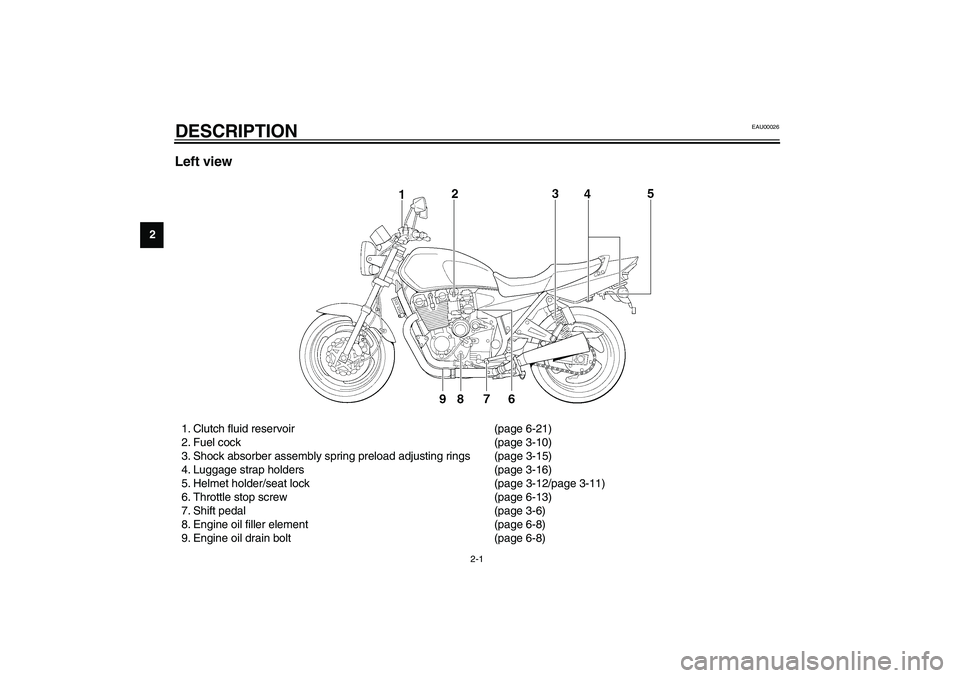

2-DESCRIPTION Left view1. Clutch fluid reservoir (page 6-21)
2. Fuel cock (page 3-10)
3. Shock absorber assembly spring preload adjusting rings (page 3-15)
4. Luggage strap holders (page 3-16)
5. Helmet holder/seat lock (page 3-12/page 3-11)
6. Throttle stop screw (page 6-13)
7. Shift pedal (page 3-6)
8. Engine oil filler element (page 6-8)
9. Engine oil drain bolt (page 6-8)
U5WME0.book Page 1 Monday, July 29, 2002 10:25 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6 3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
NOTE:_ The engine oil should be between the
minimum and maximum level marks. _4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.To change the engine oil (with or
without oil filter element replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:_ Skip steps 4–8 if the oil filter element is
not being replaced. _4. Remove the oil filter element drain
screw to drain the oil from the oil
filter element.
5. Remove the oil filter element cover
by removing the bolt.
1. Engine oil filler cap
2. Engine oil level check window
3. Maximum level mark
4. Minimum level mark
1. Engine oil drain bolt
1. Oil filter element drain screw
2. Bolt
3. Oil filter element cover
U5WME0.book Page 8 Monday, July 29, 2002 10:25 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
66. Remove and replace the oil filter
element and O-ring.7. Install the oil filter element cover
by aligning the projection on the
cover with the slot in the crank-
case, installing the bolt, then tight-
ening it to the specified torque.
NOTE:_ Make sure that the O-ring is properly
seated. _
8. Install the oil filter element drain
screw, and then tighten it to the
specified torque.
9. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
10. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
1. Oil filter element
2. O-ring (× 2)
1. Projection
2. Slot
Tightening torque:
Oil filter element cover bolt:
15 Nm (1.5 m·kgf)
Tightening torque:
Oil filter element drain screw:
7 Nm (0.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf)
U5WME0.book Page 9 Monday, July 29, 2002 10:25 AM

MOTORCYCLE CARE AND STORAGE
7-4
7
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:_

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
_
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Turn the fuel cock lever to “ON”.
3. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits from
building up. Pour the drained fuel
into the fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine
oil into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
EWA00003
WARNING
_ To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over. _
U5WME0.book Page 4 Monday, July 29, 2002 10:25 AM
