EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Speedometer ........................................ 4-7
Fuel gauge ........................................... 4-9
Handlebar switches ............................ 4-11
Throttle lever ...................................... 4-17
Speed limiter ...................................... 4-19
Front brake lever ................................ 4-21
Rear brake pedal and lever ................ 4-23
Parking brake ..................................... 4-25
Drive select lever ................................ 4-27
1234
Recoil starter ...................................... 4-29
Fuel tank cap ..................................... 4-29
Fuel cock............................................ 4-31
Starter (choke) ................................... 4-33
Seat.................................................... 4-35
Storage box........................................ 4-37
Front carrier ....................................... 4-39
Rear carrier ........................................ 4-39
Front shock absorber adjustment ...... 4-41
Rear shock absorber adjustment ....... 4-45
Auxiliary DC jack ................................ 4-47
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-23
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
5
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM

3-3
EBU00600

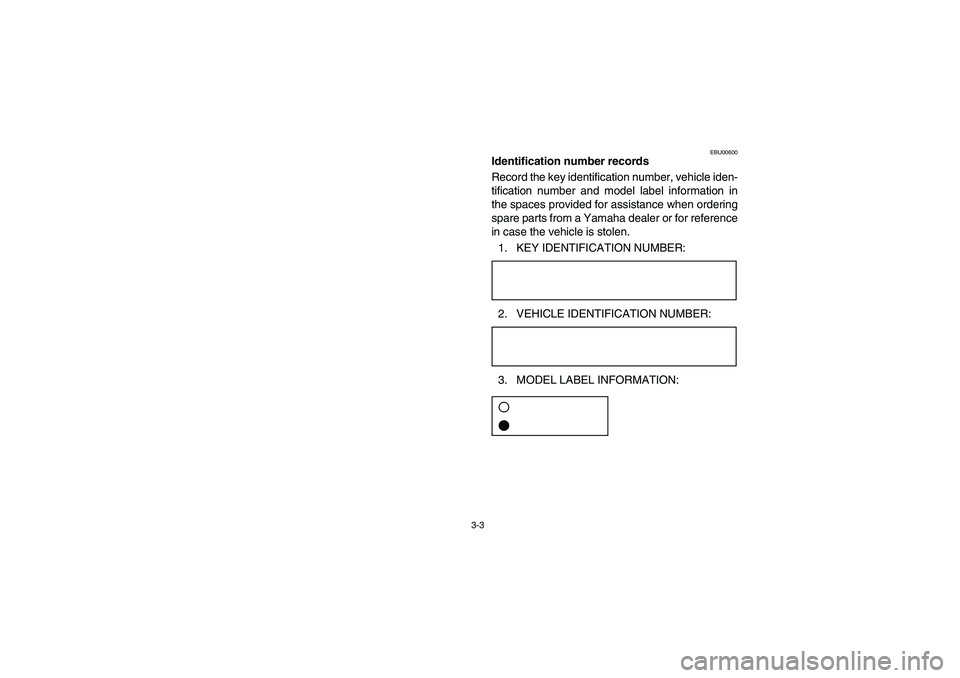

Identification number records
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided for assistance when ordering
spare parts from a Yamaha dealer or for reference
in case the vehicle is stolen.1. KEY IDENTIFICATION NUMBER:2. VEHICLE IDENTIFICATION NUMBER:3. MODEL LABEL INFORMATION:
U5TE60.book Page 3 Monday, June 10, 2002 8:47 AM

3-5 1. Key identification number
1. Numéro d’identification de la clé
1. Número de identificación de la llave
EBU00035

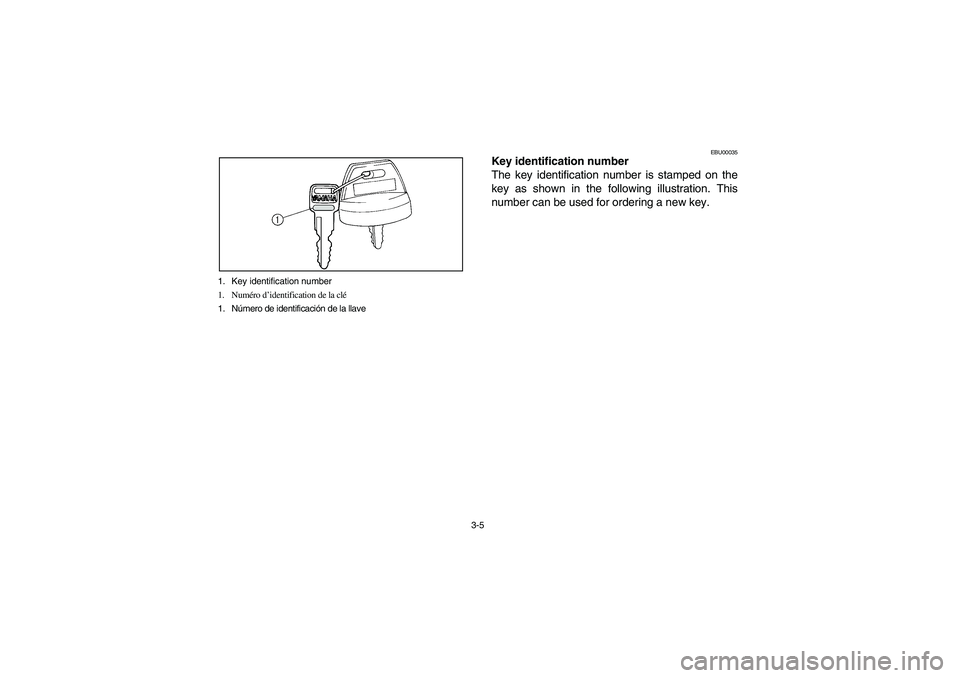

Key identification number
The key identification number is stamped on the
key as shown in the following illustration. This
number can be used for ordering a new key.
U5TE60.book Page 5 Monday, June 10, 2002 8:47 AM

4-1 1. Main switch
1. Contacteur à clé
1. Interruptor principal
EBU00040
CONTROL FUNCTIONS
EBU00942
Main switch
Functions of the respective switch positions are as
follows:
ON:
The engine can be started only at this position and
the headlights and taillight come on when the light
switch is on.
OFF:
All electrical circuits are switched off. The key can
be removed in this position.
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM

4-3 1. Coolant temperature warning light “”
2. Reverse indicator light “R”
3. Four-wheel drive indicator light “”
4. Neutral indicator light “N”
1. Témoin d’avertissement de la température du liquide de
refroidissement “”
2. Témoin de marche arrière “R”
3. Témoin 4x4 “”
4. Témoin de point mort “N”
1. Luz de aviso de la temperatura del refrigerante “”
2. Luz de control de marcha atrás “R”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de control de punto muerto “N”
EBU00043
Indicator lights
EBU01223
Coolant temperature warning light “”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
To check the coolant temperature warning light,
shift the drive select lever into neutral, turn the key
to “ON”, and then press the start switch. If the light
does not come on, have a Yamaha dealer inspect
the electrical circuit.CAUTION:_

The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.


Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
U5TE60.book Page 3 Monday, June 10, 2002 8:47 AM
