2003 YAMAHA KODIAK 400 coolant

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Cooling system•Check coolant leakage.
•Repair if necessary.
•Replace coolant every 24 months.Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter element•Clean.
•Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*•Check and adjust idle speed/starter operation.
•Adjust if necessary.Crankcase breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Retighten if necessary.
•Replace gasket(s) if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace. (Warm engine before draining.)Engine oil filter cartridge
•Replace.Engine oil strainer*
•Clean.Final gear oil
•Check oil level/oil leakage.
•Replace every 12 months.Differential gear oil
Front brake*•Check operation/fluid leakage. (See NOTE page 8-8.)
•Correct if necessary.Rear brake•Check operation.
•Adjust if necessary.U5TE60.book Page 7 Monday, June 10, 2002 8:47 AM

8-51 1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1. Bouchon du vase d’expansion
2. Repère de niveau maximum
3. Repère de niveau minimum
1. Tapa del depósito de refrigerante
2. Marca de nivel máximo
3. Marca de nivel mínimo
EBU01000
Cooling system
1. Check the coolant level in the reservoir when
the engine is cold as the coolant level will
vary with engine temperature. The coolant
level should be between the maximum and
minimum marks.
2. If the level is low, remove panel D. (See pag-
es 8-17–8-21 for panel removal and installa-
tion procedures.)
U5TE60.book Page 51 Monday, June 10, 2002 8:47 AM

8-53

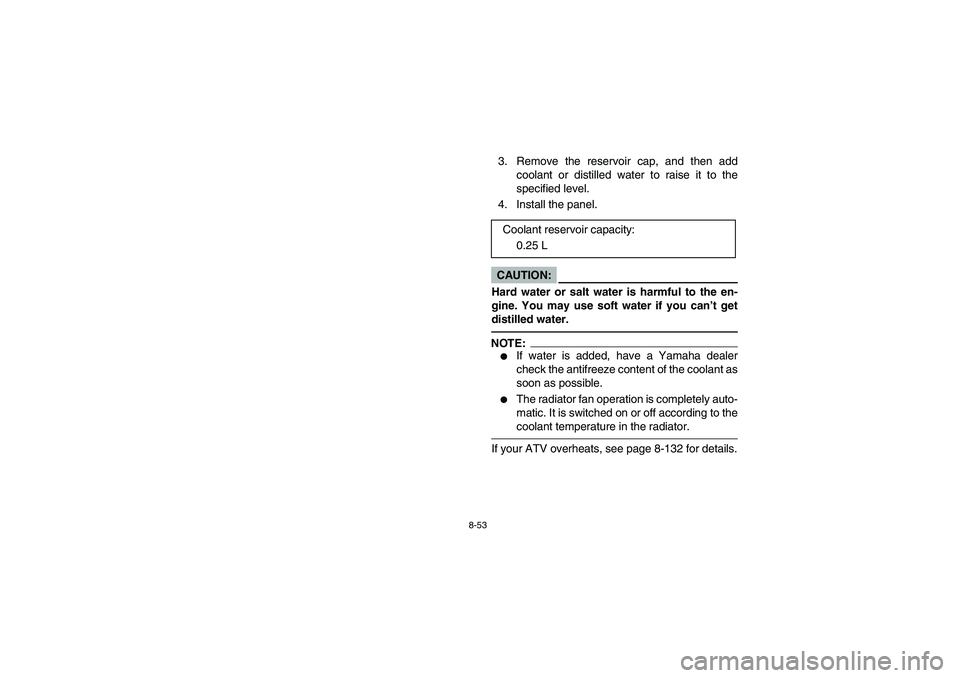

3. Remove the reservoir cap, and then add
coolant or distilled water to raise it to the
specified level.
4. Install the panel.CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you can’t get
distilled water. _NOTE:_

If water is added, have a Yamaha dealer
check the antifreeze content of the coolant as
soon as possible.


The radiator fan operation is completely auto-
matic. It is switched on or off according to the
coolant temperature in the radiator.
_If your ATV overheats, see page 8-132 for details.Coolant reservoir capacity:
0.25 L
U5TE60.book Page 53 Monday, June 10, 2002 8:47 AM

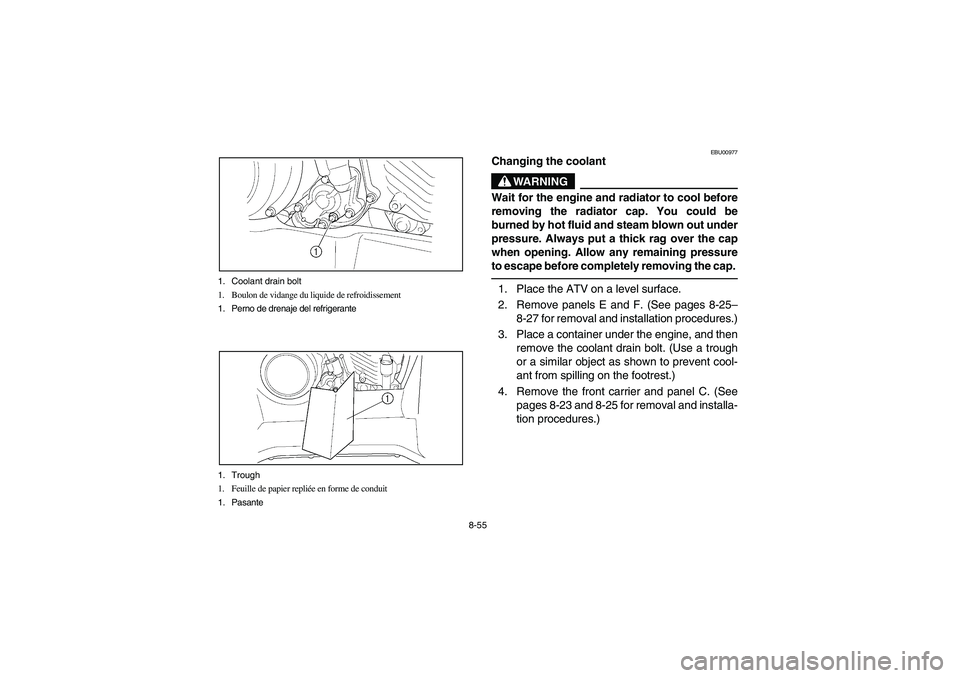

8-55 1. Coolant drain bolt
1. Boulon de vidange du liquide de refroidissement
1. Perno de drenaje del refrigerante
1. Trough
1. Feuille de papier repliée en forme de conduit
1. Pasante
EBU00977
Changing the coolant
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _1. Place the ATV on a level surface.
2. Remove panels E and F. (See pages 8-25–
8-27 for removal and installation procedures.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent cool-
ant from spilling on the footrest.)
4. Remove the front carrier and panel C. (See
pages 8-23 and 8-25 for removal and installa-
tion procedures.)
U5TE60.book Page 55 Monday, June 10, 2002 8:47 AM

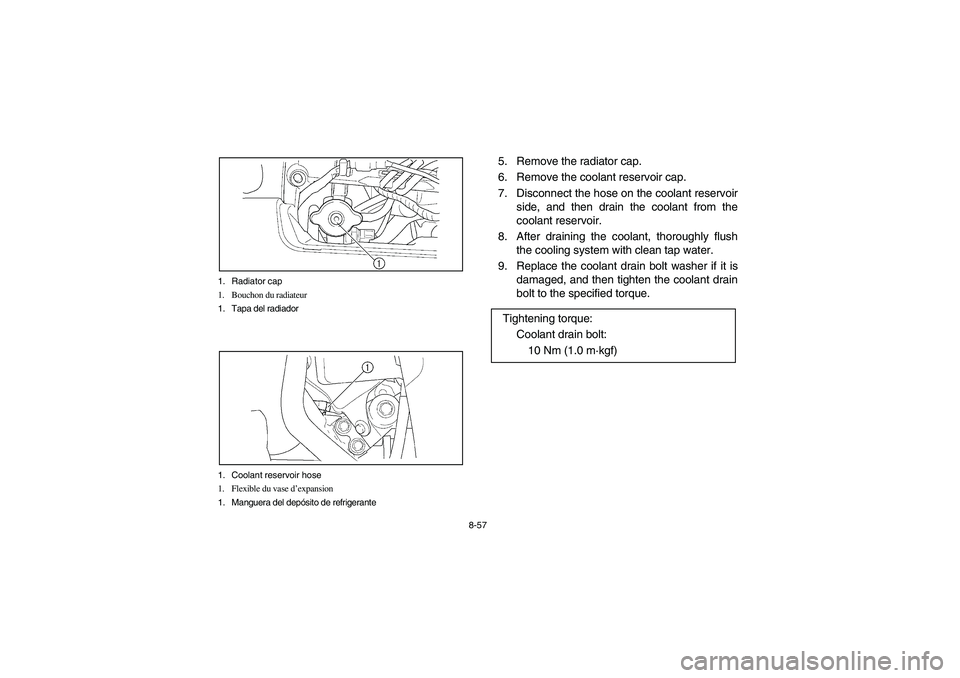

8-57 1. Radiator cap
1. Bouchon du radiateur
1. Tapa del radiador
1. Coolant reservoir hose
1. Flexible du vase d’expansion
1. Manguera del depósito de refrigerante
5. Remove the radiator cap.
6. Remove the coolant reservoir cap.
7. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the
coolant reservoir.
8. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
9. Replace the coolant drain bolt washer if it is
damaged, and then tighten the coolant drain
bolt to the specified torque.
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf)
U5TE60.book Page 57 Monday, June 10, 2002 8:47 AM

8-59

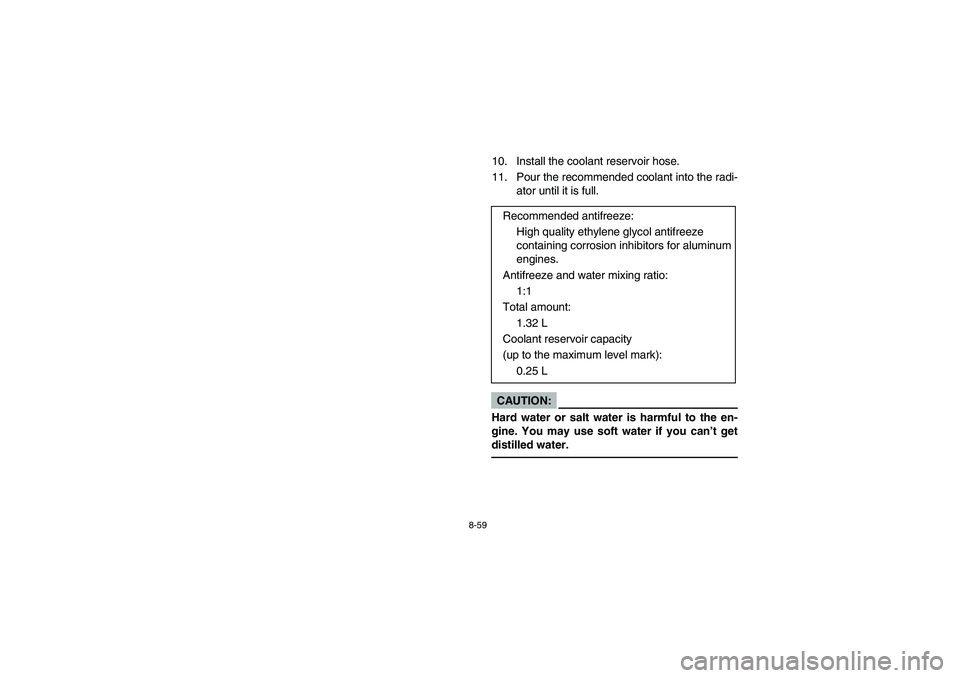

10. Install the coolant reservoir hose.
11. Pour the recommended coolant into the radi-
ator until it is full.CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you can’t get
distilled water. _
Recommended antifreeze:
High quality ethylene glycol antifreeze
containing corrosion inhibitors for aluminum
engines.
Antifreeze and water mixing ratio:
1:1
Total amount:
1.32 L
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U5TE60.book Page 59 Monday, June 10, 2002 8:47 AM

8-61 1. Axle boot (× 2 each side)
1. Soufflet d’axe (× 2 de chaque côté)
1. Guardapolvo de eje (× 2 en cada lado)
12. Install the radiator cap.
13. Start the engine and let it idle for several min-
utes. Stop the engine, and then check the
coolant level in the radiator. If it is low, add
more coolant until it reaches the top of the ra-
diator.
14. Fill the coolant reservoir with coolant up to
the maximum level.
15. Install the coolant reservoir cap and check for
coolant leakage.NOTE:_ If any leakage is found, ask a Yamaha dealer to in-
spect the cooling system. _16. Install the panels and the front carrier.
EBU00862
Axle boots
Check the protective boots for holes or tears. If any
damage is found, have them replaced by a
Yamaha dealer.
U5TE60.book Page 61 Monday, June 10, 2002 8:47 AM

8-132
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
reservoir tank and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
