2003 YAMAHA GP800R tow

1-11
E

Do not attempt to modify this watercraft!
Modifications to your watercraft may
reduce safety and reliability, and render
the watercraft unsafe or illegal for use.

Attach the engine shut-off cord (lanyard)
to wrist and keep it free from the handle-
bars so that the engine stops if the opera-
tor falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.

Scan carefully for swimmers and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.

Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or you maneuver more quickly than other
boaters expect, you risk a collision.

Maintain a safe distance from other boats
or watercraft, and also watch for boats’ ski
ropes or fishing lines. Obey the “Safe
boating rules” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-13.)
EJU01382
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.

Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.

Watch
A watch is helpful so you will know how
long you have been operating.

Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF0W72.book Page 11 Thursday, August 22, 2002 1:27 PM

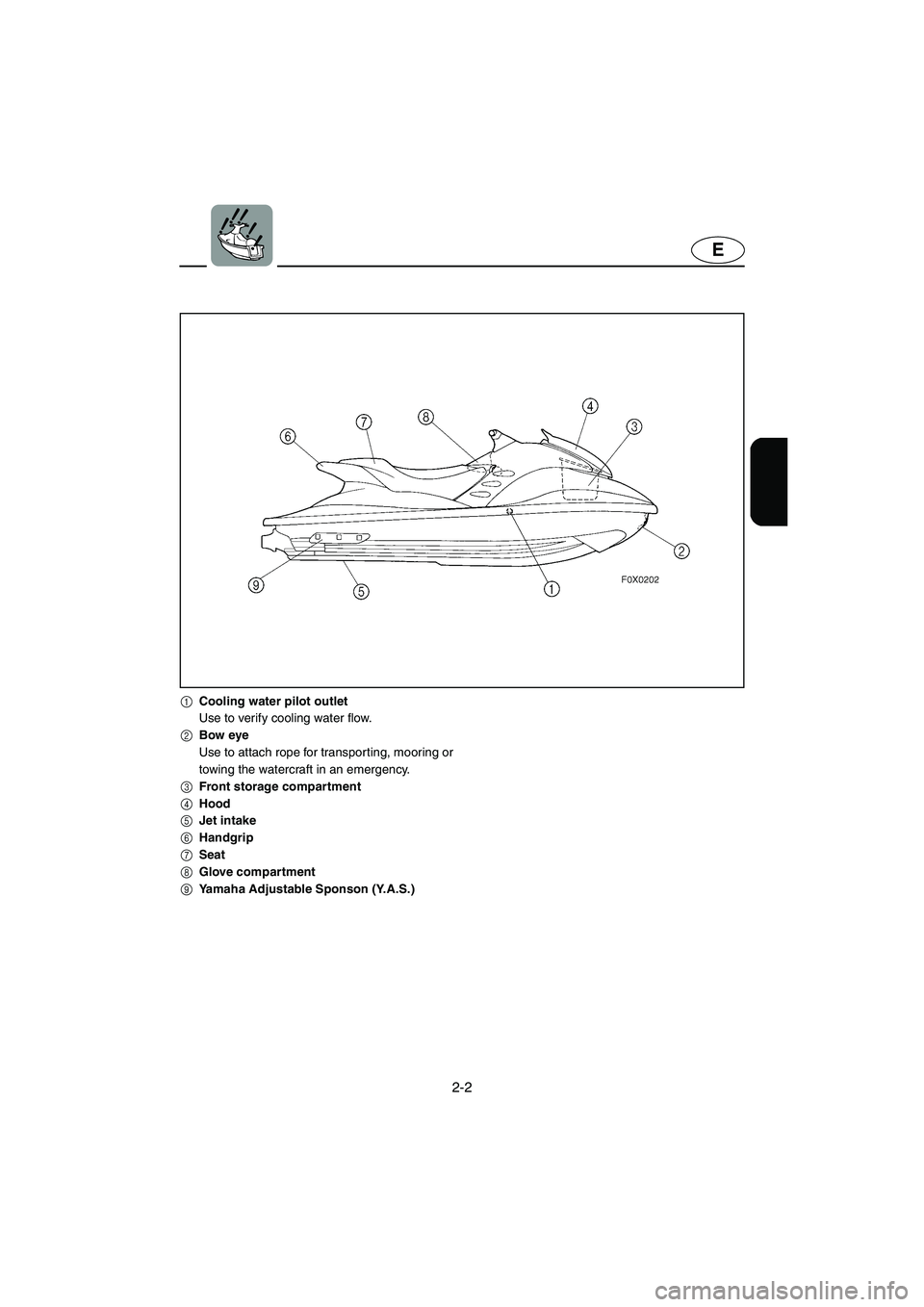

2-2
E
1Cooling water pilot outlet
Use to verify cooling water flow.
2Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
3Front storage compartment
4Hood
5Jet intake
6Handgrip
7Seat
8Glove compartment
9Yamaha Adjustable Sponson (Y.A.S.)
UF0W72.book Page 2 Thursday, August 22, 2002 1:27 PM

2-19
E
EJU01038
Glove compartment
A glove compartment 2 is located in front
of the seat.
To open the glove compartment, slide the
latch 1 toward you, and then lift up the lid.
To close the glove compartment, push the
lid down until it locks securely.
Glove compartment:
Capacity: 2 L (0.53 US gal, 0.44 Imp gal)
Load limit: 1 kg (2.2 lb)
EJU01039
Yamaha Adjustable Sponson
(Y.A.S.)
The sponsons 1 have adjustable posi-
tioning to allow the operator to enhance
either straight-line performance or turning
performance according to the preference
and operating conditions.
Adjusting to upward A:
There will be less water resistance in this
position, so straight-ahead acceleration
when on plane and top speed will be
enhanced.
Adjusting to downward B:
This position will give the watercraft more
“hook” which will enhance turning perfor-
mance.
UF0W72.book Page 19 Thursday, August 22, 2002 1:27 PM

3-33
E
EJU01085
Transporting
WARNING@ Always place the fuel cock knob in the
“OFF” position when transporting the
watercraft, otherwise fuel could leak out
into the engine or engine compartment,
which would create a fire hazard.
@
When transporting the watercraft on a
trailer, secure the tie downs to the trailer
through the bow eye and stern rope holes.
CAUTION:@ Do not route ropes or tie downs over the
seat, as they may leave permanent marks
on the seat’s surface. Also, wrap the
ropes or tie downs with towels or rags
where they touch the body of the water-
craft to avoid scratching or damage.
@
UF0W72.book Page 33 Thursday, August 22, 2002 1:27 PM

E
5
EJU01115
TROUBLESHOOTING
AND EMERGENCY
PROCEDURES
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................ 5-1
Emergency procedures .......................... 5-4
Cleaning the jet intake and impeller ...... 5-4
Jumping the battery ............................... 5-5
Towing the watercraft ............................ 5-7
Submerged watercraft ........................... 5-8
UF0W72.book Page 1 Thursday, August 22, 2002 1:27 PM

5-7
E
EJU01913
Towing the watercraft
If the watercraft becomes inoperative in
the water, it can be towed to shore.
If the watercraft must be towed in an
emergency using a towline, the operator
should ride the watercraft, holding onto the
handlebars.
CAUTION:@
Tow the watercraft at 5 mph (8 km/h) or
less, otherwise water could enter the
engine through the exhaust passages
or through the air intake and flood the
engine compartment if it is towed too
fast.

Tow the watercraft using the bow
eye1 only.

The bow must be kept up out of the
water during towing to prevent water
from entering the engine compart-
ment.
@
WARNING@
The watercraft should only be towed in
an emergency.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down. A
good rule of thumb is a towline that is
three times the combined length of the
towing boat and the watercraft.

The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the rider on the watercraft.
@
UF0W72.book Page 7 Thursday, August 22, 2002 1:27 PM

6-2
E
Limitations on who may operate the
watercraft ................................................ 1-7
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-16
M
Maintenance and adjustments ................ 4-7
Multifunction information center ... 2-14, 3-12
O
Oil filter .................................................. 4-12
Oil tank .................................................. 4-12
Oil tank filler cap...................................... 2-6
Oil warning indicator.............................. 2-17
Operating your watercraft...................... 3-19
Operation .............................................. 3-13
Operation of controls and other
functions .................................................. 2-5
Operation requirements .......................... 1-9
Other labels ............................................. 1-6
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-8
P
Periodic maintenance chart..................... 4-9
Post-operation checks........................... 3-31
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
Q
Quick Shift Trim System (QSTS)
selector.................................................. 2-11
R
Recommended equipment .................... 1-11
Replacing the fuse ................................ 4-22
Reset button .......................................... 2-15
Riding watercraft with a passenger ....... 3-20
Rough water operation .......................... 3-30
S
Safe boating rules ................................. 1-13
Safety information ................................... 1-7
Seat ......................................................... 2-5
Specifications ........................................ 4-24
Speedometer......................................... 2-15Starting and boarding in shallow
water ..................................................... 3-22
Starting from a dock .............................. 3-22
Starting the engine ................................ 3-15
Starting the watercraft ........................... 3-21
Start switch.............................................. 2-9
Steering system ...........................2-10, 3-10
Stopping the engine .............................. 3-18
Stopping the watercraft ......................... 3-29
Storage.................................................... 4-1
Storage compartments .......................... 2-18
Submerged watercraft ............................. 5-8
Switches ................................................ 3-12
T
Tachometer ........................................... 2-15
Throttle .................................................. 3-10
Throttle lever ........................................... 2-9
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-33
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-27
W
Warning labels ........................................ 1-3
Watercraft characteristics ...................... 1-12
Water separator ...................................... 3-7
Y
Yamaha Adjustable Sponson
(Y.A.S.).................................................. 2-19
UF0W72.book Page 2 Thursday, August 22, 2002 1:27 PM
