PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU05019

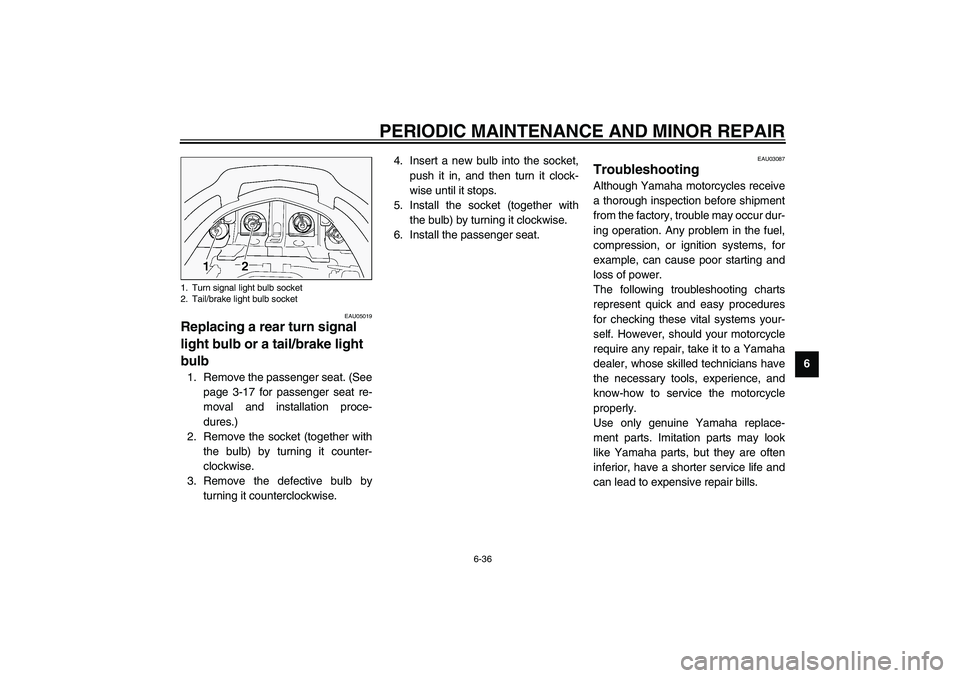

Replacing a rear turn signal
light bulb or a tail/brake light
bulb 1. Remove the passenger seat. (See
page 3-17 for passenger seat re-
moval and installation proce-
dures.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by
turning it counterclockwise.4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the passenger seat.
EAU03087
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
1. Turn signal light bulb socket
2. Tail/brake light bulb socket
U5JWE2.book Page 36 Wednesday, November 6, 2002 3:32 PM
8-1
8
EAU01038

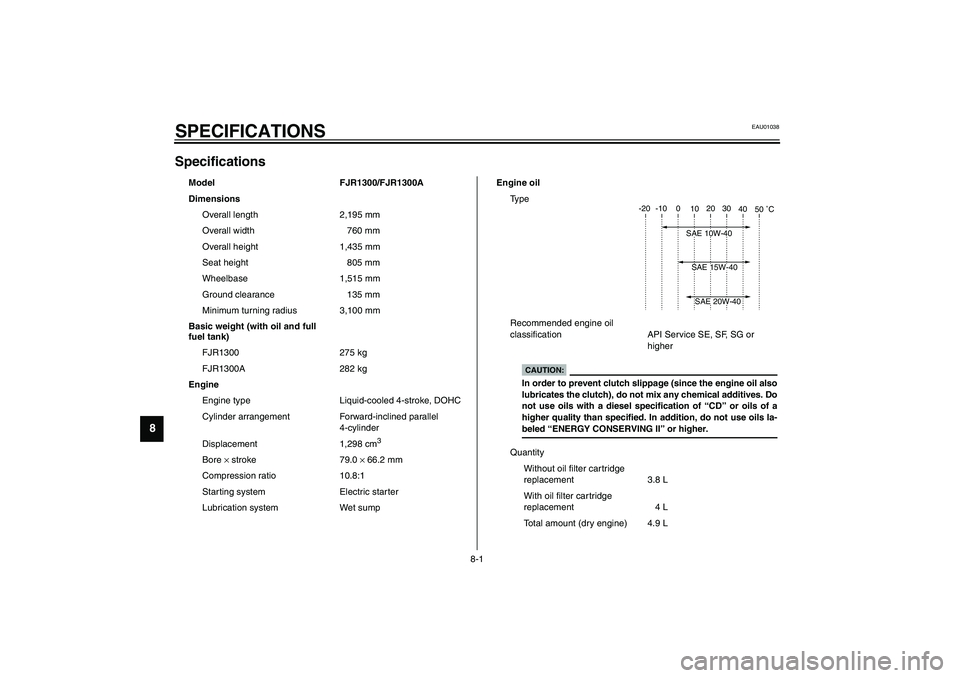

8-SPECIFICATIONSSpecifications CS-01E
Model FJR1300/FJR1300A
Dimensions
Overall length 2,195 mm
Overall width 760 mm
Overall height 1,435 mm
Seat height 805 mm
Wheelbase 1,515 mm
Ground clearance 135 mm
Minimum turning radius 3,100 mm
Basic weight (with oil and full
fuel tank)
FJR1300 275 kg
FJR1300A 282 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 1,298 cm
3
Bore × stroke 79.0 × 66.2 mm
Compression ratio 10.8:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter cartridge
replacement 3.8 L
With oil filter car tridge
replacement 4 L
Total amount (dry engine) 4.9 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 15W-40SAE 20W-40SAE 10W-40
CAUTION:In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils la-
beled “ENERGY CONSERVING II” or higher.
