EAU00462PERIODIC MAINTENANCE AND MINOR REPAIR
EWA00012WARNING0
Because loading has an enormous
impact on the handling, braking, per-
formance and safety characteristics of
your motorcycle, you should keep the
following precautions in mind.
•NEVER OVERLOAD THE MOTOR-
CYCLE! Operation of an over-
loaded motorcycle may result in
tire damage, loss of control, or
severe injury. Make sure that the
total weight of rider, passenger,
cargo, and accessories does not
exceed the specified maximum
load for the vehicle.
•Do not carry along loosely packed
items, which can shift during a
ride.
•Securely pack the heaviest items
close to the center of the motorcy-
cle and distribute the weight even-
ly on both sides.
•Adjust the suspension and tire air
pressure with regard to the load.
•Check the tire condition and air
pressure before each ride.
6-14
6
EAU00658

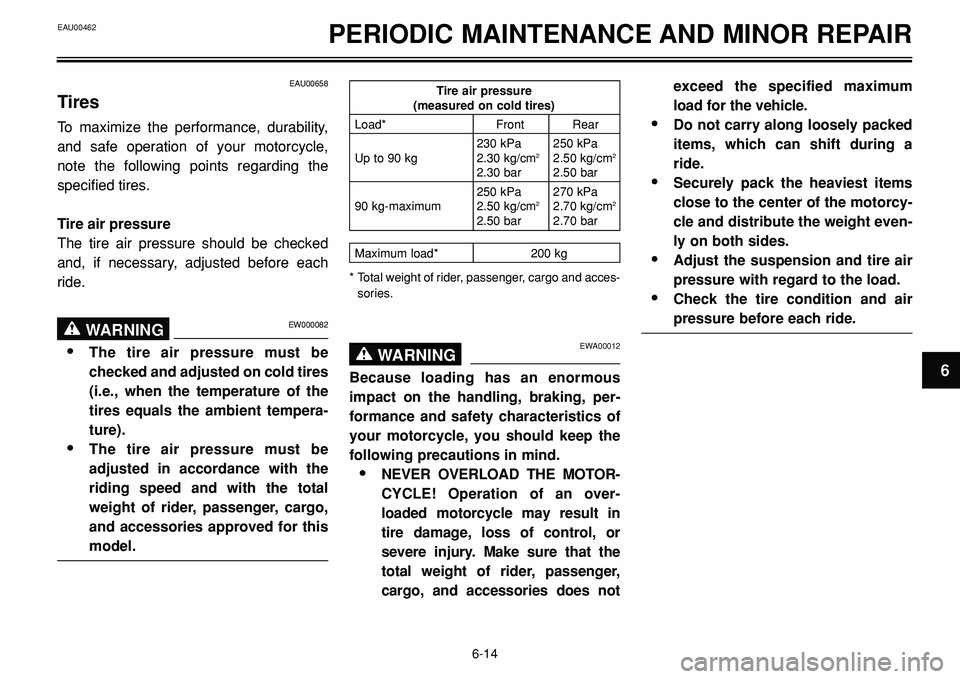

Tires
To maximize the performance, durability,
and safe operation of your motorcycle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
EW000082WARNING0
•The tire air pressure must be
checked and adjusted on cold tires
(i.e., when the temperature of the
tires equals the ambient tempera-
ture).
•The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, cargo,
and accessories approved for this
model.
Tire air pressure(measured on cold tires)
Load* Front Rear
230 kPa 250 kPa
Up to 90 kg 2.30 kg/cm
22.50 kg/cm2
2.30 bar 2.50 bar
250 kPa 270 kPa
90 kg-maximum 2.50 kg/cm
22.70 kg/cm2
2.50 bar 2.70 bar
Maximum load* 200 kg
* Total weight of rider, passenger, cargo and acces-
sories.

SPECIFICATIONSEAU01038
8-1
8
Specifications
ModelBT1100
Dimensions
Overall length 2,200 mm
Overall width 800 mm
Overall height 1,140 mm
Seat height 812 mm
Wheelbase 1,530 mm
Ground clearance 168 mm
Minimum turning radius 2,980 mm
Basic weight
(with oil and full fuel tank)250.5 kg
Engine
Engine type Air-cooled 4-stroke,
SOHC
Cylinder arrangement V type 2-cylinder
Displacement 1,063 cm
3
Bore x stroke 95.0 x 75.0 mm
Compression ratio 8.3 : 1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended API Service SE, SF, SG or
engine oil classification higher
Be sure to use motor oils that do not contain anti-friction modifiers.
Passenger car motor oils (often labeled “ENERGY CONSERVING II”)
contain anti-friction additives which will cause clutch and/ or starter
clutch slippage, resulting in reduced component life and poor
engine performance.8
Quantity
Without oil filter
cartridge replacement 3.0 L
With oil filter cartridge
replacement 3.1 L
Total amount
(dry engine) 3.6 L
CAUTION:
-20-10 0 1020304050°C
SAE 10W-30
SAE 10W-40
SAE 20W-40
SAE 15W-50
SAE 15W-40

SPECIFICATIONS
8-3
8
EAU01038
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 230 kPa; 2.30 kg/cm
2; 2.30 bar
Rear 250 kPa; 2.50 kg/cm
2; 2.50 bar
90 kg–maximum*
Front 250 kPa; 2.50 kg/cm
2; 2.50 bar
Rear 270 kPa; 2.70 kg/cm
2; 2.70 bar
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 x MT 3.50
Rear
Type Cast wheel
Size 17 x MT 5.50
Brakes
Front:
Type Dual disc brake
Operation Right hand
Fluid DOT 4Rear:
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front: Telescopic fork
Rear: Swingarm
(link suspension)
Spring/shock absorber
Front: Coil spring / oil damper
Rear: Coil spring / gas-oil damper,
spring preload adjustable
Wheel travel
Front: 130 mm
Rear: 113 mm
Electrical system
Ignition system Transistorized coil ignition
(digital)
Charging system
Type A.C. magneto
Standard output 14V, 350W at 5,000 r/min

SPECIFICATIONSEAU01038
8-5
EAU01064

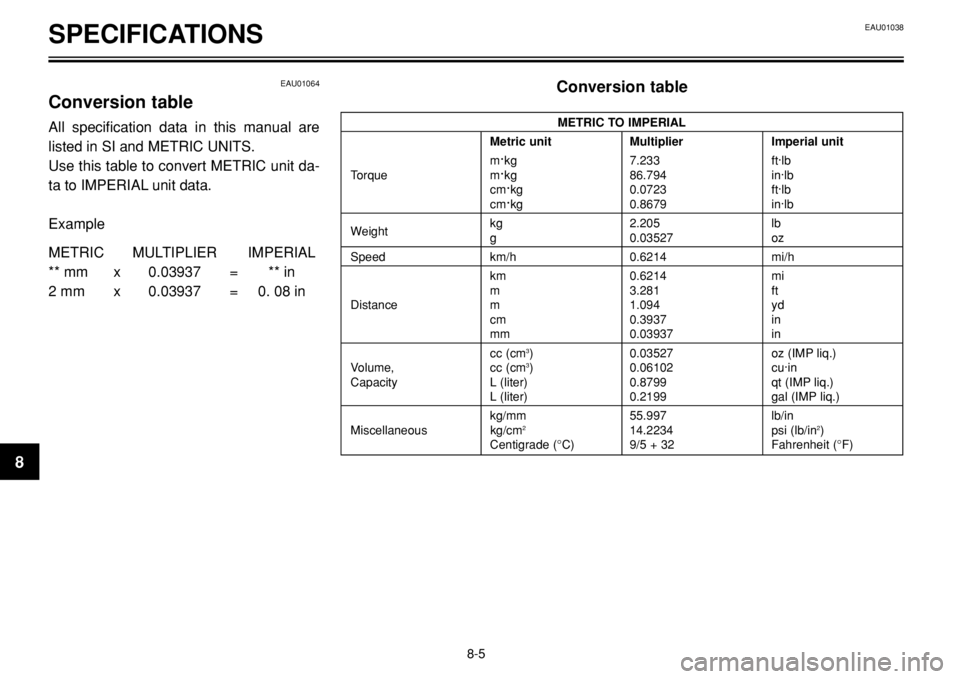

Conversion table
All specification data in this manual are
listed in SI and METRIC UNITS.
Use this table to convert METRIC unit da-
ta to IMPERIAL unit data.
Example
METRIC MULTIPLIER IMPERIAL
** mm x 0.03937 = ** in
2 mm x 0.03937 = 0. 08 in
Conversion table
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
m
·kg 7.233 ft·lb
Torque m·kg 86.794 in·lb
cm·kg 0.0723 ft·lbcm·kg 0.8679 in·lb
Weight kg 2.205 lb
g 0.03527 oz
Speed km/h 0.6214 mi/h
km 0.6214 mi
m 3.281 ft
Distance m 1.094 yd
cm 0.3937 in
mm 0.03937 in
cc (cm3) 0.03527 oz (IMP liq.)
Volume, cc (cm3) 0.06102 cu·in
Capacity L (liter) 0.8799 qt (IMP liq.)
L (liter) 0.2199 gal (IMP liq.)
kg/mm 55.997 lb/in
Miscellaneous kg/cm
214.2234 psi (lb/in2)
Centigrade (°C) 9/5 + 32 Fahrenheit (°F)
8
