Changing a wheel
There are two attachment points for the jack on each side of the vehicle\
. These attachment points are
under the center of each door.The jack is located in the storage compart\
ment under the cargo area floor
(to the right in five-seat models and in the center in seven-seat model\
s), and the crank is stored in the
tool bag.
WARNING!
- There is an attachment point on each side of the vehicle located under\
the pillars between the front
and rear doors. This point is used during the production process only, a\
nd is NOT intended for
attaching the jack.
-The undersides of accessory running boards are not intended for attachi\
ng the jack.
To change a wheel:
1. Park the vehicle on a firm, level, nonslippery surface.
2. Engage the parking brake and put the gear selector in the Park positi\
on.
3. Loosen the wheel bolts by exerting downward pressure on the lug wrenc\
h.
4. Remove the wheel cap (where applicable) using the lug wrench in the\
tool kit.
5. With the wheels still on the ground, use the lug wrench to loosen the\
wheel bolts 1/2 - 1 turn. Turn the
bolts counterclockwise to loosen the bolts.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_08.htm (10 of 12)12/30/200\
6 4:19:01 PM

2003 VOLVO XC90
CAUTION
- The vehicle must not be driven with wheels of different dimensions or \
with a spare tire other than
the one that came with the vehicle. The use of different size wheels can\
seriously damage your
vehicle's transmission.
- Correct tightening torque on wheel bolts must be observed.
- The wheel bolts should never be greased or lubricated.
- Extended, chromed wheel bolts must not be used with steel rims, as the\
y make it impossible to fit
the hub caps.
pg. 121 Wheels and tires

Attaching the jack
l Position the jack correctly on the bar in the attachment (see illustrat\
ion above) and crank while
simultaneously guiding the base of the jack to the ground. The base of t\
he jack must be flat on a level,
firm, non-slippery surface. Before raising the vehicle, check that the j\
ack is still correctly positioned in
the attachment.
l Raise the vehicle until the wheel to be changed is lifted off the ground\
.
l Unscrew the wheel bolts completely and carefully remove the wheel so as \
not to damage the threads
on the studs.
NOTE: To avoid excessive wear and the necessity of rebalancing, mark and reins\
tall wheels in the same
location and position as before removal. To lessen the chance of imbalan\
ce, each wheel hub is equipped
with a guide stud to ensure that a removed wheel can be reinstalled in i\
ts original position (as when
changing over to winter tires/wheels).
Installing the wheel
l Clean the contact surfaces on the wheel and hub.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_08.htm (11 of 12)12/30/200\
6 4:19:01 PM

2003 VOLVO XC90
l Lift the wheel and place it on the hub.
l Install the wheel bolts and tighten handtight. Using the lug wrench, tig\
hten crosswise until all bolts
are snug.
l Lower the vehicle to the ground and alternately tighten the bolts crossw\
ise to 102 ft. lbs. (140 Nm).
l Install the wheel cap (where applicable).

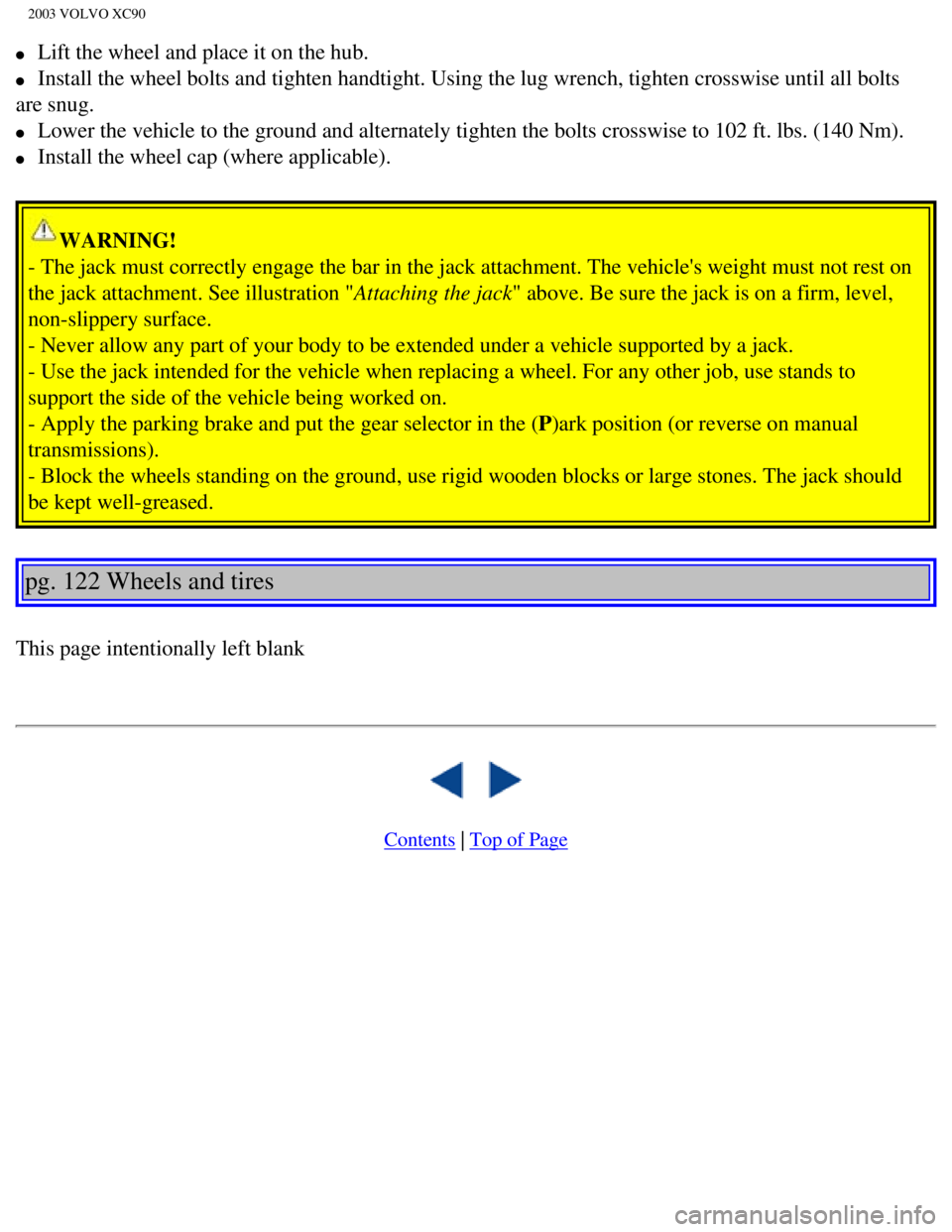

WARNING!
- The jack must correctly engage the bar in the jack attachment. The veh\
icle's weight must not rest on
the jack attachment. See illustration "Attaching the jack" above. Be sure the jack is on a firm, level,
non-slippery surface.
- Never allow any part of your body to be extended under a vehicle suppo\
rted by a jack.
- Use the jack intended for the vehicle when replacing a wheel. For any \
other job, use stands to
support the side of the vehicle being worked on.
- Apply the parking brake and put the gear selector in the (P)ark position (or reverse on manual
transmissions).
- Block the wheels standing on the ground, use rigid wooden blocks or la\
rge stones. The jack should
be kept well-greased.
pg. 122 Wheels and tires
