2003 VOLVO XC70
Warning messages override text messages from any car feature that also u\
ses the text window. A warning
message must be acknowledged (erased) before you can access the featur\
e of your choice. Press button A to
erase the warning message.
Erased messages are stored in the system's memory until the required act\
ion has been taken. You can scroll
through the stored messages by pressing button A. The text window can be\
cleared (the message will be
returned to memory) by pressing button A again.
General messages
STOP SAFELY: Stop and switch off the engine - to help prevent serious risk of damage\
.
STOP ENGINE: Stop and switch off the engine - to help prevent serious risk of damage\
.
SERVICE URGENT: Take your car to an authorized Volvo retailer for inspection as soon as \
possible.
SEE MANUAL: Refer to your owner's manual. For additional information, please contact\
your Volvo
retailer.
SERVICE REQUIRED: Take your car to an authorized Volvo retailer for inspection at your con\
venience
(but preferably before the next scheduled maintenance service).
FIX NEXT SERVICE: Have the system affected inspected at the next scheduled maintenance ser\
vice.
TIME FOR REGULAR SERVICE: This light will come on at 7,500 mile (12,000 km) intervals, after 750\

hours of driving or after 12 months, whichever occurs first, to remind t\
he driver that the service interval has
been exceeded. The light will stay on for 2 minutes after start until re\
set by the servicing retailer.

pg. 31 Switches in the center console

The positions of these buttons may vary, depending on the specifications\
of your car
1. Not in use
2. Not in use
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02a.htm (10 of 13)12/30/20\
06 4:17:53 PM

2003 VOLVO XC70
These 12 volt sockets can be used to plug in certain accessories such as\
cellular telephones, etc. The key
must be in position I (or higher) for the auxiliary socket to function\
.
The auxiliary sockets can also be used for cigarette lighters, which are\
available at your Volvo retailer.
NOTE: The cover should be kept on when the auxiliary socket is not in use.
Ashtrays
Volvo cars in North America do not have an ashtray in the front seat as \
standard equipment. If you want
to have an ashtray in the front seat, please contact your Volvo retailer\
.

pg. 40 Electrically operated windows

Electrically operated windows
The electrically operated windows are controlled by buttons in the arm r\
ests. The ignition switch must
be ON * (ignition key in position I, II or the engine running) for the\
electrically operated windows to
function.
To lower: Press down the front edge of the button to the first detent ("stop").\

To raise: Lightly pull up the front edge of the button to the first detent ("sto\
p").
* The electrically operated windows will also function after the ignitio\
n has been switched off as long as
neither of the front doors has been opened.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (12 of 18)12/30/20\
06 4:17:54 PM

2003 VOLVO XC70
If the LED in the switch is OFF: The rear door windows can be raised or lowered with the buttons on
the rear door armrests or with the buttons on the driver's door armrest.\
If the LED in the switch is ON: The rear door windows can only be raised or lowered with the buttons
on the driver's door armrest.

pg. 41 Rearview/sideview mirrors

Rearview mirror
A Normal position
B Night position, reduces glare from following headlights
Autodim function (option)
The autodim function reacts to headlights from following traffic and aut\
omatically reduces glare.
NOTE: This function is automatically switched off when the gear selector is pl\
aced in the Reverse
position.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_02b.htm (14 of 18)12/30/20\
06 4:17:54 PM

2003 VOLVO XC70
WARNING!
l Because the driver's seat can be adjusted with the ignition off, childre\
n should never be left
unattended in the car.
l Movement of the seat can be STOPPED at any time by pressing any button o\
n the power seat
control panel.
l Do not adjust the seat while driving. The seat should be adjusted so tha\
t the brake pedal can be
depressed fully. In addition, position the seat as far rearward as comfo\
rt and control allow.
l The seat rails on the floor must not be obstructed in any way when the s\
eat is in motion.
Programming the memory

Three seat positions can be programmed. To program a seat position:
1 Adjust the seat to the desired position.
2 Hold down the MEM button.
3 While holding down the MEM button, press button 1 to program the curren\
t position of the seat.
Buttons 2 and 3 can be programmed in the same way. To move the seat to a\
programmed position, press
and hold down button 1, 2 or 3 until the seat moves to the preset positi\
on and stops.
As a safety precaution, the seat will stop automatically if the button i\
s released before the seat has
reached the programmed position.
NOTE: The seat has an overload protector which engages if an object blocks the\
movement of the seat.
If this happens, remove the object and wait 20 seconds before operating \
the seat again.
* This option is only available on the driver's seat.

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04a.htm (3 of 11)12/30/200\
6 4:17:56 PM

2003 VOLVO XC70
WARNING!
The nylon cargo net must not be used when the optional rear-facing auxil\
iary child seat in the cargo
area is in use.
When not in use, the cargo net should not be stored unattached in the ca\
r to prevent it from being
thrown forward in the event of a sudden stop, etc.
CAUTION:
l If the net is installed in the forward position and the rear seat cushio\
ns are folded forward, the net
should be positioned so that it is in front of the rear seat cushions bu\
t behind the front seat backrests (C).
l The eyelets on the floor of the car under the front seats must not be us\
ed to secure the lower straps of
the cargo net. If these eyelets are used and the front seats are moved b\
ack, the cargo net or upper
brackets may be damaged.
Folding and storing the cargo net
The cargo net can be folded and stored under the floor of the cargo area\
on cars not equipped with the
optional auxiliary rear-facing child seat or the optional bass speaker.
Press the buttons on the hinges at the center of the upper and lower rod\
s. This releases the hinges so that
the net can be folded.

pg. 71 Cargo area cover, Vanity mirrors

Cargo area cover
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (15 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
Reading lights - front/rear
The reading lights can be switched on or off by pressing the respective \
buttons. These lights switch off
automatically after 10 minutes if the engine is not running. If the engi\
ne is running, the lights stay on
indefinitely. The lights can be switched off at any time by pressing the\
button.



Contents | Top of Page
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (21 of 21)12/30/20\
06 4:17:57 PM

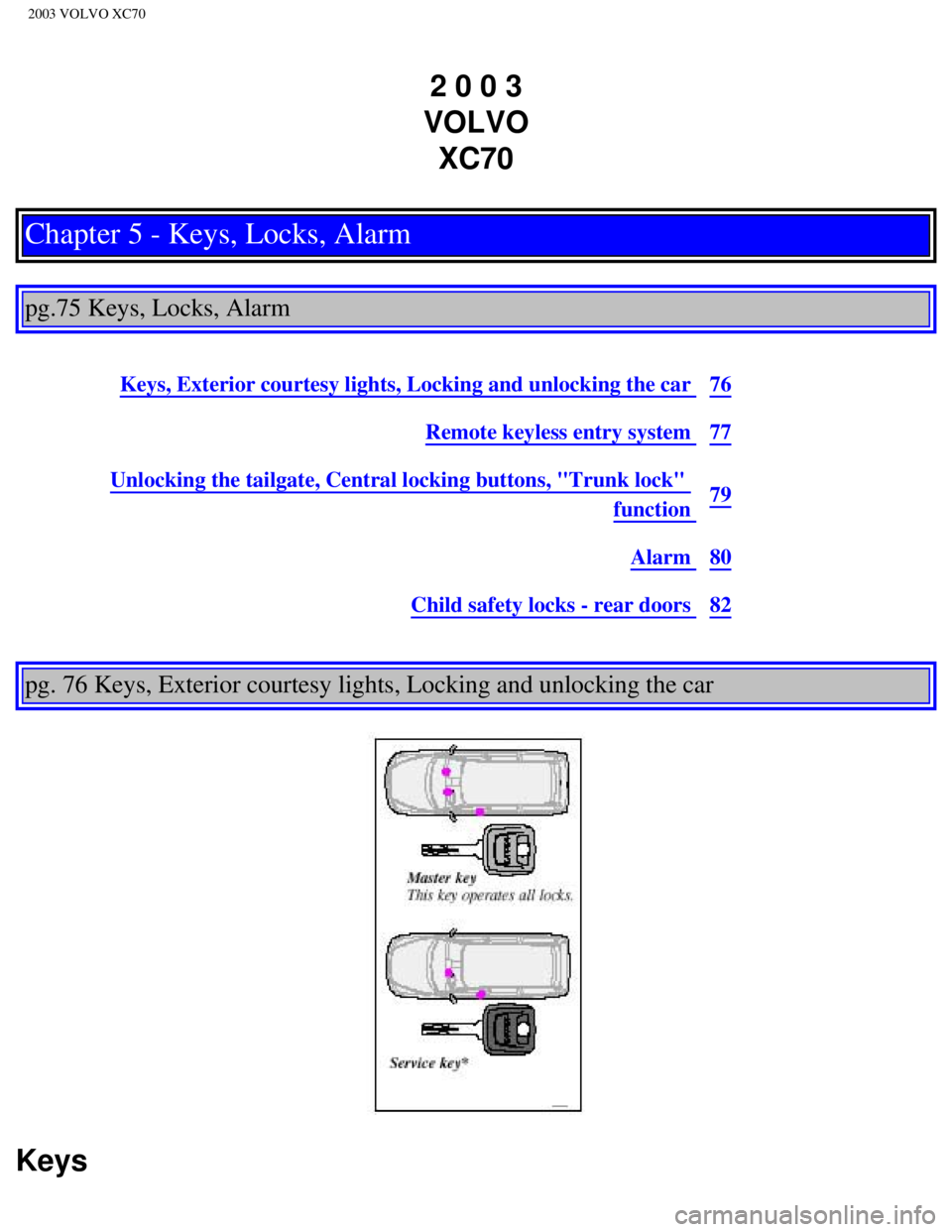

2003 VOLVO XC70
2 0 0 3
VOLVO XC70
Chapter 5 - Keys, Locks, Alarm


pg.75 Keys, Locks, Alarm

Keys, Exterior courtesy lights, Locking and unlocking the car 76
Remote keyless entry system 77
Unlocking the tailgate, Central locking buttons, "Trunk lock"
function 79
Alarm 80
Child safety locks - rear doors 82

pg. 76 Keys, Exterior courtesy lights, Locking and unlocking the car

Keys
file:///K|/ownersdocs/2003/2003_XC70/03xc70_05.htm (1 of 11)12/30/2006\
4:17:58 PM

2003 VOLVO XC70
alarm system(s). The car can also be locked/unlocked with the key.
If one of the transmitters is misplaced, contact your nearest authorized\
Volvo retailer for assistance.

Buttons in remote control
1 - Lock, 2 - Unlock, 3 - Open tailgate
4 - "Panic" function *, 5 - Approach lighting
Using the remote control
l Press the LOCK button once to lock all doors, fuel filler door and tailgate.
l Press the UNLOCK button once to unlock the driver's door only. Press this button again (within 10
seconds) to unlock all doors, fuel filler door and tailgate.
l To open the tailgate (without unlocking the other doors), press the ta\
ilgate-unlock button twice.
NOTE:
l If the doors are unlocked with the remote, the locks will automatically \
reengage (re-lock) and the
alarm will reset after 2 minutes unless a door has been opened.
l The lock/unlock and alarm features can also be utilized by using the key\
s.
FCC ID:LQNP2T-APU
This device complies with part 15 of the FCC rules. Operation is subject\
to the following conditions: (1)
This device may not cause harmful interference, and (2) this device mu\
st accept any interference
received, including interference that may cause undesired operation.
Canadian 2306104388
Model 504 2927 by Donnelly Operation is subject to the following conditi\
ons: (1) this device may not
cause interference, and (2) this device must accept any interference, \
including interference that may
cause undesired operation of the device
Canadian 2306104388A
Model 509 977 by Connaught Electronics Operation is subject to the follo\
wing conditions: (1) this
device may not cause interference, and (2) this device must accept any\
interference, including
