2003 Land Cruiser 100 Navigation (OM60A00U)
You can find your destination using various
methods. See page 7 through 22 for the de-
tailed steps.
1. By Home (
switch on the Destina-
tion screen): You can select your own home
without entering the address each time. In
this case, it is necessary to register your
home beforehand. See page 7 for the de-
tailed steps.
2. By Preset destination (
— switches on the Destination screen): Yo u
can select one of 5 preset destinations di-
rectly. In this case, it is necessary to register
the destinations beforehand. See page 7
for the detailed steps.
3. By Address: You can input the house
number and the street address by using the
input keys. See page 8 for the detailed
steps.
4. By Point of Interest: You can select one
of the many points of interest that have been
already stored in the system’s database.
There are more than 50 categories to choose
from including restaurants, banks and auto-
motive places. See page 10 for the detailed
steps. 5. By Marked point:
You can register your
own favorite destinations as a “Marked
Point”. The system allows you to store up
100 marked points. See page 17 for the de-
tailed steps.
6. By Previous destination: You can select
a destination from any of the last 20 pre-
viously set destinations. See page 17 for the
detailed steps.
7. By Emergency: You can select one of the
three points of emergency service points
that have been already stored in the sys-
tem’s database. See page 18 for the detailed
steps.
8. By Intersection: Yo u c a n e n t e r t h e
names of two intersecting streets. This is
helpful if you do not know the specific street
address of your destination but know the
general vicinity. See page 19 for the detailed
steps.
9. By Freeway Entrance/Exit: You can en-
ter the name of the freeway (interstate) en-
trance or exit. See page 20 for the detailed
steps.
10. By Previous starting point: You can en-
ter a point where the system has started to
guide last time. See page 21 for the detailed
steps. 11. By Map selection: You can select a des-
tination simply by touching the location on
the displayed map. See page 22 for the de-
tailed steps.
INFORMATION

When inputting the destination, the
response to the switch may be slow.
 “Points of interest” registration is
made based on the NAVTECH “Stan-
dard POI Inclusion List” and infoU-
SA POI data.
 If there is no point registered,
switches such as “Marked point”,
“Previous destination” or “Previous
starting point” are dimmed and not
available.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route or
a route without traffic congestion.
 Route guidance may not be available
if there is no road data for the speci-
fied location.

7
2003 Land Cruiser 100 Navigation (OM60A00U)
When setting the destination, you
should use the map on a scale of one
half mile or smaller.
 To select an “Address”, “Points of
interest”, “Freeway Entrance/Exit”
or “Intersection” in a different area,
it is necessary to change the search
area.
CAUTION
While you are driving, be sure to follow
traffic regulations and keep the road
condition in mind. If a traffic sign on the
road has been changed, the route guid-
ance may provide wrong information.
Touch the switch on the Destination
input screen.
The screen changes and displays the
map location of your home.
The system starts the guidance from your
current position to your home immediately
after you touch the
switch .
For the steps to register your home, see
”Registering your home” on page 37.
Touch any of — (preset destina-
tion) switches on the destination input
screen.
The screen changes and displays the map
location of the preset destination.
The system starts the guidance from your
current position to the preset destination im-
mediately after you touch the preset destina-
tion switch.
For the steps to register the preset destina-
tion, see “Registering preset destination” on
page 39.
Destination input by HOME
Destination input by PRESET
D
ESTINATION

8
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE008
There are 2 ways to input a destination by
address.Touch the
“Address” switch on the
Destination screen. The Address screen
appears, and then you can input a house
number.
Touch letters directly on the screen to in-
put a house number.
1UE009
After inputting a house number, touch the
“Enter” switch to display the screen which
you can input a street name.
It is possible to input a street name first.
Touch the
“Street” switch to display the
screen which you can input a street name.
1UE010
After each letter is input, the system
searches the database for street names that
match. Alphabet keys are dimmed if the da-
tabase does not have a match for the next
letter in the remaining list of matching street
names.
When you input numerals, touch the
“0–9” switch to display the screen for
numeral input.
Based on your input, the number of matching
sites appears at the top right of the screen.
After th e number decreases to some extent,
touch the
“List” switch to display the street
selection list. If the number of matches de-
creases to 4 or less, the screen changes au-
tomatically to the selection list.
Destination input by
A
DDRESS
(a) Inputting a house number
and street name

9
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE003
When you find your desired street name,
touch
of the item. The screen
changes and displays the map location of
the selected destination and the route
preference. (See “( a) Entering Destina-
tion” on page 22.)
If the same address exists in more than one
city, the current screen changes to the
screen to select the city. Select or enter your
desired city.
1UE011
If you input a street name first, the screen
changes. You can then input the house num-
ber.
1UE012
If the above screen appears, you can select
an address range on that screen. The screen for selecting last 5 cities appears
if you touch the
“City” switch on the Ad-
dress screen on page 8.
1UE013
Last 5 cities are displayed on the screen.
If you have not used this function yet, any city
is not displayed on the screen.
Touch the
of the desired city name.
The current screen changes to the screen
which is for inputting a street name.
All cities: All cities are selected.
Near 5 cities: Near 5 cities are displayed.
Selecting a city in the list changes to the dis-
play to input a street name.
Input city name: The screen for inputting
the city name appears.
(b) Selecting a city to search

10
2003 Land Cruiser 100 Navigation (OM60A00U)
The screen for inputting a city name appears
if you touch the
“Input city name”
switch on the Address screen.
1UE014
Input the city name.
After the number decreases to some ex-
tent, touch the
“List” switch to display
the city selection list. If the number of
matches decreases to 4 or less, the
screen changes automatically to the
selection list.
Touch the
of the desired city name. The current screen changes
to the screen
which is for inputting a street name. After
inputting a street name, the screen may
change to the screen which is for input-
ting a house number. Input a house num-
ber. Then touch the
“Enter” switch to
display the map screen.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “(a) Enter-
ing destination” on page 22.) There are 3 ways to select a point of in-
terest location.
(a) Input the name directly
(b) Selecting a city to search
(c) Selecting from the categories
It will not take a long time for you to find
your destinat
ion if you use a combination
of the searching ways of (a), (b) and (c).
Destination Input by POI

11
2003 Land Cruiser 100 Navigation (OM60A00U)
Touch the “POI” switch on the Destina-
tion screen.

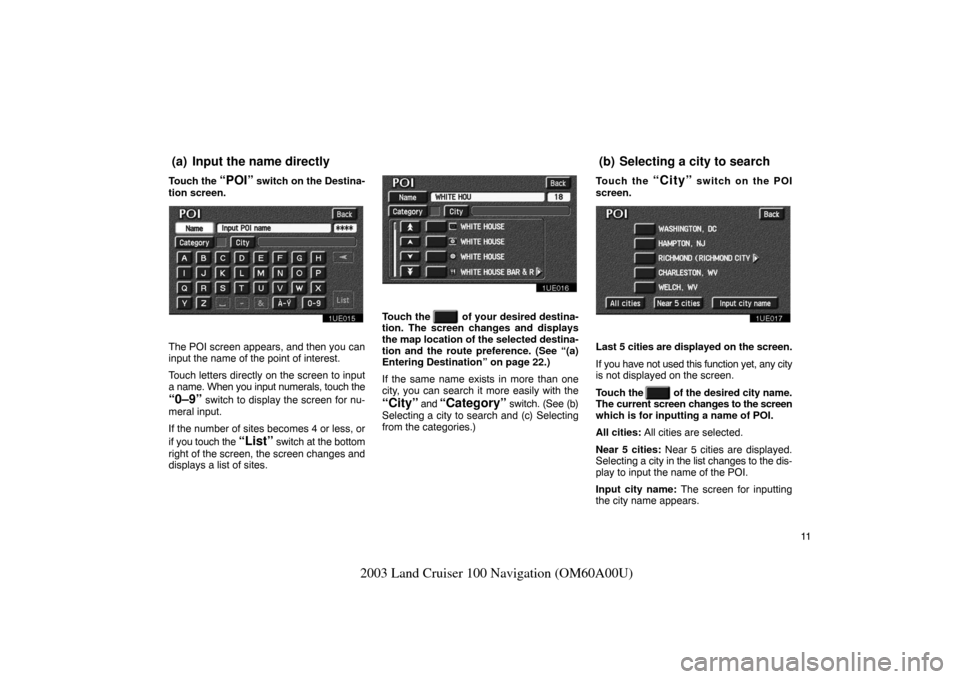

1UE015
The POI screen appears, and then you can
input the name of the point of interest.
Touch letters directly on the screen to input
a name. When you input numerals, touch the
“0–9” switch to display the screen for nu-
meral input.
If the number of sites becomes 4 or less, or
if you touch the
“List” switch at the bottom
right of the screen, the screen changes and
displays a list of sites.
1UE016
Touch the of your desired destina-
tion. The screen changes and displays
the map location of the selected destina-
tion and the route preference. (See “(a)
Entering Destination” on page 22.)
If the same name exists in more than one
city, you can search it more easily with the
“City” and “Category” switch. (See (b)
Selecting a city to search and (c) Selecting
from the categories.) Touch the
“City” switch on the POI
screen.
1UE017
Last 5 cities are displayed on the screen.
If you have not used this function yet, any city
is not displayed on the screen.
Touch the
of the desired city name.
The current screen changes to the screen
which is for inputting a name of POI.
All cities: All cities are selected.
Near 5 cities: Near 5 cities are displayed.
Selecting a city in the list changes to the dis-
play to input the name of the POI.
Input city name: The screen for inputting
the city name appears.
(a) Input the name directly(b) Selecting a city to search

12
2003 Land Cruiser 100 Navigation (OM60A00U)
1UE018
Input the city name.
If the number of sites becomes 4 or less, or
if you touch the
“List” switch on the screen,
the screen changes and displays the selec-
tion list.
Touch the
of the desired city name.
After entering the city name, input the
name of the POI. Touch the
“Category” switch on the
POI screen.
1UE019
The categories are shown on the screen.
When you touch the icon switch of your
desired category, more detailed catego-
ries are shown.
1UE020a
When you touch the of your desired
category, the screen changes and dis-
plays the menu to input a name.
(c) Selecting from the catego-
ries

13
2003 Land Cruiser 100 Navigation (OM60A00U)

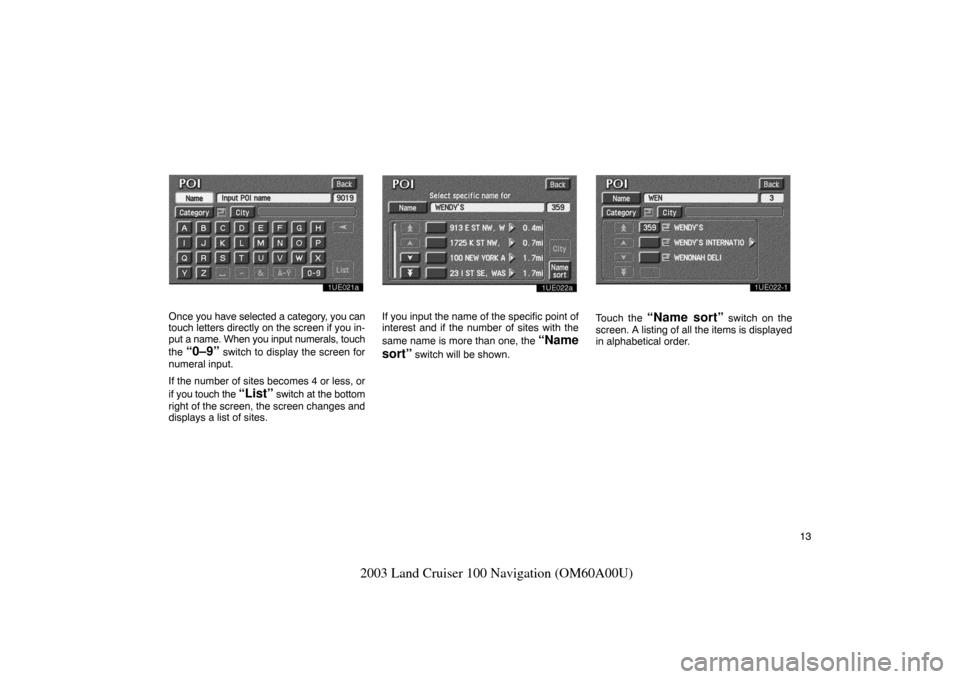

1UE021a
Once you have selected a category, you can
touch letters directly on the screen if you in-
put a name. When you input numerals, touch
the
“0–9” switch to display the screen for
numeral input.
If the number of sites becomes 4 or less, or
if you touch the
“List” switch at the bottom
right of the screen, the screen changes and
displays a list of sites.
1UE022a
If you input the name of the specific point of
interest and if the number of sites with the
same name is more than one, the
“Name
sort”
switch will be shown.
1UE02211UE0221
Touch the “Name sort” switch on the
screen. A listing of all the items is displayed
in alphabetical order.
