The compact spare tire can be used many
times, if necessary. It has tread life of up
to 4800 km (3000 miles) depending on
road conditions and your driving habits.
When tread wear indicators appear on the
tire, replace the tire.
See also the tire section in Section 72
for details on the tread wear indicators
and other service information.
CAUTION
The compact spare tire was de-
signed especially for your Toyota.
Do not use it on any other vehicle.
Do not use more than one compact
spare tire at the same time.
The pressure for the compact spare
tire must be 420 kpa (4.2 kgf/cm2 or
bar, 60 psi).
Do not exceed 80 km/h (50 mph)
when driving with the compact
spare tire.
The standard tire should be re-
paired and replaced as soon as
possible.
Avoid sudden acceleration, sudden
deceleration and sharp turns with
the compact spare tire.
NOTICE
Your ground clearance is reduced
when the compact spare tire is
installed so avoid driving over ob-
stacles and drive slowly on rough,
unpaved roads and speed bumps.
Also, do not attempt to go through an
automatic car wash as the vehicle
may get caught, resulting in damage.SM41004

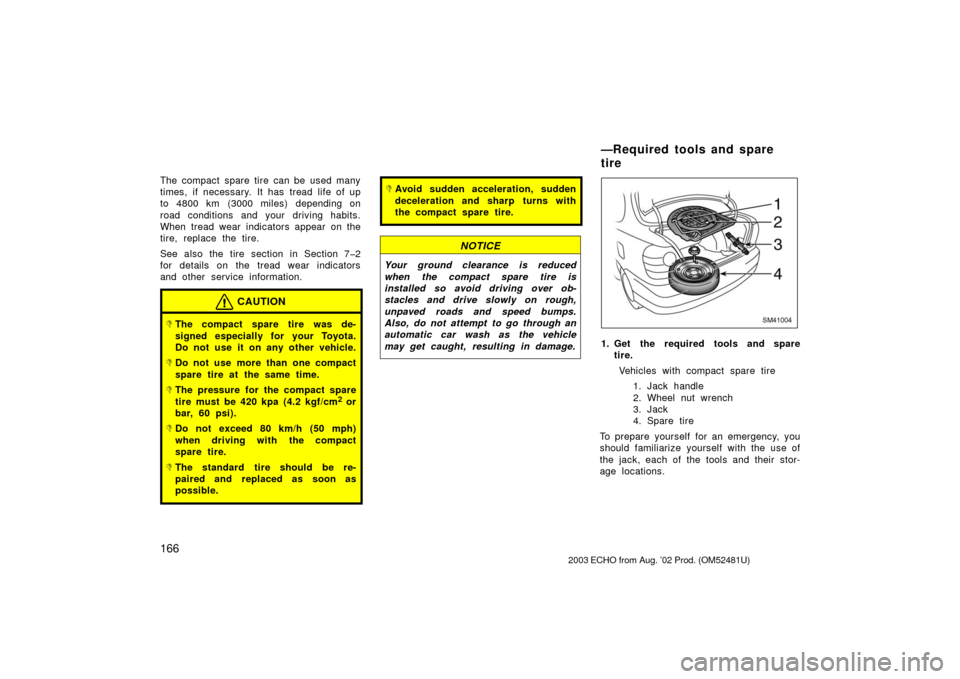

1. Get the required tools and spare tire.
Vehicles with compact spare tire 1. Jack handle
2. Wheel nut wrench
3. Jack
4. Spare tire
To prepare yourself for an emergency, you
should fam iliarize yourself with the use of
the jack, each of the tools and their stor-
age locations.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
—R eq u ired to o ls an d sp are
tire

190
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For foldingdown
rear seatbacks, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbings are not cut, frayed, worn or
damaged.Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See Section 73 for additional in-
formation.
Engine coolant level
Make sure the coolant level is between
the “FULL” and “LOW” lines on the see
through reservoir when the engine is cold.
See Section 72 for additional information.
Radiator, condenser, and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt or insects. See Section 72
for additional information.
Battery electrolyte level
Make sure the electrolyte level of all bat-
tery cells is between upper and lower lev-
el lines on the case. Add only distilled
water when replenishing. See Section 73
for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See Section 72 for additional information.
2003
ECHO from Aug. ’02 Prod. (OM52481U)

192
Some states have vehicle emission in-
spection programs which include OBD
(OnBoard Diagnostics) checks.
The OBD system monitors the operation
of the emission control system. When the
OBD system determines that a problem
exists somewhere in the emission control
system, the malfunction indicator lamp
comes on. In this case, your vehicle may
not pass the I/M test and need to be
repaired. Contact your Toyota dealer to
service the vehicle.
Even if the malfunction indicator lamp
does not come on, your vehicle may not
pass the I/M test as readiness codes
have not been set in the OBD system.
Readiness codes are automatically set
during ordinary driving. However, when the
battery is disconnected or run down, the
codes are erased. Also, depending on
your driving habits, the codes may not be
completely set.
Also, if the malfunction indicator lamp had
come on recently due to temporary mal-
function such as a loose fuel tank cap,
your vehicle may not pass the I/M test. The malfunction indicator lamp will go off
after taking several driving trips, but the
error code in the OBD system will not be
cleared unless about 40 trips or more are
taken.
If your vehicle does not pass the I/M test
even the malfunction indicator lamp does
not come on, contact your Toyota dealer
to prepare the vehicle for retesting.
2003
ECHO from Aug. ’02 Prod. (OM52481U)
Emissions inspection and
maintenance (I/M) programs

2003 ECHO from Aug. ’02 Prod. (OM52481U)
Publication No. OM52481U
Part No. 01999-52481
Printed in Japan 01020800
(U)
Quick index
If a service reminder indicator or warning buzzer comes on 86 . . . .
 If your vehicle will not start 160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your engine stalls while driving 163 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 163 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

 If you have a flat tire 164 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
 If your vehicle needs to be towed 173 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during break-in period 138 . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 152 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
 General maintenance 189 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
 Complete index NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 138 for detailed information.
Fuel tank capacity:
45 L (11.9 gal., 9.9 lmp.gal.)
Engine oil:
API grade SL “EnergyConserving” or ILSAC
multigrade engine oil is recommended.
See page 202 for detailed information.
Automatic transmission fluid: Toyota Genuine ATF Type TIV
See page 228 for detailed information.
Tire information: See pages 208 through 213.
Tire pressure: See page 229.
