2003 SUBARU BAJA key battery

2-6
Remote keyless entry system (if equipped)CAUTION
Do not expose the transmitter to severe shocks, such as those
experienced as a result of dropping or throwing. Do not take the transmitter apart except when replacing the
battery. Do not get the transmitter wet. If it gets wet, wipe it dry with a
cloth immediately. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received,including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user ’s authority to
operate the equipment.
Two transmitters are provided for your vehicle.
The keyless entry system has the following functions. Locking and unlocking the doors without a key
Sounding a panic alarm
Arming and disarming the security system (if your vehicle is equipped
with an optional security system). See the next section “Security system
(if equipped) ” for detailed information.
The operable distance of the keyless entry system is approximately 30
feet (10 meters). However, this distance will vary depending on environ-
mental conditions. Range may be reduced near sources of RF interfer-
ence such as power plants and radio/television broadcasting towers.
The keyless entry system does not operate when the key is inserted in the ignition switch.

Keys and doors2-9
–
CONTINUED –
DISARM” button and then simultaneously depress “LOCK/ARM” and
“UNLOCK/DISARM” buttons for more than two seconds. An electronic
chirp will sound one time and the turn signal lights will flash one time
to inform you that the audible signal has been turned on. Replacing the battery CAUTION
Do not let dust, oil or water get on or in the transmitter when
replacing the battery.
When the transmitter battery begins to get weak, transmitter range will
begin to decrease and the LED will not illuminate. Replace the batteryas soon as possible.
HB1002BB
HB1001BA
Positive (+) side facing up
To replace the battery:
1. Remove the two screws on the back of the transmitter case by
using a phillips screwdriver.
2. Separate the case.
3. Remove the old battery from the holder.
4. Replace with a new battery (Type CR2032 or equivalent) making
sure to install the new battery with the positive (+) side facing up.
5. Install the back half of the transmitter case.
6. Reinstall the two screws on the back of the transmitter case.
After the battery is replaced, the transmitter must be synchro- nized with the keyless entry system ’s control unit. Press either

2-16
a second time. nEmergency disarming
If you cannot disarm the system using the transmitter (i.e. the trans-
mitter is lost, broken or the transmitter battery is too weak), you can
disarm the system without using the transmitter.
To disarm the system:
1. Unlock the door with the key and then open the door.
2. The alarm will sound.
3. Insert the key into the ignition switch and cycle it from “LOCK” to
“ON” three (3) times within 5 seconds .
Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button pressed for more
than two seconds .
The horn will sound and the turn signal lights will flash.
To deactivate it, press the “LOCK/ARM” button or “UNLOCK/DISARM”
button.
Unless a button on the remote is pressed, the alarm will be deacti-
vated after approximately 30 seconds. Valet mode
When you choose the valet mode, the security system does not oper-
ate. In valet mode, the remote transmitter is used only for locking and
unlocking the doors and panic activation.
To enter the valet mode, open the driver ’s door and keep the
“UNLOCK/DISARM” button depressed for more than two seconds .
The security system indicator light will continue to flash 2 times per second indicating that the system is in the valet mode.
To exit valet mode, open the driver ’s door and keep the “UNLOCK/
DISARM” button pressed for more than two seconds. The indicator
will stop flashing. Passive arming
When passive arming mode has been programmed by the dealer,
arming of the system is automatically accomplished without using the

Keys and doors2-19
–
CONTINUED –
the transmitter. Tripped sensor identification
If an electronic chirp sounds four times and the turn signal lights flash
four times when you disarm the system, this indicates that the alarm
was triggered. The number of times the indicator light flashes indi-
cates what sensor caused the alarm condition.
To enter identification mode:
1. Open the driver ’s door and leave it open.
2. Turn the ignition switch to “ON” two times. ( “LOCK” “ON”
“LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications. Flashing one time: Any door has been opened.
Flashing three times: The impact sensor in the system ’s unit has
been activated. This may indicate that your vehicle has been shocked
or tampered with by some outside force and/or unauthorized person.Flashing four times: The ignition switch has been turned on or the
battery has been disconnected. NOTE The battery must be reconnected before the indicator light will flash.
To exit this mode, close the door and turn the ignition switch to “ON”.

6-2
Interior light Dome light
HS6003BC
The dome light switch has three positions: ON: The light stays on continuously.
DOOR (middle position): The light comes on when any of the doors is
open. The light remains on for several seconds and gradually goes out
after all doors are closed.
The light also can be turned on by use of the keyless entry transmitter. See the “Keyless entry system ” in chapter 2 for detailed information.
OFF: The light stays off.
When leaving your vehicle, make sure the light goes out to avoid batterydischarge.

11-4

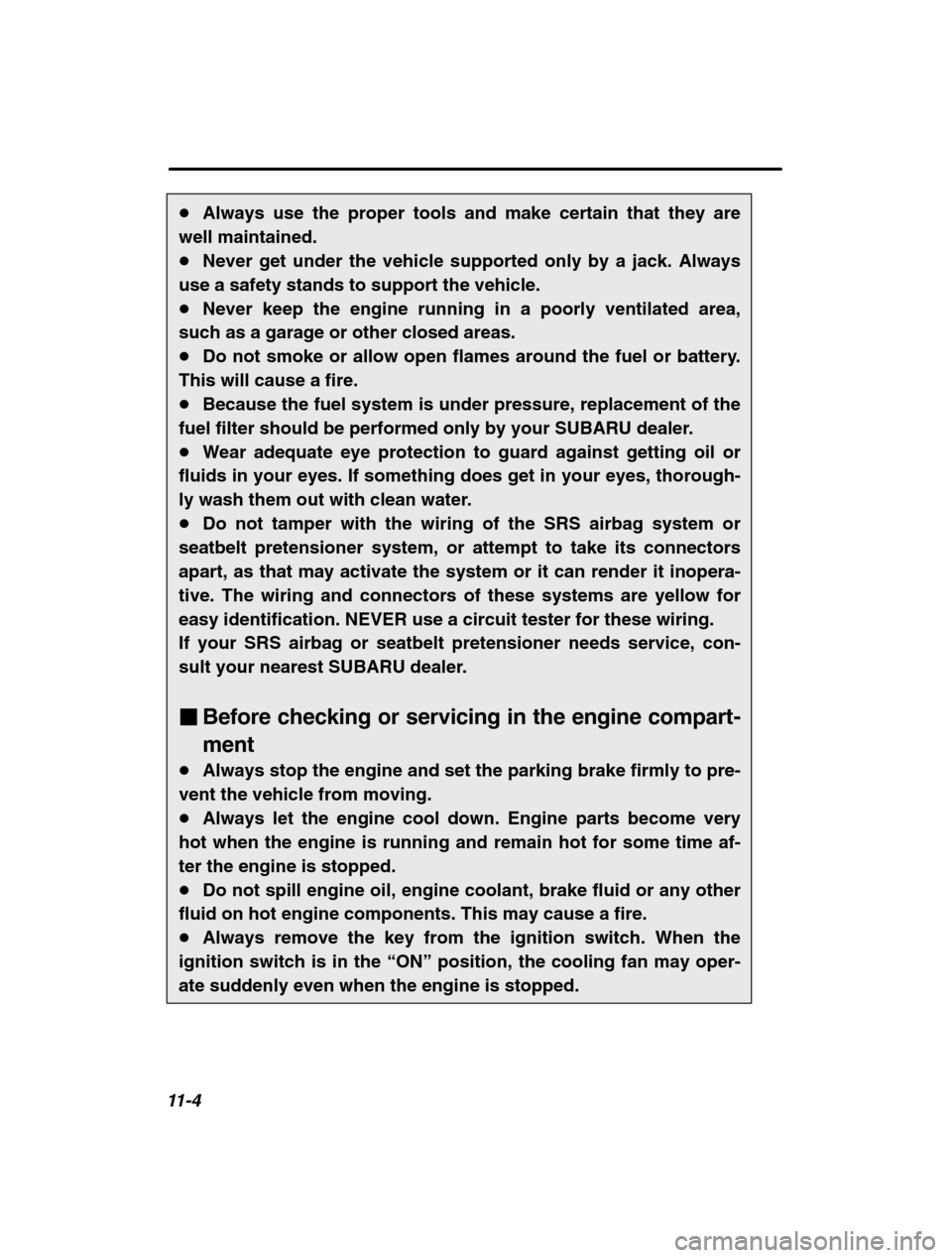

Always use the proper tools and make certain that they are
well maintained. Never get under the vehicle supported only by a jack. Always
use a safety stands to support the vehicle. Never keep the engine running in a poorly ventilated area,
such as a garage or other closed areas. Do not smoke or allow open flames around the fuel or battery.
This will cause a fire. Because the fuel system is under pressure, replacement of the
fuel filter should be performed only by your SUBARU dealer. Wear adequate eye protection to guard against getting oil or
fluids in your eyes. If something does get in your eyes, thorough-
ly wash them out with clean water. Do not tamper with the wiring of the SRS airbag system or
seatbelt pretensioner system, or attempt to take its connectorsapart, as that may activate the system or it can render it inopera-tive. The wiring and connectors of these systems are yellow for
easy identification. NEVER use a circuit tester for these wiring. If your SRS airbag or seatbelt pretensioner needs service, con-
sult your nearest SUBARU dealer. Before checking or servicing in the engine compart- ment
Always stop the engine and set the parking brake firmly to pre-
vent the vehicle from moving. Always let the engine cool down. Engine parts become very
hot when the engine is running and remain hot for some time af-ter the engine is stopped. Do not spill engine oil, engine coolant, brake fluid or any other
fluid on hot engine components. This may cause a fire. Always remove the key from the ignition switch. When the
ignition switch is in the “ON” position, the cooling fan may oper-
ate suddenly even when the engine is stopped.
