2003 SUBARU BAJA Steering

v
–
CONTINUED –
deploys could suffer very serious injuries. Because the SRS air- bag needs enough space for deployment, the driver should al-ways sit upright and well back in the seat as far from the steeringwheel as practical while still maintaining full vehicle control and
the front passenger should move the seat as far back as possibleand sit upright and well back in the seat.
Carefully read the sections “Seat, seatbelts and SRS airbag ” in chapter 1
of this owner ’s manual for instructions and precautions concerning the
seatbelt system and SRS airbag system. CHILD SAFETY
WARNING
Never hold a child on your lap or in your arms while the ve-
hicle is moving. The passenger cannot protect the child from in- jury in a collision, because the child will be caught between the
passenger and objects inside the vehicle. While riding in the vehicle, infants and small children should
always be placed in the REAR seat in an infant or child restraint
system which is appropriate for the child ’s age, height and
weight. If a child is too big for a child restraint system, the childshould sit in the REAR seat and be restrained using the seatbelts.According to accident statistics, children are safer when properlyrestrained in the rear seating positions than in the front seatingpositions. Never allow a child to stand up or kneel on the seat. Put children aged 12 and under in the REAR seat properly re-
strained at all times in a child restraint device or in a seatbelt. TheSRS airbag deploys with considerable speed and force and caninjure or even kill children, especially if they are 12 years of ageand under and are not restrained or improperly restrained. Be-
cause children are lighter and weaker than adults, their risk being
injured from deployment is greater. NEVER INSTALL A REARWARD FACING CHILD SAFETY SEAT
IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLACING THE CHILD ’S HEAD TOO

xviii
Instrument panel
HBF021BB
1 Door locks (page 2-3)
2 Outside mirror (page 3-30)
3 Light control lever (page 3-17)
4 Combination meter (page 3-7)
5 Wiper control lever (page 3-22)
6 Hazard warning flasher switch(page 3-6)
7 Climate control (page 4-1)
8 Gear shift lever (MT) (page 7-11)/Selector lever
(AT) (page 7-14) 9
Audio (page 5-1)
Q Cruise control (page 7-28)
W Horn (page 3-33)
E SRS airbag (page 1-39)
R Tilt steering (page 3-32)
T Fuse box (page 11-49)
Y Hood lock release (page 11-5)
U Power door locking switch(page 2-21)
I Power window (page 2-21)

1-2

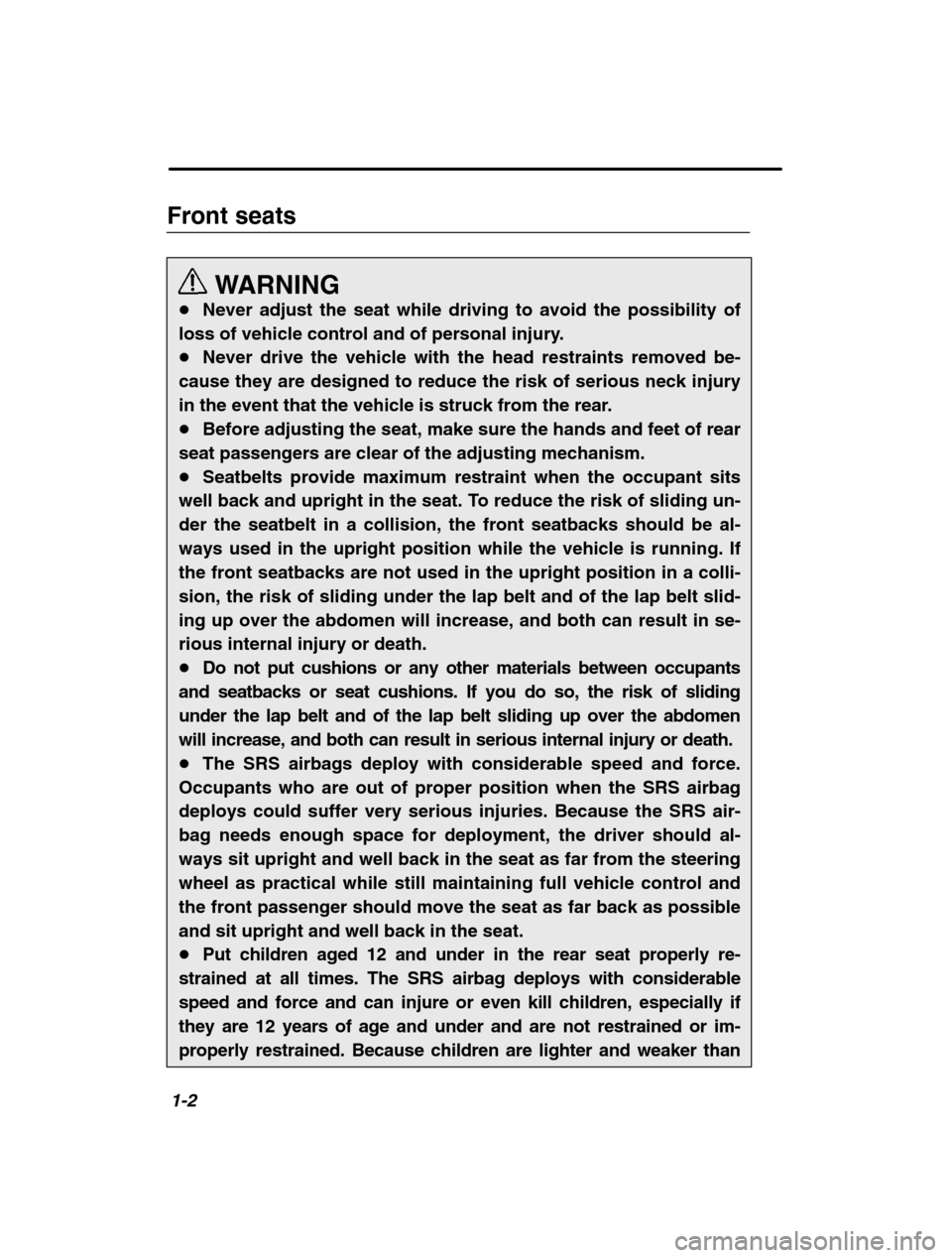

Front seatsWARNING
Never adjust the seat while driving to avoid the possibility of
loss of vehicle control and of personal injury. Never drive the vehicle with the head restraints removed be-
cause they are designed to reduce the risk of serious neck injury
in the event that the vehicle is struck from the rear. Before adjusting the seat, make sure the hands and feet of rear
seat passengers are clear of the adjusting mechanism. Seatbelts provide maximum restraint when the occupant sits
well back and upright in the seat. To reduce the risk of sliding un-der the seatbelt in a collision, the front seatbacks should be al-ways used in the upright position while the vehicle is running. Ifthe front seatbacks are not used in the upright position in a colli-
sion, the risk of sliding under the lap belt and of the lap belt slid-ing up over the abdomen will increase, and both can result in se-rious internal injury or death. Do not put cushions or any other materials between occupants
and seatbacks or seat cushions. If you do so, the risk of sliding
under the lap belt and of the lap belt sliding up over the abdomen
will increase, and both can result in serious internal injury or death. The SRS airbags deploy with considerable speed and force.
Occupants who are out of proper position when the SRS airbag
deploys could suffer very serious injuries. Because the SRS air-bag needs enough space for deployment, the driver should al-ways sit upright and well back in the seat as far from the steeringwheel as practical while still maintaining full vehicle control and
the front passenger should move the seat as far back as possibleand sit upright and well back in the seat. Put children aged 12 and under in the rear seat properly re-
strained at all times. The SRS airbag deploys with considerable
speed and force and can injure or even kill children, especially if
they are 12 years of age and under and are not restrained or im-
properly restrained. Because children are lighter and weaker than

Seat, seatbelt and SRS airbags1-3
–
CONTINUED –
adults, their risk of being injured from deployment is greater. For
that reason, we strongly recommend that ALL children (including
those in child seats and those that have outgrown child restraint
devices) sit in the REAR seat properly restrained at all times in a
child restraint device or in a seatbelt, whichever is appropriate for
the child’s age, height and weight.
Secure ALL types of child restraint devices (including forward fac-
ing child seat) in the REAR seats at all times.
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE CHILD ’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
According to accident statistics, children are safer when properly
restrained in the rear seating positions than in the front seating
positions. For instructions and precautions concerning child re-
straint systems, see the “Child restraint systems ” section in this
chapter.
HB0290
HS0233
Adjust the seatback to upright position. Sit well back and upright.
Move the seat as far from the steering wheel as practical. Adjust the seatback toupright position. Sit well back and upright.Move the seat as far back as possible.

Seat, seatbelt and SRS airbags1-9
–
CONTINUED –

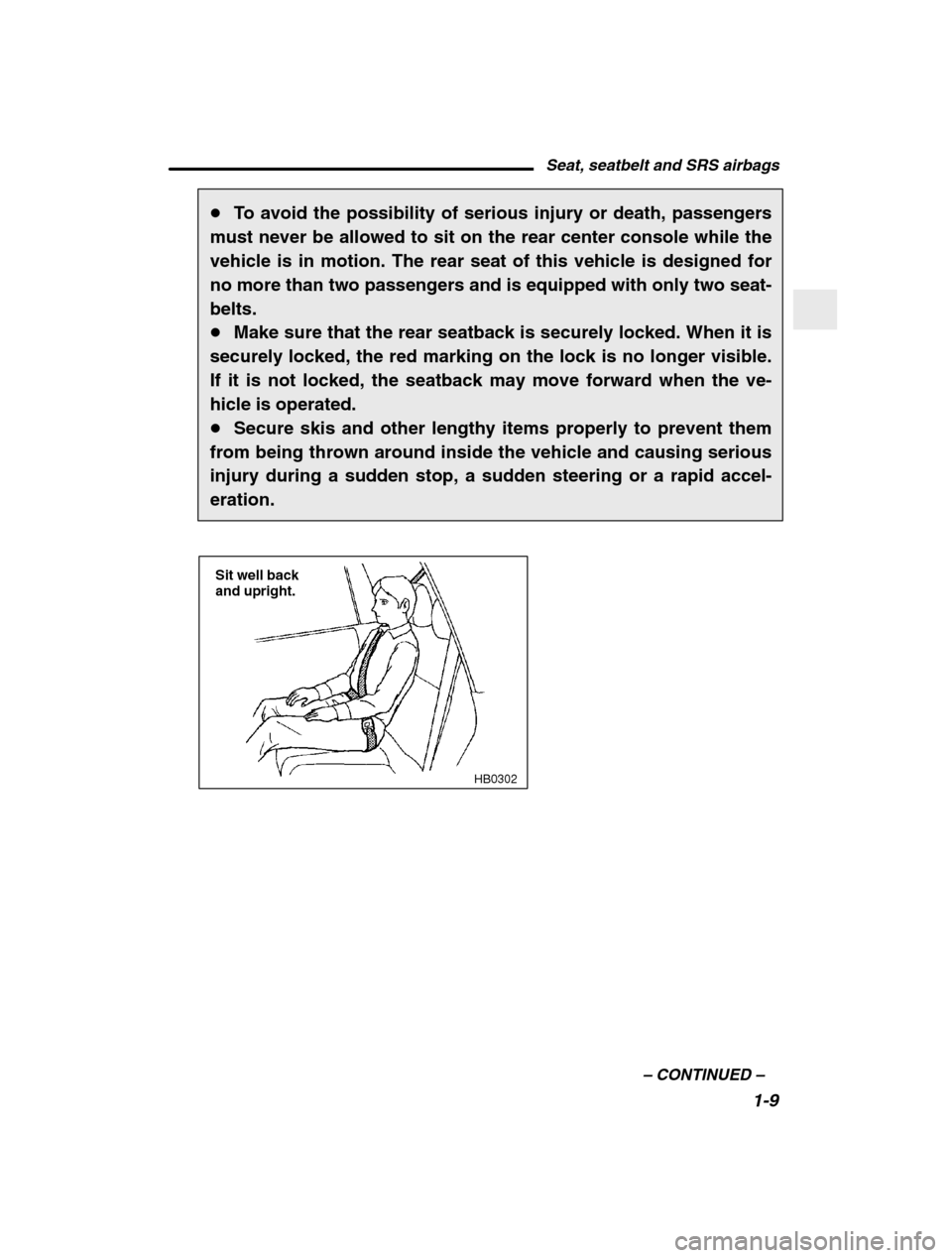

To avoid the possibility of serious injury or death, passengers
must never be allowed to sit on the rear center console while the
vehicle is in motion. The rear seat of this vehicle is designed forno more than two passengers and is equipped with only two seat-belts. Make sure that the rear seatback is securely locked. When it is
securely locked, the red marking on the lock is no longer visible.If it is not locked, the seatback may move forward when the ve-hicle is operated. Secure skis and other lengthy items properly to prevent them
from being thrown around inside the vehicle and causing serious
injury during a sudden stop, a sudden steering or a rapid accel-eration.
HB0302
Sit well back and upright.

1-18
HS0231
Never place the shoulder belt under the arm or behind the back.
HS0230
Always wear the
seatbelts correctly.
Adjust the seatback to upright position. Sit well back and upright.
CAUTION
Metallic parts of the seatbelt can become very hot in a vehicle that has been closed up in sunny weather; they could burn an oc-cupant. Do not touch such hot parts until they cool.
Front seatbelts
OM-H0044OM-H0043
1. Adjust the seat position:
Driver’ s seat: Adjust the seatback to the upright position. Move the
seatback as far from the steering wheel as practical while still main-
taining full vehicle control.Front passenger ’s seat: Adjust the seatback to the upright position.
Move the seat as far back as possible.

1-40

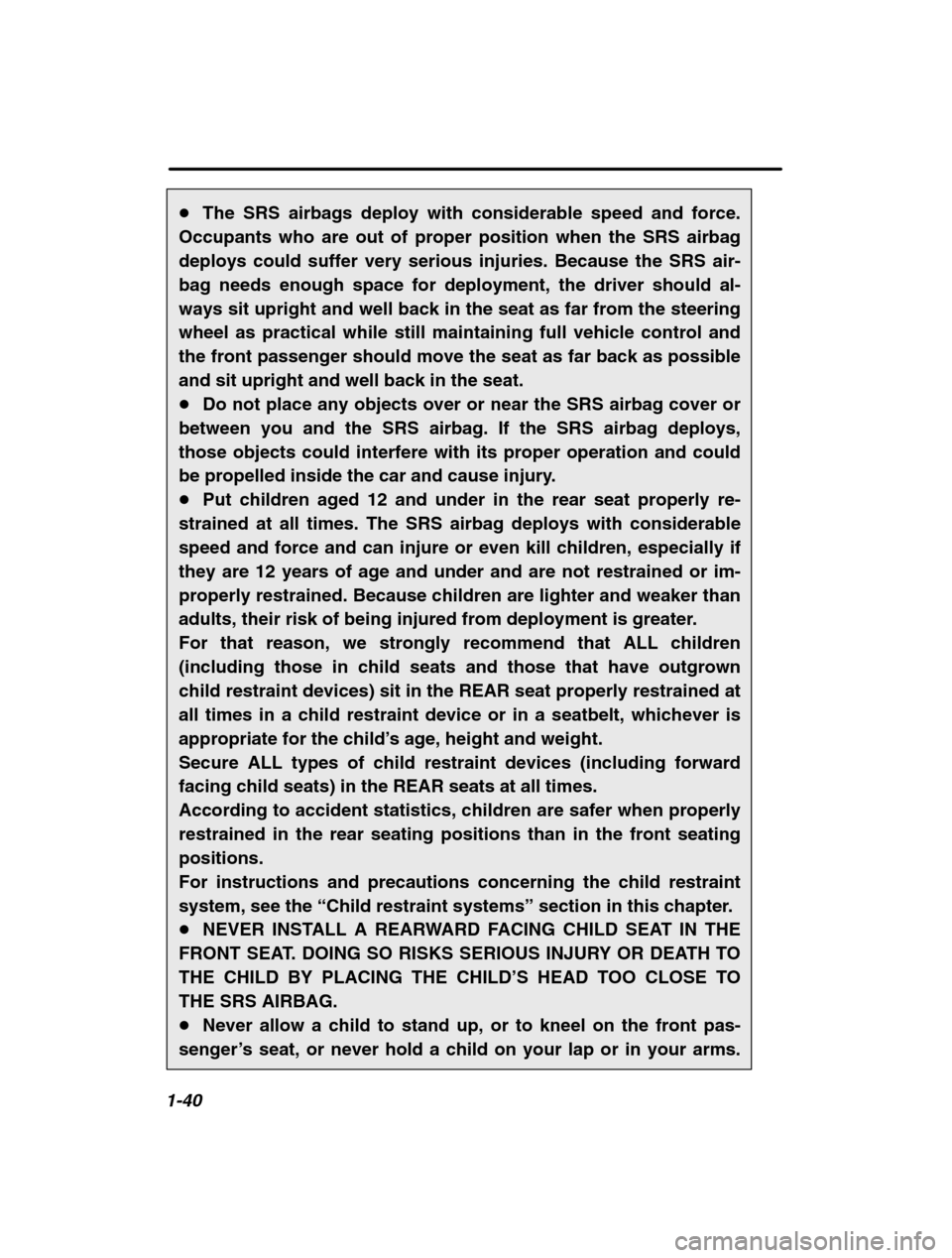

The SRS airbags deploy with considerable speed and force.
Occupants who are out of proper position when the SRS airbag
deploys could suffer very serious injuries. Because the SRS air-bag needs enough space for deployment, the driver should al-ways sit upright and well back in the seat as far from the steeringwheel as practical while still maintaining full vehicle control and
the front passenger should move the seat as far back as possibleand sit upright and well back in the seat. Do not place any objects over or near the SRS airbag cover or
between you and the SRS airbag. If the SRS airbag deploys,those objects could interfere with its proper operation and could
be propelled inside the car and cause injury. Put children aged 12 and under in the rear seat properly re-
strained at all times. The SRS airbag deploys with considerablespeed and force and can injure or even kill children, especially ifthey are 12 years of age and under and are not restrained or im-properly restrained. Because children are lighter and weaker than
adults, their risk of being injured from deployment is greater.
For that reason, we strongly recommend that ALL children(including those in child seats and those that have outgrownchild restraint devices) sit in the REAR seat properly restrained atall times in a child restraint device or in a seatbelt, whichever isappropriate for the child ’s age, height and weight.
Secure ALL types of child restraint devices (including forwardfacing child seats) in the REAR seats at all times.According to accident statistics, children are safer when properlyrestrained in the rear seating positions than in the front seatingpositions.For instructions and precautions concerning the child restraint
system, see the “Child restraint systems ” section in this chapter.
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TOTHE CHILD BY PLACING THE CHILD ’S HEAD TOO CLOSE TO
THE SRS AIRBAG. Never allow a child to stand up, or to kneel on the front pas-
senger’ s seat, or never hold a child on your lap or in your arms.

Seat, seatbelt and SRS airbags1-43
–
CONTINUED –
SRS frontal airbag
WARNING
NEVER INSTALL A REARWARD FACING CHILD SAFETY SEAT
IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLACING THE CHILD ’S HEAD TOO
CLOSE TO THE SRS AIRBAG. Never allow a child to stand up, or to kneel on the front pas-
senger’ s seat, or never hold a child on your lap or in your arms.
The SRS airbag deploys with considerable force and can injure oreven kill the child. The SRS airbag deploys with considerable speed and force.
Occupants who are out of proper position when the SRS airbag
deploys could suffer very serious injuries. Because the SRS air-bag needs enough space for deployment, the driver should al-ways sit upright and well back in the seat as far from the steeringwheel as practical while still maintaining full vehicle control and
the front passenger should move the seat as far back as possibleand sit upright and well back in the seat. It is also important to wear your seatbelt to help avoid injuriesthat can result when the SRS airbag contacts an occupant not inproper position such as one thrown toward the front of the carduring pre-accident braking.
HB0306 HB0307
Never install rearward facing child restraint system in the front passen-
ger’
s seat.
Never allow a child to stand up, or to kneel on the front passenger ’s
seat
