2003 SSANGYONG MUSSO wheel

BODY WIRING SYSTEM 9A-11
ENGINE ROOM1 Engine Room Relay Box
1.1 Main Wiring Connector
1.2 Main Wiring Connector
1.3 Main Wiring Connector ........................................Gasoline E/G
1.4 Joint
1.5 Compressor, Condenser Fan Relay .....................Diesel E/G
1.6 Condenser Fan Relay 2
1.7 Air Conditioner Relay
1.8 Resistor with Diode .............................................. Gasoline E/G
1.9 Front Fog Lamp Relay
1.10 Condenser Fan Relay 1
1.11 Tail Lamp Relay
1.12 Horn Relay
2 Octane Selector ................................................... Gasoline E/G with HFM
3 Preheating Unit .................................................... Diesel E/G
4 Preheating Timer Unit .......................................... Diesel E/G
5 ECS Main Wiring Connector ................................ ECS
6 Brake Leveling Fluid Sensor
7 ABD Main Wiring Connector ................................ABD 5.0
7 - 1 ABS Main Wiring Connector ................................ABD 5.0
8 ABD main Wiring Connector ................................ABD 5.0
9 Engine Temperature Sensor ................................Diesel E/G
10 ABS 5.0 ECU ....................................................... ABS 5.0
10-1 ABD 5.0 Modulator ............................................... ABD 5.0
11 Front Washer Motor ............................................. Diesel E/G
12 Head Lamp Relay
13 Compressor ......................................................... Air Conditioner
14 Wheel Speed Sensor ........................................... ABS 5.0 or ABD 5.0

9A-12 BODY WIRING SYSTEM
15 LH Damper........................................................... ECS
16 Ground 1
17 Ground 2
18 Locking Hub Solenoid
19 Condenser Fan Relay .........................................Gasoline E/G
20 LH Position Lamp
21 LH Head Lamp
22 LH Head Lamp Leveling Device ...........................Leveling Device
23 Thermo Switch 2 .................................................. Gasoline E/G with HFM
24 Thermo Switch 3 .................................................. Gasoline E/G with HFM & Air Conditioner
25 LH Front Fog Lamp
26 LH Horn ............................................................... Black Out Driving Lamp (Domestic)
27 Condenser Fan Motor .........................................Diesel E/G
28 Black Out Driving Lamp .......................................Black Out Driving Lamp (Domestic)
29 LH Horn ............................................................... Leveling Device
30 LH Condenser Fan Motor ....................................Gasoline E/G with Air Conditioner
31 Thermo Switch 1 .................................................. Diesel E/G or Gasoline E/G with HFM
32 Resistor ............................................................... Gasoline E/G with Air Conditioner
33 Thermo Switch 4 .................................................. Gasoline E/G with HFM & Air Conditioner
34 Ambient Censor ................................................... Air Conditioner
35 RH Condenser Fan Motor ....................................Gasoline E/G
36 RH Horn
37 RH Front Fog Lamp
38 RH Position Lamp
39 RH Head Lamlp
40 RH Head Lamp Leveling Device ..........................Leveling Device
41 Wheeling Sensor ................................................. ECS
42 Wheel Speed Sensor (FR) ..................................ABS 5.0, 5.3 or ABD 5.0, 5.3
43 RH Damper .......................................................... ECS
44 Alternator Extension Connector ...........................Gasoline E/G
45 Alternator ............................................................. Gasoline E/G
46 Alternator Extension Joint box ..............................Diesel E/G
47 Alternator Extension Connector ...........................Diesel E/G
48 Ground 3
49 Fusible Link Box ................................................... Gasoline E/G
49-1 Fusible Link Box ................................................... Diesel E/G
50 Receiver Dryer ..................................................... Gasoline E/G with Air Conditioner
50-1 Receiver Dryer ..................................................... Diesel E/G with Air Conditioner
51 Hood Switch ......................................................... Diesel E/G with Black Out Driving Lamp
52 Front Washer Motor ............................................. Gasoline E/G
53 Main Wiring Connector

BODY WIRING SYSTEM 9A-13
FLOOR1 ECS Main Wiring Connector ........................ ECS
2 Main Wiring Connector
3 Main Wiring Connector
4 Main Wiring Connector
5 ABD Main Wiring Connector ........................ ABD
6 LH Front Door Switch
7 LH Tension Reducer
8 Ground 1
9 LH Rear Door Wiring Connector
10 Wheel Speed Sensor (RL) ..................ABD, ABS
11 Damper (RL) ................................................ ECS
12 LH Rear Door Switch
13 LH Rear Speaker
14 Ground 2
15 Power Socket
16 Power Antenna
17 Diode
18 LH Rear Combination Lamp
19 Tail Gate Wiring Connector
20 Tail Gate Wiring Connector 21 Tail Gate Wiring Connector
22 Rear Heated
23 Luggage Lamp
2 4 ABD ECU
..................................................... ABD
25 Ground 4 ..................................................... ABD
26 ECS ............................................................. ECS
27 Wheel Speed Sensor (RR) .................ABD, ABS
28 Damper (RR) ............................................... ECS
29 RH Rear Door Switch
30 RH Rear Speaker
31 Ground 3
32 RH Rear Combination Lamp
33 Trailer Connector
34 Rear Washer Motor
35 RH Tension Reducer
36 RH Front Door Switch
37 RH Rear Door Wiring Connector
38 RH Front Door Wiring Connector
39 Wheel Speed Sensor (RR) .................ABD, ABS
40 Acceleration Sensor ..................................... ABD

INSTRUMENTATION/DRIVER INFORMATION 9E-3
COMBINATION METER
COMPONENT LOCATOR
1. Speedometer
2. Odometer
3. Trip odometer
4. Tachometer
5. Coolant temperature gauge
6. Fuel gauge
7. Low fuel level warning light
8. Turn signal indicator (left)
9. Turn signal indicator (right)
10. Outside rearview mirror & tailgate heating switch
11. Reset button
12. Auto shift indicator*
13. Door open warning light
14. TCS indicator (equipped with ABD)*
21. ABS warning light* 22. EBD warning light*
23. ECS / SPORT warning light*
24. 4 - wheel warning light*
25. 4 - wheel high indicator
26. 4 - wheel low indicator
27. WINTER indicator
28. POWER indicator
29. High beam indicator
15. Alternator warning light
16. Engine oil pressure warning light
17. Brake system warning light
18. Glow indicator light (For Diesel engine)
19. Airbag warning light*
20. Seat belt reminder

BUMPERS AND FASCIAS 9O-3
Mounting Inspection
1. Clearance between the upper bumper and radiator grille.
2. Clearance between the upper bumper and headlampmoding.
Clearance 12 ± 1.0 mm
Clearance 9 mm
2. Clearance between the bumper and wheel arch.
Clearance10 mm

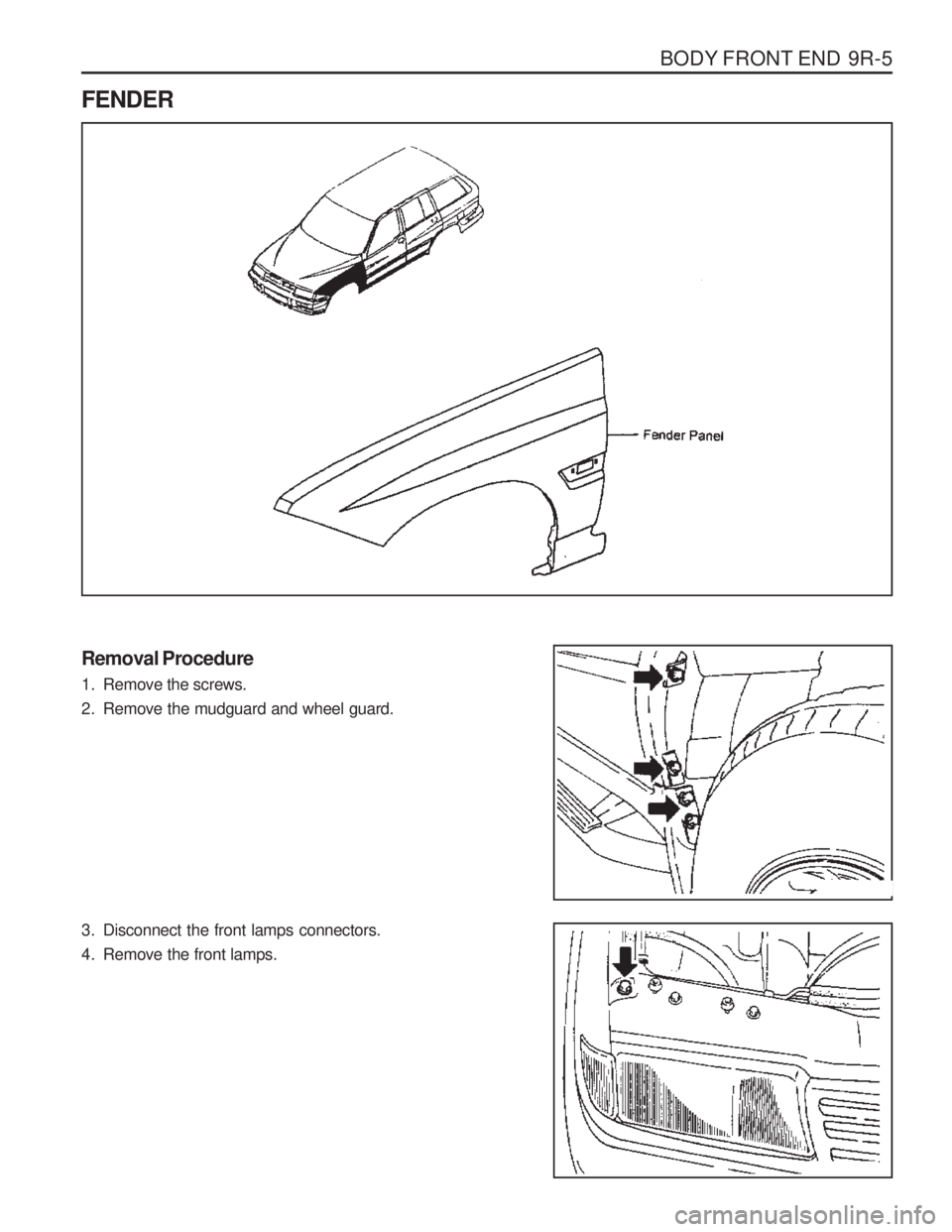

BODY FRONT END 9R-5
FENDER
Removal Procedure
1. Remove the screws.
2. Remove the mudguard and wheel guard.
3. Disconnect the front lamps connectors.
4. Remove the front lamps.

MUSSO-SPORTS 1A-21
SUPPLEMENT
KAA5A08A
COMPONENTS LOCATOR
EXTERIOR BODY PANNEL
9 PNL-Deck Side OTR
10 PNL-Deck Side INR
11 RR Wheel Guard 12 PNL-Deck W/House INR
13 PNL-Deck
SECTION A-A
910
11
12 13
SECTION B-B
SECTION C-CSECTION C1-C1

MUSSO-SPORTS 1A-23
SUPPLEMENT
KAA5A300
1 C-Pannel of Pillar Inner
2 Reinforce C-Pillar Outer Pannel
3 C-Pannel of Pillar Outer
4 Front Center Outer Pannel
5 Outer Pannel of Front Wheel House
6 Outer Pannel of Front Center
7 Inner Pannel of Wheel House 8 Outer Pannel of Front Wheel House
9 Side Outer of Pannel Deck
10 Side Inner Pannel Deck
11 Rear Wheel Guard
12 Pannel-Deck Wheel House Inner
13 Deck Pannel
ROOF RAIL
SECTION A-A
SECTION B-BSECTION C-C
