CargoFlex folding box*
Lowering and securing folding box
You can transport the folding box in two different positions - in the
transport position against the partition ⇒fig. 71 of the luggage
compartment, or in the ready position lowered onto the floor of
the luggage compartment ⇒ fig. 72.
Lowering folding box in to the ready position
– Pull the snap handle in direction of arrow 1 ⇒ fig. 71 . The
folding box is lowered to just above the floor of the luggage
compartment.
– Press the folding box at the arrow positions 2 ⇒ fig. 72 onto
the floor of the luggage compartment until it locks in place. If
correctly locked, the snap handle moves back into its initial
position (the top red surface of the handle is not visible).
Securing folding box in the transport position against
partition of luggage compartment
– Lower the folding box into the ready position ⇒page 87.
– Pull the snap handle in direction of arrow 1 ⇒ page 85, fig. 71 .
The folding box is raised up from the luggage compartment
floor.
– Raise and press the folding box against the partition of the luggage compartment, it is secured audibly in this way in the
transport position. If correctly locked, the snap handle moves
back into its initial position (the top red surface of the handle
is not visible).
Opening folding box ⇒page 86.
Fig. 71 Folding box:
Transport position
Fig. 72 Folding box:
ready position

Seats and Stowage87
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Press on the bottom part of the handle and open the
compartments in the direction of arrow 3. The compartment
wall must be heard to engage in the slot in the bottom part of
the box.
Moving folding box into secured middle position
– Press on the button marked “PUSH” ⇒page 86, fig. 74
and carefully push the folding box into the secured middle
position. If correctly locked, the button marked “PUSH” is
moved back into its initial position. You can now use the space
which has become available for stowing further items of
luggage.
Caution
•The parts of the folding box can be damaged if handled roughly or in
an unprofessional way.
•The maximum weight of goods to be loaded should not exceed 25
kg.
Lowering folding boxAC
AD
AD
Fig. 75 Lowering
folding box
Fig. 76 Securing
folding box

Seats and Stowage89
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Attachment points
Installing
When fitting on the feet of the roof bars, ensure that they are positioned
exactly between the arrow markings in the sealing strip on the roof
⇒fig. 77 . The markings are visible only when the doors are open.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum
permissible roof load (including roof rack system) of 100 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof
luggage rack system with a lower load carrying capacity. The load trans-
ported on the roof luggage rack system must not exceed the weight limit
which is stated in the fitting instructions.
Fig. 77 Attachment
points for roof bars
WARNING
•The items which you transport on the roof bar system must be
reliably attached - risk of accident!
•You must on no account exceed the permissible roof load, the
permissible axle loads and the permissible gross weight of your
vehicle - risk of accident!
•Please note that the handling properties of your vehicle change
when you transport heavy or bulky items on the roof bar system as
a result of the displacement of the centre of gravity and the
increased wind attack area - risk of accident! You must absolutely
adapt your style of driving and the speed of the vehicle to the
specific circumstances.

Seats and Stowage91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

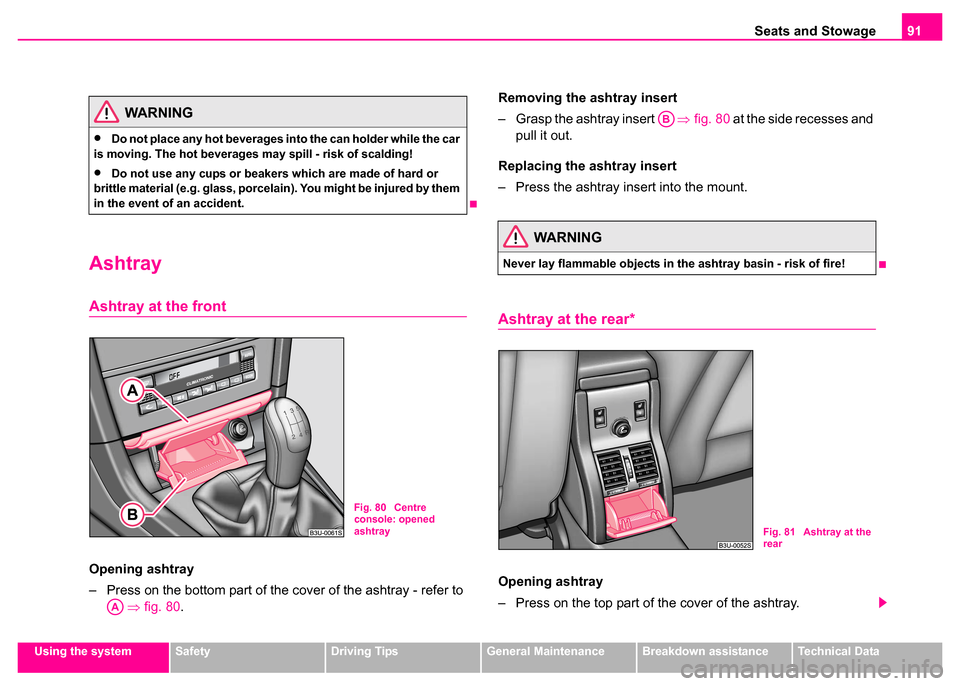

Ashtray
Ashtray at the front
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to
⇒ fig. 80. Removing the ashtray insert
– Grasp the ashtray insert
⇒fig. 80 at the side recesses and
pull it out.
Replacing the ashtray insert
– Press the ashtray insert into the mount.
Ashtray at the rear*
Opening ashtray
– Press on the top part of the cover of the ashtray.
WARNING
•Do not place any hot beverages into the can holder while the car
is moving. The hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of hard or
brittle material (e.g. glass, porcelain). You might be injured by them
in the event of an accident.
Fig. 80 Centre
console: opened
ashtray
AA
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
AB
Fig. 81 Ashtray at the
rear

Seats and Stowage93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Cigarette lighters and power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for
other electrical appliances.
Using the cigarette lighter
– Press on the bottom part of the cover of the ashtray - refer to
⇒ fig. 83.
– Press in the button of the cigarette lighter (see arrow).
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket. Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the
cigarette lighter.
The 12 volt power socket or the lighter holder can also be used for further
electrical appliance with a power uptake of up to 100 watts.
Caution
Only use matching plugs, which fulfils the DIN - ISO Standard 4165, to
avoid damaging the power sockets.
Note
Connecting electrical components when the engine is not running
will drain the battery of the vehicle - risk of battery draining!
Fig. 83 Centre
console: Cigarette
lighter
AA
WARNING
•Take care when using the cigarette lighter! Not paying proper
attention or incorrect use the cigarette lighter in an uncontrolled
manner may result in burns.
•The cigarette lighter and the power socket also operates when
the ignition is switched off or th e ignition key withdrawn. This is
why you should never leave children unattended in the vehicle.

Seats and Stowage95
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Storage facilities
An overview
You will find the following storage facilities in your vehicle:
Storage compartment on the front passenger side
The storage compartment on the front passenger side is
lockable* and illuminated.
Opening the storage compartment
– Pull the handle in the lid in direction of arrow ⇒fig. 86 and pull
the lid down.
Closing the stor age compartment
– Raise the lid and press it until the catch is heard to engage.
Locking the storage compartment*
– Turn the master key or emergency key in the lock to the right.
Unlocking the stor age compartment*
– Turn the master key or emergency key in the lock to the left.
First-aid box⇒ page 227
Stowage compartment for warning triangle⇒page 227
Storage compartment on the front passenger
side⇒page 95
Storage drawer*⇒page 96
Stowage compartment in centre console⇒page 97
Stowage compartment for spectacles*⇒page 97
Stowage compartment below steering wheel⇒page 98
Stowage compartment in door panel⇒page 98
Stowage compartment for an umbrella*⇒page 99
Armrest with stowage compartment⇒page 100
Rear armrest with stowage compartment*⇒page 101
Clothes hooks⇒page 101
WARNING
Please do not place anything on top of the dash panel. Such
objects might slide or fall down when driving (when accelerating or
cornering) and may distract you from concentrating on the traffic
situation - risk of accident!
Fig. 86 Dash panel:
Storage compartment

Seats and Stowage97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Stowage compartment in centre console
Opening
– Press on the top part of the cover in direction of arrow. The
drawer will come out.
Pulling out compartment
– Press the compartment in the opening direction as far as the stop. Grasp the compartment at the sides and pull it up and
out.
Inserting compartment
– Insert the compartment back into its mount and close the cover.
Stowage compartment for spectacles*
The stowage compartment is located above the front left window.
– The storage compartment is opened by folding it out in the direction of the arrow ⇒fig. 90 .
Fig. 89 Centre
console: Storage
compartment
WARNING
•The storage compartment is not a substitute for the ashtray and
must also not be used for such purposes. Risk of fire!
•The storage compartment must always be closed when driving
for safety reasons.
Fig. 90 Stowage
compartment for spec-
tacles

Seats and Stowage99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Stowage compartment for an umbrella*
The umbrella supplied with the car is stowed in the compartment
in the rear left door ⇒fig. 93 . Opening umbrella
– Press the knob in direction of arrow
⇒fig. 94 .
Closing umbrella
– Press the knob in direction of arrow . The umbrella first of all closes partially in direction of arrow .
– Press the umbrella together in direction of arrow in order to fold it closed completely.
There is a water drain facility in the stowage compartment for a wet
umbrella.
The stowage compartment can also be used for stowing small objects.
The compartment features a foldable partition. When the umbrella is
removed the rear part of the compartment closes - thus no object can fall
inside the door. The partition is automatically folded back in position when
the umbrella is again placed in the compartment.
Fig. 93 Left rear door:
Storage compartment
Fig. 94 Opening and
closing umbrella
A1
A2
AA
