Care and cleaning
192
Paint damage
Slight damage to paintwork such as scratches, scuffs or traces of chip
damage must be touched up immediately with paint (Skoda painting pen)
before any corrosion can result. You can of course have this work carried
out by a Škoda dealer.
Škoda dealers have a range of matching touch-up pens or spray cans
available for your vehicle.
The paint number of the original paintwork of your vehicle is indicated on
the vehicle data sticker ⇒page 249.
Any corrosion which has already have formed must be removed thor-
oughly. Apply a corrosion protection primer and then the paint to the
affected point. You can of course have this work carried out by a Škoda
dealer.
Plastic parts
External plastic parts are cleaned by normal washing. Plastic parts and
synthetic leather can also be treated with special solvent-free plastic
cleaning agents if a damp cloth is not sufficient. Paint care products are
not suitable for plastic parts.
Windows
Only use a plastic ice scraper for removing snow and ice from the
windows and mirrors. You should not move the ice scraper forward and
backward but in one direction on the window which you are cleaning in
order to avoid any damage to the surface of the glass. You can best remove residues of rubber, oil, grease, wax or silicone by
using a special window cleaner or a special silicone remover.
You should also clean the windows regularly from the inside.
Do not use window leathers which you have used to polish the vehicle
body to dry off the windows. Residues of preservatives in the window
leather can dirty the window and reduce visibility.
Do not affix any stickers over the inside of the rear window to avoid
damage to the
heating elements of the rear window heater .
We recommend using a preservative from the range of accessories
offered by your Skoda dealer.
The headlight lenses
Please do not use any aggressive cleaning or chemical solvent products
- risk of damage to the plastic lenses Please use soap and clean warm
water.
Caution
Never wipe the headlights dry and do not use any sharp objects for
cleaning the plastic lenses, this may result in damage to the protective
paintwork and consequently in formation of cracks on the headlight
lenses, e.g through effect of chemical products.
Door and window seals
The rubber seals on the doors, boot lid, bonnet, sliding roof and windows
remain supple and last longer if you treat them from time to time with a
rubber care product (e.g. silicone spray). You also avoid premature wear
Fuel201
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Vehicles fitted with catalytic converter should never be allowed to let
the fuel tank to run completely empty. An irregular supply of fuel to the
engine can result in misfiring and unburnt fuel may get into the exhaust
system, which may result in overheating and damage to the catalytic
converter.
For the sake of the environment
The fuel tank is full just as soon as the pump nozzle switches off for the
first time, provided the nozzle has been operated properly. You should not
continue refuelling - otherwise the expansion chamber in the fuel tank will
also be filled with fuel. Fuel might flow out of the tank when it heats up.
Emergency release of fuel filler flap
If the electric lock is faulty, you can also unlock the fuel filler flap
manually. – Open the boot lid/luggage compartment door.
– Unscrew the clip attaching the right-hand side trim panel and
pull the trim panel off the body.
– Pull on the loop in direction of arrow in order to unlock the fuel filler flap ⇒fig. 152 .
Fig. 152 Luggage
compartment: Emer-
gency release of fuel
filler flap
WARNING
Reel up the belt webbing once again until it is fitted snugly against
the child seat.
Breakdown assistance227
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Breakdown assistance
Breakdown assistance
First-aid box*
First-aid box
The compartment for stowing the first-aid box is located in the left of the
luggage compartment ⇒fig. 168 .
Note
Pay attention to the use-by-date of the contents of the first-aid box.
Warning triangle
– To remove the warning triangle, turn the rotary lock in direc-
tion of arrow ⇒fig. 169 and fold the fixture down.
Fig. 168 Compartment
for stowing first-aid
boxFig. 169 Warning
triangle fitted inside
boot lid
Fuses and light bulbs245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your Škoda dealer.
Rear light unit
– Open the boot lid/luggage compartment door.
– Raise the floor covering.
– Press the catch in direction of arrow and pull out the light
fixture.
– Press the defect light bulb in to the holder, turn anti-clockwise and remove. – Insert the new light bulb and turn it fully to the right.
– Insert the light bulb holder again, the plastic tongue must lock
in place.
Licence plate light
– Open the boot lid/luggage compartment door.
– Unscrew the glass cover of the light ⇒fig. 185.
– Take the faulty bulb out of the fixture and insert a new one.
– Replace the the glass cover of the light and press it down to the stop - ensure that the glass cover is correctly installed.
– Screw the glass cover tight.
Fig. 184 Luggage
compartment: Remove
light bulb holderFig. 185 Luggage
compartment door
Licence plate light

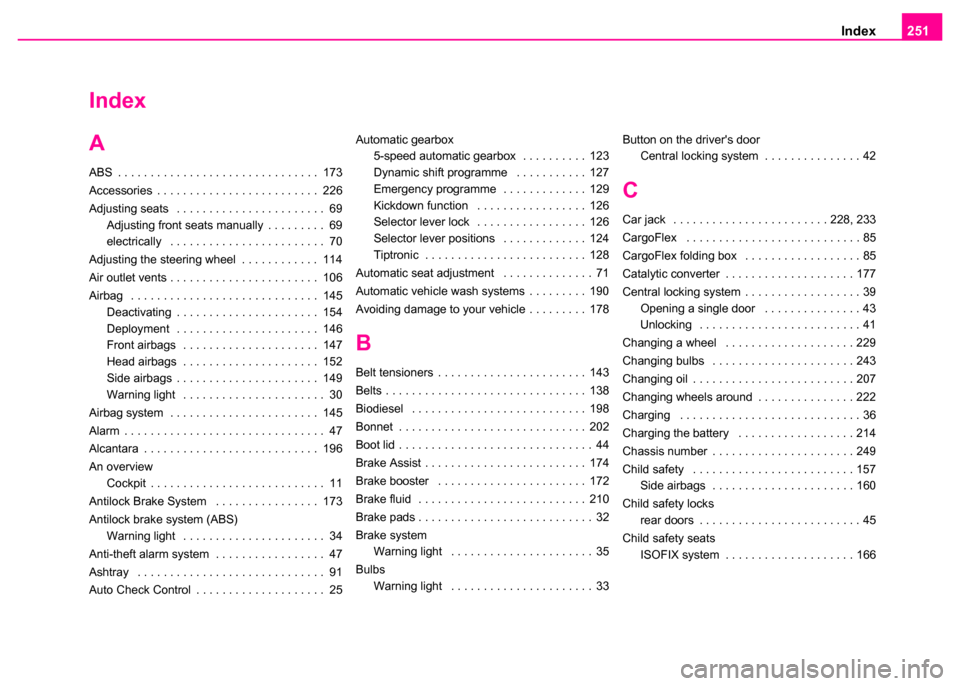

Index251
Index
A
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 226
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . 69
Adjusting front seats manually . . . . . . . . . 69
electrically . . . . . . . . . . . . . . . . . . . . . . . . 70
Adjusting the steering wheel . . . . . . . . . . . . 114
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . 106
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Deactivating . . . . . . . . . . . . . . . . . . . . . . 154
Deployment . . . . . . . . . . . . . . . . . . . . . . 146
Front airbags . . . . . . . . . . . . . . . . . . . . . 147
Head airbags . . . . . . . . . . . . . . . . . . . . . 152
Side airbags . . . . . . . . . . . . . . . . . . . . . . 149
Warning light . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . 145
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
An overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Antilock Brake System . . . . . . . . . . . . . . . . 173
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Anti-theft alarm system . . . . . . . . . . . . . . . . . 47
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Auto Check Control . . . . . . . . . . . . . . . . . . . . 25 Automatic gearbox
5-speed automatic gearbox . . . . . . . . . . 123
Dynamic shift programme . . . . . . . . . . . 127
Emergency programme . . . . . . . . . . . . . 129
Kickdown function . . . . . . . . . . . . . . . . . 126
Selector lever lock . . . . . . . . . . . . . . . . . 126
Selector lever positions . . . . . . . . . . . . . 124
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 128
Automatic seat adjustment . . . . . . . . . . . . . . 71
Automatic vehicle wash systems . . . . . . . . . 190
Avoiding damage to your vehicle . . . . . . . . . 178
B
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 143
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . 174
Brake booster . . . . . . . . . . . . . . . . . . . . . . . 172
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Brake system Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . 33 Button on the driver's door
Central locking system . . . . . . . . . . . . . . . 42
C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . 228, 233
CargoFlex . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
CargoFlex folding box . . . . . . . . . . . . . . . . . . 85
Catalytic converter . . . . . . . . . . . . . . . . . . . . 177
Central locking system . . . . . . . . . . . . . . . . . . 39
Opening a single door . . . . . . . . . . . . . . . 43
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . 41
Changing a wheel . . . . . . . . . . . . . . . . . . . . 229
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 243
Changing oil . . . . . . . . . . . . . . . . . . . . . . . . . 207
Changing wheels around . . . . . . . . . . . . . . . 222
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Charging the battery . . . . . . . . . . . . . . . . . . 214
Chassis number . . . . . . . . . . . . . . . . . . . . . . 249
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . 157 Side airbags . . . . . . . . . . . . . . . . . . . . . . 160
Child safety locks rear doors . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child safety seats ISOFIX system . . . . . . . . . . . . . . . . . . . . 166
