– Insert the new light bulb and turn it fully to the right.
– Insert the lamp holder with new light bulb into the headlight.
Secure the lamp holder by turning it to the right.
Fog lights*
We recommend having the light bulb replaced by a Škoda dealer.
– Remove the protective grille next to the light.
– Unscrew the screws on the fog light holder. The upper screw holds the outer air temperature sensor* in place on the light
⇒fig. 159
– Remove the end cover of the light.
– Disconnect plug connector ⇒fig. 160 .
– Press together the sprung wire clamp on the lamp holder and swing down.
– Remove the light bulb with cable.
– Insert the new halogen lamp in such a way that the fixing lug on the reflector lies in the corresponding recess in the lamp
plate.
Fig. 159 Removing the
fog light
Fig. 160 Structure of
the light bulb of the fog
light
A1
AB
AA

Fuses and light bulbs
218
– Close the sprung wire clamp over the lamp plate. Press together the sprung wire clamp and lock together again.
– Plug into the plug connector .
Note
One should ensure that the outer air temperature sensor* is in the
correct position when mounting the fog light.
Lighting in storage compartment on front passenger
side*
We recommend having the light bulb replaced by a Škoda dealer. – Push in a knife or screwdriver from the side between the light
and the glove compartment ⇒fig. 161 . Lever out the light
carefully.
– Disconnect the plug by pressing the catch from the side.
– Replace the defect light bulb.
– Recreate the plug connection.
– Press the light into the glove compartment from below.
Interior light and the reading light*
– Pull the diffusion disk (see arrow) downwards from the housing ⇒fig. 162 .
AA
AB
A1
Fig. 161 Remove
lighting in storage
compartment on front
passenger side
Fig. 162 Remove inte-
rior light

Fuses and light bulbs219
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
– Take the faulty light bulb out of the interior light and insert a
new one.
– Pull the light bulb out of its holder and insert the new one.
– Press the diffusion disk back into the housing until it clicks into
place (ensure that it is in the right position).
Licence plate light
– Open the tailgate and screw off the light glass.
– Take the faulty bulb out of the fixture and insert a new one.
– Re-insert the light glass. Press the light glass in up to the stop - check for correct seating of the sealing rubber.
– Screw on the light glass but not too tightly.
Front door warning light*
We recommend having the light bulb replaced by a Škoda dealer.
– Push in a knife or screwdriver from the side between the light and the door panel ⇒fig. 164 . Lever out the light carefully.
– Disconnect the plug connector.
– Replace the defect light bulb.
– Recreate the plug connection.
– Insert the door warning light into the door panel from the plug side and press in.
Fig. 163 Remove the
licence plate light
Fig. 164 Remove the
front door warning light

Fuses and light bulbs
220
Rear light unit
– Open the boot lid/luggage compartment door.
– Push the cover to the side carefully.
– Press the fixing straps in the upper part of the light bulb holder
in the direction of the arrow and remove the light bulb holder
⇒fig. 165 .
– Press the defect light bulb in to the holder, turn anti-clockwise and remove.
– Insert the new light bulb and turn it fully to the right.
– Insert the light bulb holder into the opening of the rear light from below and interlock the fixing straps into the upper part.
– Push the cover back into place.
Rear light unit (estate car, sedan)
– Open the boot lid/luggage compartment door.
– Remove the cover in the boot.
– Press the catch in direction of arrow and pull out the light bulb holder.
– Press the defect light bulb in to the holder, turn anti-clockwise and remove.
– Insert the new light bulb and turn it fully to the right.
– Insert the light bulb holder again, the plastic tongue must lock in place.
– Install the cover in the boot.
Fig. 165 Remove light
bulb holderFig. 166 Remove the
light bulb holder
(estate car, sedan)

Fuses and light bulbs221
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Luggage compartment light
– Open the tailgate and remove the luggage compartment
cover.
– Insert a screwdriver into the slot next to the light ⇒fig. 167 .
Lever out the light carefully.
– Disconnect the plug connector.
– Replace the defect light bulb.
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.
Boot light (sedan)
– Insert a screwdriver into the slot under the light ⇒fig. 168 .
Lever out the light carefully.
– Unlock the lug then pull out the plug.
– Push away the spring clip on the cover and remove the cover.
– Replace the defect light bulb.
– Insert the cover again and secure it by locking it in place.
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.
Fig. 167 Remove the
luggage compartment
lightFig. 168 Remove the
boot light (sedan)
A1
A2

Fuses and light bulbs
222

Praktik225
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Fabia Praktik
Praktik

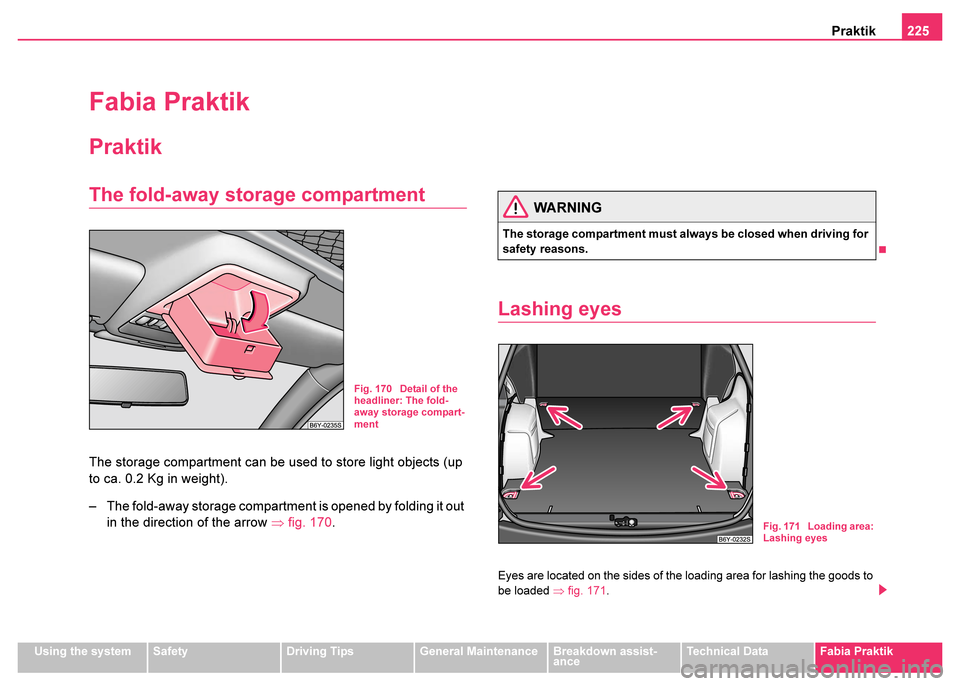

The fold-away storage compartment
The storage compartment can be used to store light objects (up
to ca. 0.2 Kg in weight).
– The fold-away storage compartment is opened by folding it out
in the direction of the arrow ⇒fig. 170 .
Lashing eyes
Eyes are located on the sides of the loading area for lashing the goods to
be loaded ⇒fig. 171 .
Fig. 170 Detail of the
headliner: The fold-
away storage compart-
ment
WARNING
The storage compartment must always be closed when driving for
safety reasons.
Fig. 171 Loading area:
Lashing eyes
