2003 PONTIAC VIBE key

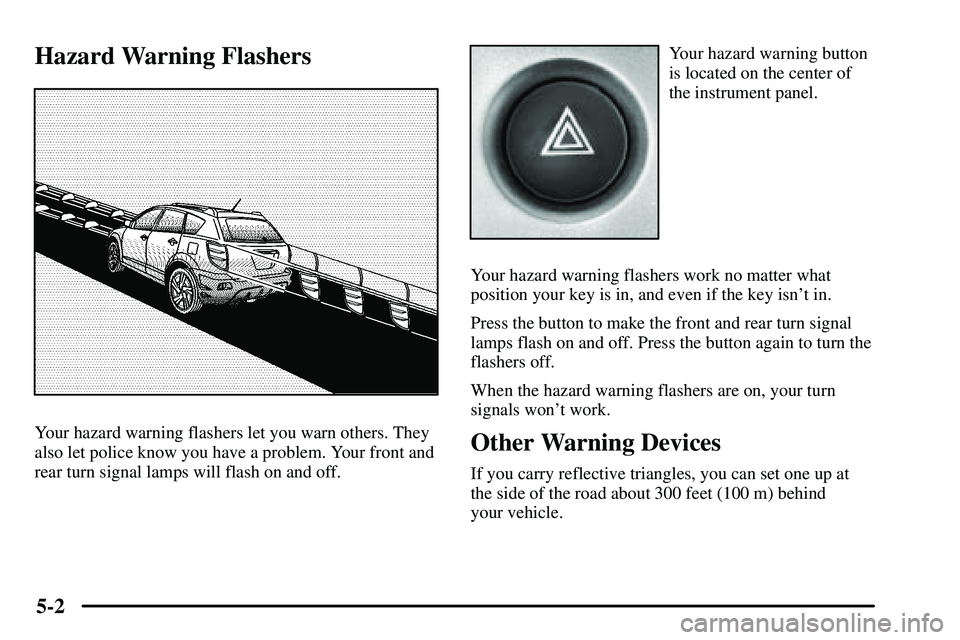

5-2
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
Your hazard warning button
is located on the center of
the instrument panel.
Your hazard warning flashers work no matter what
position your key is in, and even if the key isn't in.
Press the button to make the front and rear turn signal
lamps flash on and off. Press the button again to turn the
flashers off.
When the hazard warning flashers are on, your turn
signals won't work.
Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about 300 feet (100 m) behind
your vehicle.

6-74
Engine Compartment Fuse Block
This engine compartment fuse block is located in the
engine compartment on the driver's side of the vehicle
near the air cleaner. See ªEngine Compartment
Overviewº in the Index for more information on
location.Fuse/Relay Usage
HEAD MAIN Right Headlamp,
Left Headlamp Fuses
ALT
-S Charging System
EFI Electronic Fuel Injection System
HAZARD Turn Signal Lamps,
Emergency Flasher
HORN Horn
DOME Interior Lights, Gauges and
Meters, Audio System, Remote
Keyless Entry System
MAIN Starter System, AM2 Fuse
AMP Audio Amplifiers
MAYDAY Not Used

7-39 At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Seat Operation Check
Make sure the head restraints stay in position and all
seat latches lock. Check that the recliner holds by
pushing and pulling the seatback while it is reclined.
Body Lubrication Service
Lubricate all hood latch assembly, secondary latch,
pivots, spring anchor, release pawl, hood and body door
hinges, rear compartment and any folding seat hardware.
Part D tells you what to use. More frequent lubrication
may be required when exposed to a corrosive
environment.Starter Switch Check
CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See ªParking Brakeº in the Index if necessary.
Do not use the accelerator pedal, and be ready to turn
off the engine immediately if it starts.
3. On automatic transaxle vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transaxle vehicles, put the shift lever in
NEUTRAL (N), push the clutch down halfway and
try to start the engine. The starter should work only
when the clutch is pushed down all the way to the
floor. If the starter works when the clutch isn't
pushed all the way down, your vehicle needs service.

7-40
Automatic Transaxle Shift Lock Control
System Check
CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See ªParking Brakeº
in the Index if necessary.
Be ready to apply the regular brake immediately if
the vehicle begins to move.3. With the engine off, turn the key to the ON position,
but don't start the engine. Without applying the
regular brake, try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle needs service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.

With an automatic transaxle, the key should turn to
LOCK only when the shift lever is in PARK (P).

With a manual transaxle, the key should turn to
LOCK only if you push the key in farther, while
turning it towards LOCK.

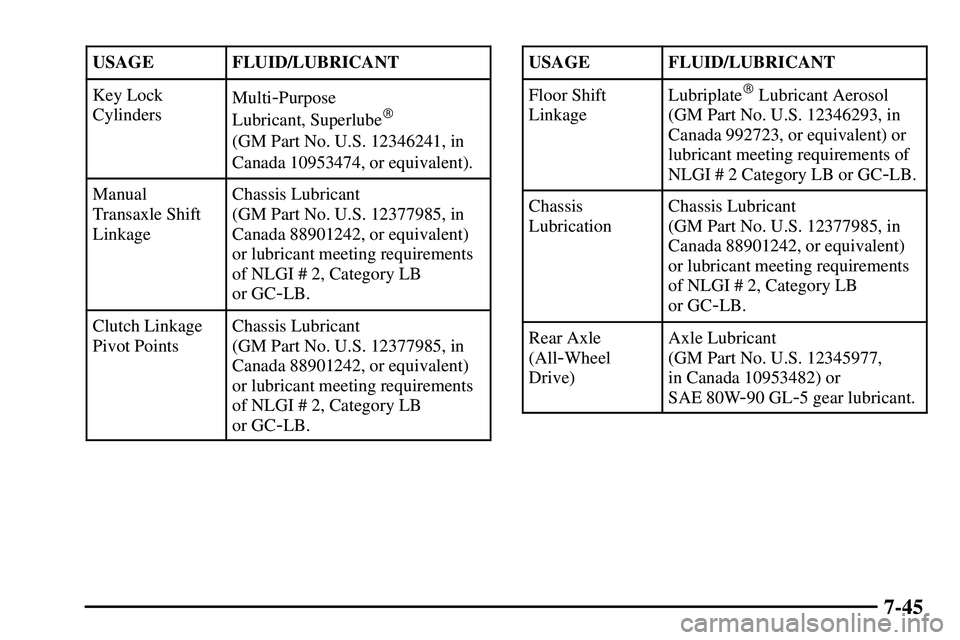

7-45
USAGEFLUID/LUBRICANT
Key Lock
CylindersMulti-Purpose
Lubricant, Superlube

(GM Part No. U.S. 12346241, in
Canada 10953474, or equivalent).
Manual
Transaxle Shift
LinkageChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242, or equivalent)
or lubricant meeting requirements
of NLGI # 2, Category LB
or GC
-LB.
Clutch Linkage
Pivot PointsChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242, or equivalent)
or lubricant meeting requirements
of NLGI # 2, Category LB
or GC
-LB.
USAGEFLUID/LUBRICANT
Floor Shift
LinkageLubriplate
Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723, or equivalent) or
lubricant meeting requirements of
NLGI # 2 Category LB or GC
-LB.
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242, or equivalent)
or lubricant meeting requirements
of NLGI # 2, Category LB
or GC
-LB.
Rear Axle
(All
-Wheel
Drive)
Axle Lubricant
(GM Part No. U.S. 12345977,
in Canada 10953482) or
SAE 80W
-90 GL-5 gear lubricant.
