2003 Peugeot Boxer steering wheel adjustment

05-05-2003
3YOUR BOXER AT A GLANCE
1 -Storage compartment.
2 - Left side vent.
3 - Upper glove box. Passenger air bag.
4 - Storage tray.
5 - Controls:
- Rear door windows
de-icing.
- Fog lamps.- Hazard lights.- Rear fog lamps- ASR.
6 - Audio equipment location or storage compartment.
7 - Folding writing table.
8 - Central adjustableheating/ventilation vents and air flow regulation.
9 - Gear lever.
10 - Lights and direction indicators stalk. 11 -
Instrument dials.
12 - Windscreen wash-wipe stalk.
13 - Right side vent.
14 - Storage compartment.
15 - Programmable heating.
16 - Right fuse box.
17 - Bonnet release control.
18 - Headlamp height adjustment.
19 - Driver's air bag. Horn.
20 - Steering wheel adjustment control.
21 - 12 V accessories socket.
22 - Heating/air conditioningcontrols. 23 -
Ashtray.
24 - Storage compartment.
25 - Lighter.
26 - Passenger air bag disarming control*.
27 - Lower glove box.
28 - Storage compartment.
29 - Left fuse box.
* According to destination.

05-05-2003

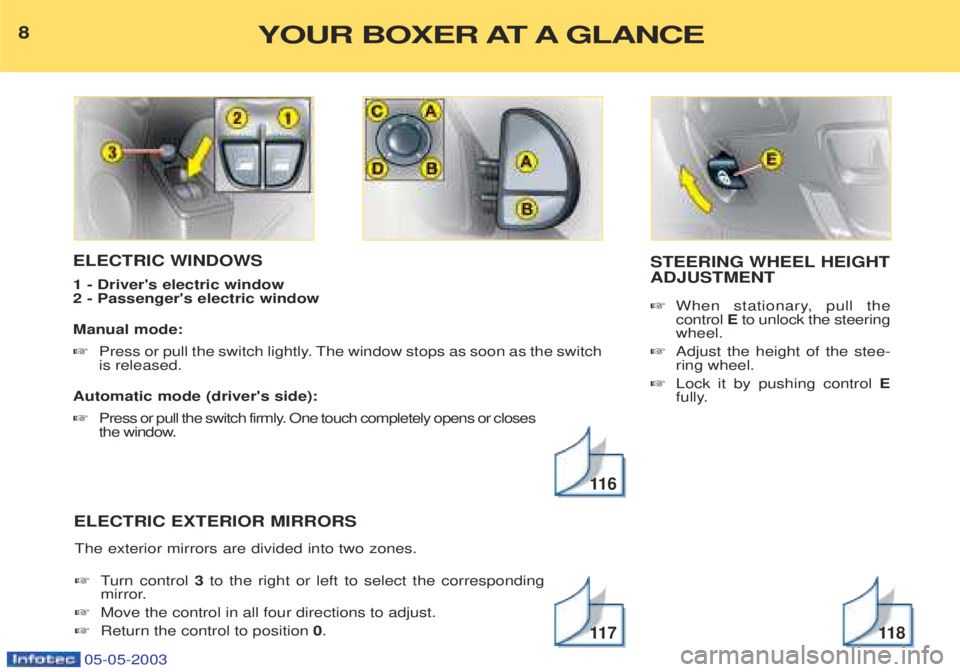

ELECTRIC WINDOWS 1 - Driver's electric window 2 - Passenger's electric window Manual mode: ☞Press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode (driver's side): ☞ Press or pull the switch firmly. One touch completely opens or closes
the window.
The exterior mirrors are divided into two zones. ☞ Turn control 3to the right or left to select the corresponding
mirror.
☞ Move the control in all four directions to adjust.
☞ Return the control to position 0.
8
STEERING WHEEL HEIGHT ADJUSTMENT ☞ When stationary, pull the control Eto unlock the steering
wheel.
☞ Adjust the height of the stee-ring wheel.
☞ Lock it by pushing control E
fully.
11 6
11 711 8
8YOUR BOXER AT A GLANCE
ELECTRIC EXTERIOR MIRRORS

05-05-2003

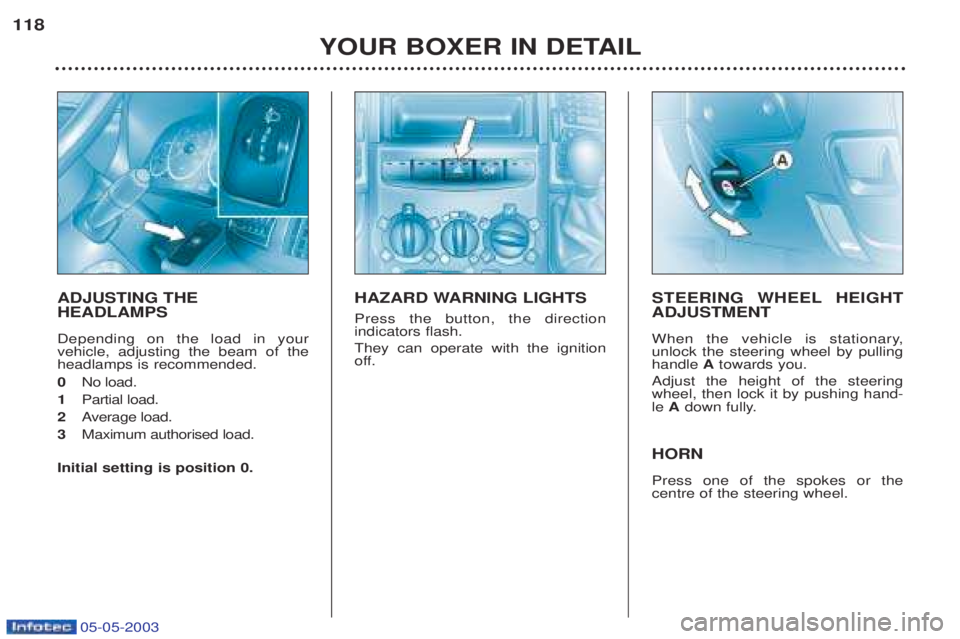

YOUR BOXER IN DETAIL
118
ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended. 0
No load.
1 Partial load.
2 Average load.
3 Maximum authorised load.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
Atowards you.
Adjust the height of the steeringwheel, then lock it by pushing hand-le Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.
