Page 104 of 180
05-05-2003
YOUR BOXER IN DETAIL105

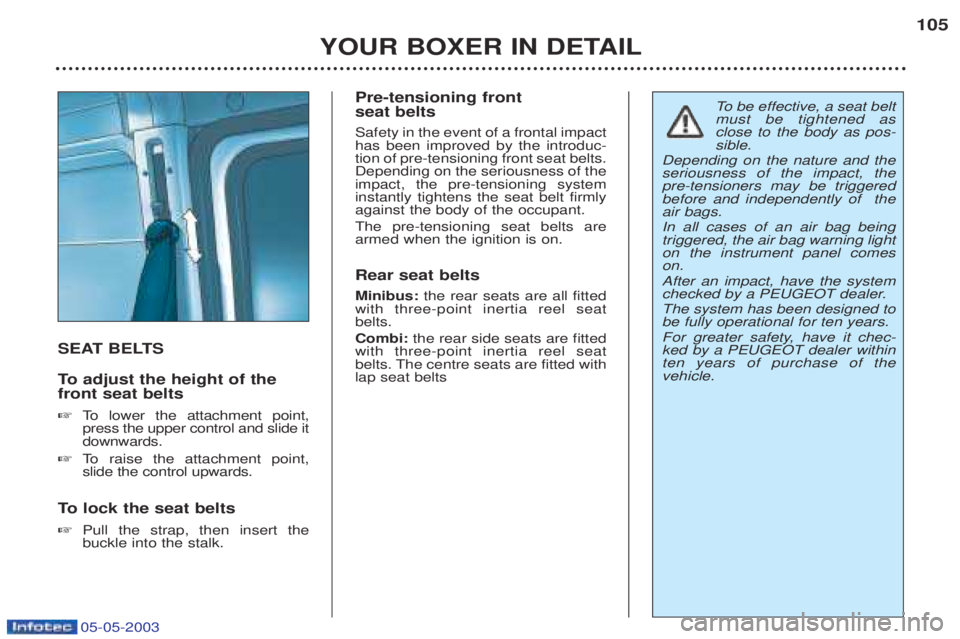

SEAT BELTS
To
adjust the height of the
front seat belts ☞ To lower the attachment point,
press the upper control and slide it downwards.
☞ To raise the attachment point,
slide the control upwards.
To lock the seat belts
☞ Pull the strap, then insert thebuckle into the stalk. Pre-tensioning front seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning front seat belts.Depending on the seriousness of theimpact, the pre-tensioning systeminstantly tightens the seat belt firmlyagainst the body of the occupant. The pre-tensioning seat belts are armed when the ignition is on. Rear seat belts Minibus:
the rear seats are all fitted
with three-point inertia reel seat belts. Combi: the rear side seats are fitted
with three-point inertia reel seat
belts. The centre seats are fitted withlap seat belts
To be effective, a seat belt
must be tightened as close to the body as pos-sible.
Depending on the nature and theseriousness of the impact, thepre-tensioners may be triggeredbefore and independently of theair bags. In all cases of an air bag being triggered, the air bag warning lighton the instrument panel comeson. After an impact, have the system
checked by a PEUGEOT dealer. The system has been designed to be fully operational for ten years.
For greater safety, have it chec- ked by a PEUGEOT dealer withinten years of purchase of thevehicle.
Page 134 of 180
05-05-2003
YOUR BOXER IN DETAIL
128

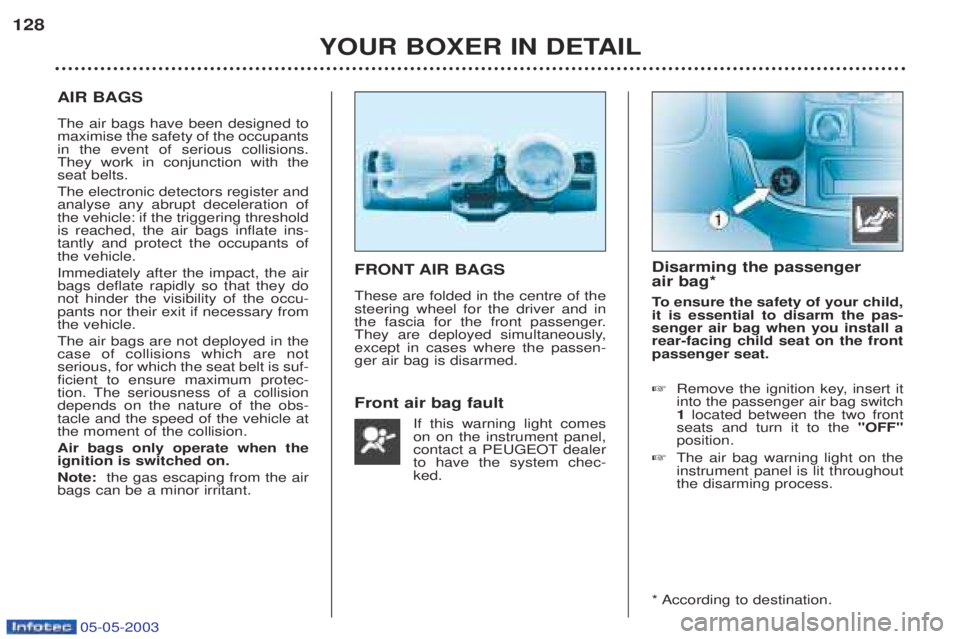

AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with theseat belts. The electronic detectors register and analyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflate ins-tantly and protect the occupants ofthe vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-ficient to ensure maximum protec-
tion. The seriousness of a collisiondepends on the nature of the obs-tacle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passen-ger air bag is disarmed. Front air bag fault
If this warning light comes on on the instrument panel,
contact a PEUGEOT dealerto have the system chec-ked. Disarming the passenger air bag*
To
ensure the safety of your child,
it is essential to disarm the pas- senger air bag when you install arear-facing child seat on the frontpassenger seat. ☞ Remove the ignition key, insert it into the passenger air bag switch1located between the two front
seats and turn it to the "OFF"
position.
☞ The air bag warning light on theinstrument panel is lit throughoutthe disarming process.
* According to destination.
Page 136 of 180
05-05-2003
YOUR BOXER IN DETAIL
130

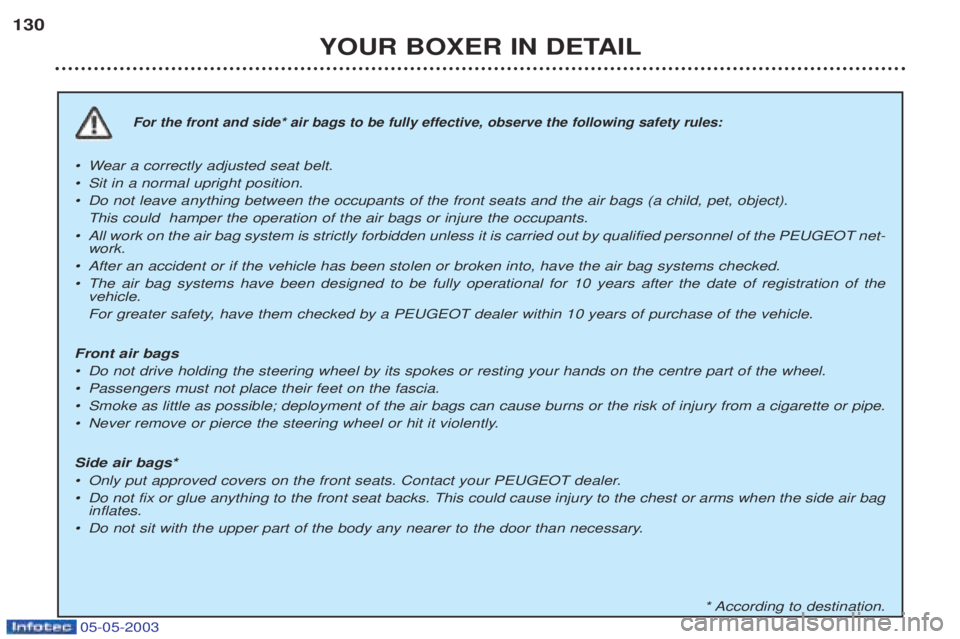

For the front and side* air bags to be fully effective, observe the following safety rules:
¥W
ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT net- work.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the date of registration of thevehicle.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.
Page 138 of 180
05-05-2003
YOUR BOXER IN DETAIL
130
For the front and side* air bags to be fully effective, observe the following safety rules:
¥W
ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT net- work.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the date of registration of thevehicle.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.
