PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30 000 km) or every two years.
¥ For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason that the PEUGEOT network invites you to an intermediate visit between regular services.
The date of this service is not shown by the service indicator. It is to be carried out at least every 10,000 miles
(15 000 km) for petrol engines and every 6,000 miles (10 000 km) for direct injection diesel engines. A PEUGEOT dealerwill carry out a quick check, and will top up the levels if necessary (oil, coolant, screenwash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 miles (3 000 km) or 3,000 miles (5 000 km), depending on the conditions of use. The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
MAINTENANCE OF YOUR 406
18

17-02-2003
MAINTENANCE OF YOUR 406 23

All driving conditions. oArduous conditions. * According to destination.
A AND C SERVICES AND THE INTERMEDIATE VISIT
- Oil filter.- Fuel filter (Petrol only).- Fuel filter element (Diesel only).- Air filter element.- Spark plugs (Petrol only).HPI
- Operation of lights and indicators.- Condition of glass, headlamp & light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers.- Condition of rubber boots and gaiters.- Brake pads. o- Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check (Petrol only).- Smoke opacity (Diesel only).- Passenger compartment filter (according to specification).o- Contr™le visuel de lÕensemble du vŽhicule par un technicien du rŽseau de la marque.
DRAIN and REFILL
REPLACE
LEVELS
CHECK

ROAD TEST
- Visual check of the whole vehicle.
SERVICE*
Level
Operation Description of OperationFirst ServiceA C Intermediate- Engine oil.- Bleed fuel filter (Diesel only).
- Engine oil (check + top-up).- Gearbox level (check + top-up).- Battery level (check + top-up).if cap is removabl.- Front/rear screen wash level (check + top-up).- Coolant level (check + top-up).- Brake fluid level (check + top-up).- Power steering fluid level (check + top-up, according to specification).

17-02-2003
INSTRUMENT PANEL DIALS: PETROL/DIESEL1 - Fuel filler cap warning light.
2 - Door open warning ligt.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Service indicator, oil level and
total distance recorder.
19-Right-hand direction indicator.
10 - Speedometer.
11 - Clogging of the particulate emission filter warning light(Diesel).
12 - Front fog lamps indicator light.
13 - Rear fog lamp indicator light.
14 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only).
15 - Low coolant level warning light.
YOUR 406 IN DETAIL 127
16 -
Coolant temperature indicator.
17 - Trip recorder zero reset.
18 - Hand-brake and low brake fluid level warning light.
19 - Seat belt not fastened warning light.
20 - Air bags warning light.
21 - ABS system warning light.
22 - Engine diagnostics warninglight*.
23 - Battery charge warning light.
24 - Diesel engine preheating indicator light.
25 - Passenger air bag disarmingwarning light.
26 - Water in diesel filter warninglight.
27 - Front brake pad wear warninglight.
28 - Engine oil pressure warninglight.
29 - Electronic immobiliser warninglight.
30 - Lighting rheostat.
31 - Fuel gauge.
32 - Low fuel level warning light.
* According to engine.

17-02-2003
1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indicator and total distance
recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light (petrolversions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine preheating indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warninglight.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warning light.
32 - Lighting rheostat.
33 - Engine oil temperature
indicator.
* According to engine.
YOUR 406 IN DETAIL
128
INSTRUMENT PANEL DIALS: PETROL/DIESEL

17-02-2003
YOUR 406 IN DETAIL129
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level
and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamp indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warning light.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine pre-heating
indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warning
light.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Operating programmes.
32 - Gear lever position indicator.
33 - Electronic immobiliser warninglight.
34 - Lighting rheostat.
35 - Engine oil temperature.
* According to engine.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

17-02-2003
WARNING LIGHTS AND INDICATORS
A permanently lit warning light, or flashing with the engine running, is an indication of a malfunction in the relevant unit. Some warning lights may
be linked to buzzers and a message on the multifunction display. Do notignore this warning: contact a PEUGEOT dealer as quickly as possible.
If the Central (STOP) warning light comes on when you are driving, stop your vehicle immediately where it is safe to do so.Central (STOP) warning light Linked to the "engine oil pressure", "the low brake fluid level", "the coolant temperature gauge" and "electronic brake force distributionsystem fault" warning lights.
It comes on each time the ignition is switched on. Stop immediately if it flashes with the engine running.
Contact a PEUGEOT dealer.
Engine oil pressure warning light
Linked to the central (STOP) warning light.Stop immediately if it comes on with the engine running.
It indicates either:
Ð insufficient oil pressure,
Ð lack of oil in the lubrication circuit. Top up the oil level.
Contact a PEUGEOT dealer as soon as possible. Low coolant level warning light
Stop immediately. Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of a breakdown and to prevent the risk of scalding, turn thecap to the first notch to allow thepressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Fuel filler cap warning light This comes on if the fuel cap is not correctly screwed
on or is missing.
YOUR 406 IN DETAIL
130

17-02-2003
Door open warning light
When the engine is running, the warning light indicatesthat a door has not been
closed properly or that theboot is open.
Electronic immobiliserwarning light This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.

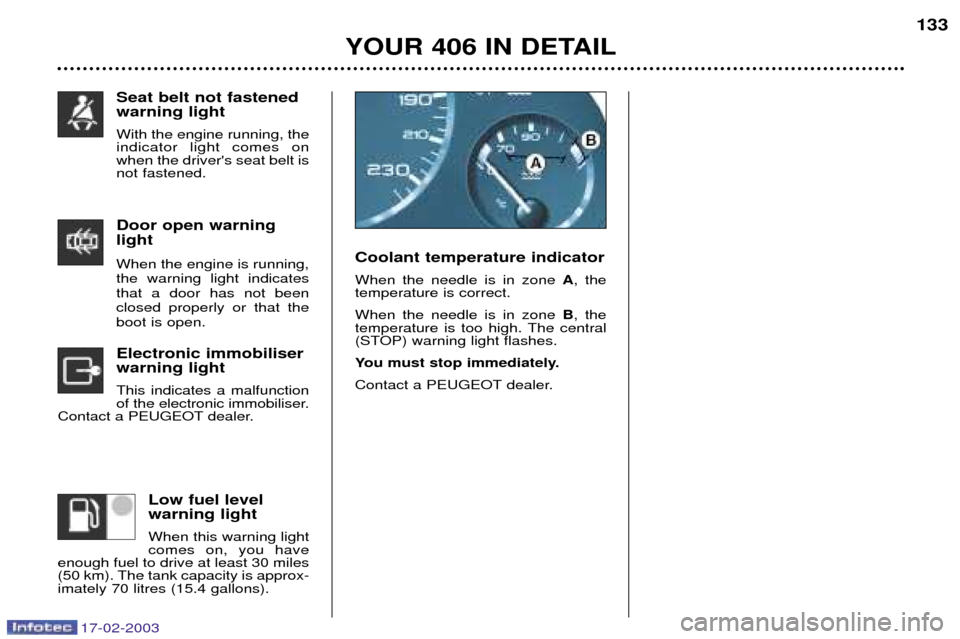

Low fuel level warning light When this warning light comes on, you have
enough fuel to drive at least 30 miles
(50 km). The tank capacity is approx-imately 70 litres (15.4 gallons). Coolant temperature indicator When the needle is in zone
A, the
temperature is correct.When the needle is in zone B, the
temperature is too high. The central
(STOP) warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, the indicator light comes onwhen the driver's seat belt isnot fastened. YOUR 406 IN DETAIL
133

17-02-2003
Door open warning light
When the engine is running, the warning light indicatesthat a door has not been
closed properly or that theboot is open.
Electronic immobiliserwarning light This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Low fuel level warning light When this warning light comes on, you have
enough fuel to drive at least 30 miles
(50 km). The tank capacity is approx-imately 70 litres (15.4 gallons). Coolant temperature indicator When the needle is in zone
A, the
temperature is correct.When the needle is in zone B, the
temperature is too high. The central
(STOP) warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, the indicator light comes onwhen the driver's seat belt isnot fastened. YOUR 406 IN DETAIL
133
