2003 Peugeot 406 Break technical data

17-02-2003
1.8 Litre 16V 2 Litre 16V1 749 1 997
82.7 x 81.4 85 x 88 16 16
85 100
5 500 6 000
160 190
4 000 4 100
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Automatic Manual Automatic
(5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.25 4.251.9 Ð 1.9 Ð
156

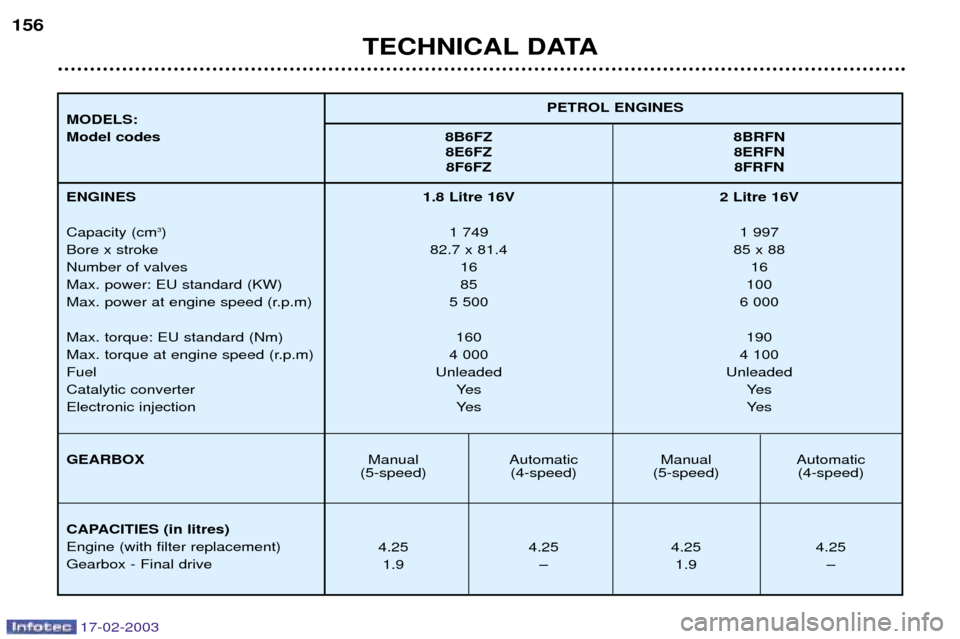

TECHNICAL DATA
PETROL ENGINES
MODELS: Model codes 8B6FZ 8BRFN
8E6FZ 8ERFN 8F6FZ 8FRFN
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive

17-02-2003
TECHNICAL DATA157
PETROL ENGINES
MODELS: Model codes 8BR6F 8BRLZ
8ER6F 8ERLZ 8FRLZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2 Litre 16V 2 Litre HPI
16V
1 997 1 997
85 x 88 85 x 88 16 16
100 103
6 000 6 000
190 192
4 100 4 000
Leaded Unleaded Ye s Ye s
Ye s Ye s
Manual Manual
(5-speed) (5-speed)
4.25 4.25
1.9 1.9

17-02-2003
TECHNICAL DATA
158
PETROL ENGINES
MODELS: Model codes 8B3FZ 8BXFX
8E3FZ 8EXFX 8F3FZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2.2 Litre 16V 24V V6 Injection
2 230 2 946
86 x 96 87 x 82.6 16 24
116 152
5 650 6 000
217 285
3 900 3 750
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.25 4.75 4.75
1.85 1.85 Ð

17-02-2003
Diesel Turbo Diesel Turbo Diesel Turbo2 Litre HDI 2 Litre HDI 2.2 litre 16V HDI
1 997 1 997 2 179
85 x 88 85 x 88 85 x 96 88 1 6
66 80 /79 79 98
4 000 4 000 4 000
205 250 314
1 900 1 750 2 000
Diesel Diesel Diesel Ye s Ye s Ye s
Electronic Electronic Electronic
No No Yes Yes Yes
Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
4.5 4.5 4.5 4.5 4.5
1.9 1.85 Ð Ð 1.85
TECHNICAL DATA 159
MODELS: Model codes
8BRHY 8BRHZ/S 8BRHS 8B4HX
8ERHY 8ERHZ/S 8ERHS 8E4HX 8FRHY 8FRHZ/S 8FRHS 8F4HX
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection Particulate emission filter (PEF) GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final driveDIESEL ENGINES

17-02-2003
TECHNICAL DATA
160
Fuel consumption values correct at time of printing. Consumption, saloon As per directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving of CO 2
driving by mass
1.8 litre 16 valve Manual 8B6FZ 26.6 (10.6) 47.1 (6.0) 36.7 (7.7) 182 g/km
1.8 litre 16 valve Automatic 8B6FZ 22.9 (12.3) 45.6 (6.2) 33.6 (8.4) 201 g/km
2 litre 16 valve Manual 8BRFN 24.6 (11.5) 43.5 (6.5) 34.0 (8.3) 197 g/km
2 litre 16 valve Automatic 8BRF/N 22.9 (12.3) 43.5 (6.5) 32.8 (8.6) 206 g/km
2 litres 16 valve Manual 8BR6F Ð Ð Ð Ð 2 litre 16 valve HPI Manual 8BRLZ 27.4 (10.3) 47.1 (6.0) 37.6 (7.5) 177 g/km
2.2 litre 16V Manual 8B3FZ 22.0 (12.8) 43.5 (6.5) 32.1 (8.8) 210 g/km V6 24 valve Manual 8BXFX 20.6 (13.7) 39.2 (7.2) 29.4 (9.6) 229 g/km
V6 24 valve Automatic 8BXFX 19.7 (14.3) 37.6 (7.5) 28.2 (10) 238 g/km 2 litre HDI Manual 8BRHY 38.2 (7.4) 64.2 (4.4) 51.4 (5.6) 148 g/km
2 litre HDI Manual 8BRHZ/S
37.6/37.0 (7.5/7.6) 62.8/61.7 (4.5/4.6) 50.4/49.6 (5.6/5.7) 147/149 g/km
2 litre HDI Automatic 8BRHZ 31.7 (8.9) 55.4 (5.1) 43.5 (6.5) 173 g/km
2.2 litre HDI 16V Manual 8B4HX 32.1 (8.8) 57.6 (4.9) 44.1 (6.4) 168 gkm

17-02-2003
TECHNICAL DATA161
Fuel consumption values correct at time of printing.Consumption, estate As per directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving of CO 2
driving by mass
1.8 litre 16V Manual 8E6FZ 26.2 (10.8) 45.6 (6.2) 35.8 (7.9) 187 g/km 8F6FZ
1.8 litre 16V Automatic 8E6FZ 22.8 (12.4) 44.1 (6.4) 32.8 (8.6) 206 g/km 8F6FZ
2 litre 16 valve Manual 8ERFN 24.6 (11.5) 42.8 (6.6) 33.6 (8.4) 200 g/km 8FRFN
2 litre 16 valve Automatic 8ERFN 22.9 (12.3) 42.8 (6.6) 32.4 (8.7) 208 g/km 8FRFN
2.2 litre 16 valve Manual 8ER6F Ð Ð Ð Ð
2 litre HPI 16V Manual 8ERLZ 27.2 (10.4) 45.6 (6.2) 36.7 (7.7) 185 g/km 8FRLZ
2.2 litre 16 valve Manual 8E3FZ 22.0 (12.8) 40.4 (6.7) 31.8 (8.9) 212 g/km
8F3FZ
V6 24 valve Manual 8EXFX 20.3 (13.9) 38.1 (7.4) 28.8 (9.8) 234 g/km 8FXFX
V6 24 valve Automatic 8EXFX 19.4 (14.5) 36.6 (7.7) 27.6 (10.2) 243 g/km 8FXFX
2 litre HDI Manual 8ERHY 37.8 (7.5) 61.7 (4.6) 49.6 (5.7) 151 g/km 8FRHY
2 litre HDI Manual 8ERHZ/S 37.7 (7.5/-) 60.1 (4.7/-) 49.6 (5.7/-) 156/- g/km 8FRHZ/S
2 litre HDI Automatic 8ERHZ 30.4 (9.3) 54.3 (5.2) 42.2 (6.7) 178 g/km 8FRHZ
2.2 litre HDI 16V Manual 8E4HX 32.1 (8.8) 55.4 (5.1) 43.5 (6.5) 170 g/km
8F4HX

17-02-2003
TECHNICAL DATA
162

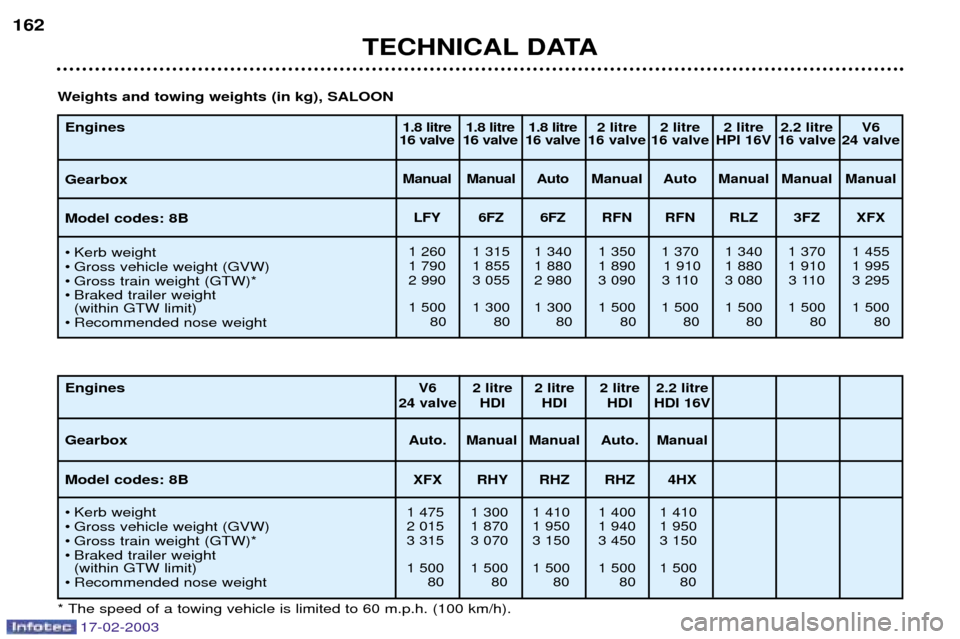

Engines Gearbox Model codes: 8B
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight
(within GTW limit)
¥ Recommended nose weight1.8 litre 1.8 litre 1.8 litre 2 litre 2 litre 2 litre 2.2 litre V6
16 valve 16 valve 16 valve 16 valve 16 valve HPI 16V 16 valve 24 valve
Manual Manual Auto Manual Auto Manual Manual Manual
LFY 6FZ 6FZ RFN RFN RLZ 3FZ XFX
1 260 1 315 1 340 1 350 1 370 1 340 1 370 1 455
1 790 1 855 1 880 1 890 1 910 1 880 1 910 1 995
2 990 3 055 2 980 3 090 3 110 3 080 3 110 3 295
1 500 1 300 1 300 1 500 1 500 1 500 1 500 1 500 80 80 80 80 80 80 80 80
Engines Gearbox Model codes: 8B
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight(within GTW limit)
¥ Recommended nose weightV6 2 litre 2 litre 2 litre 2.2 litre
24 valve HDI HDI HDI HDI 16V
Auto. Manual Manual Auto. Manual
XFX RHY RHZ RHZ 4HX
1 475 1 300 1 410 1 400 1 410
2 015 1 870 1 950 1 940 1 950
3 315 3 070 3 150 3 450 3 150
1 500 1 500 1 500 1 500 1 500 80 80 80 80 80
* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).
Weights and towing weights (in kg), SALOON

17-02-2003
TECHNICAL DATA163
Engines Gearbox Model codes: 8E
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight1.8 litre 1.8 litre 2 litre 2 litre2 litre HPI2.2 litre V6 V6
16 valve 16 valve 16 valve 16 valve 16 valve 16 valve 16 valve 16 valve
Manual Auto. Manual Auto. Manual Manual Manual Auto.
6FZ 6FZ RFN RFN RLZ 3FZ XFX XFX
1 365 1 395 1 400 1 420 1 400 1 420 1 505 1 525
2 015 2 045 2 050 2 070 2 050 2 070 2 155 2 175
3 215 3 245 3 250 3 270 3 250 3 270 3 455 3 475
1 500 1 500 1 500 1 500 1 500 1 500 1 500 1 500 80 80 80 80 80 80 80 80
Engines Gearbox Model codes: 8E
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight(within GTW limit)
¥ Recommended nose weight 2 litre 2 litre 2 litre 2.2 litre HDIHDI HDI HDI 16
valve
Manual Manual Auto. Manual RHY RHZ RHZ 4HX
1 380 1 425 1 460 1 460
2 030 2 075 2 110 2 110
3 230 3 275 3 310 3 310
1 500 1 500 1 500 1 500 80 80 80 80
* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).Weights and towing weights (in kg), ESTATE
