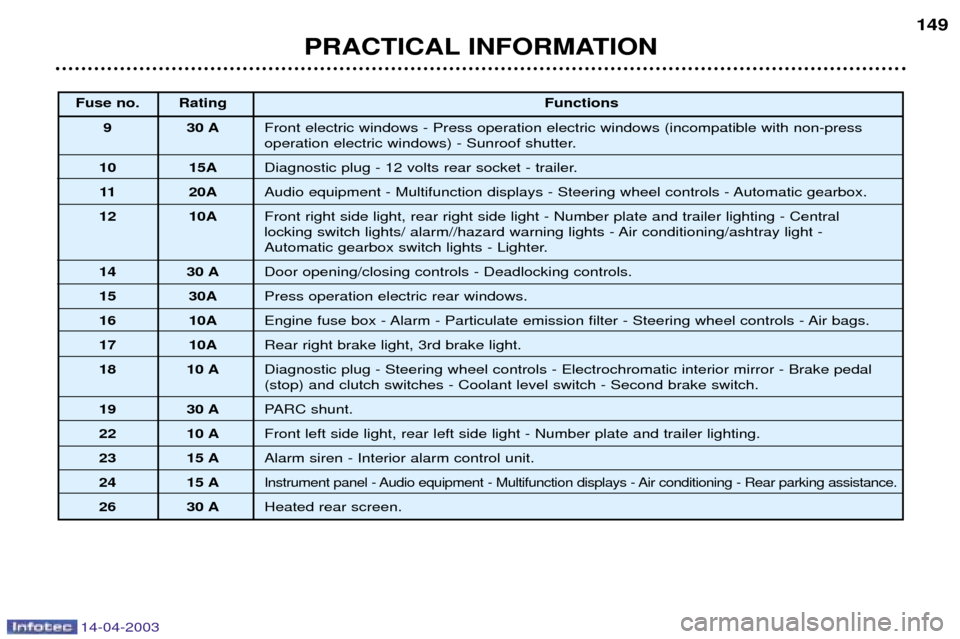

Fuse no. Rating
Functions
9 30 A Front electric windows - Press operation electric windows (incompatible with non-press
operation electric windows) - Sunroof shutter.
10 15A Diagnostic plug - 12 volts rear socket - trailer.
11 20A Audio equipment - Multifunction displays - Steering wheel controls - Automatic gearbox.
12 10A Front right side light, rear right side light - Number plate and trailer lighting - Central
locking switch lights/ alarm//hazard warning lights - Air conditioning/ashtray light -
Automatic gearbox switch lights - Lighter.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30A Press operation electric rear windows.
16 10A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Air bags.
17 10A Rear right brake light, 3rd brake light.
18 10 A Diagnostic plug - Steering wheel controls - Electrochromatic interior mirror - Brake pedal(stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left side light, rear left side light - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A
Instrument panel - Audio equipment - Multifunction displays - Air conditioning - Rear parking assistance.
26 30 A Heated rear screen.
