2003 Peugeot 206 SW Dag trip computer

26-05-2003
3YOUR 206 AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Rear electric windows disarming switch
5 Dynamic stability control(ESP/ASR) button
6 Lighting rheostat for instrument dials
7 Windscreen wiper/wind-screen wash/trip computerstalk
8 Audio equipment remotecontrol
9 Hazard warning lights switch
10 Multifunction display 11
Windscreen demisting vents
12 Side window demisting vents
13 Adjustable side vent
14 Passenger air bag
15 Adjustable centre vents
16 Glove box
17 Audio equipment
18 Control for heating, ventilation, air conditioningand heated rear screen andmirrors
19 Front ashtray
20 Gear lever
21 Lighter 22
Electric mirror controls
23 Heated seats switch
24 Front electric window controls
25 Handbrake
26 Bonnet release
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjust-ment control
31 Headlamp height adjustment
* According to destination.

26-05-2003
YOUR 206 IN DETAIL
38
Setting the parameters Press and hold button 1for two seconds to access the settings. The data
flashes, indicating it is ready to be modified. Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:
Ð language in which the information is displayed,
Ð unit of distance (kms or miles),
Ð unit of temperature (degrees Celsius or Fahrenheit),
Ð time format (12 then 24 hour mode),
Ð hour,
Ð minutes,
Ð year,
Ð month,
Ð day.Pressing button 2allows you to change the data selected. Maintain the pressure
for rapid scrolling.After 7 seconds without moving, the main display returns; the modified data are now recorded.
DISPLAY B This enables the following informa- tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (this flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open,
Ð the warning messages (e.g. ''bat- tery charge low'') or informationmessages (e.g. "fuel tank low''),
displayed temporarily, can becleared by pressing button 1or 2,
Ð the trip computer.

26-05-2003
YOUR 206 IN DETAIL39
DISPLAY C This enables the following informa- tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (this flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open, Ð the warning messages (e.g. "fuel level low''), displayed temporarily. These can
be cleared using the remote control,
Ð the trip computer (see corresponding section),
Ð the satellite navigation system (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section ''Satellite Navigation System''.

26-05-2003
YOUR 206 IN DETAIL97
TRIP COMPUTER Pressing the button on the end of the wash/wipe stalkenables the following data to
be displayed:
Display B
Ð the range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed Zero reset Press the stalk for more than two seconds. Display C
Ð the current consumption and the range,
Ð the average consumption, the distance travelled and the
average speed calculated over a period "1",
Ð the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.

YOUR 206 IN DETAIL
98
Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note: this figure may rise if there is
a change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments willbe displayed.

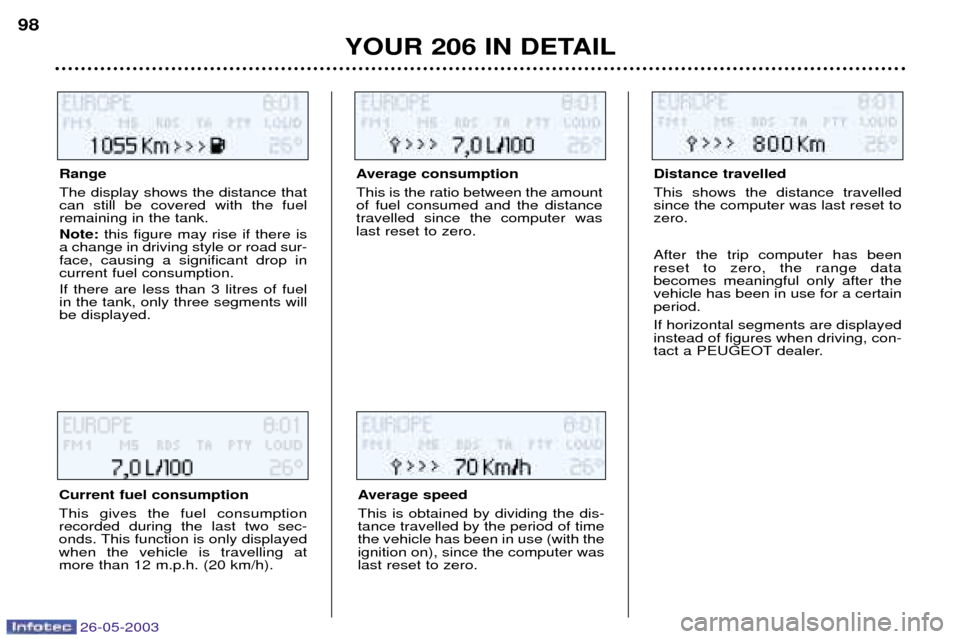

Current fuel consumption This gives the fuel consumption recorded during the last two sec-
onds. This function is only displayedwhen the vehicle is travelling atmore than 12 m.p.h. (20 km/h). Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer waslast reset to zero.
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero. Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range databecomes meaningful only after thevehicle has been in use for a certainperiod. If horizontal segments are displayed instead of figures when driving, con-
tact a PEUGEOT dealer.
