2003 Peugeot 206 SW Dag maintenance

26-05-2003
TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depend- ing on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR SALOON and 206 SW PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
These services are to be carried with at least 10W40 synthetic based oil.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000)
80,000 (120,000) 100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000)

26-05-2003
TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depend- ing on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR SALOON and 206 SW PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
These services are to be carried with at least 10W40 synthetic based oil.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000)
80,000 (120,000) 100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000)

26-05-2003
PEUGEOT SERVICING23
THE MAINTENANCE CYCLE FOR YOUR 206 RC**
Service every 12,000 miles (20,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary in order to benefit
from the warranty
These services are to be carried with 5W40 synthetic based oilonly.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
** During the year, according to destination.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 12,000 (20,000) 24,000 (40,000) 36,000 (60,000) 48,000 (80,000) 60,000 (100,000)
72,000 (120,000) 84,000 (140,000) 96,000 (160,000) 108,000(180,000) 120,000 (200,000) 132,000 (220,000) 144,000 (240,000)

26-05-2003
PEUGEOT SERVICING25
Intermediate top-up visit incorporated in the Servicing Schedule.
THE MAINTENANCE CYCLE FOR YOUR 206 INDIRECT INJECTION DIESEL
Service every 10,000 miles (15,000 km) or 2 years.
1st Service at
6,000 miles 10,000 km or 6 months*.
This is necessary
in order to benefit
from the warranty.
These services are to be carried out with 10W40 synthetically based oilminimum.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
MILES (KM) 10,000 (15,000) 20,000 (30,000) 30,000 (45,000) 40,000 (60,000)
50,000 (75,000) 60,000 (90,000) 70,000 (105,000) 80,000 (120,000) 90,000 (135,000) 100,000 (150,000)
110,000 (165,000) 120,000 (180,000) 130,000 (195,000) 140,000 (210,000) 150,000 (225,000) 160,000 (240,000)

26-05-2003
PEUGEOT SERVICING
24
Intermediate top-up visit incorporated in the Servicing Schedule.
THE MAINTENANCE CYCLE FOR YOUR 206 TURBO DIESEL HDI
Service every 12,000 miles (20,000 km) or 2 years.
1st Service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit
from the warranty.
These services are to be carried out with 10W40 synthetically based oilminimum.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
MILES (KM)12,000 (20,000) 24,000 (40,000) 36,000 (60,000) 48,000 (80,000) 60,000 (100,000)
72,000 (120,000) 84,000 (140,000) 96,000 (160,000) 108,000 (180,000) 120,000 (200,000) 132,000 (220,000) 144,000 (240,000)

26-05-2003
Recommended lubricants The oils which appear in the previous table are suitable for most purposes. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the "ArduousConditions" servicing schedule whichspecifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain driving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING
28
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W80 PR 9736.41 75W80
ONLY
Automatic ATF 4HP20-AL4
Gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other recommended products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY protection to minus 35 ¡C

26-05-2003
PRACTICAL INFORMATION145
BODYWORK MAINTENANCE
To preserve the paintwork and the plastic trim on your vehicle, we recom-
mend that you wash them regularly.
Ð by hand: there are no specific pre- cautions to take;
Ð using an automatic car wash: repeated use of poorly maintained automatic car washes can lead tothe appearance of microscopicscratches which give the paint-work a matt appearance (espe-cially visible on dark colours);
Ð using a high pressure washer: always follow the recommenda-tions on the equipment (pressureand spraying distance). If there are damaged areas on the vehicle (painted bumpers orheadlamps), it is not recommend-ed to direct the high pressure jet
onto them. Wash these areas byhand. Also avoid the entry of water into the locks.
For all questions relating to themaintenance of your vehicle, con-tact an approved dealer who canadvise you on quality productsselected by our departments.

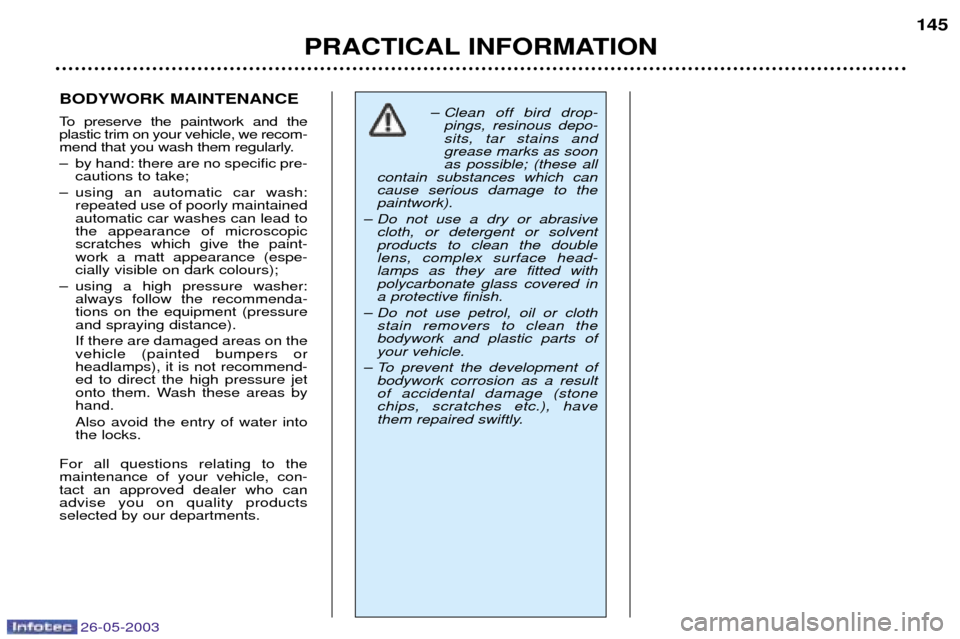

Ð Clean off bird drop- pings, resinous depo- sits, tar stains andgrease marks as soonas possible; (these all
contain substances which cancause serious damage to thepaintwork).
Ð Do not use a dry or abrasive cloth, or detergent or solventproducts to clean the doublelens, complex surface head-lamps as they are fitted withpolycarbonate glass covered ina protective finish.
Ð Do not use petrol, oil or cloth stain removers to clean thebodywork and plastic parts ofyour vehicle.
Ð To prevent the development of bodywork corrosion as a resultof accidental damage (stonechips, scratches etc.), have
them repaired swiftly.

26-05-2003
PRACTICAL INFORMATION
146
206 ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety,
which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee.
Safety : Anti-theft alarms, window engraving, wheel locks, warning triangle, first aid kit, ...
Protection : Covers compatible with side air bags (saloon and 206 SW), carpets, boot tray, ...
Communication : Audio/telephone, hands-free kit, on-board satellite navigation system, CD changers, radios, speakers, radio trim, rear shelf fitted with 4 speakers (saloon), ...
Customising : Alloy wheels, trims, sunroof*, front fog lamps, mud flaps, tailgate spoiler (saloon), sportexhaust, aluminium and wood panel trim, door sills, body kit, wing extenders, ...
* To fit a sunroof, it is essential that only original PEUGEOT products are used.
Comfort : Centre armrest, writing table, passenger seat protection, large storage box (saloon and
206 SW)**, bottle holder, CD or cassette storage, telephone console, door deflectors, undershelf storage (saloon), ....
** With "modifiable seats" option only.
Leisure : Tow bar, roof bars, roof boxes, ski carrier, bicycle carrier***, snow chains, ...
*** Do not fit the bicycle carrier on the spoiler or on the rear screen.
Children : Booster seats and child seats, Kiddy Isofix seat, sun blinds, ...
Maintenance products : Windscreen wash fluid, interior and exterior maintenance and cleaning products, ...
Va n : Kit for conversion into a van, ...
Before fitting an electrical accessory in your vehicle, consult a PEUGEOT dealer.
