2003 Peugeot 206 SW Dag air conditioning

26-05-2003
3YOUR 206 AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Rear electric windows disarming switch
5 Dynamic stability control(ESP/ASR) button
6 Lighting rheostat for instrument dials
7 Windscreen wiper/wind-screen wash/trip computerstalk
8 Audio equipment remotecontrol
9 Hazard warning lights switch
10 Multifunction display 11
Windscreen demisting vents
12 Side window demisting vents
13 Adjustable side vent
14 Passenger air bag
15 Adjustable centre vents
16 Glove box
17 Audio equipment
18 Control for heating, ventilation, air conditioningand heated rear screen andmirrors
19 Front ashtray
20 Gear lever
21 Lighter 22
Electric mirror controls
23 Heated seats switch
24 Front electric window controls
25 Handbrake
26 Bonnet release
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjust-ment control
31 Headlamp height adjustment
* According to destination.

26-05-2003
68
70

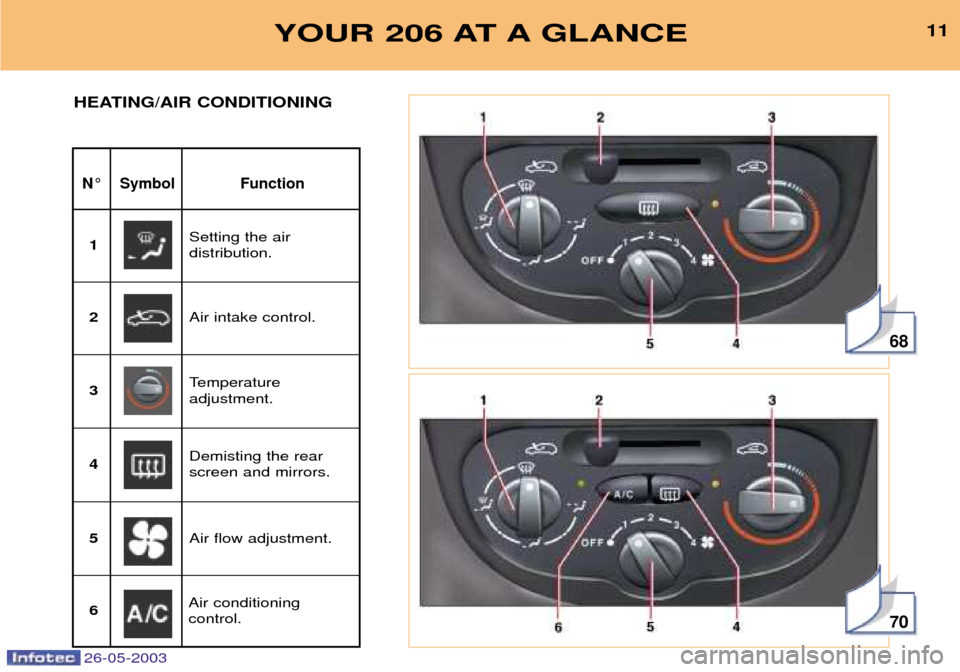

YOUR 206 AT A GLANCE11
N¡ Symbol Function
HEATING/AIR CONDITIONING
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6

26-05-2003
72

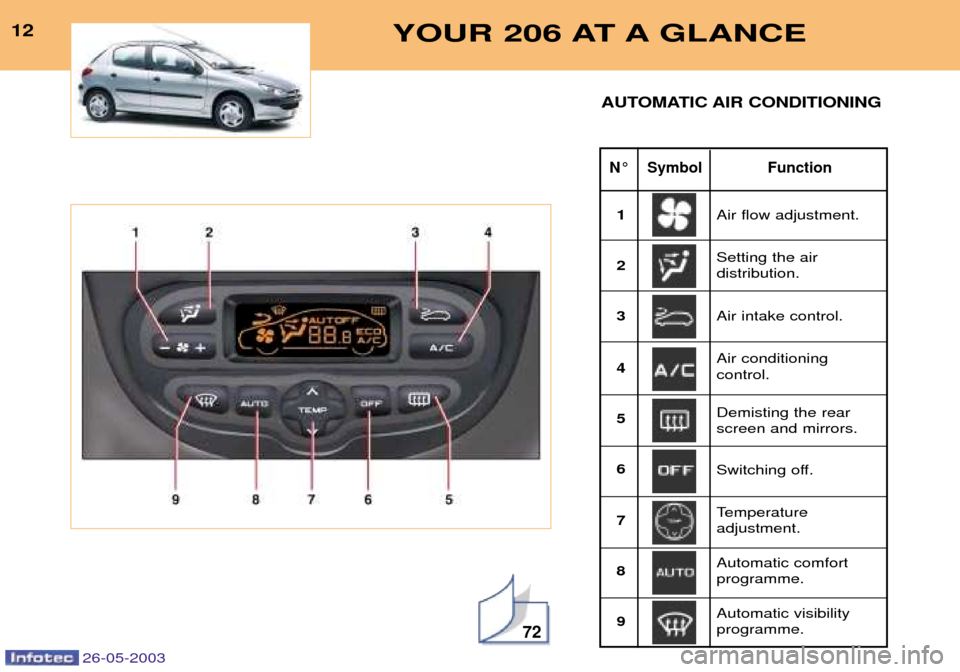

YOUR 206 AT A GLANCE12
N¡ Symbol Function
AUTOMATIC AIR CONDITIONING
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 89 Air intake control. Air conditioning control.
Switching off.
Demisting the rear screen and mirrors.
Temperature adjustment. Automatic comfort programme. Automatic visibility programme.

26-05-2003
YOUR 206 IN DETAIL
70

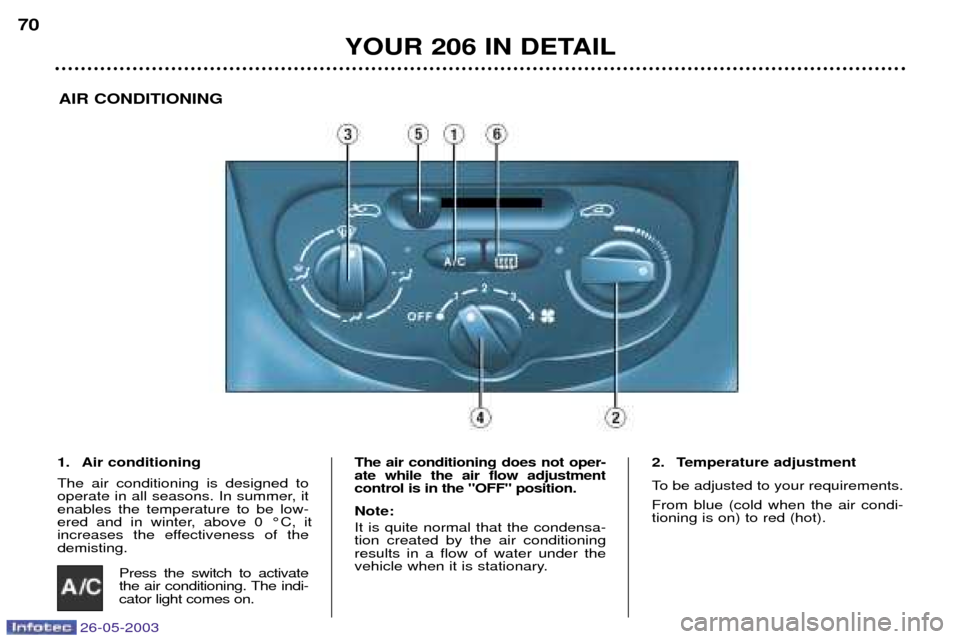

AIR CONDITIONING
1. Air conditioning The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be low-
ered and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not oper-ate while the air flow adjustmentcontrol is in the "OFF" position. Note: It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements. From blue (cold when the air condi- tioning is on) to red (hot).

26-05-2003
YOUR 206 IN DETAIL71
3. Air distribution adjustment
Windscreen and side win- dows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows:
Ð turn the temperature and air flow controls to maximum,
Ð close the centre vents,
Ð position the air intake control to the left; the "Outside Air" position,
Ð start the air conditioning.
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Intake of exterior air.
This is the normal operating position.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment. Used simultaneously with the air con- ditioning, recirculation enables bothheating and cooling performance tobe improved. Used without the air conditioning, recirculation may result in misting ofthe windows. As soon as possible, position the
control in the exterior air intakeposition. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce
cold air, do not use it and contact a
PEUGEOT dealer.
4. Air flow adjustment
Turn the control from posi-tion 1to position 4to obtain
an air flow sufficient toensure your comfort. 6. Demisting the rear screen and
the mirrors
With the engine running,
press once to demist the rear screen and themirrors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.

26-05-2003
YOUR 206 IN DETAIL
72
Automatic operation
1. Temperature adjustment
The chosen temperature is displayed. Press the up anddown arrows to change it.
A setting around 21 ¡Cenables a comfortable tem-perature to be obtained. 2. Automatic comfort programme
Press the
AUTObutton. The sys-
tem automatically adjusts theatmosphere inside the vehicle inaccordance with the temperature
that you have chosen. To do this, it controls the
temperature, the flow, the distribution and theintake of air as well as the air conditioning.Note: for your comfort, the settings are retained
between two start-ups of your vehicle if the tem-perature in the passenger compartment has notchanged significantly; otherwise, operationresumes in automatic mode.
3. Automatic visibility programme
In some cases, the auto-matic comfort programme
may not be sufficient for de-icing or demisting of the
windows (humidity, several passen-gers, ice etc.). In this case, select theautomatic visibility programme to
clear the windows quickly.
To exit this programme and return to the automatic comfort programme,press the AUTObutton.
AUTOMATIC AIR CONDITIONING

26-05-2003
YOUR 206 IN DETAIL73
5. Air distribution
Pressing this button sever- al times in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (de-icing or demisting),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
7. Air intake
Press this button for recircu-
lation of the interior air.Recirculation, shown on the
display, enables the passen-
ger compartment to be insulated fromexterior odours and smoke.
Avoid prolonged recirculation of interi-
or air. To do this, press the buttonagain to resume automatic manage-
ment of the intake of air. Note: To prevent condensation on the
inside of the vehicle in cold or wet
weather, you are advised to avoidusing this mode.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol ECOis displayed.
Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbolA/C is displayed. 8. Switching the system off
The OFF button enables
the entire system to be
switched off.
Temperature-related com-
fort is no longer guaranteed.Pressing the OFF, AUTO , or visi-
bility button again reactivates the
system with the values set before it
was switched off.
9. Demisting the rear screen Press this button to demistthe rear screen and themirrors. Demisting switches
off automatically. It is pos-
sible to stop operation of the
demisting before it is switched offautomatically by pressing the buttonagain. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the
AUTObutton
returns the system to completelyautomatic operation.
6. Air flowThe flow of air can beincreased or reducedby pressing buttons+or Ðrespectively.
Notes It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
To prevent condensation on the inside of the vehicle in cold or wet
weather, you are advised to avoidusing the ECOmode.

26-05-2003
PRACTICAL INFORMATION139
Fuse N¡ Rating
Functions
1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP stop switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 20 A Headlamp wash pump
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam 11 10 A Left-hand main beam
12 15 A Right-hand main beam
13 15 A Horns
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors -
Variable engine timing solenoid valve (206 RC) - Variable engine air intake solenoid valve (206 RC)
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
