2003 Peugeot 206 Dag power steering

26-05-2003
PEUGEOT SERVICING
26
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation1st serviceACIntermediate
DRAIN/REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter- Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removableLEVEL- Screen wash front/rear (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)CHECK- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification)o- Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditionso: Arduous conditions * According to destination.

26-05-2003
Recommended lubricants The oils which appear in the previous table are suitable for most purposes. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the "ArduousConditions" servicing schedule whichspecifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain driving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING
28
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W80 PR 9736.41 75W80
ONLY
Automatic ATF 4HP20-AL4
Gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other recommended products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY protection to minus 35 ¡C

26-05-2003
PRACTICAL INFORMATION117
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
1.1 litre, 1.4 litre ENGINE

26-05-2003
PRACTICAL INFORMATION
118
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
1.6 litre 16V ENGINE

26-05-2003
PRACTICAL INFORMATION119
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
2 litre 16V ENGINE

26-05-2003
PRACTICAL INFORMATION
120
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
* According to destination.
** During the year, according to destination.

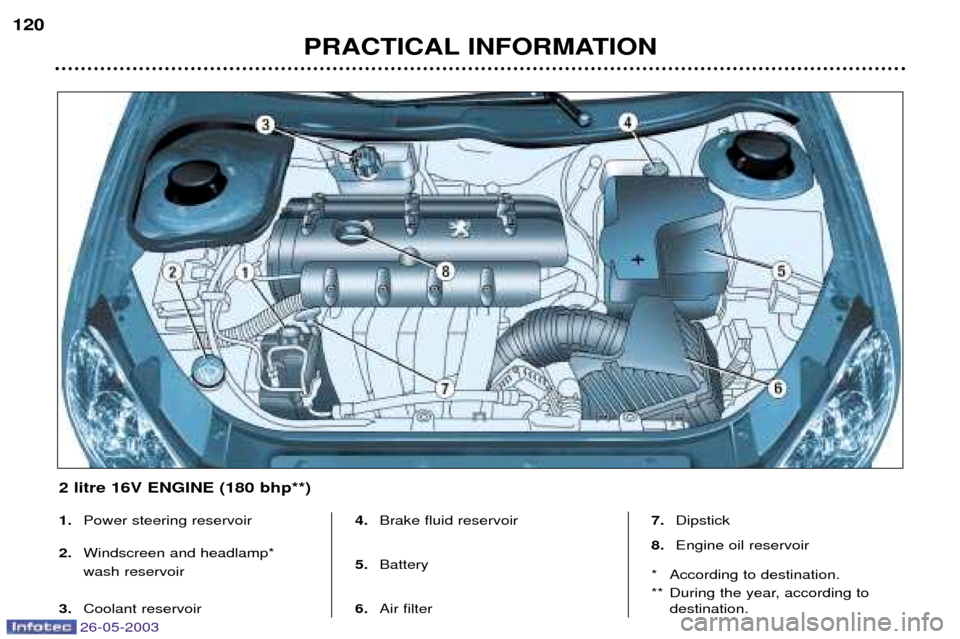

2 litre 16V ENGINE (180 bhp**)

26-05-2003
PRACTICAL INFORMATION121
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
9. Priming pump
* According to destination.
1.4 litre turbo diesel HDI ENGINE

26-05-2003
PRACTICAL INFORMATION
122
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
1.9 litre Diesel ENGINE
