2003 Peugeot 206 CC Dag ECO mode

30-06-2003
YOUR 206 CC IN DETAIL63
5.
Air distribution
Successive presses of this button allow the air flow tobe directed alternately to:
- the windscreen (demisting or de-icing),
- the windscreen and the footwells,
- the footwells,
- the central and side vents and the footwells,
- the central and side vents.
7. Air intake
Press this button to recycle
the interior air. Recircula-
tion, shown on the display,prevents the entry of
unpleasant odours and fumes fromthe outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake. Note: To prevent condensation on
the inside of the vehicle in cold or
wet weather, you are advised toavoid using this mode.
4. Air conditioning
Press this button to stop
the air conditioning. TheECOsymbol lights up.
Press again to return to
automatic operation of the air condi-tioning. The A/Csymbol is dis-
played. 8. Switching the system off
TheOFF button enables
the entire system to be
switched off.
Temperature-related comfort is nolonger guaranteed. Pressing the OFF, AUTO or visibili-
ty button again reactivates the sys-
tem with the values set before it was
switched off.
9. De-icing the rear window and the mirrors
Press this button to de-ice the rear screen and the mir-
rors. The de-icing system
switches off automatically.It is possible to stop the de-
icing before it switches off automati-cally by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish you can make a different
choice from the one offered by the
system, by changing a setting. Theother functions will still be managed
automatically. Press the
AUTObut-
ton to return to completely automaticoperation.
6. Air flowThe air flow may beincreased or reducedby pressing the but-tons +or -respec-
tively.
Notes The condensation created by the air conditioning causes a normal flow ofwater under the vehicle when
stationary.
To prevent condensation on the insi- de of the vehicle in cold or wet wea-
ther, you are advised to avoid usingthe ECO mode.

30-06-2003
YOUR 206 CC IN DETAIL69

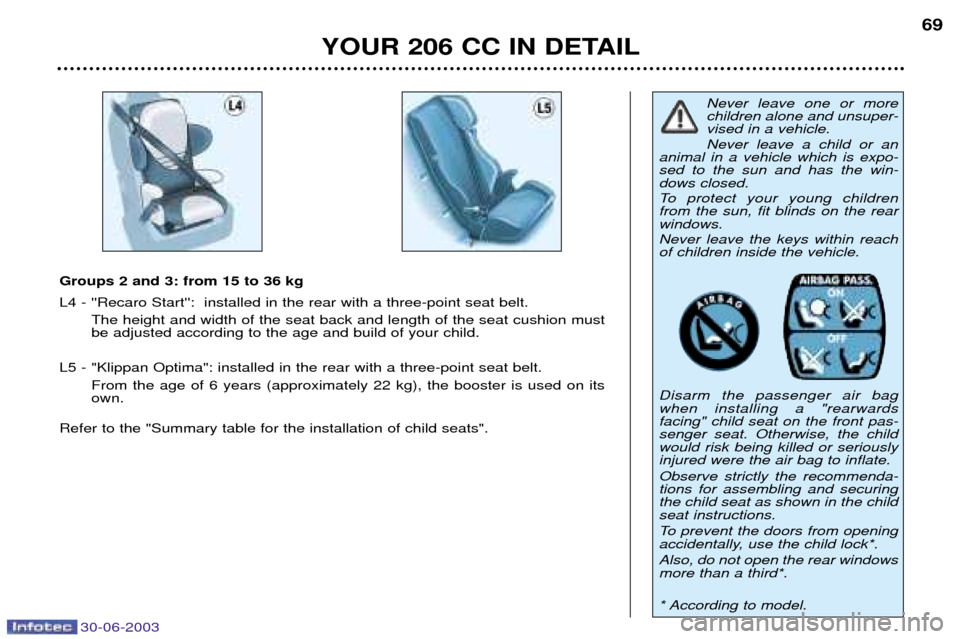

Groups 2 and 3: from 15 to 36 kg L4 - ''Recaro Start'': installed in the rear with a three-point seat belt.
The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 - "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats".
Never leave one or more children alone and unsuper-vised in a vehicle. Never leave a child or an
animal in a vehicle which is expo- sed to the sun and has the win-dows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach of children inside the vehicle. Disarm the passenger air bag when installing a "rearwardsfacing" child seat on the front pas-senger seat. Otherwise, the childwould risk being killed or seriouslyinjured were the air bag to inflate. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in the childseat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear windows more than a third*.
* According to model.

30-06-2003
YOUR 206 CC IN DETAIL
80
After the ignition has been switched off, if the stalk was in awipe position, you mustreactivate this function: - move the stalk to any position,
- then move it back to the required
position.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixedperiod. The windscreen wash and head- lamp wash operate simultaneouslyfor two seconds, only if the
headlamps are on .
Front windscreen wiper withintermittent wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the Intermittent position, the
wiping speed is in proportion to thevehicle speed.
Front windscreen wiper with automatic wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press downwards).
In the AUTOposition, the wiping
speed is in proportion to the intensityof the rainfall.
WINDSCREEN WIPER STALK

30-06-2003
YOUR 206 CC IN DETAIL
90
Operating programmes
You have a choice of three operating programmes:
- Autoadaptive (normal).
- Sport.
- Snow.One press on button
Aor Bwill
select Sport or Snow respectively. The selection is displayed on theinstrument panel. Pressing the but-ton a second time will return to theautoadaptive (normal) programme. Autoadaptive programme (normal) Gear changes are carried out on the basis of various parameters, suchas:
- driving style,
- road characteristics,
- vehicle load.The gearbox selects the most suit- able programme from those in thememory for the current driving con-ditions. Sport programme The Sport programme automatically favours more dynamic driving. Snow Programme In position
D, the Snow programme
provides smooth driving suited to slippery roads in order to improve
traction and stability. Starting is in2nd gear and changing down is at
low engine speeds. Special operating features
- During prolonged braking, the gearbox changes down automati-
cally, so as to provide efficientengine braking.
- If you take your foot off the accel- erator suddenly (when you aretaken by surprise, for example),the gearbox will not change up,
so as to improve safety.
- When the engine is cold, the gearbox automatically selects aspecial programme that enablesthe engine to reach its ideal tem-perature more quickly in order todecrease pollution.
Kickdown For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as
far as it will go. The gearbox willchange down automatically or stayin the gear selected, up to maximumengine speed.Any disruption of the system is signalled by the simultane-ous flashing of the Sport andSnow lights on the instrument
panel. In such a case, the gearbox
will operate in downgrade mode. Youmay feel a substantial knock whenreverse is selected from Pto R or N
to R(without any risk of damage to
the gearbox). Do not exceed 60 mph (100km/h).Contact a PEUGEOT dealer without
delay. When the engine is idling with the car
in gear, the car will move even with-out you accelerating. Do not accelerate while a gear is being selected, when the vehicle is
stationary.
When stationary, have your foot on the brake pedal when selecting a
gear. Do not accelerate in gear with the brakes on. If work needs to be done with the engine running, apply the handbrakeand select position P.
Do not change down to brake on slip-pery roads. Never select position Nwhen the
vehicle is moving.Never engage Por Runless the vehi-
cle is stationary.Do not leave children inside the vehi- cle unsupervised when the engine isrunning.

30-06-2003
PRACTICAL INFORMATION
112
BATTERY
To charge the battery using a battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are covered with
sulphate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on the broken down vehicle, as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables. ECONOMY MODE FUNCTION After the engine has stopped, with the key in the accessories position,
certain functions (windscreen wiper,electric windows, courtesy lights,audio equipment etc.) can only beused for thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multifunction displayand the active functions are put on
standby.
A flat battery will prevent the engine from starting.
- Wait for 2 minutes after switching off the ignition before disconnec- ting the battery.
- Never disconnect a terminal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- Close the windows and the folding roof before disconnecting the battery. If the windows do not operate normally following re-connection of the battery, you must re-initialise them (see section "Electric windows - ¤ Safety auto-reverse).
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initialised. If slight difficulties are experienced after this, please contact a PEUGEOT
dealer. It is advisable to disconnect the battery if the vehicle is not
to be used for a period of more than one month.
