At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication Service
Lubricate all hood latch assembly, secondary latch,
pivots, spring anchor, release pawl, rear compartment
hinges, outer liftgate handle pivot points, rear door
detent link, roller mechanism, liftgate handle pivot points,
latch bolt, fuel door hinge, cargo door hinge, locks
and folding seat hardware. Part
D tells you what to use.
More frequent lubrication may be required when
exposed to a corrosive environment.
When you are doing this check, the vehicle
could move suddenly.
If it does, you or others
could be injured. Follow the steps below.
1. Before you start, be sure you have enough room
2. Firmly apply both the parking brake and the regular
around
the vehicle.
brake. See
Parking Brake on page 2-25 if
necessary.
Do not use the accelerator pedal, and be ready to
turn
off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK
(P) or NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
6-1 2

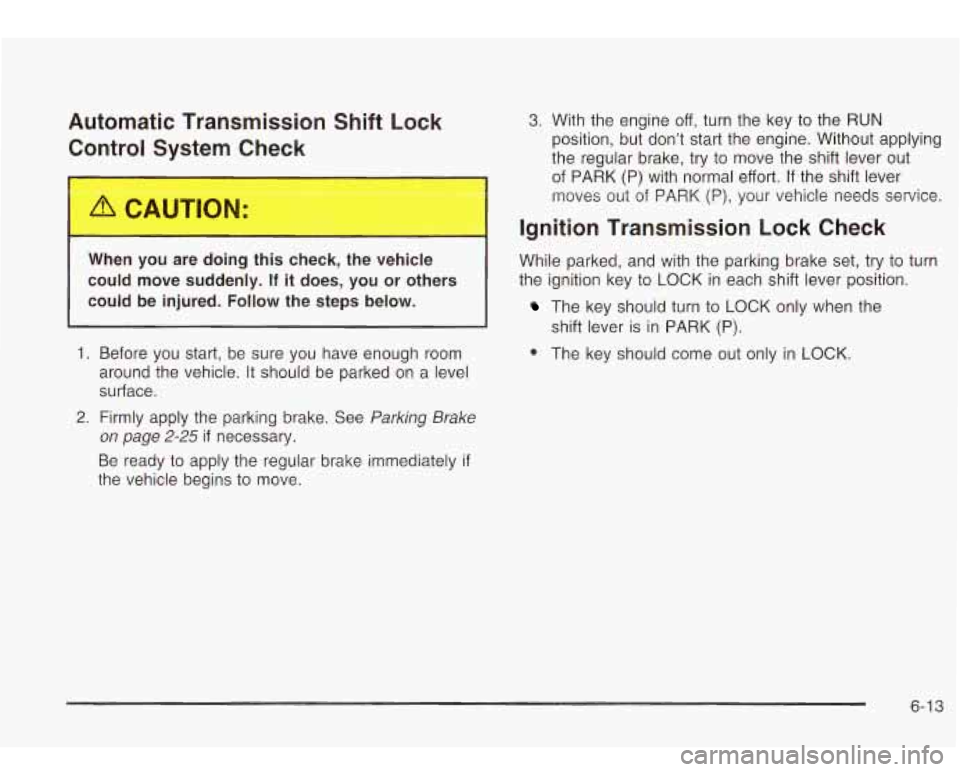

Automatic Transmission Shift Lock
Cmtrol Sy-tem Check
When you are doing this check, the vehicle
could move suddenly.
If it does, you or others
could be injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See Parking Brake
on page
2-25 if necessary.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out
of PARK
(P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle needs service.
Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.
The key should turn to LOCK only when the
shift lever is in PARK (P).
The key should come out only
in LOCK.
Be ready to apply the regular brake immediately
if
the vehicle begins to move.
6-1 3

Parking Brake and Automatic
Transmission Park (P) Mechanism
Check
I
When you are doing this check, ur hicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room
in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake
at once should the vehicle begin
to move.
To check the parking brake’s holding ability: With
the engine running and transmission in NEUTRAL
(N), slowly remove foot pressure from the regular
brake pedal.
Do this until the vehicle is held by the
parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK
(P).
Then release the parking brake followed by the
regular brake.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
6-1 4

Transfer Case and Front Axle (All-Wheel Drive) Inspection
Every 12 months, or at engine oil change intervals,
check front axle and transfer case and add lubricant
when necessary.
A fluid loss could indicate a problem.
Check and have it repaired,
if needed. Check vent
hose at transfer case for kinks and proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. Check parking
brake adjustment.
You may need to have your brakes
inspected more often
if your driving habits or
conditions result in frequent braking.
6-1 6

Automatic Headlamp System ............................ 3-1 5
Automatic Transmission
Fluid
.......................................................... 5-20
Operation
................................................... 2-22
Automatic Transmission Check
.......................... 6-1 1
Automatic Transmission Shift Lock Control
System Check
....................................... ... 6-13
Backglass Wiper Blade Replacement
................. 5-51
Battery
.......................................................... 5-38
Battery Replacement
......................................... 2-6
Battery Run-Down Protection
............................ 3-1 9
Before Leaving on a Long Trip
......................... 4-33
Before You Drive
............................................ 3-76
Before You Go Off-Roading
.............................. 4-16
Body Lubrication Service
.................................. 6-12
Brake
Parking
...................................................... 2-25
System Inspection
....................................... 6-1 6
System Warning Light
.................................. 3-33
Brake Adjustment
............................................ 5-37
Brake Fluid
.................................................... 5-34
Brake Pedal Travel
..................................... 5-37
Brake Wear
............................................... 5-36
Brakes
.......................................................... 5-34
Braking
........................................................... 4-6
Backing
Up
.................................................... 4-51
BATTERY NOT CHARGING
............................. 3-53 Braking
in Emergencies
..................................... 4-8
Break.ln. New Vehicle
..................................... 2-18
Bulb Replacement
........................................... 5-47
Replacement Bulbs
...................................... 5-48
Buying New Tires
........................................... 5-56
Taillamps
and Turn Signal Lamps
.................. 5-47
C
California Fuel .................................................. 5-6
Canada
........................................................... 7-4
Canadian Owners
................................................ ii
Canadian Roadside Assistance ........................... 7-7
Capacities and Specifications
............................ 5-93
Care of
Carbon Monoxide
................... 4-36,
4-45, 2-13, 2-28
Safety Belts
................................................ 5-80
Your Cassette Tape Player
............................ 3-90
Your CD and DVD Player
............................. 3-91
Your CDs and DVDs
.................................... 3-91
Cargo Cover
.................................................. 2-44
Cargo Tie Downs
............................................ 2-45
Cassette Tape Messages
................................. 3-64
Cassette Tape Player Service
........................... 6-10
Center Seat Position, Child Restraints
................ 1-45
Chains, Tires
.............................................. 5-60
Charging System Light
................................ 3-32
Check
Engine Light
........................................... 3-35
Gages Warning Light
................................... 3-41
2

CHECK WASHER FLUID ............. ......... 3-54
Checking Brake Fluid
................................... 5-35
Checking Coolant
......................................... 5-23
Checking Engine Oil
........................................ 5-14
Checking Things Under the Hood
...................... 5-10
Checking Your Restraint Systems
...................... 1-56
Chemical Paint Spotting
................................... 5-83
Child Restraints Center Seat Position
.................................... 1-45
Child Restraint Systems
... .................... 1-32
Infants and Young Children
........................... 1-29
Lower Anchorages and Top Tethers for
Children (LATCH System)
.............. ..... 1-38
Older Children
.................................... . 1-27
Securing a Child Restraint Designed for the LATCH System
.............................. 1-40
Securing a Child Restraint in a
Rear Outside Seat Position
........................ 1-40
Securing a Child Restraint in the
Right Front Seat Position
.......................... 1-42
Top Strap
................................................... 1-36
Top Strap Anchor Location
............................ 1-37
Where to Put the Restraint
........................... 1-35
Chime Level Adjustment
.................................. 3-91
Cigarette Lighter
............................................. 3-20
Cleaning Inside of Your Vehicle
.................................. 5-77
Outside of Your Vehicle
................................ 5-80
Underbody Maintenance
............................... 5-83
Video Screen
.............................................. 3-91 Cleaning
(cont.)
Weatherstrips
.............................................. 5-80
Cleaning Exterior Lamps/Lenses
....................... 5-80
Climate Controls Personalization
.................... 3-27
Dual Automatic
............................................ 3-21
Rear
.......................................................... 3-25
Steering Wheel Controls
............................... 3-27
Compact Disc Messages
.......................... 3-65, 3-76
Compass Calibration
.......... ..................... 2-31
Compass Operation
..................................... 2-30
Compass Variance
.......................................... 2-31
Content Theft-Deferrent
.................................... 2-16
Control of
a Vehicle ....................................... 4-5
Convenience Net
.................................. .. 2-44
Coolant Engine Temperature Gage
............................ 3-35
Climate Control System
Heater, Engine
............................................ 2-20
Cooling System
.............................................. 5-26
Cruise Control
................................................ 3-11
Cruise Control Light
........................................ 3-40
Current and Past Model Order Forms
................ 7-11
Customer Assistance Information Courtesy Transportation
...................... 7-7
Customer Assistance for Text
Telephone (TTY) Users
............................... 7-4
Customer Assistance Offices
........................... 7-4
Customer Satisfaction Procedure
..................... 7-2
GM Mobility Program for Persons with
Disabilities
................................................ 7-5
3

E
Electrical System
Add-on Equipment
...................................... 5-86
Fuses and Circuit Breakers
........................... 5-86
Headlamps
................................................. 5-86
Power Windows and Other Power Options
...... 5-86
Windshield Wiper Fuses
............................... 5-86
Electronically Controlled Air Suspension
System
...................................................... 4-43
Emergency Release for Opening Liftgate
............ 2-13
Emissions Inspection and Maintenance Programs
................................................... 3-38
Engine Air Cleaner/Filter
......................................... 5-1 8
Battery
....................................................... 5-38
Change Engine Oil Light
............................... 3-39
Check and Service Engine Soon Light
............ 3-35
Coolant
...................................................... 5-22
Coolant Heater
............................................ 2-20
Cooling System Inspection
............................ 6-15
Engine Compartment Overview
...................... 5-1 2
Exhaust ..................................................... 2-28
Fan Noise
.................................................. 5-32
Oil ............................................................. 5-13
Overheating
................................................ 5-24
Reduced Power Light
................................... 3-40
Starting
...................................................... 2-1 9
Coolant Temperature
Gage
........................... 3-35 Engine
Air Cleaner Filter Restriction
Indicator Check
............................. ... 6-11
Engine Compartment Fuse Block
................... 5-87
Engine Coolant Level Check
............................. 6-10
Engine Oil Additives
........................................ 5-17
Engine Oil Level Check
................................... 6-10
Engine Oil Scheduled Maintenance
..................... 6-5
Entertainment System Cleaning the Video Screen
........................... 3-91
DVD Distortion
............................................ 3-89
Entry Lighting
.............................................. 3-18
Environmental Concerns
........................ ... 4-17
Erasing HomeLinkO Buttons
................... ... 2-39
Exit Lighting
................................................... 3-18
Express-Down Window
.................................... 2-15
Extender, Safety Belt
....................................... 1-26
Exterior Lamps
........................................... 3-14
ENGINE COOLANT HOT/IDLE ENGINE
............. 3-52
F
FabridCarpet ................................................. 5-77
Filter
Engine Air Cleaner
...................................... 5-18
Finding a PTY Station
............................. 3-60, 3-69
Finding a Station
.................................... 3-58, 3-66
Finish Care
.................................................... 5-81
Finish Damage
............................................... 5-82
Fixed Mast Antenna
........................................ 3-91
Flash-to-Pass
................................................... 3-8
5

Flat Tire ......................................... 5-61
Flat Tire, Changing
......................................... 5-62
Fluid Automatic Transmission
................................ 5-20
Power Steering
........................................... 5-33
Windshield Washer
...................................... 5-33
FM
............................................................... 3-89
Fog Lamps
.................................................... 3-16
Following Distance
.......................................... 4-50
Footnotes
........................................................ 6-5
Front Axle ...................................................... 5-44
Front Storage Area
......................................... 2-42
Fuel
............................................................... 5-5
Additives ...................................................... 5-6
California Fuel
.............................................. 5-6
Filling Your Tank
........................................... 5-7
Fuels in Foreign Countries
.............................. 5-6
Gage
......................................................... 3-42
Gasoline Octane
........................................... 5-5
Gasoline Specifications .................................. 5-5
Low Warning Light
....................................... 3-42
System Inspection
....................................... 6-1 5
Fuel Information .............................................. 3-44
FUEL LEVEL LOW
.............................. .... ~~~~ 3-54
Fuses Fuses and Circuit Breakers
.......... ...... 5-86
Filling a Portable Fuel Container
..................... 5-9
G
Gage
Check Gages Warning Light
... ............... 3-41
Engine Coolant Temperature
................. 3-35
Fuel
.................................................. 3-42
Oil Pressure
..... ........ ............... 3-38
Speedometer
...................................... 3-30
Tachometer
............................................. 3-30
Garage Door Opener
....................................... 2-37
Gasoline Octane
........................ ......... 5-5
Speclflcatlons
............................................... 5-5
Gate Ajar Light
............................................... 3-42
Gate Operator and Canadian Programming
........ 2-39
Getting Familiar with Off-Road Driving
................ 4-17
Glass Surfaces
............................................... 5-79
Glove Box ..................................................... 2-41
GM Mobility Program for Persons with
Disabilities
...................................
Voltmeter Gage ........................................... 3-32
...
............. 7-5
Hazard Warning Flashers
................................... 3-5
Head Restraints
............................................... 1-5
Headlamps Headlamp High/Low-Beam Changer
.................... 3-8
Bulb Replacement
....................................... 5-47
Windshield Wiper
......................................... 5-86 Electrical System ......................................... 5-86
6
