2003 OLDSMOBILE AURORA service schedule

Scheduled Maintenance
The services shown in this schedule up to 100,000 miles
(166 000 km) should be repeated after
100,000 miles
(166
000 km) at the same intervals for the life of
this vehicle. The services shown at 150,000 miles
(240 000 km) should be repeated at the same interval
after 150,000 miles
(240 000 km) for the life of this
vehicle.
See
Part 5: Owner Checks and Services on page 6-9
and Part C: Periodic Maintenance Inspections on
page
6- 13.
Footnotes
t The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle
's useful life. We, however,
urge that all recommended maintenance services be
periormea at tne inuicateti intervais anti tne
maintenance be recorded.
@ Whenever the tires are rotated, the Check Tire
Pressure System must be reset.
+A good ti.me to check your brakes is duri.ng tire
rotation. See Brake System Inspection on page 6-14.
Engine Oil Scheduled Maintenance
Change engine oil and filter as indicated by the GM
Oil Life SystemTM (or every 12 months, whichever
occurs first). Reset the system.
Your vehicle has a computer system that lets you know
when to change the engine oil and filter. This is
based on engine revolutions and engine temperature,
and not on mileage. Based on driving conditions,
the mileage at which an oil change will be indicated can
vary considerably. For the oil life system to work
properly, you must reset the system every time the oil is
changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. A CHANGE
OIL SOON light will come on.
Change your oil as
soon as possible within the next two
times you stop for fuel.
It is possible that, if you are
driving under the best conditions, the oil life system may
not indicate that an oil change is necessary for over a
year. However, your engine oil and filter must be
must be reset. It is
also important to check your oil
regularly and keep it at the proper level.
If the system is ever reset accidentally, you must
change your oil at
3,000 miles (5 000 km) since your
last oil change. Remember to reset the
oil life system
whenever the oil is changed. See
Engine Oil on
page
5-15 for information on resetting the system.
nh-nnnr-4 qt Inrrrt nnnn q
nqv Qnrl rrt thio t;-m th- rrnrrrtmm WI IUI uyuu UL IUUUL VI lWcI u yuul UI IU UL LI Ilr) tIIIIc, LI Ic, G)yr)LOIl1
6-5
ProCarManuals.com

After the services are performed, record the date,
odometer reading and who performed the service on the
maintenance record pages in Part
E of this schedule.
An Emission Control Service.
7,500 Miles (12 500 km)
0 Rotate tires. See Tire Inspection and Rotation on
page 5-63 for proper rotation pattern and additional
information.
(See footnote 0.) (See footnote +.)
15,000 Miles (25 000 km)
0 Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter
if necessary. An
Emission Control Service. (See footnote t.)
0 Rotate tires. See Tire lnspection and Rotation on
page 5-63 for proper rotation pattern and additional
information.
(See footnote @.) (See footnote +.)
22,500 Miles (37 500 km)
D Rotate tires. See Tire lnspection and Rotation on
page 5-63 for proper rotation pattern and additional
information.
(See footnote @.) (See footnote +.)
30,000 Miles (50 000 km)
0 Inspect throttle body bore and valve plates for
deposits, open the throttle valve and inspect all
surfaces. Clean as required.
An Emission Control
Service. (See footnote
t.)
0 Rotate tires. See Tire lnspection and Rotation on
page 5-63 for proper rotation pattern and additional
information.
(See footnote 62.) (See footnote +.)
0 Replace engine air cleaner filter. An Emission Control
Service.
37,500 Miles (62 500 km)
0 Rotate tires. See Tire Inspection and Rotation on
page 5-63 for proper rotation pattern and additional
information.
(See footnote @.) (See footnote +.)
45,000 Miles (75 000 km)
Cl Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter
if necessary. An
Emission Control Service. (See footnote t.)
Cl Rotate tires. See Tire Inspection and Rotation on
page 5-63
for proper rotation pattern and additional
information.
(See footnote @.) (See footnote +.)
6-6
ProCarManuals.com

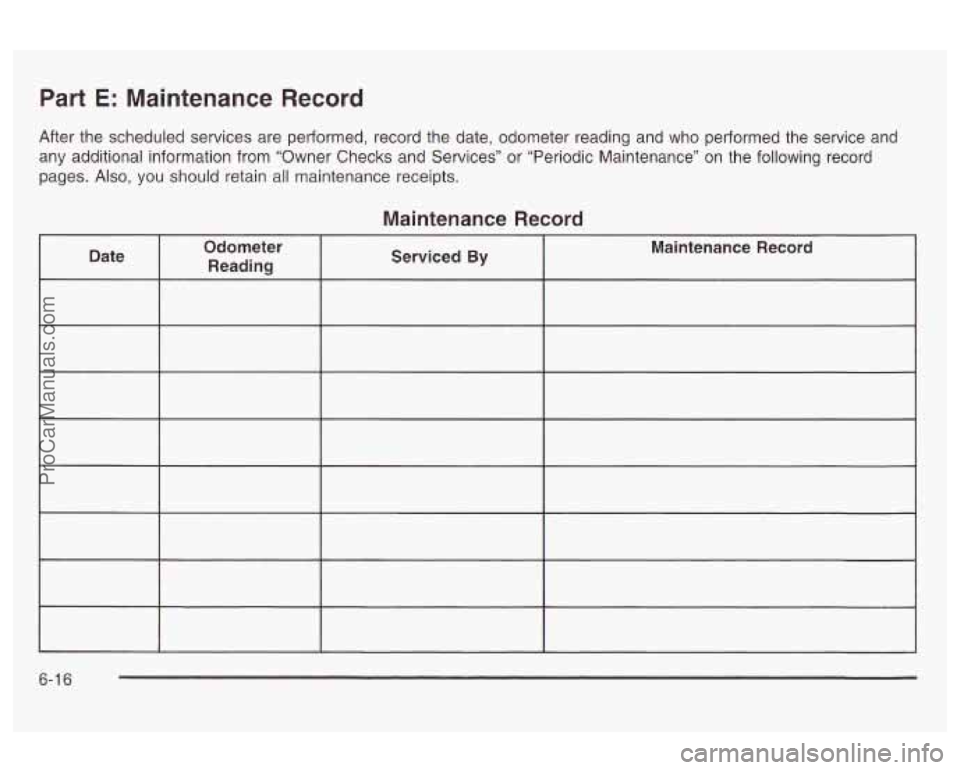

Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service and
any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record
pages. Also, you should retain all maintenance receipts.
Maintenance Record
6-1 6
ProCarManuals.com

The Courtesy Transportation program is offered to retail
purchase/lease customers in conjunction with the
Bumper-to-Bumper coverage provided by the New
Vehicle Limited Warranty. Several transportation options
are available when warranty repairs are required.
This will reduce your inconvenience during warranty
repairs.
Plan Ahead When Possible
When your vehicle requires warranty service, you
should contact your dealer and request an appointment.
By scheduling a service appointment and advising
your service consultant of your transportation needs,
your dealer can help minimize your inconvenience.
If your vehicle cannot be scheduled into the service
department immediately, keep driving
it until it can be
scheduled for service, unless, of course, the problem is
safety-related. If it is, please call your dealership, let
them know this, and ask for instructions.
If the dealer requests that you simply drop the vehicle
off for service, you are urged to do so as early in
ine work day
as possibie io aiiow ior same day repair.
Transportation Options
Warranty service can generally be completed while you
wait. However,
if you are unable to wait Oldsmobile
helps minimize your inconvenience by providing several
transportation options. Depending on the circumstances,
your dealer can offer you one of the following:
Shuttle Service
Participating dealers can provide you with shuttle
service to get you to your destination with minimal
interruption of your daily schedule. This includes a one
way shuttle ride to a destination up to
10 miles from
the dealership.
Public Transportation or Fuel
Reimbursement
If your vehicle requires overnight warranty repairs,
reimbursement up to
$30 per day (five days maximum)
may be available for the use of public transportation
such as taxi or bus. In addition, should you arrange
transportation through a friend or relative,
reimbursement tor reasonable tuel expenses up
to
$10 per day (five day maximum) may be available.
Claim amounts should reflect actual costs and be
supported by original receipts.
7-7
ProCarManuals.com

Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments, and specifications for GM
transmissions, transaxles, and transfer cases.
RETAIL SELL PRICE:
$50.00
Service Bulletins
Service Bulletins give technical service information
needed to knowledgeably service General Motors cars
and trucks. Each bulletin contains instructions
to
assist in the diagnosis and service of your vehicle.
In Canada, information pertaining to Product Service
Bulletins can be obtained by contacting your General
Motors dealer or by calling 1-800-GM-DRIVE
(1 -800-463-7483).
Owner’s Information
Owner publications are written specifically for owners
and intended
to provide basic operational information
about the vehicle. The owner’s manual will include
the Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner’s Manual, and
Warranty Booklet.
RETAIL SELL PRICE:
$35.00
Without Portfolio: Owner’s Manual only.
RETAIL SELL PRICE: $25.00
Current and Past Model Order Forms
Service Publications are available for current and
past model GM vehicles. To request an order form,
please specify year and model name of the vehicle.
ORDER TOLL FREE: 1-800-551 -41 23
Monday-Friday 8:OO AM - 6:OO PM
Eastern Time
For Credit Card Orders Only
(VISA-Mastercard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write
to:
Helm, Incorporated
P.
0. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers: All listed prices are
quoted in
U.S. funds. Canadian residents are to make
checks payable in
U.S. funds.
7-1
0
ProCarManuals.com

Driver Information Center (DIC) ___ ....... 3-45
DIC Vehicle Personalization .......................... 3-52
DIC Warnings and Messages .......... ....... 3-50
At Night ..................................................... 4-16
City ........................................................... 4-21
Defensive ..................................................... 4-2
Drunken ....................................................... 4-2
Freeway ..................................................... 4-22
Hill and Mountain Roads .............................. 4-24
In Rain and on Wet Roads ........................... 4-18
Winter ........................................................ 4-26
Driving On Grades .......................................... 4-42
Driving Through Deep Standing Water ............... 4-20
Driving Through Flowing Water ...................... 4-20
Driving with a Trailer .................................... 4-40
Driving
Driving on Snow or Ice
.................................... 4-28
E
Electrical System
Add-on Equipment
............................... 5-91
Fuses and Circuit Breakers ........................... 5-92
Headlamp Wiring ......................................... 5-91
Power Windows and Other Power Options ...... 5-91
Removing the Rear Seat Cushion .................. 5-95
Windshield Wiper Fuses ............................... 5-91
Emergency Trunk Release Handle ..................... 2-1 6
Emissions Inspection and Maintenance
Programs
................................................... 3-42
Engine
Air Cleaner/Filter
......................................... 5-21
Battery ....................................................... 5-42
Check and Service Engine Soon Light ............ 3-39
Coolant ...................................................... 5-24
Coolant Heater ............................................ 2-25
Coolant Temperature Gage ........................... 3-38
Cooling System Inspection ............................ 6-14
Engine Compartment Overview ...................... 5-14
Exhaust ..................................................... 2-33
Oil ............................................................. 5-15
Overheating ................................................ 5-28
Starting ...................................................... 2-24
Engine Compartment Fuse Block ...................... 5-92
Engine Coolant Level Check .............................. 6-9
Engine Cooling When Trailer Towing .................. 4-43
Engine Oil Additives ........................................ 5-19
Engine Oil Level Check ..................................... 6-9
Engine Oil Scheduled Maintenance ..................... 6-5
Engine Specifications ..................................... 5-1 00
Engiishiivietric ................................................. 3-45
Entry Lighting ................................................. 3-18
Erasing HomeLink@ Buttons .............................. 2-44
Express-Down Window .................................... 2-18
Extender, Safety Belt ....................................... 1-27
Exterior Lamps ............................................... 3-14
Exterior Lighting Battery Saver .......................... 3-17
5
ProCarManuals.com

Magnetic-Speed Variable Assist Steering ............ 4-1 0
Maintenance. Normal Replacement Parts .......... 5-1 01
Maintenance Schedule
At Each Fuel Fill
....................................... 6-9
At Least Once a Month
....... ............... 6-9
At Least Once a Year
..... .............. 6-10
At Least Twice a Year
.................................. 6-10
Brake System Inspection
.............................. 6-14
Exhaust System Inspection
........................... 6-1 3
How This Section is Organized ....................... 6-3
Introduction
.................................................. 6-2
Maintenance Requirements
............................. 6-2
Part
A - Scheduled Maintenance Services ......... 6-4
Part B
- Owner Checks and Services ............... 6-9
Part C
- Periodic Maintenance Inspections ...... 6-13
Part D
- Recommended Fluids and Lubricants . 6-15
Part E
- Maintenance Record ........................ 6-16
Scheduled Maintenance
................................. 6-5
Boot and Seal Inspection
.......................... 6-13
Throttle System Inspection
............................ 6-14
Engine
Cooling System Inspection
................. 6-14
Fuel System Inspection
................................ 6-13
cv---.- -. . .----- :-.- -.--I I- L n .. f. ._ A . . I - ateGI II IY, auq.~w IWWI I IU rl UI 11 UI IV~ nx~e
Using Your ................................................... 6-4 Maintenance Schedule
(cont.)
Your Vehicle and the Environment
............... 6-2
Maintenance When Trailer Towing
..................... 4-43
Making Turns
................................................. 4-41
Malfunction Indicator Light
................................ 3-39
Manual Lumbar Controls
.................................... 1-3
Manual Operation
........................................... 3-24
Manual Passenger Seat
.................................... 1-2
Matching Transmitter(s) to Your Vehicle
............... 2-8
Memory Mirrors
.............................................. 2-48
Memory Seat
................................................. 2-48
Memory Seats
................................................ 3-58
Message DIC Warnings and Messages
........................ 3-50
Mexico, Central America and Caribbean Islands/
Countries (Except Puerto Rico and
US
. Virgin Islands) ....................... ..... 7-4
Mirror Operation
............................................. 2-35
Mirrors Automatic Dimming Rearview with Compass
.... 2-35
Memory
..................................................... 2-48
Outside Curb View Assist Mirror
.................... 2-37
Outside Heated Mirrors
................................ 2-38
Outside Power Mirrors
.............................. 2-37
A, ttcirla Pnnrrnv hl;rrnr WUL~IUU -ut IVUfi *Vfftt ut 1-30 n on .................................
9
ProCarManuals.com

Navigation System ...................................... 3-69
Normal Maintenance Replacement Parts
........... 5-101
New Vehicle
Break-In
...................................... 2-23
0
Odometer ...................................................... 3-32
Off-Road Recovery
.......................................... 4-1 3
Oil Engine
....................................................... 5-1 5
Pressure Light
............................................. 3-42
Oil Life
.......................................................... 3-48
Older Children, Restraints
................................ 1-28
Onstar@ System
........................................ 2-39
Onstar@ Personal Calling
................................. 2-40
Onstar@ Services
............................................ 2-39
Onstar@ Virtual Advisor
.................................... 2-40
Other Warning Devices
...................................... 3-5
Outlet Adjustment
............................................ 3-27
Outside Convex Mirror
............................................. 2-38
Curb View Assist Mirror
................................ 2-37
Heated Mirrors
............................................ 2-38
Power Mirrors
............................................. 2-37 Outside
Curb View Assist Mirror
........................ 3-58
Overheated Engine Protection Operating Mode
... 5-28
Overriding Lock Delay
..................................... 2-12
Owners, Canadian
.............. ......................... II
Owner’s Information .................................... 7-10
Parade Dimming
............................................. 3-19
Park (P) Shifting Into
............................................ 2-30
Shifting Out
of .................................... 2-32
Parking Brake
........................................................ 2-29
Over Things That Burn
................................. 2-32
Parking Brake and Automatic Transaxle Park (P)
Mechanism Check
....................................... 6-12
Parking on Hills
.............................................. 4-42
Part
A - Scheduled Maintenance Services ............ 6-4
Part B
- Owner Checks and Services .................. 6-9
Part C
- Periodic Maintenance Inspections .......... 6-13
Part D
- Recommended Fluids and Lubricants ....... 6-15
Part E
- Maintenance Record ........................... 6-16
Passenger Temperature Control
........................ 3-27
Passing
................................................. 4-13, 4-41
PASS-Key@
Ill ................................................ 2-21
PASS-Key@
I II Operation .......... ................. 2-21
10
ProCarManuals.com
