2003 OLDSMOBILE AURORA clock

If you get fuel on yourself and then something
ignites
it, you could be badly burned. Fuel can
spray out on you if you open the fuel cap too quickly. This spray can happen if your tank
is
nearly full, and is more likely in hot weather.
Open the fuel cap slowly and wait for any
“hiss” noise to stop. Then unscrew the cap all
the way.
Be careful not to spill fuel. Clean fuel from painted
surfaces as soon
as possible. See Cleaning the Outside
of Your Vehicle on page 5-85. When filling the tank
do not overfill by squeezing in much more fuel after the
pump shuts
off.
When you put the fuel cap back on, turn it to the right
(clockwise) until you hear
a clicking sound. Make
sure you fully install the cap. The diagnostic system can
determine
if the fuel cap has been left off or improperly
installed. This would allow fuel to evaporate into the
atmosphere. See
Malfunction Indicator Lamp on
page
3-39.
The CHECK GAS CAP DIC message will come on if the
fuel cap is not properly reinstalled.
Notice: If you need a new fuel cap, be sure to get
the right type. Your dealer can get one for you.
If you get the wrong type,
it may not fit properly.
This may cause your malfunction indicator lamp to
light and may damage your fuel tank and emissions
system. See “Malfunction Indicator Lamp” in the
Index.
5-1 0
ProCarManuals.com

1. Park the vehicle on a level surface. You can
remove the coolant surge tank pressure cap
when the cooling system, including the coolant
surge tank pressure cap and upper radiator hose,
is
no longer hot. Turn the pressure cap slowly
counterclockwise (left) about one-quarter turn and
tnen stop.
If you hear a hiss, wait for that to stop.
A hiss
means there
is still some pressure left.
2. Then keep turning the
pressure cap slowly,
and remove
it.
3. Then fill the coolant
surge tank with the
proper mixture, to the
FULL COLD fill
mark line (4.5 inches
(1 1 cm) from the top of
the filler neck).
5-35
ProCarManuals.com

4. Lift the tabs to remove the bulb from the assembly.
5. Replace the bulb.
6. Push the bulb assembly in and turn it clockwise to
install the bulb assembly into the headlamp
assembly.
7. Then reconnect the wiring harness to the lamp
assem bly. 8.
Slide the lamp assembly back into place by lining
up the track on the bottom
of the assembly with
the guide on the vehicle.
9. Then connect the outboard snap mounting pin.
IO. Secure the lamp assembly with the two bolts.
5-56
ProCarManuals.com

Front Turn Signal and Parking
Lamps
Once the headlamp assembly has been removed from
the vehicle, the front turn signal and parking lamps
can be accessed. See
Headlamps on page 5-55
for more information on location.
1. Tip the headlamp assembly and while pressing the
release, turn the bulb and socket counterclockwise
to remove them.
2. Replace the bulb in the socket.
3. Then reconnect the socket wiring harness to the
4. Reinstall the headlamp assembly into the vehicle.
lamp assembly.
5-57
ProCarManuals.com

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
1. Open the trunk.
2. Turn the screws located inside of the trunk
3. Remove the plastic trim piece from the trunk.
4. Pull the carpeting away from the rear corner of the
counterclockwise and
remove them.
trunk.
5. Remove the three nuts holding the lamp in place
and remove the lamp assembly.
6. While pressing the release, turn the bulb socket
assembly counterclockwise to remove it from the
lamp assembly.
7. Pull the bulb straight out to remove it from the
socket.
8. Replace the bulb and reverse the steps to reinstall
the lamp assembly.
Replacement Bulbs
StotiTaillamDs I- ~
Rear Turn Signal Lamps I 3057 1
For any bulb not listed here contact your dealer.
5-58
ProCarManuals.com

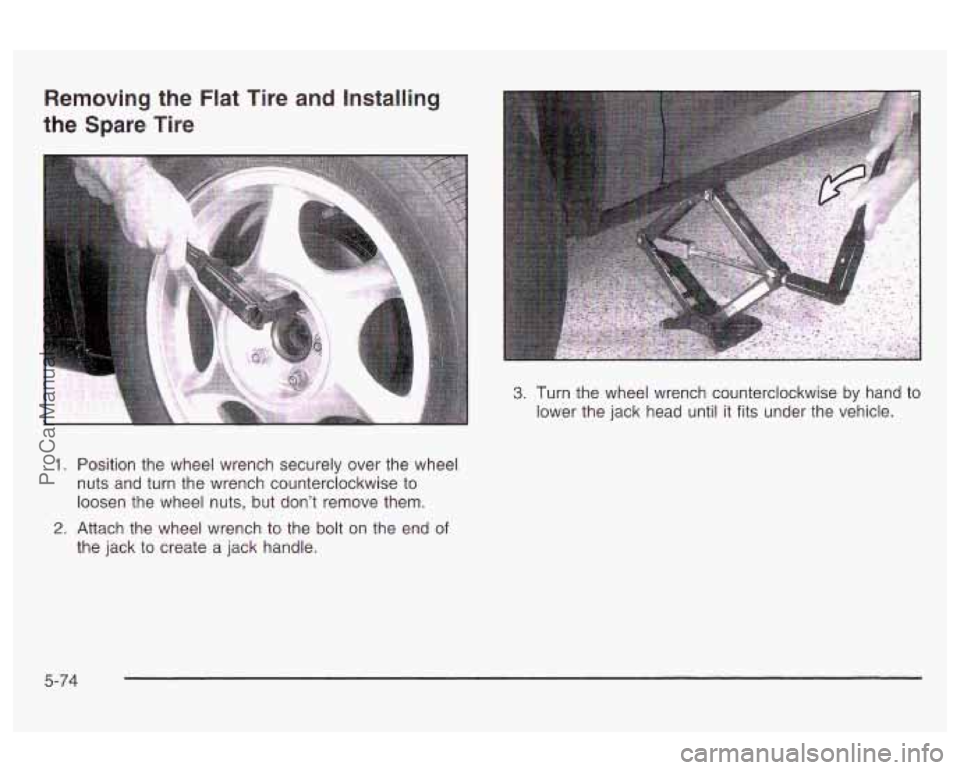

Removing the Flat Tire and Installing
the Spare Tire
1. Position the wheel wrench securely over the wheel
nuts and turn the wrench counterclockwise to
loosen the wheel nuts, but don't remove them.
3. Turn the wheel wrench counterclockwise by hand to
lower the jack head until it fits under the vehicle.
2. Attach the wheel wrench to the bolt on the end of
the jack to create a jack handle.
5-74
ProCarManuals.com

I I
4. Near each wheel well is a notch in the frame to
position the jack head. Position the jack under
the vehicle and raise the jack head until it fits firmly
against the sheet metal.
Do not raise the vehicle
yet. Put the compact spare tire near you.
.
Getting u..-er a vehicle when it is ja,..ed up is
dangerous. If the vehicle slips
off the jack you
could be badly injured or killed. Never get
under
a vehicle when it is supported only by
a jack. Raising
, -ur vehic-- ____ h the jack imk.
Jpe..,
positioned can damage the vehicle and even
make the vehicle fall.
To help avoid personal
injury and vehicle damage, be sure to
fit the
jack
lift head into the proper location before
raising the vehicle.
5. Raise the vehicle by turning the wheel wrench
clockwise on the jack. Raise the vehicle far
enough
off the ground so there’s enough room for
the compact spare tire to fit underneath the
wheel well.
6. Remove all the wheel nuts and take off the flat tire.
5-75
ProCarManuals.com

9. Put the wheel nuts
back on with the
rounded end
of the
nuts toward the wheel.
Tighten each nut by
hand until the wheel
is held against
the hub.
If a nut cannot be tightened by hand, use the wheel
wrench, and see your dealer right away.
10. Lower the vehicle by turning the wheel wrench
counterclockwise. Lower the jack completely.
5-77
