IGNITION SIGNAL
EC-597
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8.DETECT MALFUNCTIONING PART
Check the following.
l20A fuse
lHarness or connectors E61, F38
lHarness for open and short between ECM relay and fuse
>> Repair or replace harness or connectors.
9.CHECK ECM RELAY
Refer toEC-459, "
Component Inspection".
OK or NG
OK >> GO TO 17.
NG >> Replace ECM relay.
10.CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check harness continuity between ECM terminal 12 and con-
denser terminal 1, condenser terminal 2 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
11 .CHECK CONDENSER
Refer toEC-599, "
Component Inspection".
OK or NG
OK >> GO TO 12.
NG >> Replace condenser.Continuity should exist.
PBIB0509E

INJECTOR CIRCUIT
EC-621
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect injector harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between injector terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors M61, F41
lHarness connectors F1, F101
lFuse block (J/B) connector M1
l10A fuse
lHarness for open or short between injector and fuse
>> Repair harness or connectors.
5.CHECK INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between injector terminal 2 and ECM terminals 101, 102, 103, 104.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB0510E

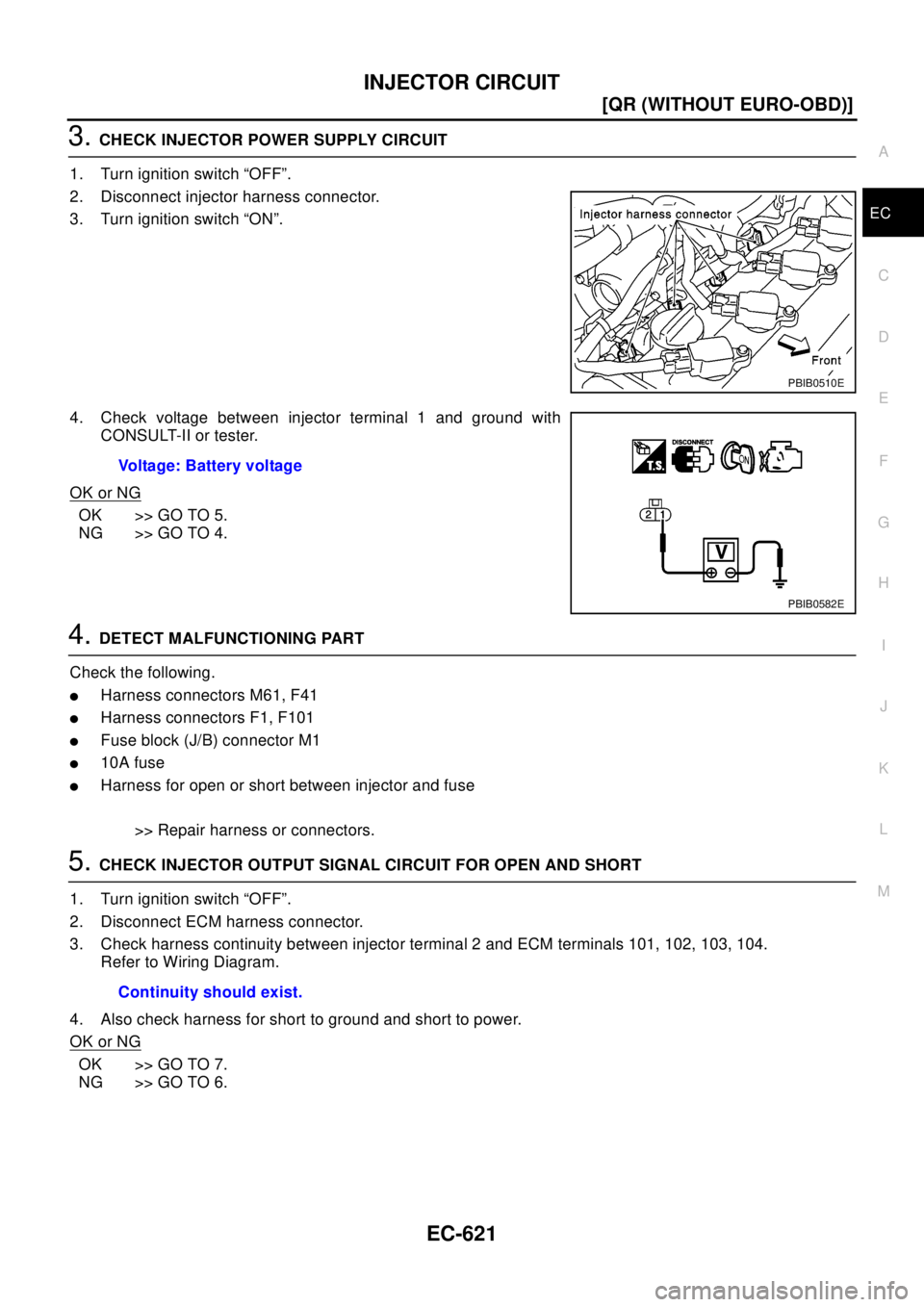

Voltage: Battery voltage
PBIB0582E
Continuity should exist.

EC-626
[QR (WITHOUT EURO-OBD)]
START SIGNAL
6.CHECK START SIGNAL INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Disconnect ignition switch harness connector.
3. Check harness continuity between ECM terminal 41 and fuse block (J/B), ignition switch and fuse block
(J/B). Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors
lFuse block (J/B) connectors M1, E102
lHarness for open or short between ignition switch and fuse block (J/B)
lHarness for open or short between ECM and fuse block (J/B)
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer toEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END Continuity should exist.

EC-704
[YD]
POWER SUPPLY CIRCUIT FOR ECM
8.CHECK OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals D24, D26 and ECM relay terminal 2. Refer to Wiring
Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Check harness continuity between ECM terminals A8, A9 and ECM relay terminal 7. Refer to Wiring Dia-
gram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK ECM RELAY
Refer toEC-705, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> Replace ECM relay.
11 .CHECK ECM POWER SUPPLY CIRCUIT-V
1. Turn ignition switch “OFF”.
2. Check voltage between ECM terminal A31 and ground.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E65, F6
l20A fuse
lHarness for open or short between ECM and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
Voltage: Battery voltage

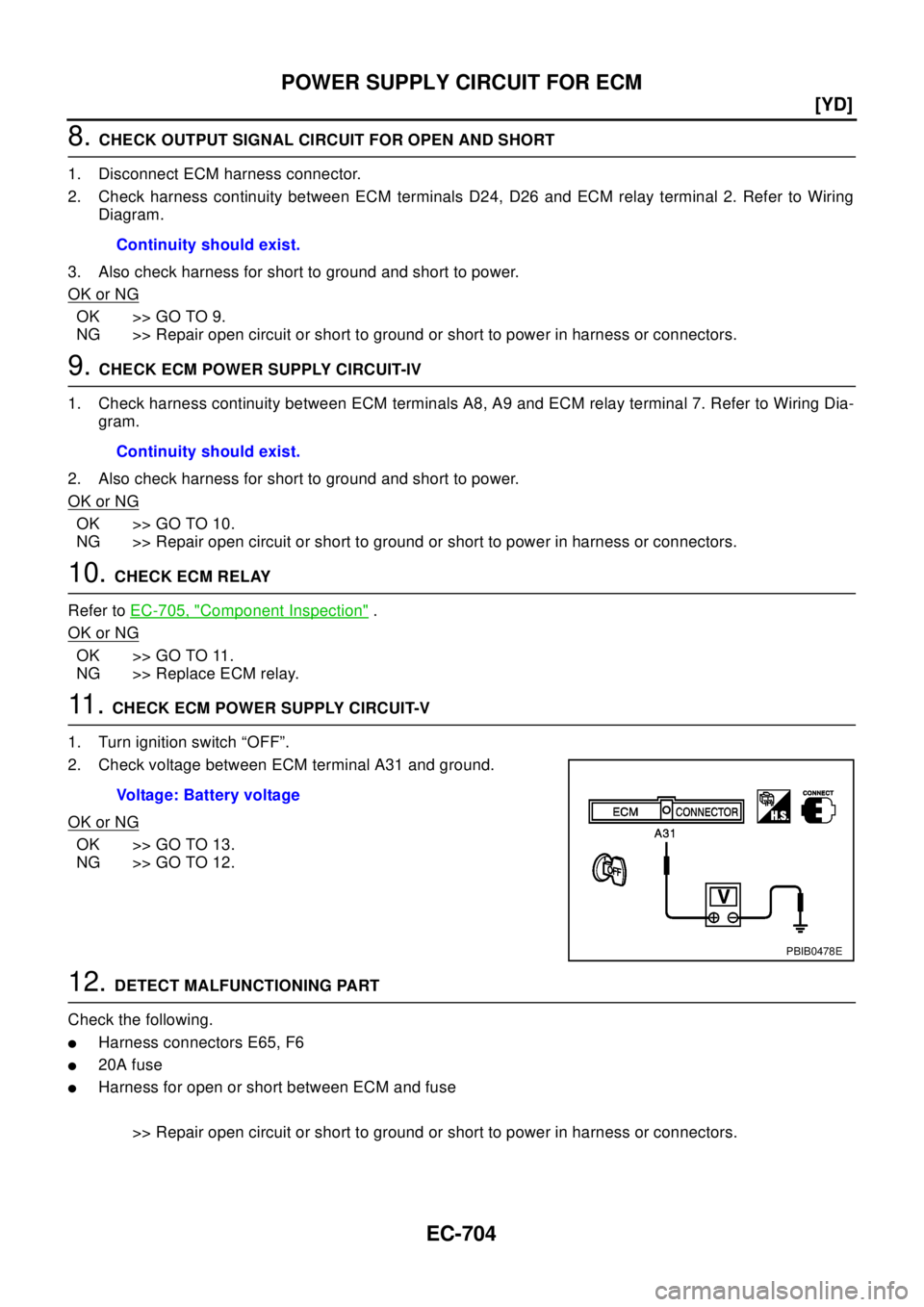

PBIB0478E

DTC P1217 OVERHEAT (COOLING SYSTEM)
EC-767
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.DETECT MALFUNCTIONING PART
Check the following.
lFuse block (J/B) connector E103
l10A fuse
l40A fusible links
lHarness for open or short between cooling fan relay-1 and fuse
lHarness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.

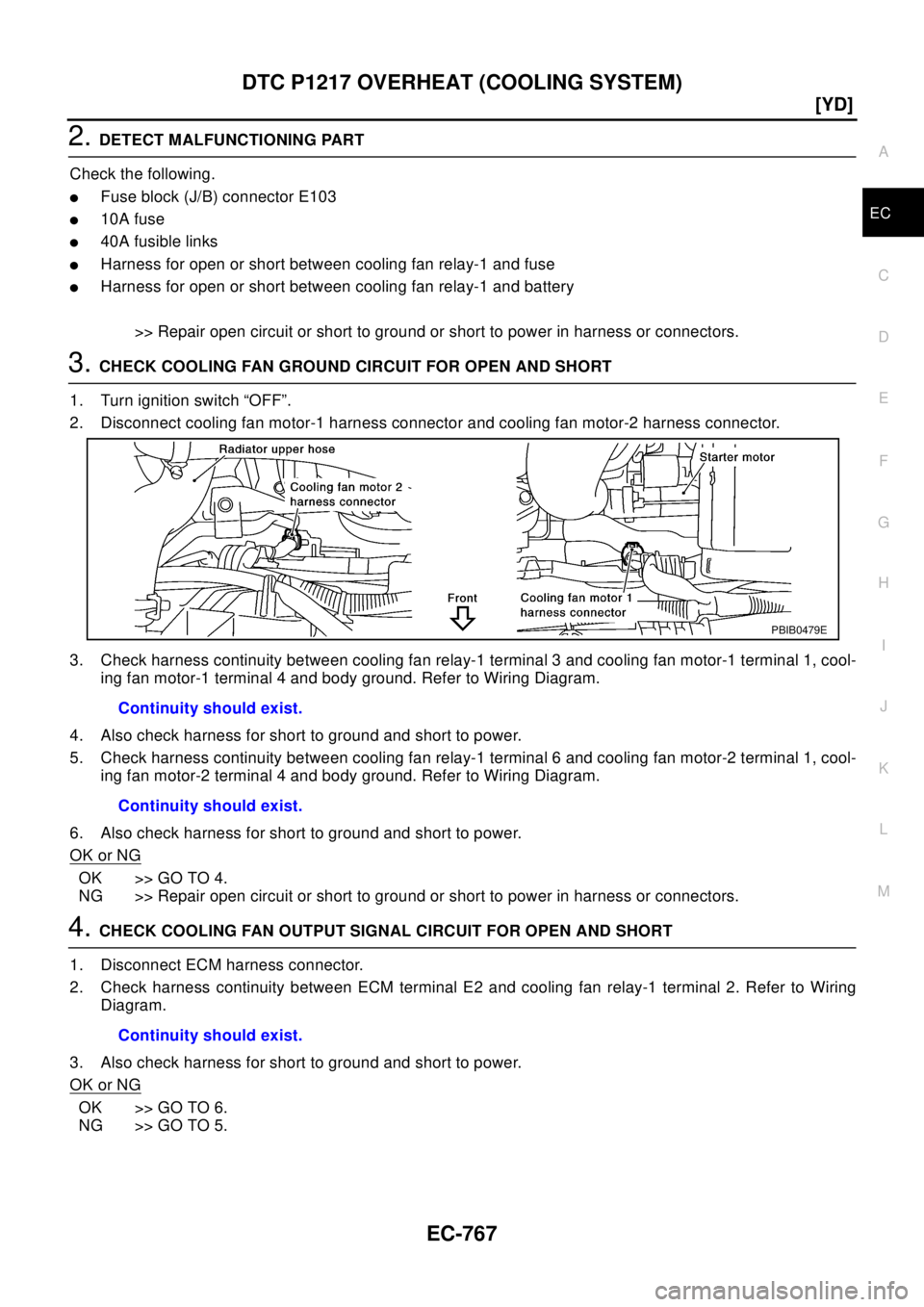

3.CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 3 and cooling fan motor-1 terminal 1, cool-
ing fan motor-1 terminal 4 and body ground. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 6 and cooling fan motor-2 terminal 1, cool-
ing fan motor-2 terminal 4 and body ground. Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal E2 and cooling fan relay-1 terminal 2. Refer to Wiring
Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
PBIB0479E
Continuity should exist.
Continuity should exist.
Continuity should exist.

DTC P1217 OVERHEAT (COOLING SYSTEM)
EC-769
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.DETECT MALFUNCTIONING PART
Check the following.
lHarness for open or short between cooling fan relays-2 and -3 and fuse
lHarness for open or short between cooling fan relays-2 and -3 and fusible link
>> Repair harness or connectors.

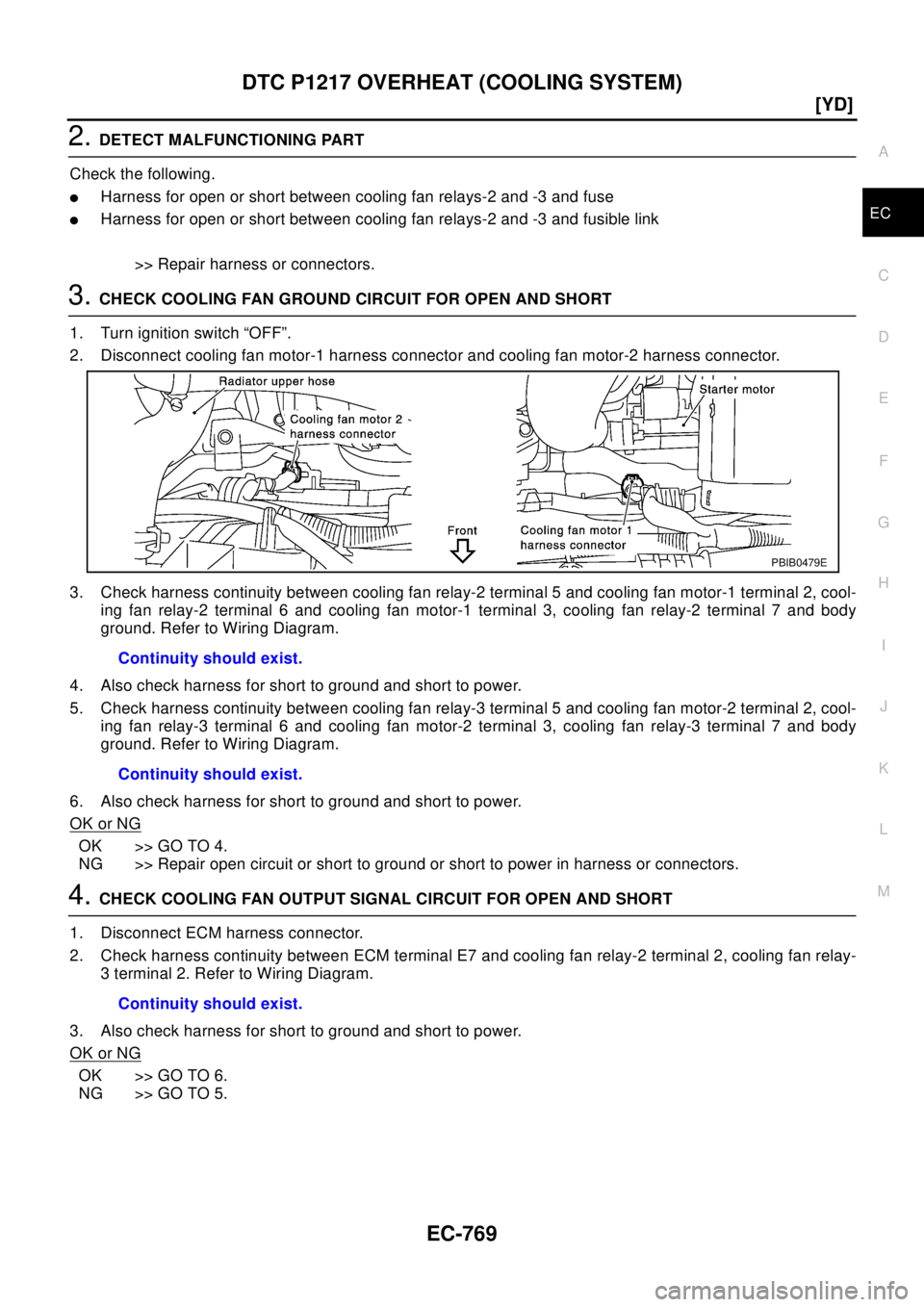

3.CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-2 terminal 5 and cooling fan motor-1 terminal 2, cool-
ing fan relay-2 terminal 6 and cooling fan motor-1 terminal 3, cooling fan relay-2 terminal 7 and body
ground. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-3 terminal 5 and cooling fan motor-2 terminal 2, cool-
ing fan relay-3 terminal 6 and cooling fan motor-2 terminal 3, cooling fan relay-3 terminal 7 and body
ground. Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal E7 and cooling fan relay-2 terminal 2, cooling fan relay-
3 terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
PBIB0479E
Continuity should exist.
Continuity should exist.
Continuity should exist.

HOW TO USE THIS MANUAL
GI-19

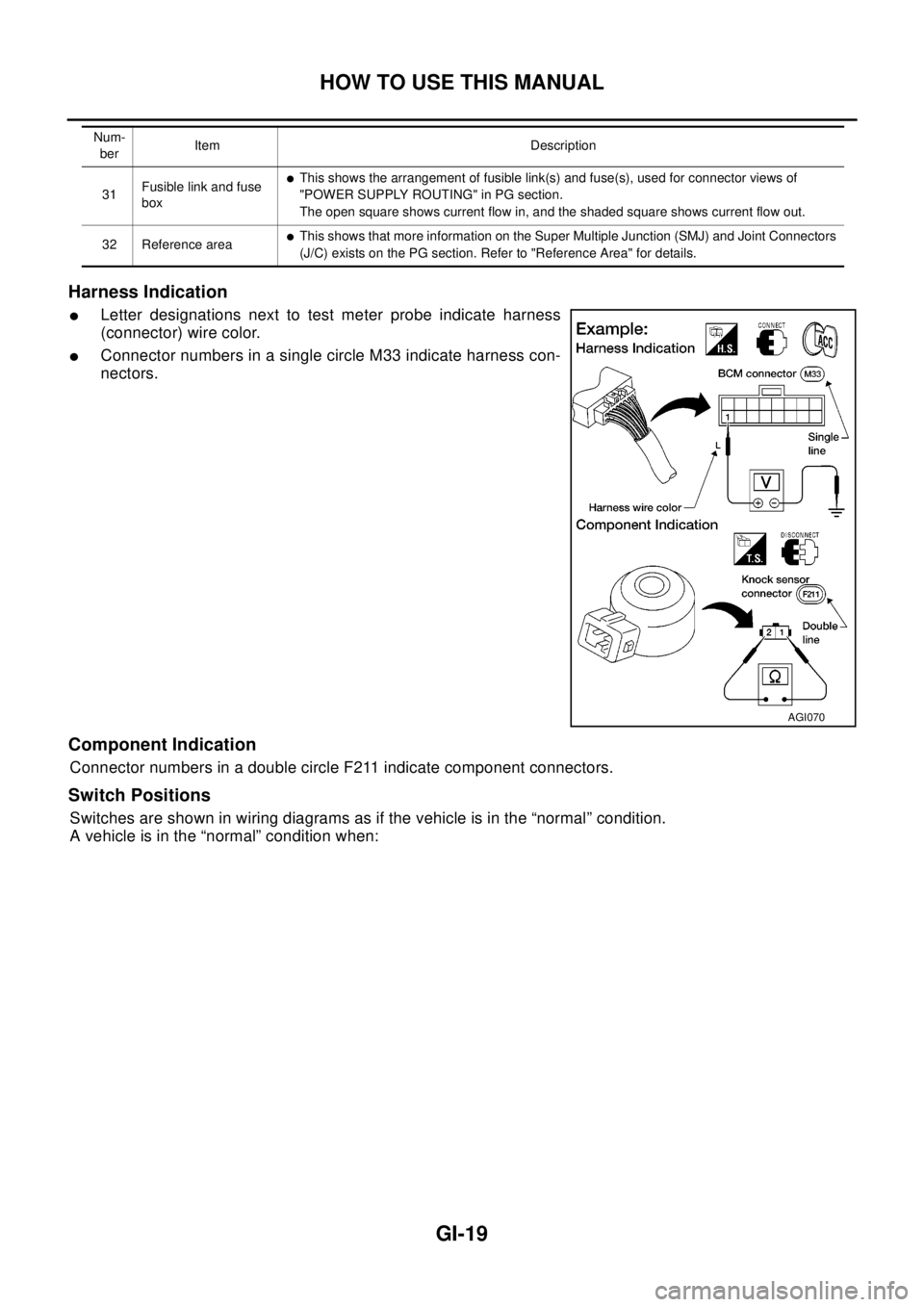

Harness Indication
