2003 NISSAN X-TRAIL cruise control

AT-300
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

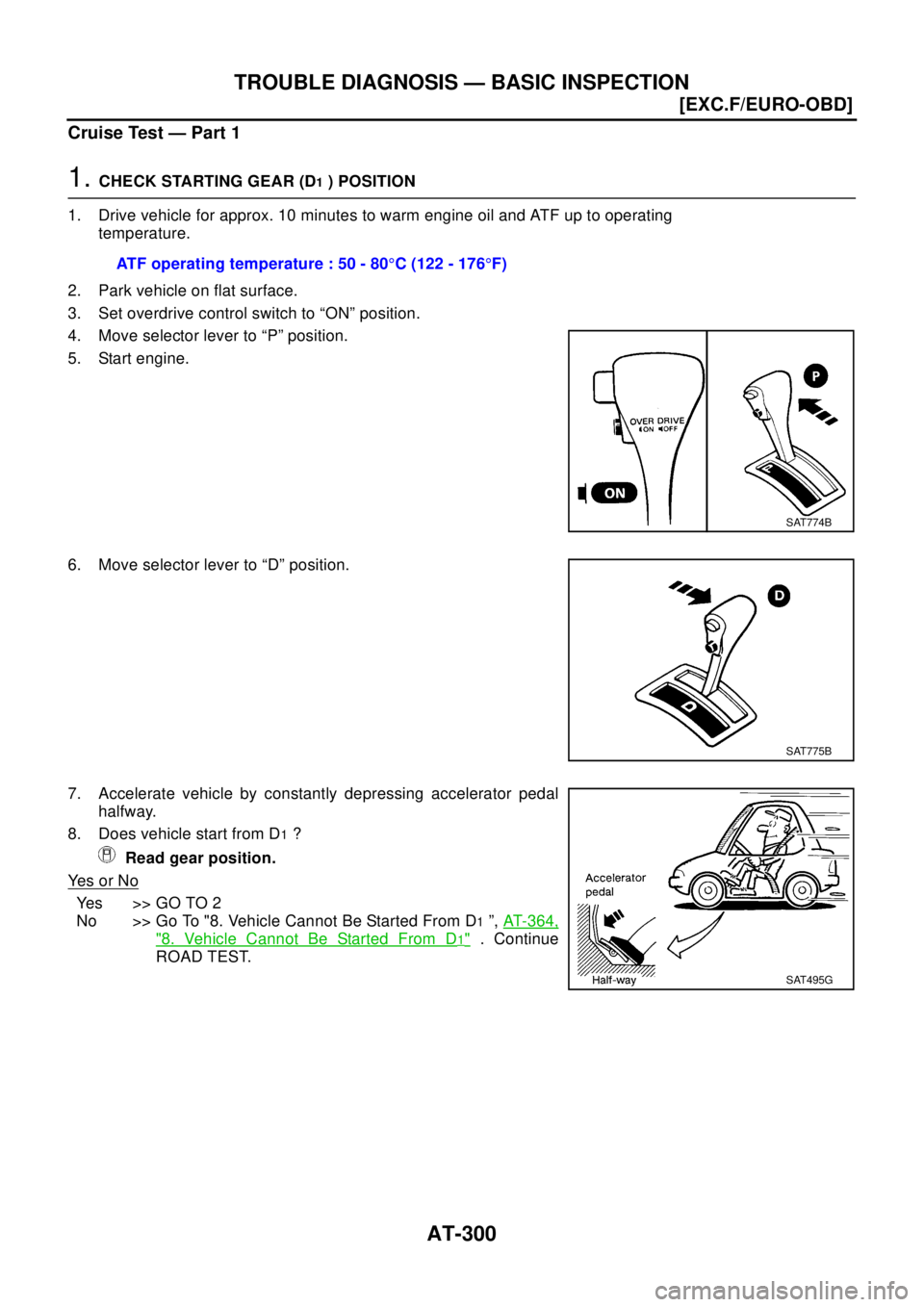

Cruise Test — Part 1
1.CHECKSTARTINGGEAR(D1) POSITION
1. Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating
temperature.
2. Park vehicle on flat surface.
3. Set overdrive control switch to “ON” position.
4. Move selector lever to “P” position.
5. Start engine.
6. Move selector lever to “D” position.
7. Accelerate vehicle by constantly depressing accelerator pedal
halfway.
8. Does vehicle start from D
1?
Read gear position.
Ye s o r N o
Yes >>GOTO2
No >> Go To "8. Vehicle Cannot Be Started From D
1”,AT-364,
"8. Vehicle Cannot Be Started From D1". Continue
ROAD TEST. ATF operating temperature : 50 - 80°C (122 - 176°F)
SAT774B
SAT775B
SAT495G

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-303
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

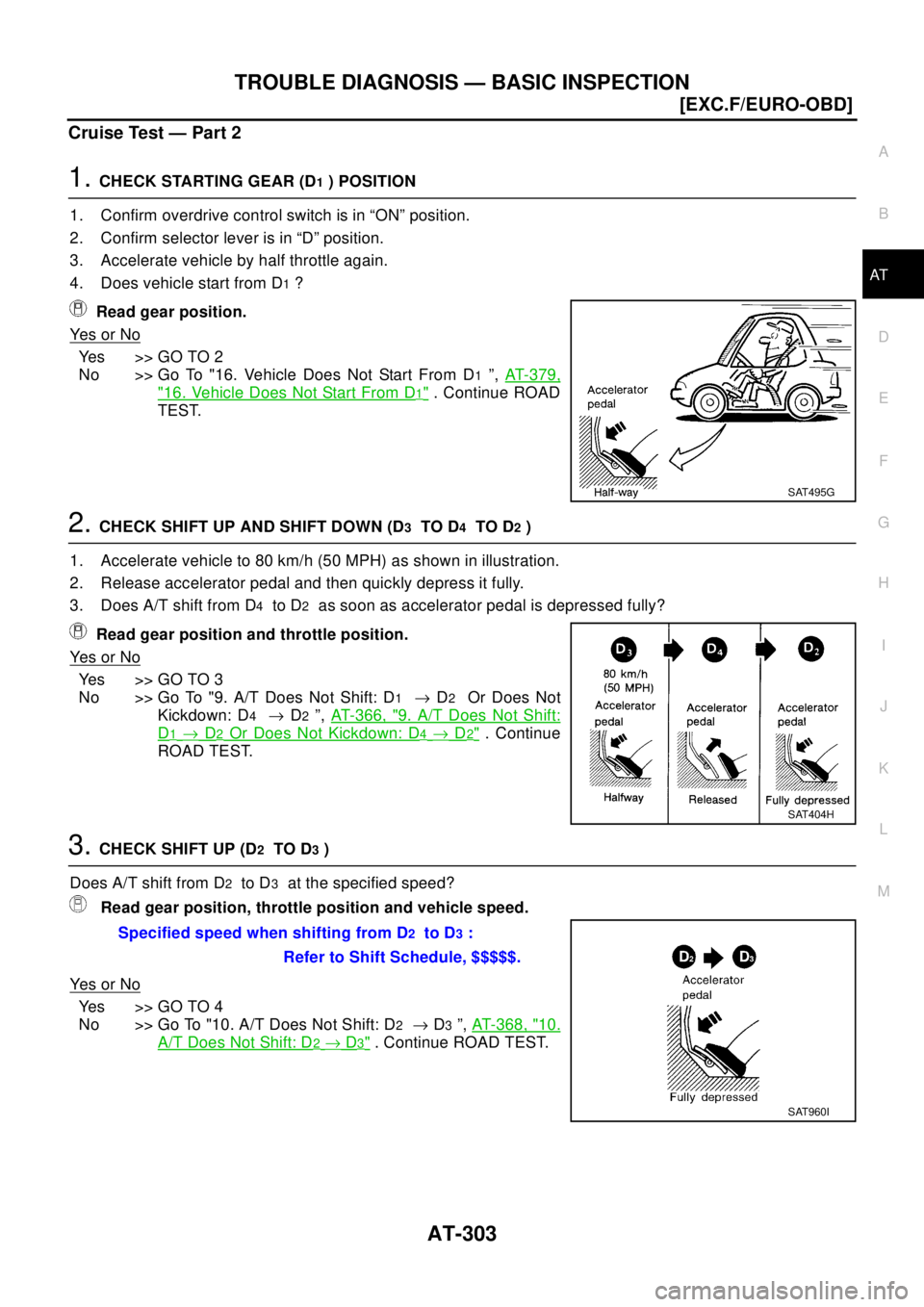

Cruise Test — Part 2
1.CHECK STARTING GEAR (D1) POSITION
1. Confirm overdrive control switch is in “ON” position.
2. Confirm selector lever is in “D” position.
3. Accelerate vehicle by half throttle again.
4. Does vehicle start from D
1?
Read gear position.
Ye s o r N o
Yes >>GOTO2
No >> Go To "16. Vehicle Does Not Start From D
1”,AT-379,
"16. Vehicle Does Not Start From D1". Continue ROAD
TEST.
2.CHECK SHIFT UP AND SHIFT DOWN (D3TO D4TO D2)
1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D
4to D2as soon as accelerator pedal is depressed fully?
Read gear position and throttle position.
Ye s o r N o
Yes >>GOTO3
No >> Go To "9. A/T Does Not Shift: D
1®D2Or Does Not
Kickdown: D
4®D2”,AT-366, "9. A/T Does Not Shift:
D1®D2Or Does Not Kickdown: D4®D2". Continue
ROAD TEST.
3.CHECK SHIFT UP (D2TO D3)
Does A/T shift from D
2to D3at the specified speed?
Read gear position, throttle position and vehicle speed.
Ye s o r N o
Yes >>GOTO4
No >> Go To "10. A/T Does Not Shift: D
2®D3”,AT-368, "10.
A/T Does Not Shift: D2®D3". Continue ROAD TEST.
SAT495G
SAT404H
Specified speed when shifting from D2to D3:
Refer to Shift Schedule, $$$$$.
SAT960I

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-305
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

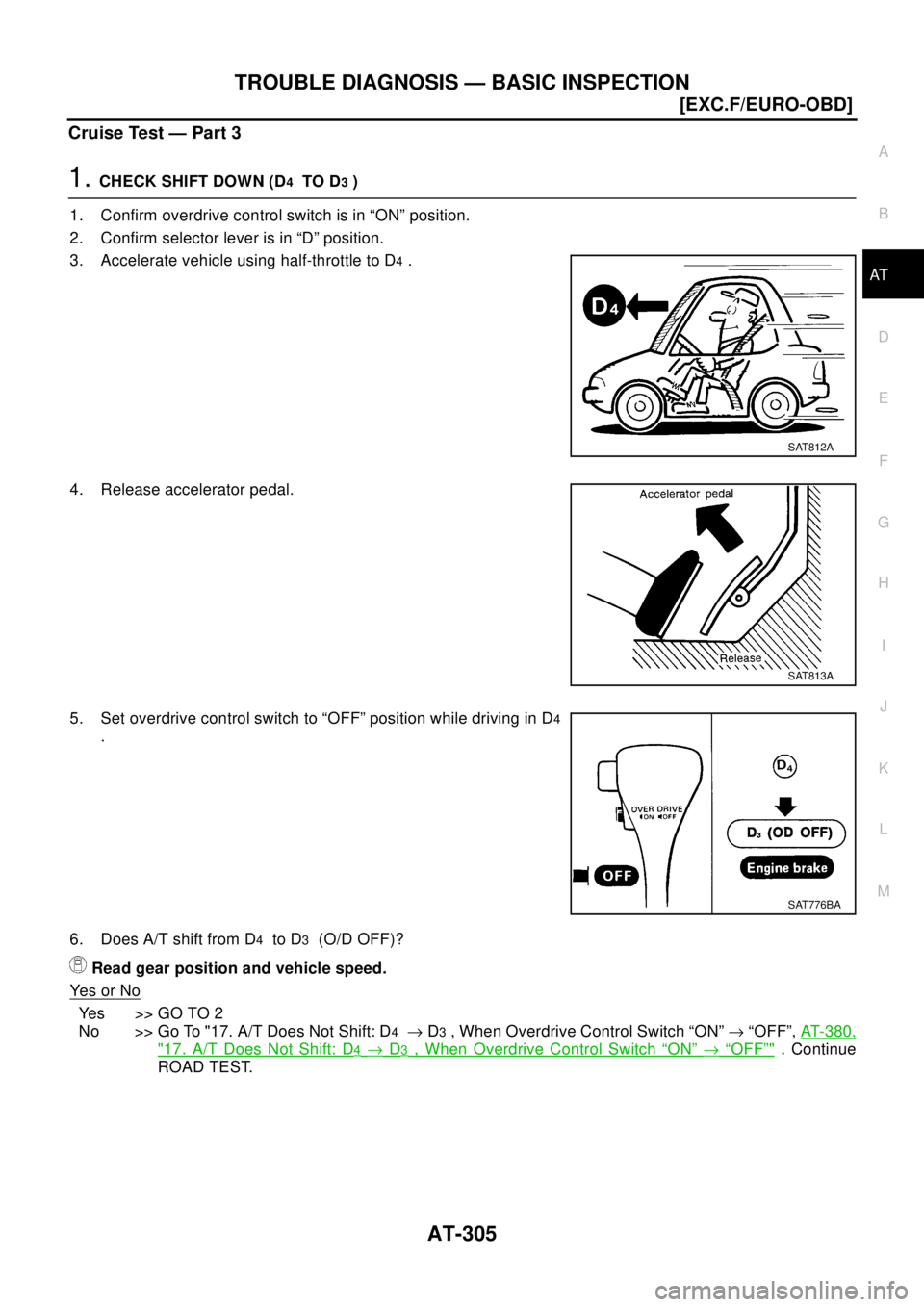

Cruise Test — Part 3
1.CHECK SHIFT DOWN (D4TO D3)
1. Confirm overdrive control switch is in “ON” position.
2. Confirm selector lever is in “D” position.
3. Accelerate vehicle using half-throttle to D
4.
4. Release accelerator pedal.
5. Set overdrive control switch to “OFF” position while driving in D
4
.
6. Does A/T shift from D
4to D3(O/D OFF)?
Read gear position and vehicle speed.
Ye s o r N o
Yes >>GOTO2
No >> Go To "17. A/T Does Not Shift: D
4®D3, When Overdrive Control Switch “ON”®“OFF”,AT-380,
"17. A/T Does Not Shift: D4®D3, When Overdrive Control Switch“ON”®“OFF”". Continue
ROAD TEST.
SAT812A
SAT813A
SAT776BA

AT-372
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2.CHECK SELF-DIAGNOSTIC RESULTS
With CONSULT-II
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
lPNP switch
lOverdrive control switch
lA/T fluid temperature sensor
lVehicle speed sensor·A/T (revolution sensor)
lShift solenoid valve A or B
lVehicle speed sensor·MTR
Ye s o r N o
Ye s > >lCheck damaged circuit. Refer to the following items.
Except for Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR):AT-392, "
VEHICLE SPEED SENSOR·A/T
(REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A:AT-406, "SHIFT SOLE-
NOID VALVE A"
–SHIFT SOLENOID VALVE B:AT- 4 11 , "SHIFT SOLE-
NOID VALVE B"
–BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE):AT-426, "
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND
TCM POWER SOURCE)"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR:AT - 3 9 7 , "DTC VEHICLE SPEED
SENSOR MTR"
–21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches, and Throttle
Position sensor Circuit Checks):AT - 3 8 2 , "
21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor Circuit Checks)"
Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR):AT-142, "DTC P0720 VEHICLE
SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A:AT-193, "DTC P0750 SHIFT SOLENOID VALVE A"
–SHIFT SOLENOID VALVE B:AT-198, "DTC P0755 SHIFT SOLENOID VALVE B"
–BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE):AT-216, "
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT
AND TCM POWER SOURCE)"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR:AT - 2 2 2 , "DTC VEHICLE SPEED
SENSOR MTR"
–21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches, and Throttle
Position sensor Circuit Checks):AT - 3 8 2 , "
21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor Circuit Checks)"
No >> GOTO3
SCIA0771E

AT-374
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
7.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer toAT-453, "
Installation".
2. Check the following items:
–Shift valve B
–Overrunclutchcontrolvalve
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
–Torque converter
–Oil pump assembly
OK or NG
OK >> GOTO6
NG >> Repair or replace damaged parts.
12. A/T Does Not Perform Lock-upECS004VD
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch sole-
noid valve circuit after cruise test?
Ye s o r N o
Yes >> Check torque converter clutch solenoid valve circuit.
Refer toAT-421, "
TORQUE CONVERTER CLUTCH
SOLENOID VALVE"(Except for Euro-OBD)/AT-181,
"DTC P0740 TORQUE CONVERTER CLUTCH SOLE-
NOID VALVE"(Euro-OBD).
No >> GOTO2
2.CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) senror.
Check throttle position sensor. Refer to "EC-´´", “DTC P0121
ACCELERATOR PEDAL POSITION(APP)SENSOR”. —Except for
Euro-OBD/Refer to "EC-´´", “DTC P0121 ACCELERATOR PEDAL
POSITION(APP)SENSOR”. — Euro-OBD
OK or NG
OK >> GOTO3
NG >> Repair or replace throttle position sensor.
SCIA0772E
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-375
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

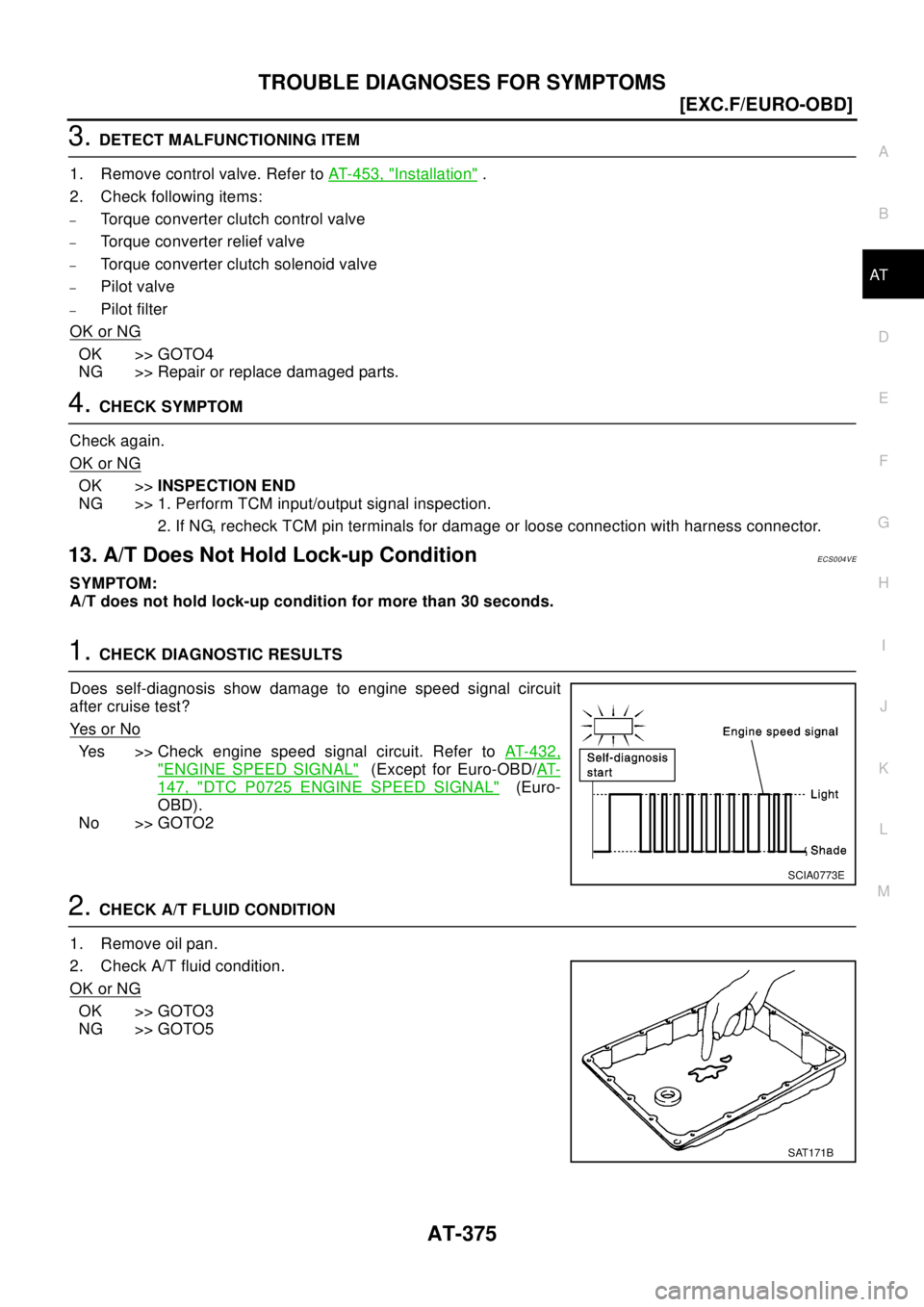

3.DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer toAT-453, "
Installation".
2. Check following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Torque converter clutch solenoid valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GOTO4
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
13. A/T Does Not Hold Lock-up ConditionECS004VE
SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
1.CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal circuit
after cruise test?
Ye s o r N o
Yes >> Check engine speed signal circuit. Refer toAT-432,
"ENGINE SPEED SIGNAL"(Except for Euro-OBD/AT-
147, "DTC P0725 ENGINE SPEED SIGNAL"(Euro-
OBD).
No >> GOTO2
2.CHECKA/TFLUIDCONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GOTO3
NG >> GOTO5
SCIA0773E
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-377
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Lock-up is not released when accelerator pedal is released.
1.CHECK THROTTLE POSITION SENSOR* CIRCUIT
*: This sensor means accelerator pedal position (app) senror.
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage throttle position sensor circuit?
Without CONSULT-II
Does self-diagnosis show damage to throttle position sensor circuit?
Ye s o r N o
Yes >> Check throttle position sensor circuit. Refer to “21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control switches, and Throttle Position Sensor )”,AT-
382, "21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)".
No >> GOTO2
2.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
15. Engine Speed Does Not Return To Idle (Light Braking D4®D3)ECS004VG
SYMPTOM:
lEngine speed does not smoothly return to idle when A/T shifts from D4to D3.
lVehicle does not decelerate by engine brake when turning overdrive control switch OFF.
lVehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer toAT-
416, "OVERRUN CLUTCH SOLENOID VALVE"
(Except for Euro-OBD)/AT - 2 0 8 , "DTC P1760 OVERRUN
CLUTCH SOLENOID VALVE"(Euro-OBD).
No >> GOTO2
SAT367J
SCIA0774E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-379
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
6.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer toAT-453, "
Installation".
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT - 4 1 6 , "OVERRUN CLUTCH SOLENOID VALVE": Except for Euro-OBD/
AT-208, "
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE": Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
–Overrunclutchassembly
–Oil pump assembly
OK or NG
OK >> GOTO5
NG >> Repair or replace damaged parts.
16. Vehicle Does Not Start From D1ECS004VH
SYMPTOM:
Vehicle does not start from D
1on Cruise test — Part 2.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >lCheck damaged circuit. Refer to the following items.
Except for Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR):AT - 3 9 2 , "
VEHICLE SPEED SENSOR·A/T
(REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A:AT- 4 0 6 , "SHIFT SOLE-
NOID VALVE A"
–SHIFT SOLENOID VALVE B:AT- 4 11 , "SHIFT SOLENOID VALVE B"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR:AT-397, "DTC VEHICLE SPEED
SENSOR MTR"
Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR):AT-142, "DTC P0720 VEHICLE
SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A:AT-193, "DTC P0750 SHIFT SOLENOID VALVE A"
–SHIFT SOLENOID VALVE B:AT-198, "DTC P0755 SHIFT SOLENOID VALVE B"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR:AT-222, "DTC VEHICLE SPEED
SENSOR MTR"
No >> GOTO2
2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to 8. Vehicle Cannot Be Started From D1,AT-364, "8. Vehicle Cannot Be Started From D1".
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
