TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-107
D
E
F
G
H
I
J
K
L
MA
B
AT

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0011U
1. CHECK INPUT SIGNAL

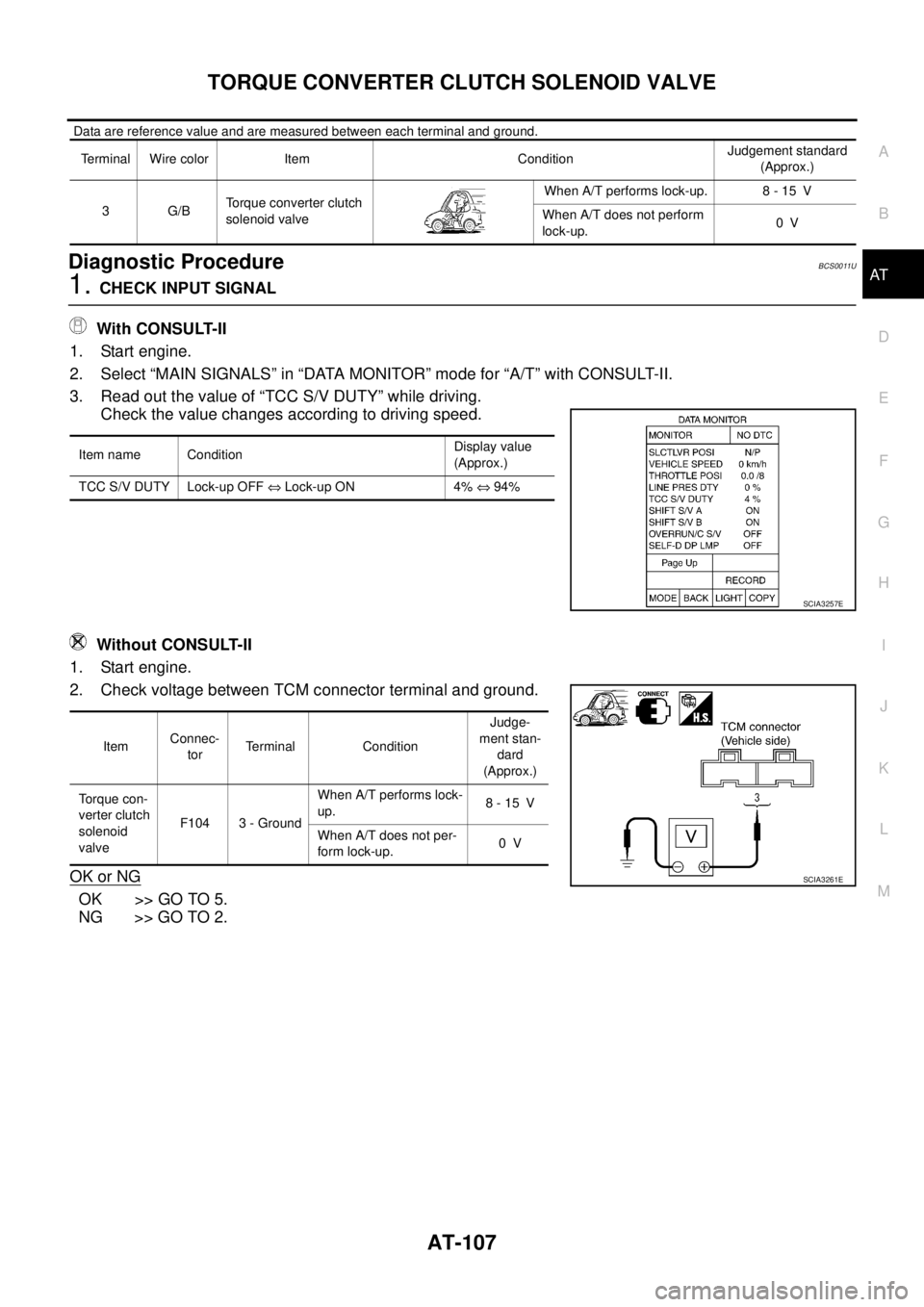

With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “TCC S/V DUTY” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
3 G/BTorque converter clutch
solenoid valveWhen A/T performs lock-up. 8 - 15 V
When A/T does not perform
lock-up.0V
Item name ConditionDisplay value
(Approx.)
TCC S/V DUTY Lock-up OFF ⇔ Lock-up ON 4% ⇔ 94%
SCIA3257E
ItemConnec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
Torque con-
verter clutch
solenoid
valveF104 3 - GroundWhen A/T performs lock-
up.8 - 15 V
When A/T does not per-
form lock-up.0V
SCIA3261E

AT-108
TORQUE CONVERTER CLUTCH SOLENOID VALVE

2. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 1 0 5 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector TerminalResistance
(Approx.)
Torque converter clutch
solenoid valveF104 3 - Ground 5 - 20 Ω
SCIA3262E
Item Connector Terminal Continuity
TCM connector F104 3
Ye s
Terminal cord assembly
harness connectorF43 5
SCIA3263E
Solenoid valve Connector Terminal Resistance (Approx.)
Torque converter clutch
solenoid valveF43 5 - Ground 5 - 20Ω
SCIA4946E

AT-110
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)
PFP:31940
DescriptionBCS0011W
A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to TCM.
CONSULT-II Reference ValueBCS0011X
On Board Diagnosis LogicBCS0011Y
Diagnostic trouble code “BATT/FLUID TEMP SEN” with CONSULT-II or 8th judgement flicker without CON-
SULT-II is detected when TCM receives an excessively low or high voltage from the sensor.
Possible CauseBCS0011Z

Harness or connector
(Sensor circuit is open or shorted.)

A/T fluid temperature sensor
DTC Confirmation ProcedureBCS00120
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle under the following conditions.
SLCT LVR POSI: “D” position
VEHICLE SPEED: Higher than 20 km/h (12 MPH)
4. If DTC is detected, go to AT- 11 2 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions.
Selector lever position: “D” position
Vehicle speed: Higher than 20 km/h (12 MPH)
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 11 2 , "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
FLUID TEMP SE When A/T fluid temperature is 20°C (68°F). 1.5 V
When A/T fluid temperature is 80°C (176°F). 0.5 V
BCIA0031E

AT-112
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS00122
1. CHECK TCM POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
3. Turn ignition switch OFF.
4. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between ignition switch and TCM connector terminals 10, 19

Harness for short or open between battery and TCM connector terminal 28

15A fuse (No.17, located in the fuse block) and 10A fuse (No83, located in the IPDM E/R)

Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
Terminal Wire color Item ConditionJudgement stan-
dard (Approx.)
10 Y Power source
or When turning ignition switch ON. Battery voltage
When turning ignition switch OFF. 0 V
19 Y Power sourceWhen turning ignition switch ON. Battery voltage
When turning ignition switch OFF. 0 V
28 Y/RPower source
(Memory back-up)Always Battery voltage
42 B Sensor ground Always 0 V
47 GA/T fluid temperature
sensor
and When A/T fluid temperature is
20°C (68°F).1.5 V
When A/T fluid temperature is
80°C (176°F).0.5 V
Item Connector TerminalJudgement standard
(Approx.)
TCM connectorF10410
Battery voltage 19
F105 28
SCIA2656E
Name Connector TerminalJudgement standard
(Approx.)
TCM connectorF10410 0 V
19 0 V
F105 28 Battery voltage
SCIA2657E

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-113
D
E
F
G
H
I
J
K
L
MA
B
AT

3. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
Without CONSULT-II
1. Start engine.
2. Check voltage TCM connector terminals while warming up A/T.
OK or NG
OK >> GO TO 9.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between TCM, ECM and terminal cord assembly

Ground circuit for ECM. Refer to EC-106, "POWER SUPPLY AND GROUND CIRCUIT" (QR engine) or
EC-451, "
POWER SUPPLY AND GROUND CIRCUIT" (VQ engine).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
Item name ConditionDisplay value
(Approx.)
FLUID TEMP SEWhen A/T fluid temperature is 20°C
(68°F).1.5 V
When A/T fluid temperature is 80°C
(176°F).0.5 V
SCIA4730E
Item Connector Terminal ConditionJudgement
standard
(Approx.)
TCM con-
nectorF105 47 - 42When A/T fluid tempera-
ture is 20°C (68°F).1.5 V
When A/T fluid tempera-
ture is 80°C (176°F).0.5 V
SCIA2658E

AT-114
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

5. CHECK FLUID TEMPERATURE SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminals.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminals and TCM connector terminals.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle and assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminals.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
Item Connector TerminalTe m p e r a -
ture °C (°F)Resistance
(Approx.)
TCM con-
nectorF105 47 - 4220 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA4947E
Item Connector Terminal Continuity
TCM connector F105 42
Ye s
Terminal cord assembly
harness connectorF43 7
TCM connector F105 47
Ye s
Terminal cord assembly
harness connectorF43 6
SCIA2660E
Temperature °C (°F) Resistance (Approx.)
20 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA4948E

AT-116
ENGINE SPEED SIGNAL

ENGINE SPEED SIGNALPFP:24825
DescriptionBCS00124
The engine speed signal is sent from ECM to TCM.
CONSULT-II Reference ValueBCS00125
On Board Diagnosis LogicBCS00126
Diagnostic trouble code “ENGINE SPEED SIG” with CONSULT-II or 9th judgement flicker without CONSULT-
II is detected when TCM does not receive the proper voltage signal from ECM.
Possible CauseBCS00127
Harness or connector
(Sensor circuit is open or shorted.)
DTC Confirmation ProcedureBCS00128
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VEHICLE SPEED: 10 km/h (6 MPH) or more
THROTTLE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
4. If DTC is detected, go to AT- 11 8 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions for more than 10 seconds.
Selector lever position: “D” position
Vehicle speed: Higher than 10 km/h (6 MPH)
Throttle position: Greater than 1.0/8 of the full throttle position
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 11 8 , "
Diagnostic Procedure" .
Item name Condition Display value
ENGINE SPEED Engine runningApproximately matches the tachometer
reading.
BCIA0031E

AT-118
ENGINE SPEED SIGNAL

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0012A
1. CHECK DTC WITH ECM
Check DTC with CONSULT-II “ENGINE”.
Turn ignition switch ON and select “SELF-DIAGNOSTIC RESULTS” mode for “ENGINE” with CONSULT-II.
Refer to EC-425, "
CONSULT-II Function (ENGINE)" .
OK or NG
OK >> GO TO 2.
NG >> Check ignition signal circuit for engine control. Refer to EC-735
.
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.

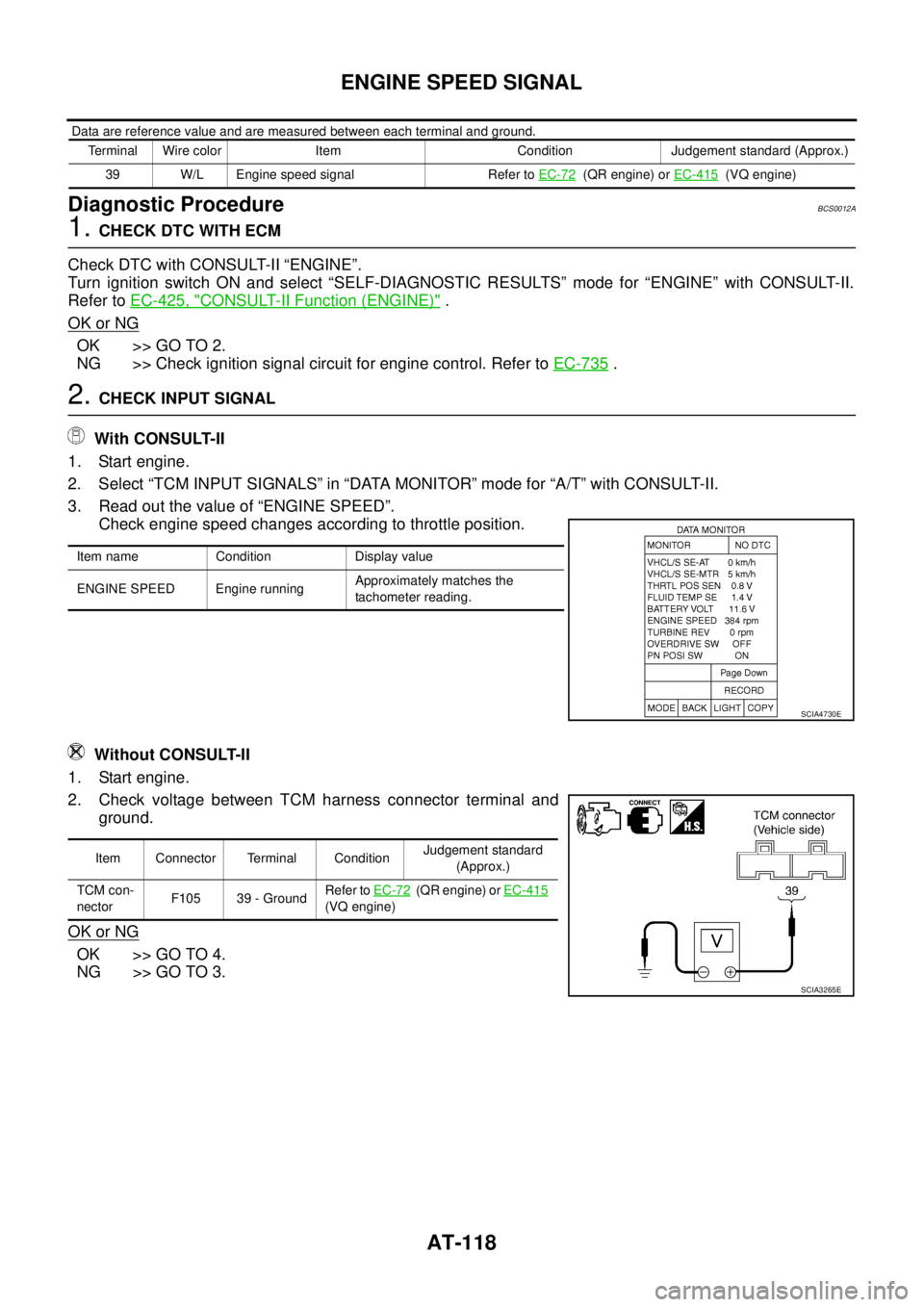

2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “ENGINE SPEED”.
Check engine speed changes according to throttle position.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM harness connector terminal and
ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Terminal Wire color Item Condition Judgement standard (Approx.)
39 W/L Engine speed signal Refer to EC-72
(QR engine) or EC-415 (VQ engine)
Item name Condition Display value
ENGINE SPEED Engine runningApproximately matches the
tachometer reading.
SCIA4730E
Item Connector Terminal ConditionJudgement standard
(Approx.)
TCM con-
nectorF105 39 - GroundRefer to EC-72
(QR engine) or EC-415
(VQ engine)
SCIA3265E
