2003 MITSUBISHI ECLIPSE Intake

AC004023AB
FRONT DECK
<2.4L ENGINE>
GROUND CABLE
FRONT DECK
<3.0L ENGINE>
GROUND CABLE
INTAKE
MANIFOLD
<3.0L ENGINE>
NOISE CAPACITOR
BATTERY
<2.4L ENGINE>
NOISE CAPACITOR

AK100997
INTAKE MANIFOLD
THROTTLE BODY
FROM AIR
CLEANER TO COMB-
USTION
CHAMBER
EGR SOLENOID
(ON: CLOSE)
FUEL
PRESSURE
REGULATOR
EVAPORATIVE
EMISSION
PURGE
SOLENOID
(ON: OPEN) CHAMBER
VACUUM
CONTROL
VALVE
EGR VALVE
FUEL
TA N K
EVAPORATIVE
EMISSION
CANISTER
B : BLACK
G : GREEN
L : LIGHT BLUE
W: WHITE
Y: YELLOW
*1: RED PAINT MARK
EVAPORATIVE EMISSION
VENTILATION SOLENOID
(ON: CLOSE)
AB
L
B
B
B
BBB G
G
W Y
Y
*1
*2*1

AK100998
INTAKE MANIFOLD
THROTTLE BODY
TO COMB-
USTION
CHAMBERFROM AIR
CLEANER
EGR SOLENOID
(ON: CLOSE)
FUEL
PRESSURE
REGULATOR
EVAPORATIVE
EMISSION
PURGE
SOLENOID
(ON: OPEN)
VACUUM
CONTROL
VALVE
EGR VALVE
FUEL
TA N K
B : BLACK
G : GREEN
L : LIGHT BLUE
W: WHITE
Y: YELLOW
*1: RED PAINT MARK
*2: RESTRICTOREVAPORATIVE
EMISSION
CANISTER
EVAPORATIVE EMISSION
VENTILATION SOLENOID
(ON: CLOSE)
AB
BB
BB
B B
B
B
B LG
G
G Y
W *1
*1
*2

AK102960
*1
*1
*2 INTAKE MANIFOLDTHROTTLE BODY
TO COMBUSTION
CHAMBERFROM AIR
CLEANER
EGR SOLENOID
(ON: CLOSE)
FUEL
PRESSURE
REGULATOREVAPORATIVE
EMISSION
PURGE
SOLENOID
(ON: OPEN)
VACUUM
CONTROL
VALVE
EGR VALVE
FUEL TANK
EVAPORATIVE
EMISSION
CANISTER
EVAPORATIVE EMISSION
VENTILATION SOLENOID
(ON: CLOSE) VACUUM
TA N K
VARIABLE
INDUCTION
CONTROL
SOLENOID
(ON: OPEN)
VARIABLE
INDUCTION
CONTROL
ACTUATORB
L
B W
W
B
B
YB
B
B
B
BG
G
WG
BY Y
B : BLACK
G : GREEN
L : LIGHT BLUE
W: WHITE
Y: YELLOW
*1: RED PAINT MARK
*2: RESTRICTOR
AB

AK100999
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
LIQUID SEPARATOR
EVAP
CANISTER EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN ECM
PCM
BAROMETRIC PRESSURE
SENSOR
INTAKE AIR TEMPERATURE
SENSOR
ENGINE COOLANT
TEMPERATURE SENSOR
VOLUME AIR FLOW SENSORFUEL
TA N K
MFI RELAYFUEL VENT
VA LV E
FUEL CUT
OFF VALVE
LEVELING VALVE
VENT VALVE
AIR FILTER EVAPORATIVE EMISSION
VENTILATION SOLENOID
ON: CLOSED
AB
CHAMBER

AK101000
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
LIQUID SEPARATOR
EVAP
CANISTER EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN ECM
PCM
BAROMETRIC PRESSURE
SENSOR
INTAKE AIR TEMPERATURE
SENSOR
ENGINE COOLANT
TEMPERATURE SENSOR
VOLUME AIR FLOW SENSORFUEL
TA N K
MFI RELAYFUEL VENT
VALVE
FUEL CUT
OFF VALVE
LEVELING VALVE
VENT VALVE
AIR FILTER EVAPORATIVE EMISSION
VENTILATION SOLENOID
ON: CLOSED
AB
AKX01304AB
EVAPORATIVE EMISSION PURGE
SOLENOID
<2.4L ENGINE>
AK102961AB
EVAPORATIVE EMISSION PURGE
SOLENOID
<3.0L ENGINE – WITH VIC>
AKX01306AC
EVAPORATIVE EMISSION PURGE
SOLENOID
<3.0L ENGINE – WITHOUT VIC>
AKX01305
EVAP VENTILATION SOLENOID
FUEL TANK
AB

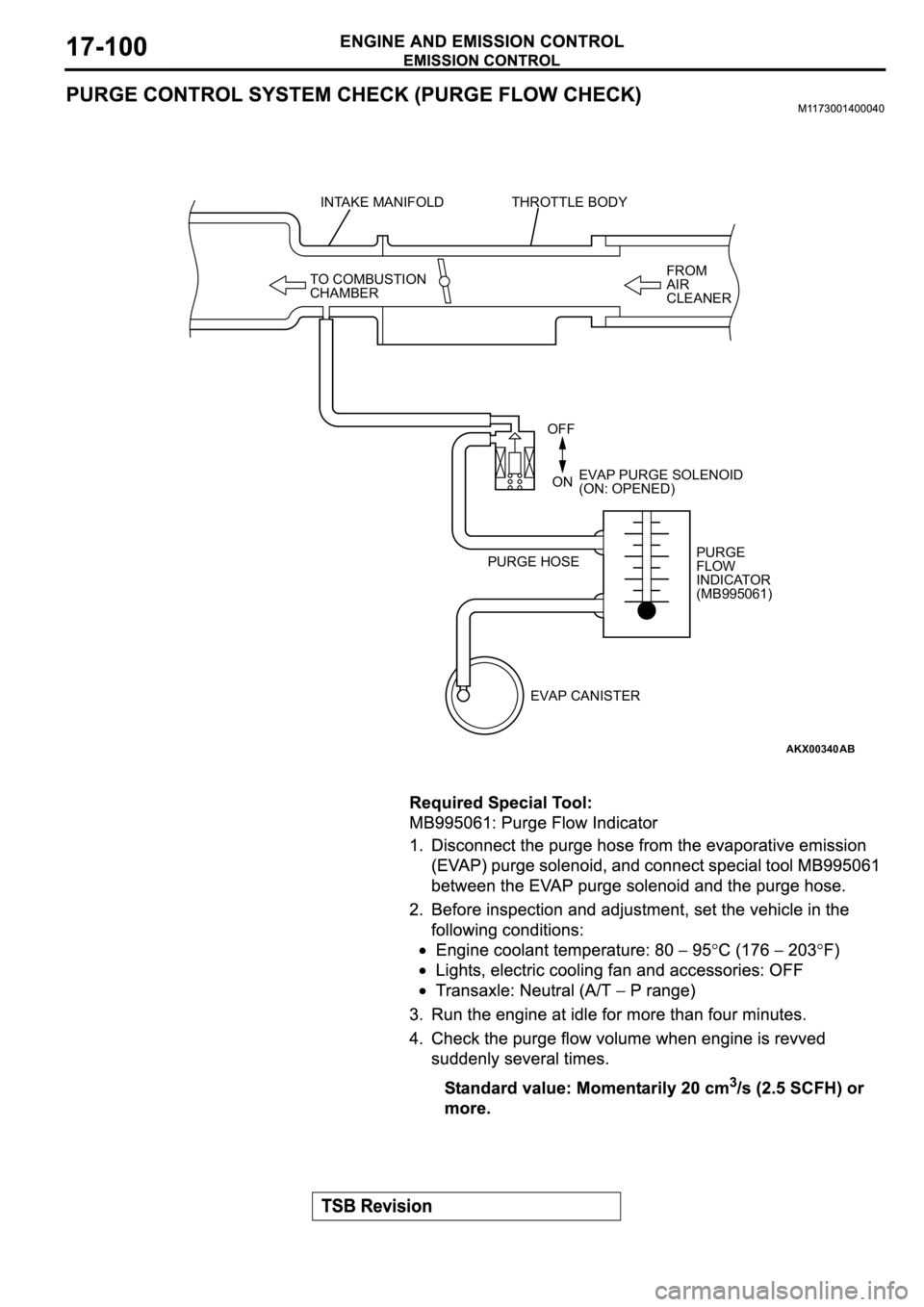

AKX00340
INTAKE MANIFOLD THROTTLE BODY
TO COMBUSTION
CHAMBERFROM
AIR
CLEANER
OFF
ONEVAP PURGE SOLENOID
(ON: OPENED)
PURGE
FLOW
INDICATOR
(MB995061) PURGE HOSE
EVAP CANISTER
AB

AKX01314
INTAKE
MANIFOLD
AC
EGR SOLENOID
<3.0L ENGINE – WITHOUT VIC>
AK102962AB
EGR SOLENOID
<3.0L ENGINE – WITH VIC>
AKX01315
THROTTLE
BODY EGR VALVE
<3.0L ENGINE>
AB
AKX01316
AB
EGR VALVE
TEE-
FITTING
BLACK
<2.4L ENGINE>
AKX01317
AB
EGR VALVE
TEE-
FITTING
BLACK <3.0L ENGINE>
