2003 MINI COOPER high beam

12
COCKPIT

1
>
Parking lamps/Low beams52
>
Turn signal indicators52
>
Standing lamps52
>
High beams52
>
Headlamp flasher52
>
Computer602Washer/wiper system54
3Instrument lighting53
4Outside mirror adjustment39
5Hazard warning flashers6Bonnet release91
7Horn19
8Adjusting steering wheel38
9OBD interface socket102

ba.book Seite 12 Montag, 5. August 2002 8:09 20
ProCarManuals.com

18
INDICATOR AND WARNING LAMPS

Green: for your information
Turn signal indicators
Flashes when turn signal indicator
is on.
Rapid flashing: the system is defective.
More information on page 52
Cruise control
*
Lights up when the cruise control is
activated: operation via the multi-
function steering wheel.
More information on page 56
Blue: for your information
High beams
Comes on when the high beams
are on or the headlamp flasher is
actuated. More information on page 52
ba.book Seite 18 Montag, 5. August 2002 8:09 20
ProCarManuals.com

52
PARKING LAMPS/LOW BEAMS SIGNAL/HEADLAMP FLASHER Switching on the parking lampsTurn to the first position. The front, rear
and side vehicle lighting is switched on.
Parking light on one side, see following
column.Switching on the low beamsTurn to the second position. With the low
beams on and with the ignition switched
off, only the parking lamps will remain on."Follow me home" lampsIf you switch off the engine with the low
beams on, and then switch off the low
beams, they remain lit for a set length of
time.
You can have this function set by
your MINI Dealer.<
Switching on the standing lampsFor parking, you can activate lights on one
side of the vehicle. Observe local laws.
In ignition key position 0:
Move the lever into the relevant turn signal
indicator position."Lights on" warningIf the lights have not been switched off and
the ignition key is in position 0, an acoustic
signal sounds for a few seconds when you
open the driver's door to remind you that
the lights have not been switched off.Daytime driving lamps*If you desire, the light switch can be left in
the second position:
When the ignition is switched off, the
external lighting is also switched off.
You can have this function set by
your MINI Dealer.<
1Turn signal indicator – green indicator
lamps and periodic clicking sound from
the relay
2High beams/Headlamp flasher – blue
indicator lampTo signal brieflyPress the lever up to but not beyond the
point of resistance.
If the blinking of the indicator lamp
and the clicking from the relay are
both faster than normal: one of the turn
signal indicators has failed.<
ba.book Seite 52 Montag, 5. August 2002 8:09 20
ProCarManuals.com

53
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX

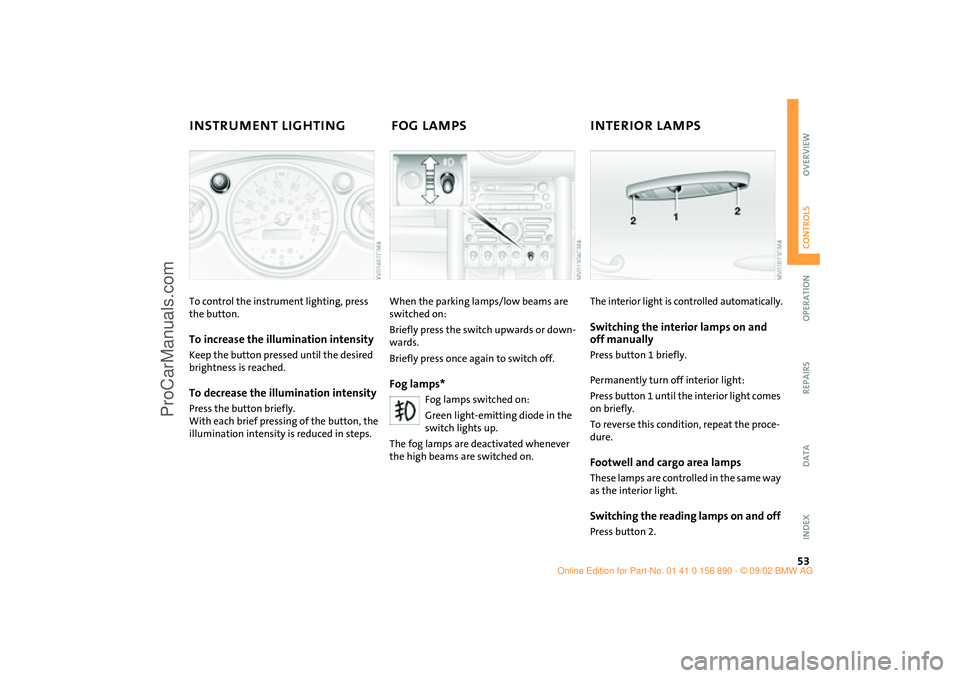

INSTRUMENT LIGHTING FOG LAMPS INTERIOR LAMPS To control the instrument lighting, press
the button.To increase the illumination intensityKeep the button pressed until the desired
brightness is reached.To decrease the illumination intensityPress the button briefly.
With each brief pressing of the button, the
illumination intensity is reduced in steps.
When the parking lamps/low beams are
switched on:
Briefly press the switch upwards or down-
wards.
Briefly press once again to switch off.Fog lamps*
Fog lamps switched on:
Green light-emitting diode in the
switch lights up.
The fog lamps are deactivated whenever
the high beams are switched on.
The interior light is controlled automatically.Switching the interior lamps on and
off manuallyPress button 1 briefly.
Permanently turn off interior light:
Press button 1 until the interior light comes
on briefly.
To reverse this condition, repeat the proce-
dure.Footwell and cargo area lampsThese lamps are controlled in the same way
as the interior light.Switching the reading lamps on and offPress button 2.
ba.book Seite 53 Montag, 5. August 2002 8:09 20
ProCarManuals.com

107
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
LAMPS AND BULBSProceed carefully when handling lamps and
bulbs. If you are not familiar with any of
the procedures, consult your MINI Dealer.
Do not touch the glass portion of a
new bulb with your bare hands since
even small amounts of impurities burn into
the surface and reduce the service life of
the bulb. Use a clean cloth, paper napkin, or
similar material, or hold the bulb by its
metallic base.<
Replacement bulbs are available from your
MINI Dealer.
Whenever working on the electrical
system, switch off the electrical
accessory you are working on or disconnect
the cable from the negative terminal of the
battery. Failure to do this could result in
short circuits.
To prevent injuries and damage, comply
with any instructions provided by the bulb
manufacturer.<
1Low beams H7 bulb, 55 Watts2High beamsH7 bulb, 55 Watts
The H7 bulb is pressurized. Therefore,
wear safety glasses and protective
gloves. If the lamp is damaged there is a
risk of injury. MINI engine bonnet.
1. Pull on the tab of the cover of the defec-
tive lamp and open it
2. Press the retaining wire lightly at the
eyelet and at the same time guide it out-
wards
3. Fold the retaining wire down
4. Remove the lamp holder and replace the
lamp
5. Reinsert the lamp holder in the correct
position
6. Fold the retaining wire back up and
catch in place. Ensure that it is placed in
the middle of the wire connector.Xenon lamps* The service life of these bulbs is very long
and the probability of a failure is very low,
provided that they are not switched on and
off an unusual number of times. If one of
these bulbs should nevertheless fail, it is
possible to continue driving with great cau-
tion using the fog lamps, provided traffic
laws in your area do not prohibit this.
Because of the extremely high volt-
ages involved, any work on the xenon
lighting system should be carried out by
technically-qualified personnel only. Other-
wise, there is a risk of fatal injury.<
ba.book Seite 107 Montag, 5. August 2002 8:09 20
ProCarManuals.com

EVERYTHING FROM A TO Z
139
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Fuel gauge58
Fuses123
G
Gas display, see
Fuel gauge58
Gasoline83
Gear display51
Continuously Variable
automatic Transmission
(CVT)51
General driving notes81
Glove compartment73
Glove compartment lamps
bulb replacement111
Grills69,72
H
Handbrake47
Hazard warning flashers12
Head airbags40
Head restraints37
Headlamp cleaning
system55,94
filling94
Headlamp flasher52
Headlamps
cleaning55,99
lamp replacement107 Heated
outside rear view mirror39
rear window68,71
seats36
windshield68,71
windshield washer jets55
Heater67
outside rear view mirror39
windshield68
Heating
rear window68
seats36
Heavy cargo75
Height131
Hex wrench118
High beams18,52,107
High Performance
Synthetic Oil96
recommended grades of
oil96
Horn12
Hub cap remover112,118
Hydroplaning81
I
Ignition45
Ignition key22
Ignition key position,
see Ignition45
Illuminated vanity mirror39
Imitation leather100 Imprint2
Index2
Indicator lamps15
Individual air distribution72
Inflation pressure85
INSPECTION60
Instrument cluster, see Display
elements13
Instrument lighting53
Instrument panel12
Interface socket
for Onboard
Diagnostics102
Interior lamps53
bulb replacement110
Interior mirror
automatic dimming39
Interior motion sensor31,32
Interior protection
turning off25,32
Interior rearview mirror39
Interlock45
Interval
operation, wipers54
Interval display, service98
J
Jack112
Jump-starting124 K
Keys22
multifunction steering
wheel19
Kickdown50
L
Lamp replacement
headlamps107
high beams107
low beams107
parking lamp107
Lamps52
backup lamps109
brake lamps109,110
cargo area lamps111
daytime driving lamps52
fog lamps53
footwell lamps111
front fog lamps108
glove compartment111
high beams107
instrument lighting53
interior lamps53,110
license plate lamp110
low beams52,107
parking lamps52,108
reading lamps53,110
rear fog lamp109
standing lamps52,108
tail lamp109
ba.book Seite 139 Montag, 5. August 2002 8:09 20
ProCarManuals.com

EVERYTHING FROM A TO Z
140
turn signal indicators108
xenon lamps107
Lashing eyes75
LATCH
child seat fastening
system43
identification43
Leather care101
LED light-emitting diodes54
Length131
License plate lamp
bulb replacement110
Lifting handle, space-saver
spare tire112
Light-alloy wheels100
Lighting
cargo area lamps53
"Lights on" warning52
Liquid sealant
filling119
Load securing devices75
Loading75
Loading cargo75
Low beams52,107
Lug bolts114
Luggage compartment
see Cargo area
Luggage compartment cover,
see Cargo area cover74
Luggage compartment lamps,
see Cargo area lamps111 Luggage rack,
see Roof-mounted luggage
rack76
Lumbar support35
M
M+S tires89
Maintenance60,98
Maintenance System98
Manual operation
driver's door25
sliding/tilt sunroof30
tailgate27
Manual transmission48
Manufacturer6
Master key
initialization22
with remote control22
Mechanical key22
MINI Maintenance System98
MINI manufacturer6
MINI Mobility System
compressor120
liquid sealant119
on-board tools118
Mirror heater39
Mirrors39
Modifications, technical103
Multifunction steering
wheel19
Multifunction switch52 N
Navigation system, see
separate Owner's
Manual14
Non-smoker's equipment
package, see Cigarette lighter
socket73
Nozzles69,72
Nylon rope126
O
OBD interface socket102
Odometer58
Oil94
additives95
consumption94
dipstick94
High Performance Synthetic
Oil96
level15
pressure15
recommended grades of
oil95
viscosities96
Oil change intervals, see Service
and Warranty Booklet for US
models, or Warranty and
Service Guide Booklet for
Canadian models
Oil service60
Old batteries122 On-board tool kit106
On-board tools112,118
Opening
from inside26
from outside23
Outside temperature
display61
P
Park Distance Control
(PDC)66
Parking brake16,47
Parking lamps52
bulb replacement108
Parking lamps/Low beams52
Parking vehicle81
Particle filter69,72
PDC (Park Distance
Control)66
Phillips screwdriver118
Plastic100
Pollen69,72
Power output17,130
Power supply 12 V73
Power windows
electric power windows28
initialize28
Pressure, tires85,115,120
Pushing/Towing126
