2003 MERCEDES-BENZ SLK32AMG display

Contents
Automatic central locking .............. 78
Locking and unlocking
from the inside ............................... 80
Seats.................................................... 81
Heated seats* ................................ 81
Head restraints............................... 82
Lighting ................................................ 83
Exterior lamp switch ....................... 83
Combination switch........................ 84
Hazard warning flasher................... 85
Interior lighting ............................... 86
Instrument cluster ............................... 88
Instrument cluster illumination....... 88
Coolant temperature gauge............ 88
Trip odometer................................. 89
Tachometer .................................... 89
Outside temperature indicator ....... 90
Setting clock .................................. 90
Manual transmission ............................ 91
Shifting into reverse ....................... 92

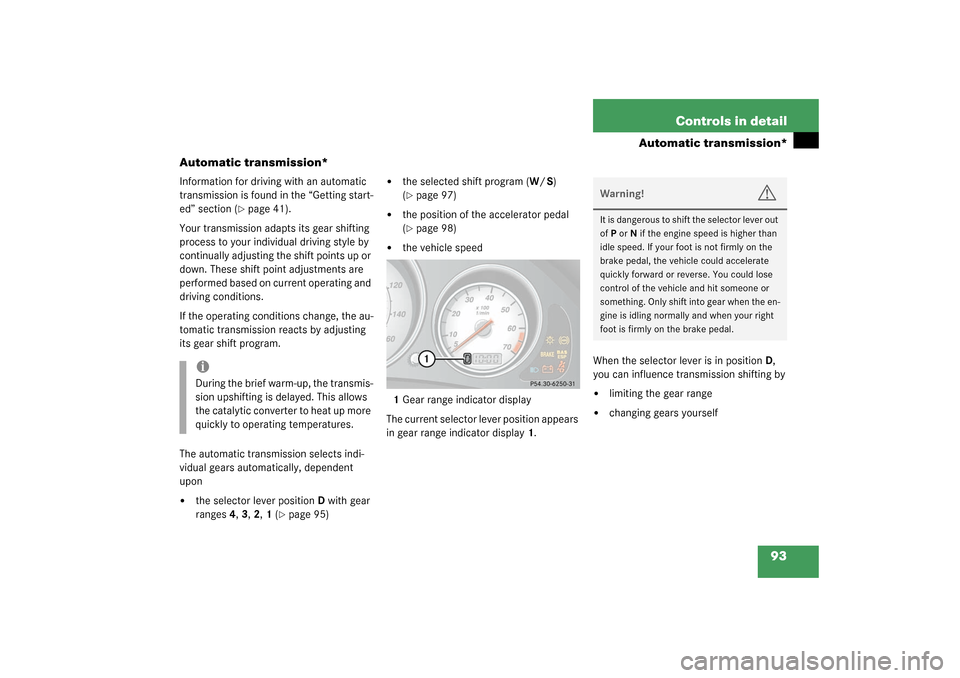

Automatic transmission* ..................... 93

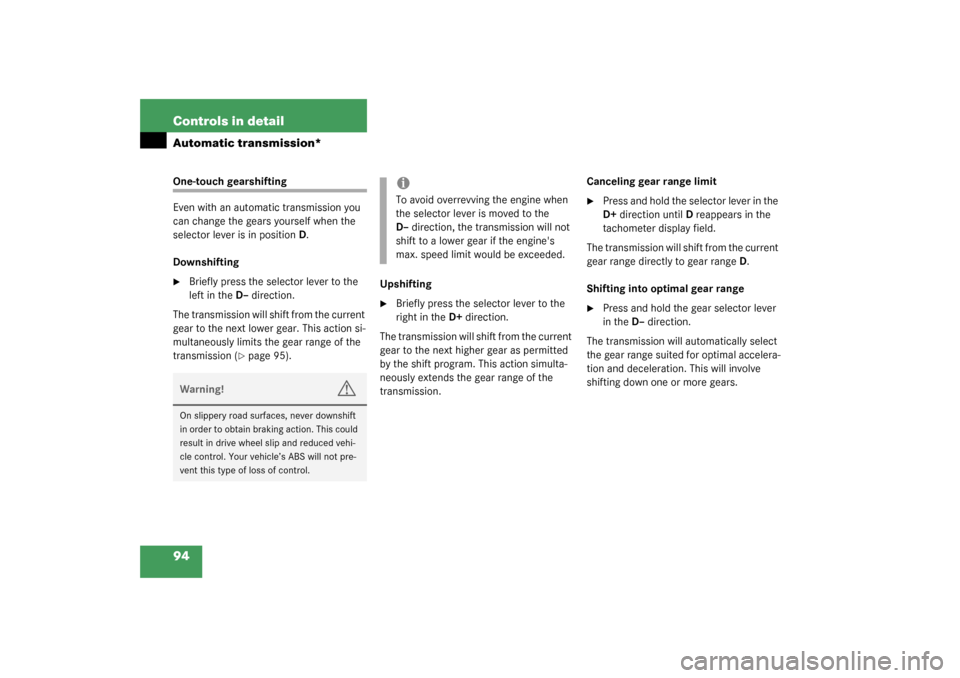

One-touch gearshifting ................... 94
Gear ranges .................................... 95
Gear selector lever position ........... 96
Program mode selector switch ....... 97
Accelerator position ....................... 98Emergency operation
(Limp Home Mode) ........................ 98
Good visibility ...................................... 99
Rear view mirror............................. 99
Headlamp cleaning system* ........ 100
Sun visors .................................... 101
Climate control .................................. 102
Setting the temperature ............... 104
Adjusting air volume .................... 104
Adjusting air distribution .............. 104
Air recirculation mode .................. 105
Rear window defroster ................. 105
Air conditioning ............................ 106
Residual heat ............................... 107
Basic settings ............................... 108
Special settings............................ 108
Deactivating the climate control
system ......................................... 110
Audio system ..................................... 111
Audio and telephone, operation ... 111
Operating safety........................... 111
Operating and display elements ... 112
Anti-theft system.......................... 114
Button and soft key operation ...... 115
Operation ..................................... 115
Radio mode .................................. 116Cassette mode............................. 118
CD mode ...................................... 120
Telephone* operation .................. 123
Power windows.................................. 127
Opening and closing
the side windows ......................... 127
Retractable hardtop........................... 129
Opening and closing
the retractable hardtop ................ 129
Wind screen ................................. 134
Driving systems ................................. 136
Cruise control .............................. 136
Useful features .................................. 139
Interior storage spaces ................ 139
Ashtray ........................................ 142
Cigarette lighter ........................... 143
Telephone* .................................. 143
Tele Aid ........................................ 144
Garage door opener ..................... 152
Operation......................................... 157
The first 1000 miles (1500 km) ......... 158
Driving instructions ........................... 159
Drive sensibly – save fuel............. 159
Drinking and driving ..................... 159

Contents
Pedals .......................................... 159
Power assistance ......................... 160
Brakes .......................................... 160
Driving off .................................... 161
Parking ......................................... 161
Tires ............................................. 162
Hydroplaning................................ 163
Tire traction ................................. 163
Tire speed rating .......................... 163
Winter driving instructions ........... 164
Standing water ............................. 165
Passenger compartment .............. 165
Driving abroad.............................. 165
Control and operation
of radio transmitter ...................... 166
Catalytic converter....................... 166
Emission control .......................... 167
Coolant temperature .................... 167
At the gas station .............................. 169
Check regularly and before
a long trip..................................... 170
Engine compartment ......................... 171
Hood ............................................ 171
Engine oil ..................................... 172
Transmission fluid level ................ 176
Coolant ........................................ 176Battery .......................................... 178
Windshield washer system and
headlamp cleaning system*.......... 179
Tires and wheels................................. 180
Important guidelines ..................... 180
Life of tire ..................................... 181
Direction of rotation...................... 181
Checking tire inflation pressure .... 181
Rotating wheels ............................ 182
Winter driving ..................................... 183
Winter tires ................................... 183
Block heater (Canada only) ........... 184
Snow chains.................................. 184
Maintenance....................................... 185
Clearing the service indicator ....... 185
Service term exceeded ................. 186
Calling up the service indicator..... 186
Resetting the service indicator ..... 186
Vehicle care........................................ 187
Cleaning and care of vehicle ......... 187
Practical hints.................................. 193
What to do if ...................................... 194
Lamps in instrument cluster ......... 194Additional indicators in the
speedometer display .................... 204
Lamp in center console ................ 205
Where will I find ...? ............................ 206
First aid kit.................................... 206
Vehicle tool kit.............................. 206
Unlocking/locking in an emergency... 210
Unlocking the vehicle ................... 210
Locking the vehicle ....................... 211
Changing batteries
in remote control .......................... 212
Synchronizing remote control ....... 213
Fuel filler flap ................................ 213
Manually unlocking the
transmission selector lever ........... 214
Opening/closing in an emergency ..... 215
Raising retractable hardtop
manually ....................................... 215
Replacing bulbs .................................. 221
Bulbs............................................. 221
Replacing bulbs for front lamps .... 223
Replacing bulbs for rear lamps ..... 225
Adjusting headlamp aim
(Halogen headlamps only) ............ 226
Replacing wiper blades ...................... 228
Removing ...................................... 228

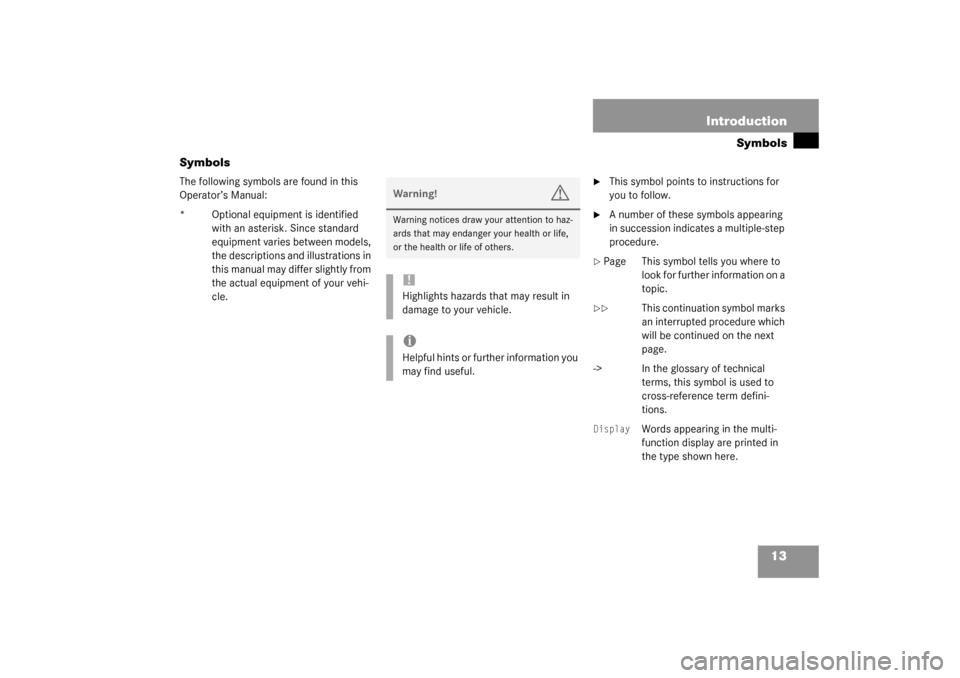

13 Introduction
Symbols
Symbols
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.

This symbol points to instructions for
you to follow.

A number of these symbols appearing
in succession indicates a multiple-step
procedure.
 Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to
cross-reference term defini-
tions.
Display
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.

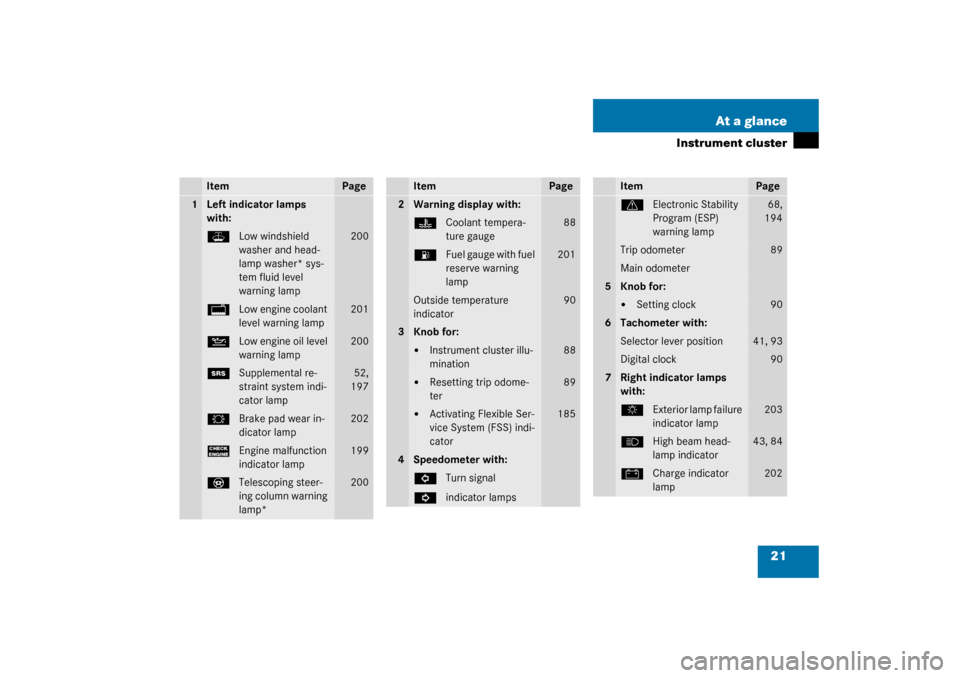

21 At a glance
Instrument cluster
Item
Page
1
Left indicator lamps
with:W
Low windshield
washer and head-
lamp washer* sys-
tem fluid level
warning lamp
200
/
Low engine coolant
level warning lamp
201
N
Low engine oil level
warning lamp
200
1
Supplemental re-
straint system indi-
cator lamp
52,
197
2
Brake pad wear in-
dicator lamp
202
?
Engine malfunction
indicator lamp
199
_
Telescoping steer-
ing column warning
lamp*
200
Item
Page
2
Warning display with:D
Coolant tempera-
ture gauge
88
A
Fuel gauge with fuel
reserve warning
lamp
201
Outside temperature
indicator
90
3
Knob for:

Instrument cluster illu-
mination
88


Resetting trip odome-
ter
89


Activating Flexible Ser-
vice System (FSS) indi-
cator
185
4
Speedometer with:L
Turn signal
K
indicator lamps
v
Electronic Stability
Program (ESP)
warning lamp
68,
194
Trip odometer
89
Main odometer
5
Knob for:

Setting clock
90
6
Tachometer with:Selector lever position
41, 93
Digital clock
90
7
Right indicator lamps
with:$
Exterior lamp failure
indicator lamp
203
A
High beam head-
lamp indicator
43, 84
#
Charge indicator
lamp
202
Item
Page

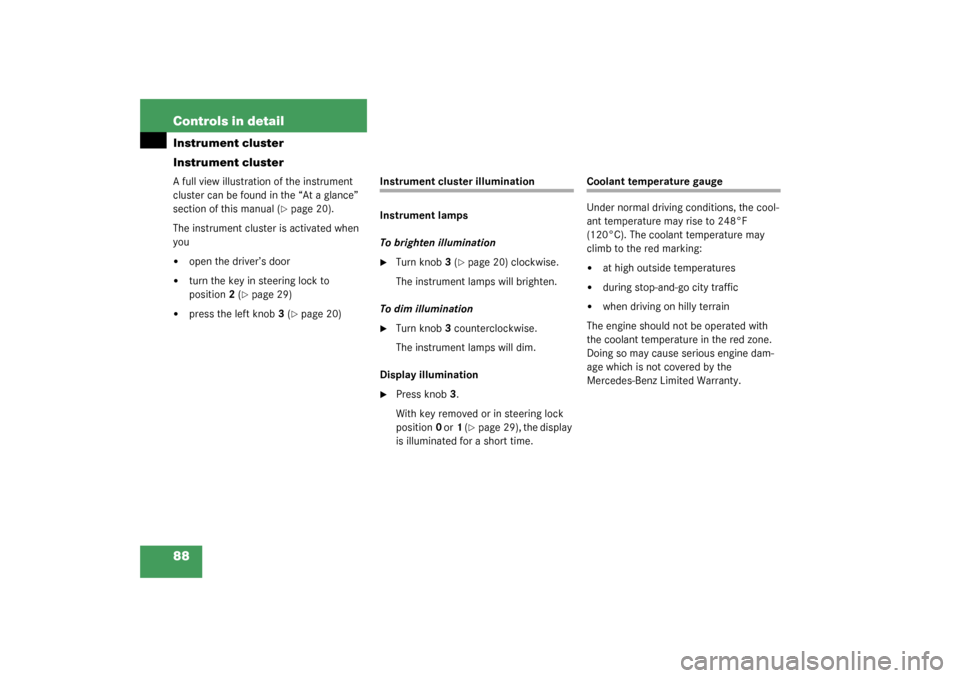

88 Controls in detailInstrument cluster
Instrument clusterA full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 20).
The instrument cluster is activated when
you


open the driver’s door


turn the key in steering lock to
position2 (
page 29)


press the left knob3 (
page 20)
Instrument cluster illumination
Instrument lamps
To brighten illumination
Turn knob3 (
page 20) clockwise.
The instrument lamps will brighten.
To dim illumination

Turn knob3 counterclockwise.
The instrument lamps will dim.
Display illumination

Press knob3.
With key removed or in steering lock
position0 or1 (
page 29), the display
is illuminated for a short time.
Coolant temperature gauge
Under normal driving conditions, the cool-
ant temperature may rise to 248°F
(120°C). The coolant temperature may
climb to the red marking:

at high outside temperatures


during stop-and-go city traffic


when driving on hilly terrain
The engine should not be operated with
the coolant temperature in the red zone.
Doing so may cause serious engine dam-
age which is not covered by the
Mercedes-Benz Limited Warranty.

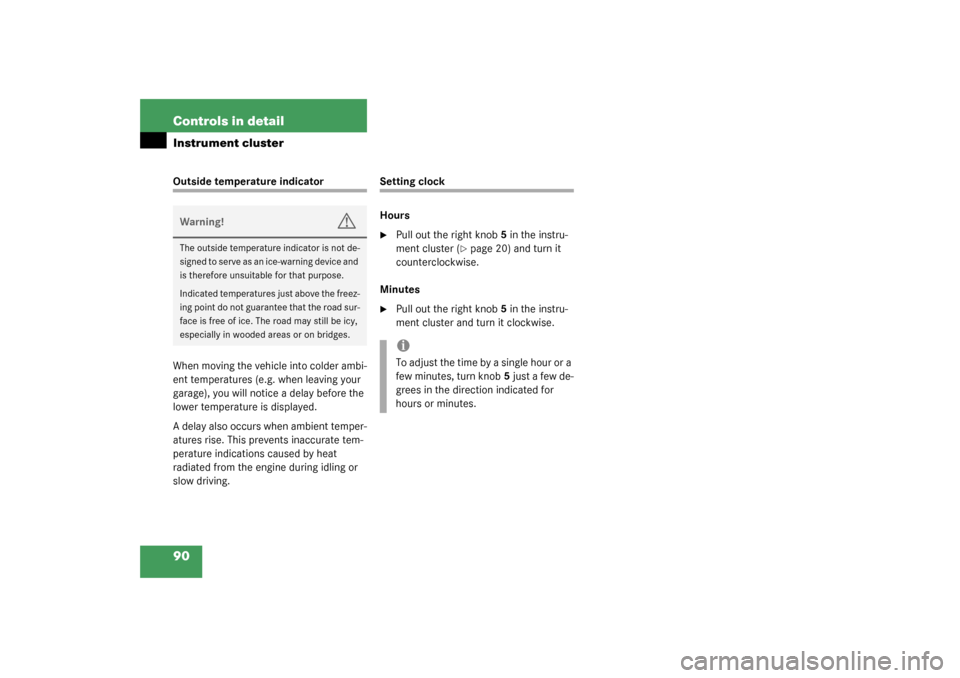

90 Controls in detailInstrument clusterOutside temperature indicator
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
Setting clock
Hours
Pull out the right knob5 in the instru-
ment cluster (
page 20) and turn it
counterclockwise.
Minutes

Pull out the right knob5 in the instru-
ment cluster and turn it clockwise.
Warning!
G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.
iTo adjust the time by a single hour or a
few minutes, turn knob5 just a few de-
grees in the direction indicated for
hours or minutes.

93 Controls in detail
Automatic transmission*
Automatic transmission*
Information for driving with an automatic
transmission is found in the “Getting start-
ed” section (
page 41).
Your transmission adapts its gear shifting
process to your individual driving style by
continually adjusting the shift points up or
down. These shift point adjustments are
performed based on current operating and
driving conditions.
If the operating conditions change, the au-
tomatic transmission reacts by adjusting
its gear shift program.
The automatic transmission selects indi-
vidual gears automatically, dependent
upon


the selector lever positionD with gear
ranges4, 3, 2, 1 (
page 95)


the selected shift program (W/S)
(page 97)


the position of the accelerator pedal
(page 98)


the vehicle speed
1Gear range indicator display
The current selector lever position appears
in gear range indicator display1.When the selector lever is in positionD,
you can influence transmission shifting by


limiting the gear range


changing gears yourself
iDuring the brief warm-up, the transmis-
sion upshifting is delayed. This allows
the catalytic converter to heat up more
quickly to operating temperatures.
Warning!
G
It is dangerous to shift the selector lever out
ofP orN if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.

94 Controls in detailAutomatic transmission*One-touch gearshifting
Even with an automatic transmission you
can change the gears yourself when the
selector lever is in positionD.
Downshifting
Briefly press the selector lever to the
left in the D–direction.
The transmission will shift from the current
gear to the next lower gear. This action si-
multaneously limits the gear range of the
transmission (
page 95).Upshifting

Briefly press the selector lever to the
right in the D+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simulta-
neously extends the gear range of the
transmission.Canceling gear range limit

Press and hold the selector lever in the
D+direction until Dreappears in the
tachometer display field.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range

Press and hold the gear selector lever
in the D–direction.
The transmission will automatically select
the gear range suited for optimal accelera-
tion and deceleration. This will involve
shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
iTo avoid overrevving the engine when
the selector lever is moved to the
D–direction, the transmission will not
shift to a lower gear if the engine's
max. speed limit would be exceeded.
