2003 MERCEDES-BENZ SLK CLASS light

Contents
Automatic central locking .............. 78
Locking and unlocking
from the inside ............................... 80
Seats.................................................... 81
Heated seats* ................................ 81
Head restraints............................... 82
Lighting ................................................ 83
Exterior lamp switch ....................... 83
Combination switch........................ 84
Hazard warning flasher................... 85
Interior lighting ............................... 86
Instrument cluster ............................... 88
Instrument cluster illumination....... 88
Coolant temperature gauge............ 88
Trip odometer................................. 89
Tachometer .................................... 89
Outside temperature indicator ....... 90
Setting clock .................................. 90
Manual transmission ............................ 91
Shifting into reverse ....................... 92
Automatic transmission* ..................... 93
One-touch gearshifting ................... 94
Gear ranges .................................... 95
Gear selector lever position ........... 96
Program mode selector switch ....... 97
Accelerator position ....................... 98Emergency operation
(Limp Home Mode) ........................ 98
Good visibility ...................................... 99
Rear view mirror............................. 99
Headlamp cleaning system* ........ 100
Sun visors .................................... 101
Climate control .................................. 102
Setting the temperature ............... 104
Adjusting air volume .................... 104
Adjusting air distribution .............. 104
Air recirculation mode .................. 105
Rear window defroster ................. 105
Air conditioning ............................ 106
Residual heat ............................... 107
Basic settings ............................... 108
Special settings............................ 108
Deactivating the climate control
system ......................................... 110
Audio system ..................................... 111
Audio and telephone, operation ... 111
Operating safety........................... 111
Operating and display elements ... 112
Anti-theft system.......................... 114
Button and soft key operation ...... 115
Operation ..................................... 115
Radio mode .................................. 116Cassette mode............................. 118
CD mode ...................................... 120
Telephone* operation .................. 123
Power windows.................................. 127
Opening and closing
the side windows ......................... 127
Retractable hardtop........................... 129
Opening and closing
the retractable hardtop ................ 129
Wind screen ................................. 134
Driving systems ................................. 136
Cruise control .............................. 136
Useful features .................................. 139
Interior storage spaces ................ 139
Ashtray ........................................ 142
Cigarette lighter ........................... 143
Telephone* .................................. 143
Tele Aid ........................................ 144
Garage door opener ..................... 152
Operation......................................... 157
The first 1000 miles (1500 km) ......... 158
Driving instructions ........................... 159
Drive sensibly – save fuel............. 159
Drinking and driving ..................... 159

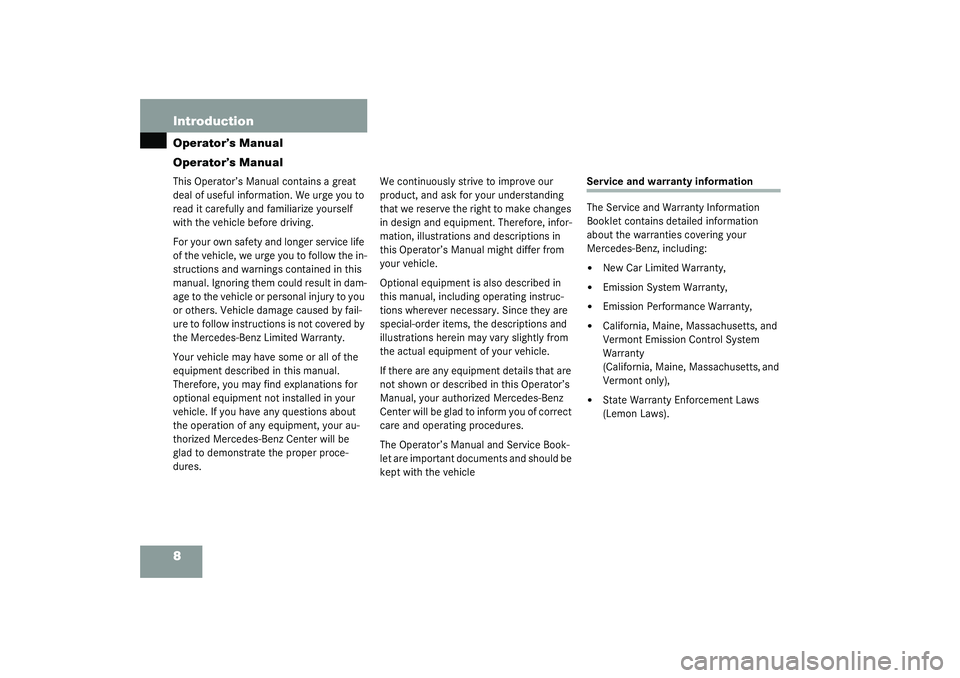

8 IntroductionOperator’s Manual
Operator’s ManualThis Operator’s Manual contains a great
deal of useful information. We urge you to
read it carefully and familiarize yourself
with the vehicle before driving.
For your own safety and longer service life
of the vehicle, we urge you to follow the in-
structions and warnings contained in this
manual. Ignoring them could result in dam-
age to the vehicle or personal injury to you
or others. Vehicle damage caused by fail-
ure to follow instructions is not covered by
the Mercedes-Benz Limited Warranty.
Your vehicle may have some or all of the
equipment described in this manual.
Therefore, you may find explanations for
optional equipment not installed in your
vehicle. If you have any questions about
the operation of any equipment, your au-
thorized Mercedes-Benz Center will be
glad to demonstrate the proper proce-
dures.We continuously strive to improve our
product, and ask for your understanding
that we reserve the right to make changes
in design and equipment. Therefore, infor-
mation, illustrations and descriptions in
this Operator’s Manual might differ from
your vehicle.
Optional equipment is also described in
this manual, including operating instruc-
tions wherever necessary. Since they are
special-order items, the descriptions and
illustrations herein may vary slightly from
the actual equipment of your vehicle.
If there are any equipment details that are
not shown or described in this Operator’s
Manual, your authorized Mercedes-Benz
C e n t e r w i l l b e g l a d t o i n f o r m y o u o f c o r r e c t
care and operating procedures.
The Operator’s Manual and Service Book-
let are important documents and should be
kept with the vehicle
Service and warranty information
The Service and Warranty Information
Booklet contains detailed information
about the warranties covering your
Mercedes-Benz, including:

New Car Limited Warranty,


Emission System Warranty,


Emission Performance Warranty,


California, Maine, Massachusetts, and
Vermont Emission Control System
Warranty
(California, Maine, Massachusetts, and
Vermont only),


State Warranty Enforcement Laws
(Lemon Laws).

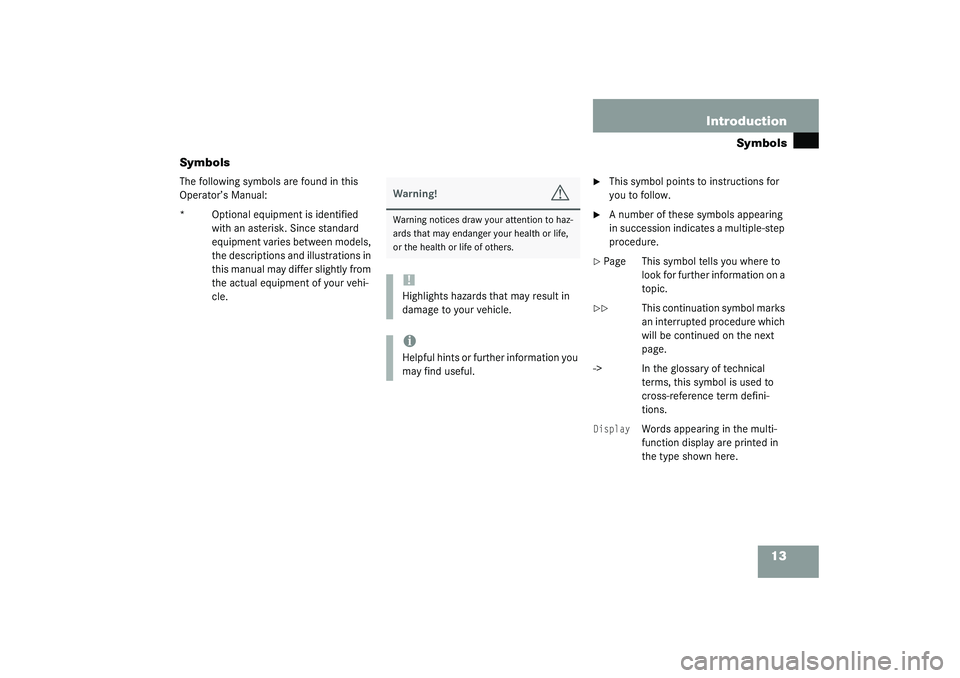

13 Introduction
Symbols
Symbols
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.

This symbol points to instructions for
you to follow.

A number of these symbols appearing
in succession indicates a multiple-step
procedure.
 Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to
cross-reference term defini-
tions.
Display
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.

24 At a glanceCenter consoleLower Part
Item
Page
1
Selector lever for
automatic transmission*
96
Gearshift lever for manual
transmission
91
2
Storage compartment
3
Indicator lamp
7
62
4
Switch for opening/closing
windows on passenger
side
127
5
Exterior rear view mirror
adjustment
35
6
Switch for opening/closing
the hardtop
129
7
Storage compartment
140
Cigarette lighter
143
Item
Page
8
Parking brake lever
42
9
Switch for opening/closing
windows on the driver’s
side
127
10
Program mode selector for
automatic transmission*
97
11
Ashtray
142
Coin holder
142

25 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Hands-free microphone for
Tele Aid (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
2
Interior lighting control
86
3
Tele Aid (emergency call
system) button
144
4
Garage door opener
152
5
Rear view mirror
35, 99

29 Getting started
Unlocking
Steering lock positionsSteering lock0For removing key
The steering is locked when the key is
removed from the steering lock. If nec-
essary, move steering wheel slightly to
allow the locking mechanism to en-
gage.
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock the vehi-
cle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehi-
cle. Unsupervised use of vehicle equipment
may cause an accident and/or serious per-
sonal injury.iThe key can only be withdrawn in
position0.
If necessary, move steering wheel
slightly to allow the key to be turned
clockwise to position1.
Vehicles with automatic transmission:
The key can only be removed from the
steering lock with the gear selector
lever in positionP.
!To prevent accelerated battery dis-
charge and a possible dead battery,
always remove the key from the
steering lock.

32 Getting startedAdjusting
Let go of handle4. The seat should
make an audible click.
Backrest tilt

Turn handwheel2 forward or backward
until your arms are slightly angled
when holding the steering wheel.Head restraint height

Adjust the height of the head restraints
by pulling them upwards manually.

For a lower position, press release
button1 and push down on the head
restraints manually.
More information can be found in the
“Controls in detail” section (
page 82).Power seat*

Switch on the ignition by turning the
key in the steering lock to position2.
or

Open the driver’s or passenger door.
The seat adjustment switches are located
on the outer sides of the seats.
1Seat height
2Seat fore and aft adjustment
3Seat cushion tilt
4Backrest tilt
iWhen moving the seat, be sure that
there are no items in the footwell or
behind the seats. Otherwise you could
damage the seats.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.

33 Getting started
Adjusting
Seat height
Press the switch up or down in the di-
rection of arrow1.
Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow2.
Adjust to a comfortable seating position
that still allows you to reach the
accelerator / brake pedal safely. The posi-
tion should be as far to the rear as possi-
ble, consistent with ability to properly
operate controls.
Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.Backrest tilt

Press the switch forward or backward
in the direction of arrow4 until your
arms are slightly angled when holding
the steering wheel.
Head restraint height
5Release button

Adjust the height of the head restraints
by pulling them upwards manually.

For a lower position, press release
button5 and push down on the head
restraints manually.
More information can be found in the
“Controls in detail” section (
page 82).
iWhen moving the seat, be sure that
there are no items in the footwell or
behind the seats. Otherwise you could
damage the seats.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
