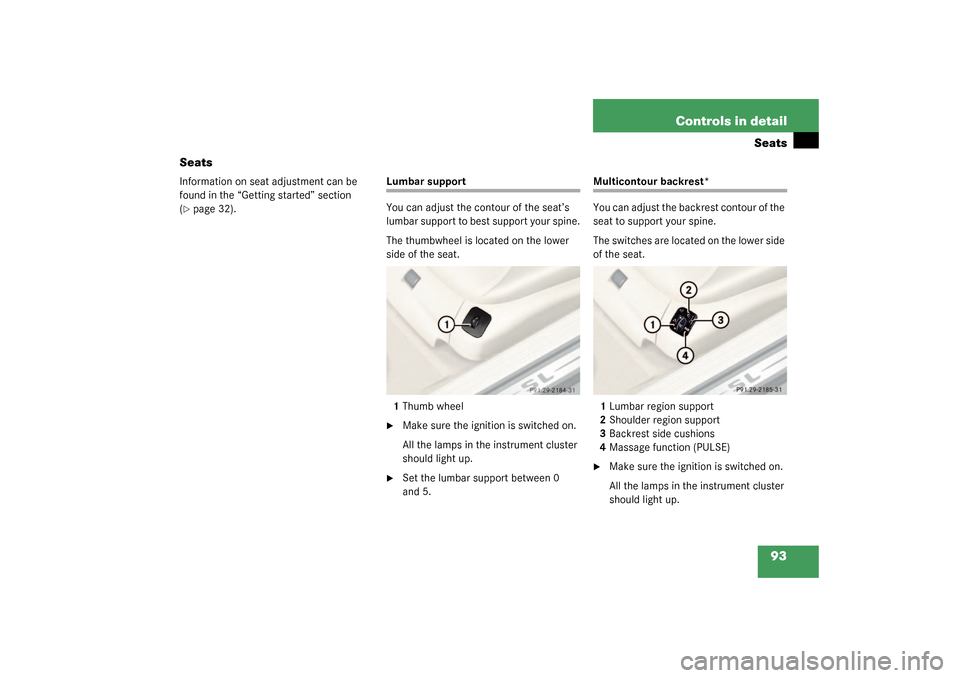

93 Controls in detail
Seats
Seats
Information on seat adjustment can be
found in the “Getting started” section
(page 32).
Lumbar support
You can adjust the contour of the seat’s
lumbar support to best support your spine.
The thumbwheel is located on the lower
side of the seat.
1Thumb wheel
Make sure the ignition is switched on.
All the lamps in the instrument cluster
should light up.

Set the lumbar support between 0
and 5.
Multicontour backrest*
You can adjust the backrest contour of the
seat to support your spine.
The switches are located on the lower side
of the seat.
1Lumbar region support
2Shoulder region support
3Backrest side cushions
4Massage function (PULSE)
Make sure the ignition is switched on.
All the lamps in the instrument cluster
should light up.

94 Controls in detailSeatsLumbar region support
Press
k
or
j
on rocker
switch1.
This selects the air cushion you wish to
adjust.

Press
æ
or
ç
on rocker
switch1.
The air cushion inflates or deflates.Shoulder region support

Press
æ
or
ç
on switch2.
The air cushion inflates or deflates.
Backrest side cushions

Press switch3 to the right or left.
The lateral support increases or de-
creases.Massage function (PULSE)
You can reduce muscle tension during long
trips by periodically using the massage
function.

Press button4.
The indicator lamp on button4 lights
up. The air cushions in the lumbar re-
gion inflate and deflate rhythmically.iThe massage function switches off au-
tomatically after approximately eight
minutes. The indicator lamp extinguish-
es.
