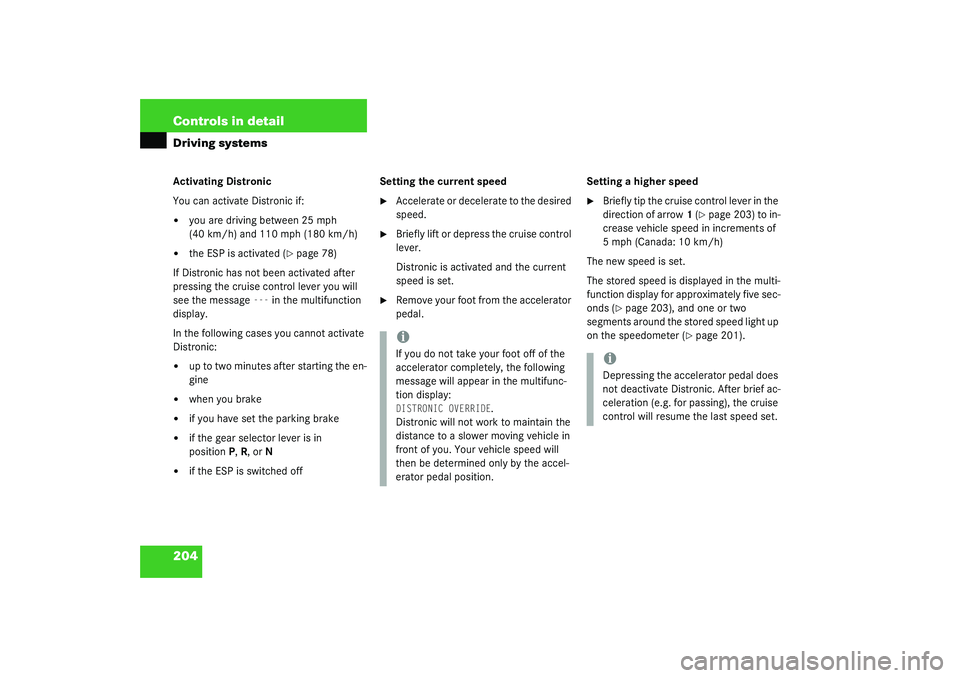

204 Controls in detailDriving systemsActivating Distronic
You can activate Distronic if:

you are driving between 25 mph
(40 km/h) and 110 mph (180 km/h)


the ESP is activated (
page 78)
If Distronic has not been activated after
pressing the cruise control lever you will
see the message
---
in the multifunction
display.
In the following cases you cannot activate
Distronic:


up to two minutes after starting the en-
gine


when you brake


if you have set the parking brake


if the gear selector lever is in
positionP, R, or N


if the ESP is switched offSetting the current speed

Accelerate or decelerate to the desired
speed.

Briefly lift or depress the cruise control
lever.
Distronic is activated and the current
speed is set.

Remove your foot from the accelerator
pedal.Setting a higher speed

Briefly tip the cruise control lever in the
direction of arrow1 (
page 203) to in-
crease vehicle speed in increments of
5 mph (Canada: 10 km/h)
The new speed is set.
The stored speed is displayed in the multi-
function display for approximately five sec-
onds (
page 203), and one or two
segments around the stored speed light up
on the speedometer (
page 201).
iIf you do not take your foot off of the
accelerator completely, the following
message will appear in the multifunc-
tion display: DISTRONIC OVERRIDE
.
Distronic will not work to maintain the
distance to a slower moving vehicle in
front of you. Your vehicle speed will
then be determined only by the accel-
erator pedal position.
iDepressing the accelerator pedal does
not deactivate Distronic. After brief ac-
celeration (e.g. for passing), the cruise
control will resume the last speed set.

205 Controls in detail
Driving systems
Setting a lower speed
Briefly tip the cruise control lever in the
direction of arrow2 (
page 203) to
decrease vehicle speed in increments
of 5 mph (Canada: 10 km/h)
The new speed is set.
The stored speed is displayed in the multi-
function display for approximately five sec-
onds (
page 203), and one or two
segments around the stored speed light up
on the speedometer (
page 201).Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow4 (
page 203).Setting to last stored speed (“Resume”
function)

Briefly tip the cruise control lever in the
direction of arrow4 (
page 203).
Distronic is set to the last stored
speed.

Remove your foot from the accelerator
pedal.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the rate of de-
celeration is too low.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury you and others.

206 Controls in detailDriving systemsDeactivating Distronic
There are several ways to deactivate the
Distronic system:
Briefly tip the cruise control lever in the
direction of arrow3 (
page 203).
or

Step on the brake pedal.
Distronic will be deactivated. The last
speed set will be stored into memory.Distronic deactivates automatically when:


you set the parking brake


you drive slower than
25 mph (40 km/h)


the ESP is active (
page 78) or you de-
activate the ESP


you move the transmission selector le-
ver into positionN
A signal will sound. The
DISTRONIC OFF

message appears in the multifunction
display for approximately five seconds.Setting the following distance in
Distronic
You can set the specified following dis-
tance for Distronic by varying the time set-
ting between 1.0 and 2.0 seconds. Using
this time setting and the current speed of
your vehicle, Distronic calculates and sets
the required following distance to the vehi-
cle ahead. The set distance will be shown
in the multifunction display field.
The thumbwheel for making the time set-
ting is located on the lower section of the
center console.
iThe following message will appear in
the multifunction display for approxi-
mately five seconds:
DISTRONIC OFF
.
The last stored speed is deleted when
you turn off the engine.
Warning!
G
Distronic switches off and releases the
brakes when the vehicle decelerates below
the minimum speed of approximately
25 mph (40 km / h) by operation of the sys-
tem. At that time the driver must apply the
brakes in order to reduce vehicle speed fur-
ther or bring it to a stop.

256 OperationDriving instructionsS 430, S 430 4MATIC, S 500, and
S 500 4MATIC
Your vehicle is factory equipped with
“H”-rated tires, which have a speed rating
of 130 mph (210 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
130 mph (210 km/h).
S600
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 188 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
130 mph (210 km/h).S430, S4304MATIC, S500,
S 500 4MATIC, and S 600 with
Sport Package*
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 188 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
130 mph (210 km/h).
S55AMG
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 188 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
155 mph (250 km/h).
Winter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding,
move selector lever to position N. Try to
keep the vehicle under control by correc-
tive steering action.
iFor information on speed rating for win-
ter tires see “Winter tires”
(page 278).
iFor information on driving with snow
chains see “Snow chains”
(page 279).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of control loss.

321 Practical hints
What to do if …?
ì
FUNCTION
NOT AVAILABLE!
This display appears if button
ì
or
í

on the multifunction steering wheel is
pressed and the vehicle is not equipped
with a telephone.
Ê
TRUNK OPEN!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 271).
CRUISE CONTROL
CRUISE CONTROL
VISIT WORKSHOP!
Cruise control or Distronic* is malfunction-
ing.

Have cruise control or Distronic*
checked by an authorized
Mercedes-Benz Center.
_
ENTRY POSITION
DO NOT DRIVE!
Seat, mirrors and steering wheel have not
yet moved to their preset driving positions.

Wait until the seat, mirrors and steer-
ing wheel have moved to their driving
positions.
The message will disappear.
±
DISPLAY MALFUNCTION
VISIT WORKSHOP!
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems
checked by an authorized
Mercedes-Benz Center.
Display
Possible cause
Suggested solution

382 Technical termsCOMAND
(C
ockpit M
anagement and D
ata Sys-
tem)
Information and operating center for
vehicle sound and communications
systems, including the radio and navi-
gation, as well as for other optional
equipment (CD changer, telephone,
etc.).
Control system
The control system is used to call up
vehicle information and to change
component settings. Information and
messages appear in the multifunction
display. The driver uses the buttons on
the multifunction steering wheel to
navigate through the system and to ad-
just settings.
Cruise control
Driving convenience system for auto-
matically maintaining the vehicle speed
set by the driver.Distronic*
A driving convenience cruise control
system which helps the driver maintain
a pre-selected speed:


If there is no vehicle directly ahead,
the system operates in the same
way as conventional ->cruise con-
trol.


If a slower moving vehicle is ahead,
Distronic will reduce your vehicle
speed to the extent permitted by re-
duced throttle and up to 20% brak-
ing power to maintain the preset
minimum following distance.
Engine number
The number set by the manufacturer
and stamped on the cylinder block to
uniquely identify each engine pro-
duced.Engine oil viscosity
Measurement for the inner friction (vis-
cosity) of the oil at different tempera-
tures. The higher the temperature an
oil can tolerate without becoming thin,
or the lower the temperature it can tol-
erate without becoming viscous, the
better the viscosity.
ESP
(E
lectronic S
tability P
rogram)
Improves vehicle handling and direc-
tional stability.
ETD
(E
mergency T
ensioning D
evice)
Device which deploys in certain frontal
and rear collisions exceeding the sys-
tem's threshold to tighten the seat
belts.
->SRS

391 Index
Closing
Cup holder 230
Glove box 224
Hood 264
Side windows 189
Side windows with KEYLESS-GO* 93
Sliding/pop-up roof 192, 330
Sliding/pop-up roof with KEY-
LESS-GO* 93, 190, 194
Sliding/pop-up roof with SmartKey
194
Trunk 97
Windows 188
Windows with KEYLESS-GO* 190, 194
Windows with SmartKey 190
Closing from the inside
Trunk 99
Closing sliding/pop-up roof
In an emergency 330
Cockpit 20, 381
Cockpit management and data system
(COMAND*) 382
COMAND* 382
COMAND* see separate operating instruc-
tionsCombination switch 123
High beam flasher 46, 123
Turn signals 46
Windshield wipers 47
Comfortable driving
Transmission program mode 164
Consumer information 378
Control and operation of radio transmitters
258
Control system 130, 382
AUDIO menu 135
Convenience submenu 155
Display digital speedometer 135
Distronic* menu 142
Functions 131, 134
Instrument cluster submenu 149
Lighting submenu 150
Malfunction memory menu 145
Menus 133, 134, 383
Multifunction display 130
Multifunction steering wheel 131
NAVI menu 142
Selecting radio system 136
Settings menu 146
Standard display menu 135
Submenus 132, 134TEL* menu 139
Trip computer menu 143
Vehicle submenu 154
Convenience submenu 155
Activating easy-entry/exit feature 156
Adjusting drive-dynamic seats 159
Setting key dependency 156
Setting parking position for exterior
rear view mirror 158
Coolant 268
Adding 269
Checking level 268
Messages in display 304, 305
Temperature 260
Temperature gauge 128
Warning lamp 305
Coolant level
Checking 268
Courtesy lighting 126
Cruise control 196, 382
Canceling 197
Driving downhill 197
Driving uphill 197
Fine adjustment 198
Lever 203
Setting current speed 197

392 Index
Setting to last stored speeds 198
Cruise control lever 196
Cup holder
Cleaning 287
Closing 230
In front seat armrest 229
In rear seat armrest 230
Opening 230
Customer Assistance Center (CAC) 381
D
Daytime running lamp mode 122
Setting 151
Deactivating
Air conditioner (cooling) 184
Air recirculation mode 181
Alarm 83
Anti-theft alarm system 83
Automatic climate control 183
Central locking (control system) 155
Charcoal filter 182
Cruise control 197
Defrost 180
Distance warning function* 208
Distronic* 206
Engine with the SmartKey 52
ESP 80Exterior lamps 121
Hazard warning flasher 124
Headlamps 51
Immobilizer 82
Interior lighting delayed shut-off 153
Rear window defroster 183
Residual heat 185
Seat heater 111, 112
Seat ventilation* 110
Tow-away alarm 84
Deactivating steering wheel gearshift con-
trol 167
Deceleration
With Distronic* 202
Deep water see Standing water 257
Defrosting 180
Delayed shut-off
Interior lighting 153
Dialing
A number (telephone) 140
Difficulties
While driving see Problems while driv-
ing 48
Digital clock
Setting 23
Digital speedometer 135Direction of rotation (tires) 273
Discharged battery
Jump starting 347
Disconnecting
Vehicle battery 345
Displays
Digital speedometer 135
Distronic* 201
Messages 265, 296
Service indicator 280
Showing malfunctions 145
Distance
Decreasing in Distronic* 207
Increasing in Distronic* 207
Setting in Distronic* 206
Warning function 207
Distance to empty (range)
Calling up 143
Distance warning function* 207
Activating 208
Deactivating 208
DTR* warning lamp 207
Intermittent warning sound 207
Symbol in multifunction display 142
