Contents
Tow-away alarm,
glass breakage sensor.................... 79
Controls in detail............................... 83
Locking and unlocking ......................... 84
Remote control with folding key ..... 84
Opening the doors
from the inside ............................... 86
Opening the liftgate........................ 87
Closing the liftgate ......................... 88
Automatic central locking .............. 89
Locking and unlocking
from the inside ............................... 90
Seats.................................................... 91
Seat heater*................................... 91
Removing and installing
head restraints ............................... 92
Rear seats ...................................... 93
Third row seats* ............................. 96
Memory function*................................ 99
Storing positions in memory ........ 100
Recalling positions from memory . 100
Exterior rear view mirror parking
position (passenger side) ............. 100Lighting.............................................. 102
Combination switch ..................... 102
Fog lamps .................................... 105
Hazard warning flasher ................ 106
Interior lighting............................. 107
Instrument cluster ............................. 110
Instrument cluster illumination .... 110
Coolant temperature gauge ......... 111
Display in the speedometer ......... 111
Resetting trip odometer ............... 112
Tachometer .................................. 112
Outside temperature indicator ..... 112
Setting the clock .......................... 112
Automatic transmission ..................... 113
One-touch gearshifting................. 113
Gear ranges.................................. 114
Gear selector lever position ......... 115
Accelerator position ..................... 117
Towing a trailer ............................ 117
Emergency operation (Limp Home
Mode)........................................... 117
Transmission control –
LOW RANGE mode............................. 118
Switching on LOW RANGE mode .. 118
Switching off LOW RANGE mode . 118Good visibility .................................... 119
Rear view mirror .......................... 119
Headlamp cleaning system* ........ 121
Windshield wipers ........................ 122
Rear window wiper....................... 123
Sun visor ...................................... 123
Automatic climate control ................. 124
Automatic mode .......................... 126
Adjusting air volume and air
distribution manually ................... 127
Defrosting .................................... 128
Air recirculation mode.................. 128
Air conditioning ............................ 129
Residual heat and ventilation ....... 130
Rear window defroster ................. 131
Rear passenger compartment
ventilation and rear automatic
climate control ............................. 131
Front and rear air outlets ............. 132
Power windows.................................. 134
Opening and closing the side
windows ....................................... 134
Rear quarter windows* ................ 136
Sliding/pop-up roof* ......................... 137
Opening and closing the
sliding/pop-up roof ...................... 137

26 At a glanceInstrument cluster
Item
Page
5
Photo sensor
(adjusts the brightness of
the digital displays located
in 1, 4 and 8)
6
Right indicator lamps
with:W
Low wind-
shield/headlamp
washer system fluid
level warning lamp
234
7
Front passenger air-
bag switched off
232
‡
Front fog lamp
switched on
105
Item
Page
_
Steering wheel ad-
justment not locked
229
<
Seat belt nonusage
warning lamp
234
1
Supplemental Re-
straint System
(SRS) indicator
227
É
Brake warning lamp
228
229
#
Charge indicator
lamp
233
A
High beam head-
lamp switched on
47
Item
Page
7
Knob for setting clock
112
8
Tachometer with:
Selector lever
position
114
Clock
112
9
K
Turn signal
indicator lamp right
10
L
Turn signal
indicator lamp left

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Front left interior lighting
107
2
Signal transmitter keys for
garage door opener
168
3
Front right interior lighting
107
4
Roadside Assistance
button
163
Information button
165
5
Interior lighting control
107
6
Trip computer* display
172
7
Rear view mirror
119
Item
Page
8
Right reading lamp on/off
108
9
Automatic antiglare func-
tion* on/off
119
10
Left reading lamp on/off
108
11
Glass breakage sensor
79
12
Trip computer* control
172
Tow-away alarm switch
80
13
Tele Aid (emergency call
system) button
163
14
Sliding/pop-up roof*
switch
137

79 Safety and Security
Anti-theft systems
Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol. The turn signal lamps blink once to in-
dicate that the alarm system is
deactivated.
Canceling the alarm
To cancel the alarm:
Switch on the ignition by turning the
key in the steering lock to position2.
or

Press the
Œ
or
‹
button on the
remote control.
The alarm is cancelled.Tow-away alarm, glass breakage
sensor
The tow-away alarm and the glass break-
age sensor are part of the anti-theft alarm
system.
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone:

attempts to raise the vehicle


breaks a window and reaches into the
passenger compartment
iIf the turn signal lamps do not blink
three times, the tow-away - glass-
breackage sensor is malfunctioning or
one of the following elements may not
be properly closed:

a door


the liftgate


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally again after approximately 40 sec-
onds if one of the doors or the liftgate
is not opened.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 159) provided Tele Aid
service was subscribed to and properly
activated.

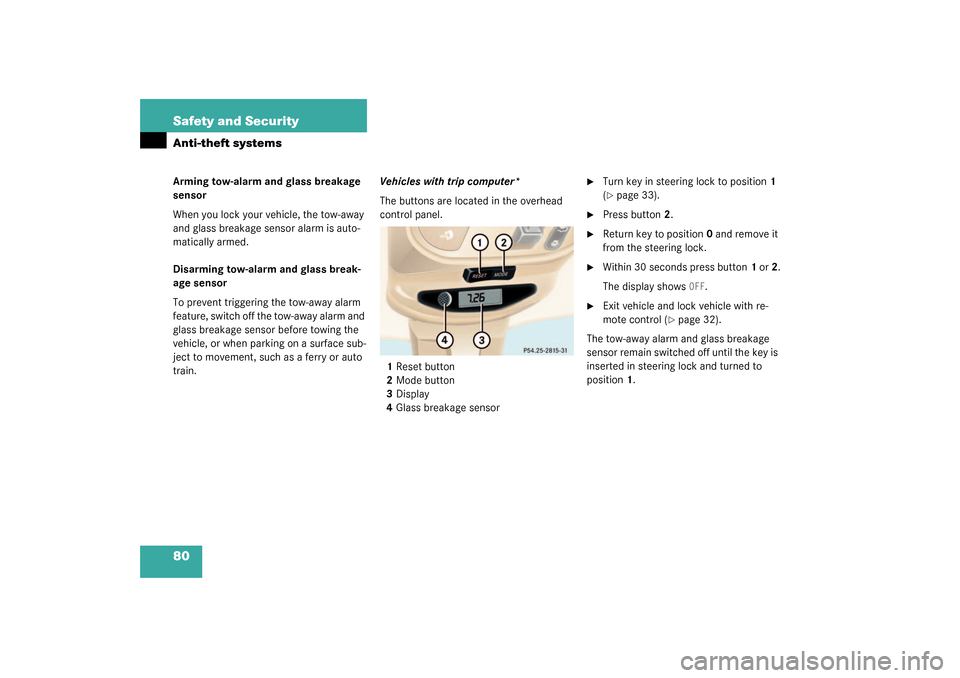

80 Safety and SecurityAnti-theft systemsArming tow-alarm and glass breakage
sensor
When you lock your vehicle, the tow-away
and glass breakage sensor alarm is auto-
matically armed.
Disarming tow-alarm and glass break-
age sensor
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm and
glass breakage sensor before towing the
vehicle, or when parking on a surface sub-
ject to movement, such as a ferry or auto
train.Vehicles with trip computer*
The buttons are located in the overhead
control panel.
1Reset button
2Mode button
3Display
4Glass breakage sensor

Turn key in steering lock to position1
(page 33).

Press button2.

Return key to position0 and remove it
from the steering lock.

Within 30 seconds press button1 or 2.
The display shows
OFF
.

Exit vehicle and lock vehicle with re-
mote control (
page 32).
The tow-away alarm and glass breakage
sensor remain switched off until the key is
inserted in steering lock and turned to
position1.

81 Safety and Security
Anti-theft systems
Vehicles without trip computer
The buttons are located in the overhead
control panel.
1Switching off tow-away alarm and glass
breakage sensor

Turn key in steering lock to position1
(page 33).

Press the button2.

Return key to position0 and remove it
from the steering lock.

Within 30 seconds press button1 on
the right or left side.

Exit vehicle and lock vehicle with re-
mote control (
page 32).
The tow-away alarm and glass breakage
sensor remain switched off until the key is
inserted in steering lock and turned to
position1.

119 Controls in detail
Good visibility
Good visibility
Information on the windshield wipers
(page 47) and for adjusting the rear view
mirrors (
page 38) is found in the “Get-
ting started” section.
Rear view mirror
Manually dimming inside rear view mir-
ror
1Lever
Press lever1 backward.
The interior rear view mirror is dimmed.Automatic antiglare rear view mirror*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the inside rear view mirror will respond au-
tomatically to glare when:


the automatic antiglare function is acti-
vated (
page 120)


the ignition is switched on


incoming light from headlamps falls on
the sensor in the inside rear view mir-
ror
The rear view mirror will not react if


reverse gear is engaged


the interior light is turned on
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the inside rear view mirror.
The inside rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the cargo area is fully
loaded.
Glare can endanger you and others.Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.

122 Controls in detailGood visibilityWindshield wipers
Information on the windshield wipers
(page 47) is found in the “Getting start-
ed” section. Intermittent wiping
Windshield wipers without rain sensor
At speeds of approximately 105 mph
(170 km/h) the wiper switches automati-
cally to continuous wiping. Always obey lo-
cal speed limits.
Windshield wipers with rain sensor*
The rain sensor controls the windshield
wipers automatically according to the
amount of water on the windshield.

Switch ignition on.

Set the wiper switch to position1
(page 47).
One initial wipe, pauses between wipes
are automatically controlled by the rain
sensor monitoring wetness of wind-
shield.
!If leaves, snow, etc. block the wind-
shield wipers, the wiper motor turns
off.

For safety reasons, withdraw key
from steering lock. Remove block-
age.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch position1,


set the wiper switch to the next
highest wiper speed.


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center.
iIntermittent wiping is interrupted when
the vehicle is at standstill and a front
door is opened.
!To prevent damage of the windshield
wipers, do not leave the wiper switch in
intermittent setting, when the vehicle
is taken to an automatic car wash or
when cleaning the windshield.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass when wiping occurs on a dry
windshield!iWhen intermittent wiping is on and the
key is turned from position1 to
position2 in the steering lock
(page 33), and kept in that position
for longer than 2 seconds, the wipe in-
terval will be set to approximately
5seconds.
