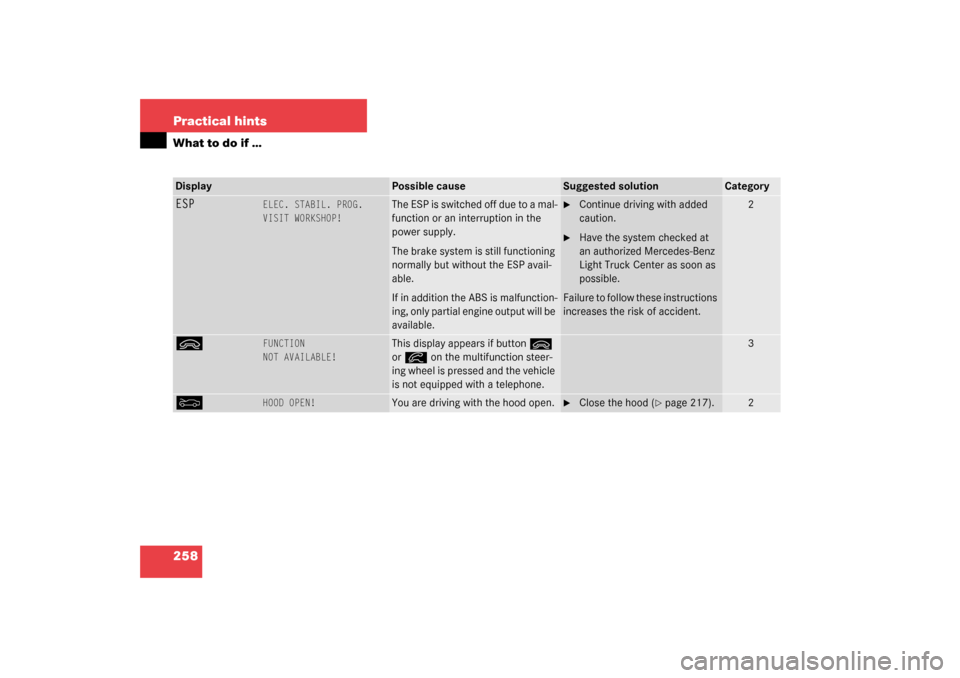

258 Practical hintsWhat to do if …ESP
ELEC. STABIL. PROG.
VISIT WORKSHOP!
The ESP is switched off due to a mal-
function or an interruption in the
power supply.
The brake system is still functioning
normally but without the ESP avail-
able.
If in addition the ABS is malfunction-
ing, only partial engine output will be
available.

Continue driving with added
caution.

Have the system checked at
an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
Failure to follow these instructions
increases the risk of accident.
2
ì
FUNCTION
NOT AVAILABLE!
This display appears if button
ì

or
í
on the multifunction steer-
ing wheel is pressed and the vehicle
is not equipped with a telephone.
3
Y
HOOD OPEN!
You are driving with the hood open.

Close the hood (
page 217).
2
Display
Possible cause
Suggested solution
Category

261 Practical hints
What to do if …
.
LAMP SENSOR
VISIT WORKSHOP!
The lamp sensor is malfunctioning.
The headlamps switch on automati-
cally.

In the control system, set lamp
operation to manual
(page 124).

Switch on headlamps using
the exterior lamp switch
(page 100).
2
LEFT FRT. PARK LAMP
CHECK LAMP!

SUBSTITUTE LAMP ON!

The left parking lamps are malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as
possible.
2
LICENSE PLATE, L
CHECK LAMP!

The left licence plate lamp is mal-
functioning.

Replace the bulb as soon as
possible.
2
LICENSE PLATE, R
CHECK LAMP!

The right licence plate lamp is mal-
functioning.

Replace the bulb as soon as
possible.
2
LIGHTS
SWITCH OFF LAMPS!
The display appears if the driver’s
door is opened with the engine shut
off and no key in the starter switch.

Insert key in the starter switch.

Switch off lights (
page 100).
1
LOW BEAM, L
CHECK LAMP!
The left low beam lamp is malfunc-
tioning.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
2
LOW BEAM, R
CHECK LAMP!
The right low beam lamp is malfunc-
tioning.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
2
Display
Possible cause
Suggested solution
Category

266 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
Category
§
TC SHIFT
CANCELLED
The shift process in the transfer
case was cancelled because of a
malfunction.

Repeat the shift process
(page 141).
2
§
TC SHIFT CONDITIONS
NOT FULFILLED
You have not met the shift condi-
tions for a selection process in the
transfer case.

Repeat the shift process
(page 141).
2
§
TRANSFER CASE
VISIT WORKSHOP!
The transfer case is malfunctioning.

Do not switch the transfer
case on.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
2
L
TELE AID
VISIT WORKSHOP!
One or more main functions of the
Tele Aid system are malfunctioning.

Have the Tele Aid system
checked by an authorized Mer-
cedes-Benz Light Truck Cen-
ter.
1
Ê
TRUNK OPEN!
This message will appear whenever
the tailgate is open.

Close the tailgate.
2
#
UNDERVOLTAGE
ENGINE ON!
The battery has insufficient voltage.

Start the engine.
1
UNDERVOLTAGE
SWITCH CONSUMER OFF!
The battery has insufficient voltage.

Have the battery checked at a
service station.
1

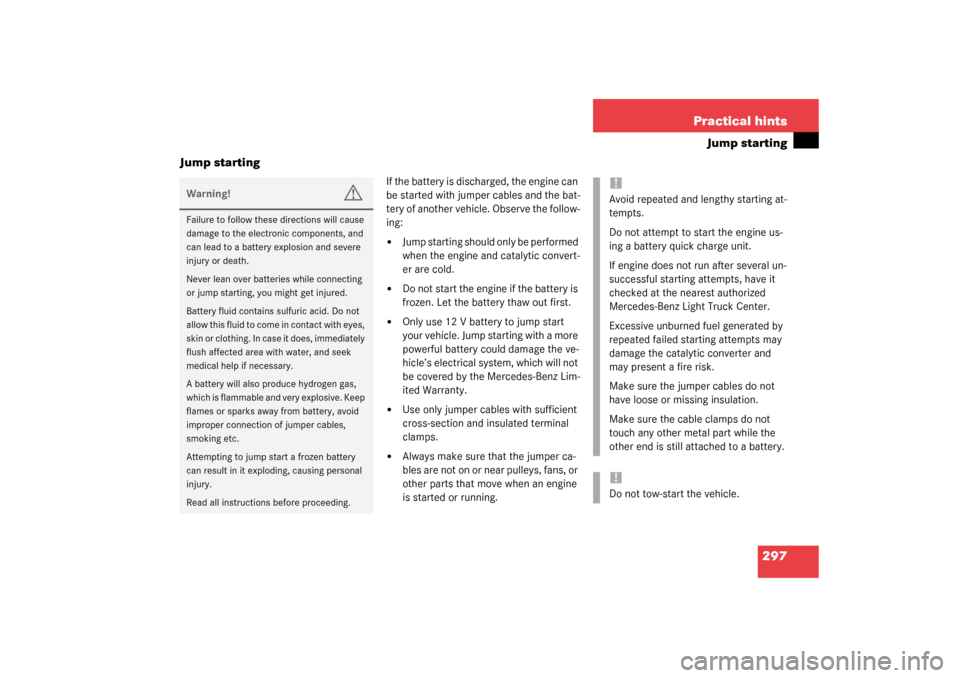

297 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only use 12 V battery to jump start
your vehicle. Jump starting with a more
powerful battery could damage the ve-
hicle’s electrical system, which will not
be covered by the Mercedes-Benz Lim-
ited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans, or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If engine does not run after several un-
successful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Light Truck Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.!Do not tow-start the vehicle.

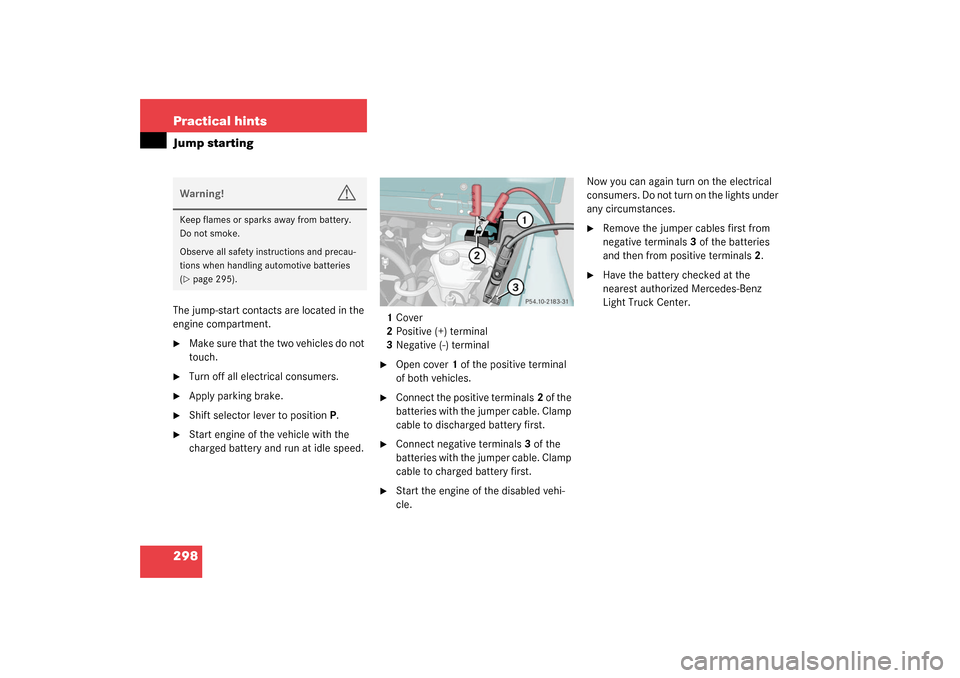

298 Practical hintsJump startingThe jump-start contacts are located in the
engine compartment.
Make sure that the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift selector lever to positionP.

Start engine of the vehicle with the
charged battery and run at idle speed.1Cover
2Positive (+) terminal
3Negative (-) terminal

Open cover1 of the positive terminal
of both vehicles.

Connect the positive terminals2 of the
batteries with the jumper cable. Clamp
cable to discharged battery first.

Connect negative terminals3 of the
batteries with the jumper cable. Clamp
cable to charged battery first.

Start the engine of the disabled vehi-
cle.Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals3 of the batteries
and then from positive terminals2.

Have the battery checked at the
nearest authorized Mercedes-Benz
Light Truck Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 295).

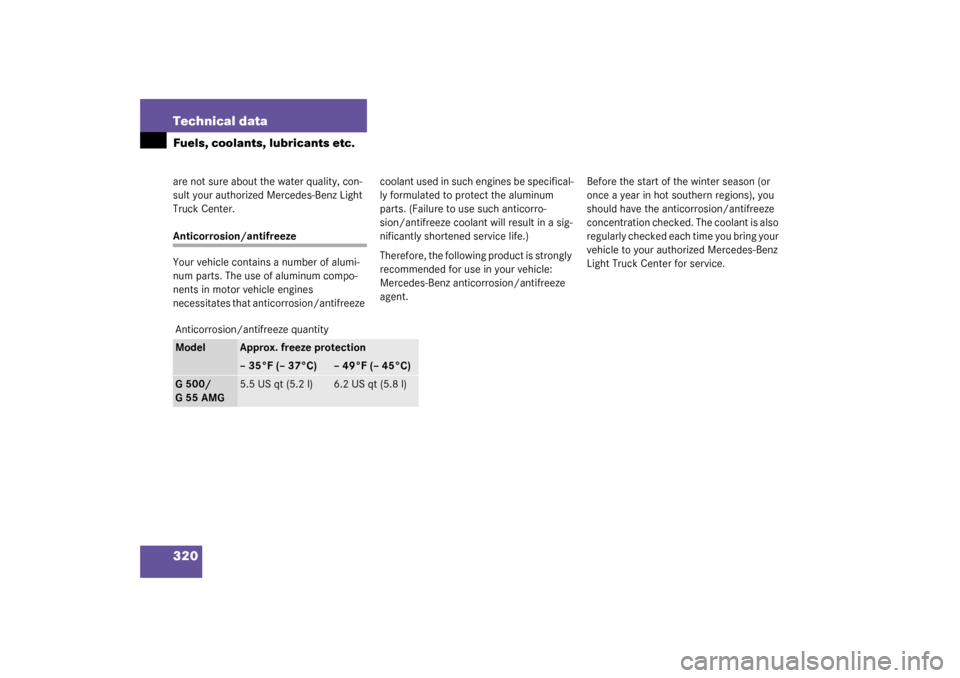

320 Technical dataFuels, coolants, lubricants etc.are not sure about the water quality, con-
sult your authorized Mercedes-Benz Light
Truck Center.Anticorrosion/antifreeze
Your vehicle contains a number of alumi-
num parts. The use of aluminum compo-
nents in motor vehicle engines
necessitates that anticorrosion/antifreeze coolant used in such engines be specifical-
ly formulated to protect the aluminum
parts. (Failure to use such anticorro-
sion/antifreeze coolant will result in a sig-
nificantly shortened service life.)
Therefore, the following product is strongly
recommended for use in your vehicle:
Mercedes-Benz anticorrosion/antifreeze
agent.Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to your authorized Mercedes-Benz
Light Truck Center for service.
Anticorrosion/antifreeze quantityModel
Approx. freeze protection– 35°F (– 37°C)
– 49°F (– 45°C)
G500/
G55AMG
5.5 US qt (5.2 l)
6.2 US qt (5.8 l)

334 IndexCHECK ENGINE malfunction indicator
lamp 243
Checking
Coolant level 215, 220
Oil level 215, 217, 218
Checklist
Off-road driving 205
Child safety 63
Infant and child restraint systems 54,
60, 63
LATCH child seat mounts 68
Child safety switch see Blocking of rear
door window operation 69
Cigarette lighter 181
Cleaning
Cup holder 235
Gear selector lever 235
Hard plastic trim items 236
Headlamps 148
Headliner 236
Illuminated door sill panels 236
Instrument cluster 235
Leather upholstery 236
Light alloy wheels 235
MB Tex upholstery 236
Plastic and rubber parts 236Rear Park Assist sensors* 234
Seat belts 236
Steering wheel 235
Windows 235
Windshield 47
Wiper blades 235
Climate control 150
Adjusting 153
Defogging windshield 153
Defrosting 154
Rear window defroster 155
Setting the temperature 152
Clock 25
Closing
Glove box 176
Hood 217
Side windows 158
Sliding/pop-up roof 160, 276
Sliding/pop-up roof
with SmartKey 161
Tailgate 88
Windows 158
Windows with SmartKey 159
Closing sliding/pop-up roof
In an emergency 276
Cockpit 22, 325Cockpit management and data system
(COMAND) 325
COMAND 325
COMAND see separate operating
instructions
Combination switch 23, 103
High beam flasher 46, 103
Turn signals 46
Windshield wipers 47
Consumer information 322
Control and operation of
radio transmitters 210
Control system 111, 325
AUDIO menu 116
Convenience submenu 128
Display digital speedometer 116
Functions 112, 115
Instrument cluster submenu 122
Lighting submenu 124
Malfunction memory menu 118
Menus 114, 115, 327
Multifunction display 111
Multifunction steering wheel 112
NAVI menu 118
Selecting radio system 117
Settings menu 119

340 IndexInterior storage spaces 176
Cup holder 178
Cup holders 178, 179
Glove box 176
Parcel net in front passenger
footwell 179
Storage compartment below
armrest 177
Storage compartment in front of
armrest 177
Interval wiping 48
Switching off 48
Switching on 48
J
Jack 268, 269
Jump starting 297
K
Key dependency memory
Settings 129
Key positions in starter switch 33
Key, mechanical 272
Key, SmartKey
Battery check lamp 85
Changing the batteries 273
Checking the batteries 86Factory setting 85
Global locking 85
Global unlocking 85
Loss of 86
Positions in starter switch 33
Remote controls 84
Restoring to factory setting 85
Selective setting 85
Starting the engine 44
Unlocking with 32
Keys 84
Kickdown 139, 326
Kilometers/miles in speedometer 122
Km/h or mph in speedometer 122
L
Labels, identification 310
Lamp bulbs, exterior 279
Lamps, exterior
Front 279
Light sensor 261
Messages in display 259, 261
Rear 280
Replacing bulbs for rear 286
Lamps, indicator and warning
ABS 240
Battery (SmartKey) 85Brakes 241, 242
CHECK ENGINE 243
Engine diagnostics 243
ESP 238, 239
Fuel reserve 243, 244
Instrument cluster 243, 244
Seat belts 243
Service indicator 230
SRS 55
Turn signals 25
Language
Multifunction display 123
Setting 123
LATCH child seat anchors 68
LATCH child seat mounts 68
Layout of poly-V-belt drive 311
Leather upholstery
Cleaning 236
License plate lamps
Messages in display 261
Replacing bulbs 280, 288
Light alloy wheels
Cleaning 235
Technical data 313
Light sensor 261
Lighter see Cigarette lighter 181
