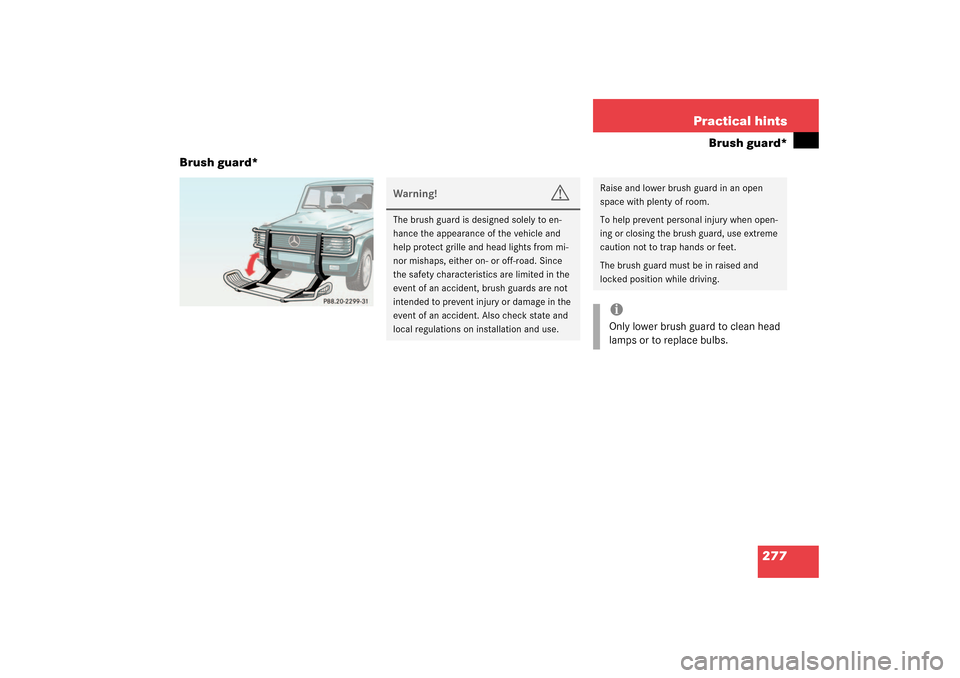

Brush guard*
Brush guard*
Warning!
G
The brush guard is designed solely to en-
hance the appearance of the vehicle and
help protect grille and head lights from mi-
nor mishaps, either on- or off-road. Since
the safety characteristics are limited in the
event of an accident, brush guards are not
intended to prevent injury or damage in the
event of an accident. Also check state and
local regulations on installation and use.
Raise and lower brush guard in an open
space with plenty of room.
To help prevent personal injury when open-
ing or closing the brush guard, use extreme
caution not to trap hands or feet.
The brush guard must be in raised and
locked position while driving.iOnly lower brush guard to clean head
lamps or to replace bulbs.

279 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Light Truck Center
for headlamp adjustment.
Bulbs Front lamps
iBackup bulbs will be brought into use
when the following lamps malfunction:

Parking lamps


Turn signal lamps


Tail lamps
Lamp
Type
1
Additional turn sig-
nal lamp
LED
2
S i d e t u r n s i g na l l a m p
WY 5 W
3
Turn signal lamp
1156 NA
4
High and low beam
H4 60 (55 W)
Parking and stand-
ing lamps
T 4 W
5
Side marker lamp
T 4 W
6
Fog lamp
H3 (55 W)

280 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.


Have the LEDs for the following lamps
replaced by an authorized Mer-
cedes-Benz Light Truck Center.

The additional turn signals in the ex-
terior rear view mirrors


The high mounted brake lamp
Lamp
Type
7
High mounted brake
lamp
LED
8
Turn signal lamp
PY 21 W
Brake lamp
P 21 W
Tail, parking and
standing lamps
R 5 W
9
Backup lamp
P 21 W
10
License plate lamps
C 5 W
11
Side marker lamp
T 4 W
12
Rear fog lamp
P 21 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
iHave the headlamp settings checked
regularly by a Mercedes-Benz Light
Truck Center.
Do not turn the headlamp adjusting
screws. If the adjusting screws are
turned, the headlamp setting must be
checked by a Mercedes-Benz Light
Truck Center.

281 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Headlamp assembly (halogen)Removing
Left headlamp, right headlamp laterally re-
versed1Securing screw (trim panel)
2Head lamp trim panel
3Headlamp
Switch off the lights.

Unscrew securing screws1.

Remove head lamp trim panel2 and
seal.4Securing screw (headlamp)

Unscrew headlamp-securing screws4.

Remove headlamp3.
Installing

Insert headlamp3 and screw in head-
lamp-securing screws4.

Install head lamp trim panel2 and seal
and screw in securing screws1.
iFor vehicles with brush guard*:
Fold the brush guard* down before re-
placing bulbs (
page 277).
G55AMG:
Remove the protective grille before re-
placing the bulbs.

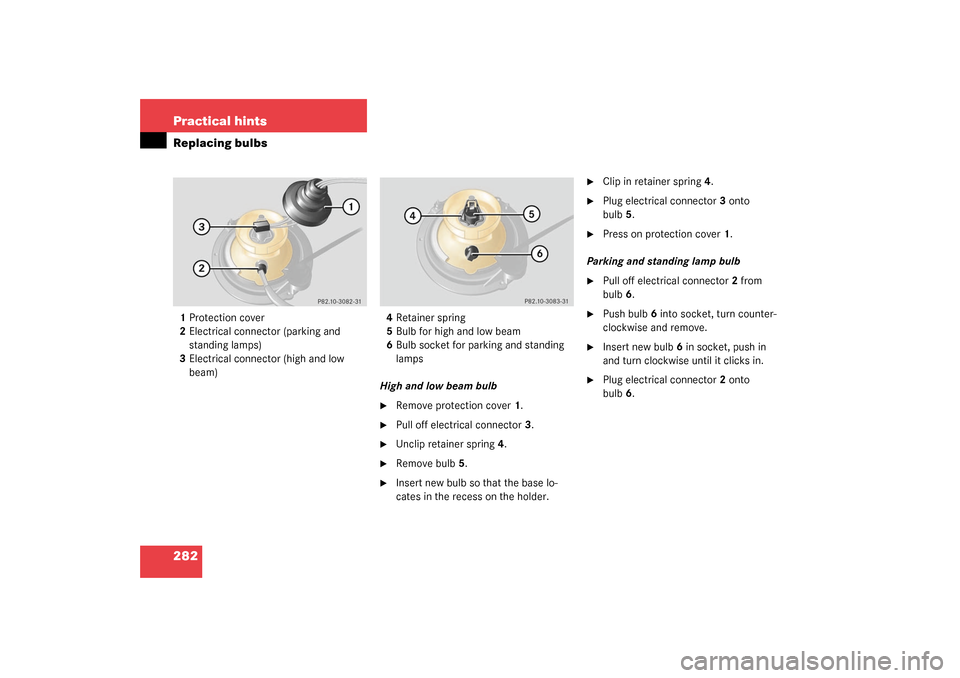

282 Practical hintsReplacing bulbs1Protection cover
2Electrical connector (parking and
standing lamps)
3Electrical connector (high and low
beam)4Retainer spring
5Bulb for high and low beam
6Bulb socket for parking and standing
lamps
High and low beam bulb

Remove protection cover1.

Pull off electrical connector3.

Unclip retainer spring4.

Remove bulb5.

Insert new bulb so that the base lo-
cates in the recess on the holder.

Clip in retainer spring4.

Plug electrical connector3 onto
bulb5.

Press on protection cover1.
Parking and standing lamp bulb

Pull off electrical connector2 from
bulb6.

Push bulb6 into socket, turn counter-
clockwise and remove.

Insert new bulb6 in socket, push in
and turn clockwise until it clicks in.

Plug electrical connector2 onto
bulb6.

283 Practical hints
Replacing bulbs
Front fog lamp
RemovingRight front fog lamp, left front fog lamp lat-
erally reversed1Securing screw (trim panel)
2Fog lamp trim panel
3Fog lamp
Switch off the lights.

Unscrew securing screws1.

Remove fog lamp trim panel2 and
seal.4Securing screw (fog lamp)
5Adjusting screws (fog lamp)

Unscrew fog lamp-securing screws4.

Remove fog lamp3.
Installing

Insert fog lamp3 and screw in fog
lamp-securing screws4.

Reinstall fog lamp trim panel2 and
screw in securing screws1.Fog lamp bulb
6Electrical connector
7Retainer spring
8Bulb socket

Pull off electrical connector6.

Unclip retainer spring7.

Pull out bulb socket8.

Insert the new bulb so that the base lo-
cates in the recess on the holder.

Clip in retainer spring7.

Plug electrical connector6 together.

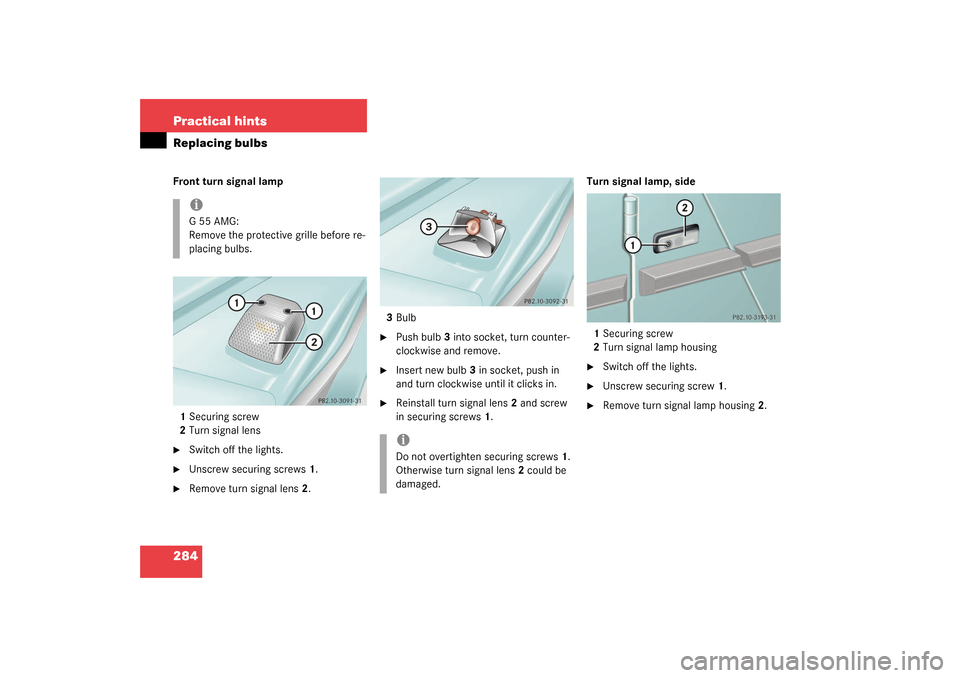

284 Practical hintsReplacing bulbsFront turn signal lamp
1Securing screw
2Turn signal lens
Switch off the lights.

Unscrew securing screws1.

Remove turn signal lens2.3Bulb

Push bulb3 into socket, turn counter-
clockwise and remove.

Insert new bulb3 in socket, push in
and turn clockwise until it clicks in.

Reinstall turn signal lens2 and screw
in securing screws1.Turn signal lamp, side
1Securing screw
2Turn signal lamp housing

Switch off the lights.

Unscrew securing screw1.

Remove turn signal lamp housing2.
iG55AMG:
Remove the protective grille before re-
placing bulbs.
iDo not overtighten securing screws1.
Otherwise turn signal lens2 could be
damaged.

285 Practical hints
Replacing bulbs
3Bulb socket
Pull out bulb socket3 from lamp
housing2.

Pull bulb out of bulb socket3.

Insert new bulb in bulb socket3.

Insert bulb socket3 in lamp housing2.

Reinstall lamp housing2 and screw in

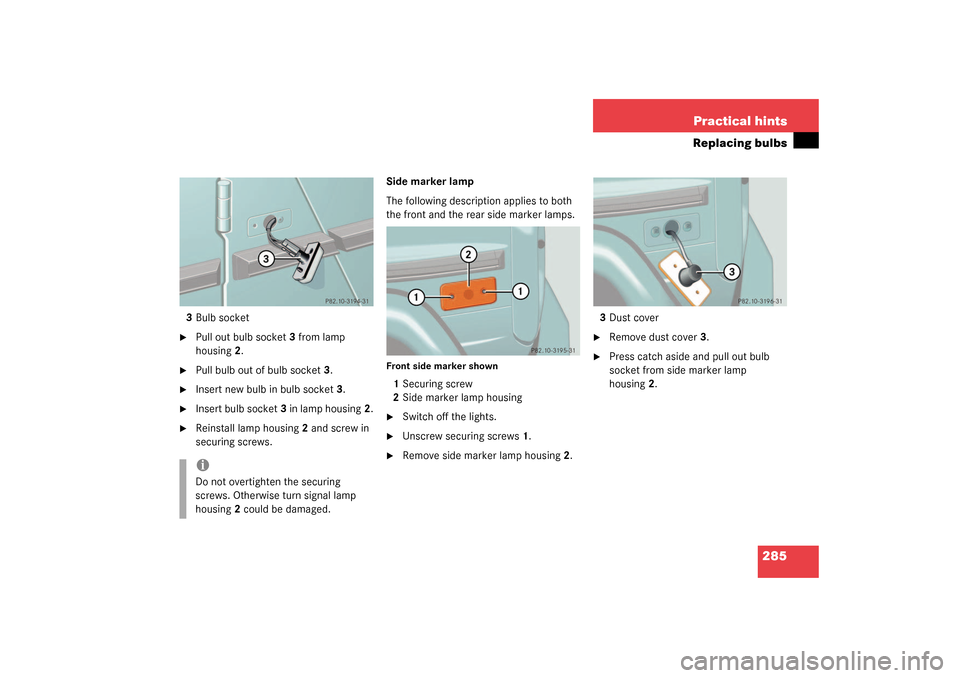

securing screws.Side marker lamp
The following description applies to both
the front and the rear side marker lamps.
Front side marker shown1Securing screw
2Side marker lamp housing
Switch off the lights.

Unscrew securing screws1.

Remove side marker lamp housing2.3Dust cover

Remove dust cover3.

Press catch aside and pull out bulb
socket from side marker lamp
housing2.
iDo not overtighten the securing
screws. Otherwise turn signal lamp
housing2 could be damaged.
