219 Operation
Engine compartment
If you see the messageOBSERVE WAITING PERIOD
If engine is at normal operating temper-
ature, wait five minutes before repeat-
ing check procedure.

If the engine is not yet at normal oper-
ating temperature, wait 30 minutes be-
fore repeating check procedure.
If you see the message:
ENGINE OIL LEVEL – NOT WHEN ENGINE ON
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.
More information on engine oil can be
found in the “Technical data” section
(
page 316).With the dipstick
1Oil dipstick
2Oil filler cap

Remove oil dipstick1.

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 in tube, and
remove after three seconds to obtain
accurate reading.
Oil dipstick
The oil level is correct when it is be-
tween the lower (min) and upper (max)
mark of the dipstick.

Add engine oil if necessary.iFill quantity between upper and lower
dipstick marking, the level is approxi-
mately 2.1 US qt (2.0 l).

220 OperationEngine compartmentAdding engine oil
Unscrew cap2 from the filler neck.

Add oil. Be careful not to overfill with
oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
coming into contact with the ground or wa-
ter.

Screw cap2 back on the filler neck.
Transmission fluid level
The transmission fluid level does not need
to be checked. The transmission has a per-
manent supply of automatic transmission
fluid.
If you notice transmission fluid loss or gear
shifting malfunctions, have an authorized
Mercedes-Benz Light Truck Center check
the automatic transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level

the vehicle must be parked on level
ground


the engine must be cool. The coolant
level should reach the COLD LEVEL
mark in the reservoir.
!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
The oil dipstick1 tube allows for drain-
ing of oil by using a suction device.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display in-
dicates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1⁄2turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

221 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Cap

Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.

Check coolant level.
The coolant level is correct if the level

for cold coolant: is level with the
mark on the reservoir


for warm coolant: is approx. 0.6 in
(1.5 cm) higher

Add coolant as required.

Replace and tighten cap until you hear
it click a few times. If coolant has to be added, a 50 / 50 mix-
ture of water and
MB Anticorrosion /Antifreeze should be
added.
More information on coolant can be found
in the “Technical data” section
(
page 316).

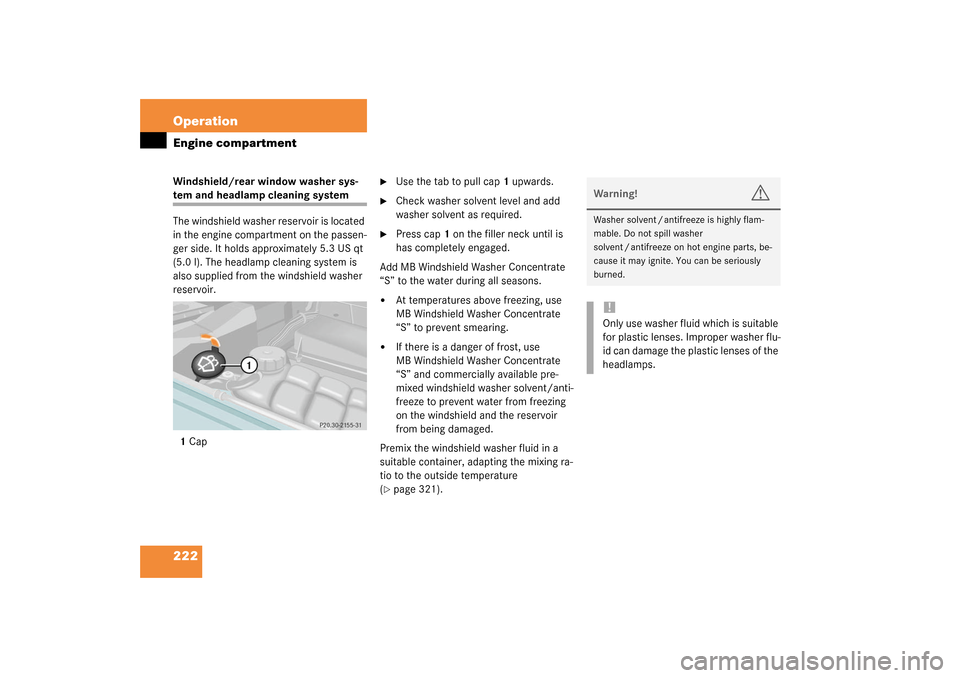

222 OperationEngine compartmentWindshield/rear window washer sys-tem and headlamp cleaning system
The windshield washer reservoir is located
in the engine compartment on the passen-
ger side. It holds approximately 5.3 US qt
(5.0 l). The headlamp cleaning system is
also supplied from the windshield washer
reservoir.
1Cap

Use the tab to pull cap1 upwards.

Check washer solvent level and add
washer solvent as required.

Press cap1 on the filler neck until is
has completely engaged.
Add MB Windshield Washer Concentrate
“S” to the water during all seasons.


At temperatures above freezing, use
MB Windshield Washer Concentrate
“S” to prevent smearing.


If there is a danger of frost, use
MB Windshield Washer Concentrate
“S” and commercially available pre-
mixed windshield washer solvent/anti-
freeze to prevent water from freezing
on the windshield and the reservoir
from being damaged.
Premix the windshield washer fluid in a
suitable container, adapting the mixing ra-
tio to the outside temperature
(
page 321).
Warning!
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent / antifreeze on hot engine parts, be-
cause it may ignite. You can be seriously
burned.!Only use washer fluid which is suitable
for plastic lenses. Improper washer flu-
id can damage the plastic lenses of the
headlamps.

223 Operation
Battery
Battery
The battery is located in front of the rear
seat bench and below the cup holder. Jump
starting terminals are located in the left
side of the engine compartment
(page 298).
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life.
If you use your vehicle less than approxi-
mately 200 miles (300 km) per month,
mostly for short distance trips, or if it is not
used for long periods of time, you will need
to have the battery charge checked more
frequently and corrected if necessary.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Light Truck
Center about steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
More information on battery can be found
in the “Practical hints” section
(
page 295).
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.
iIf the battery is discharged

you will no longer be able to turn
the key in the starter switch


the selector lever will remain
locked in positionP

228 OperationWinter driving
Winter drivingBefore the onset of winter, have your vehi-
cle winterized at an authorized
Mercedes-Benz Light Truck Center. This
service includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent/antifreeze which is formulated
for below freezing temperatures
(page 321).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to ensure
that the engine can be started even at
low ambient temperatures.


Tire change. We recommend M+S rat-
ed radial-ply tires on all four wheels for
the winter season.
Winter tires
Always use winter tires at temperatures
below 39°F (4°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum ef-
fectiveness of the ABS, ESP, EBB and
4-ETS in winter operation.
For safe handling, ensure that all winter
tires mounted are of the same make and
have the same tread design.
Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your ve-
hicle, you must place a notice to this effect
where it will be seen by the driver. Such no-tices are available from your tire dealer or
from any authorized Mercedes-Benz Light
Truck Center.
Block heater (Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Warning!
G
Winter tires with a tread depth under 0.16 in
(4 mm) must be replaced. They are no long-
er suitable for winter operation.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Light Truck Center.

241 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.

Release the parking brake
(page 44).

Also note the messages in the multi-
function display (
page 246).
The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Light Truck Center.
Do not add brake fluid! This will not
solve the problem.

Also note the messages in the multi-
function display (
page 246).
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on.
Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

242 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)
-
The red brake warning lamp and
the yellow ABS malfunction indi-
cator lamp come on when the
engine is running and you hear a
warning sound for approximately
five seconds.
The EBB has detected a malfunction and has
switched off. You should be prepared for your
vehicle to perform differently than normal
when braking.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.

Also note the messages in the multi-
function display (
page 246).
Failure to follow these instructions in-
creases the risk of accidents.
1
The red SRS indicator lamp lights
up while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident.
This could result in serious or fatal injury, or
it might deploy unexpectedly and unneces-
sarily which could also result in an accident
and/or injury to you or others.
