2003 MERCEDES-BENZ G-Class display

152 NavigationRoute guidanceOnce the route has been calculated, the
symbol display will appear.
If you now are at the maneuver point, you
will also hear a voice output, e.g. “Please
turn right”.During route guidance, you can select the
following 3 screen displays:


Symbol display


Map display


Mix of map and symbol display
(page 157)
Voice output
During the trip, apart from visual informati-
on (symbol or map displays), COMAND
also provides all of the necessary route in-
formation via voice output.
COMAND gives you spoken recommenda-
tions


when route guidance begins


after the route has been calculated


before and during a change in the dri-
ving direction


on reaching the destination or a way
point
Beginning route guidance
Warning
G
Voice output is intended to direct you while
driving without diverting your attention from
the road and driving. Please always use this
feature instead of consulting the symbol or
map display for directions while driving
which may cause you to divert your attenti-
on from driving and increase your risk of ac-
cident.

156 NavigationRoute guidance1Activating map display2Return to symbol display
3Last scale selected
Altering the map scale (
page 158)
4Actual vehicle location
5Name of the street you will turn ontoYou can select one of the two possibilities:

Press the right-hand rotary/push-
button v to confirm 1.
or

Press l.
The map will appear in the scale last se-
lected.
Changing to map display
iCOMAND will remove the menu bar (ex-
cept for 3) after 6 seconds.
Turn the right-hand rotary/push-
button v to recall the menu bar to
the screen.

157 Navigation
Route guidance
If the function Mix is switched on, the sym-
bol display is activated automatically from
the map display before making a maneu-
ver. After you have made the maneuver,
the map will appear again.
Switching the mix function on
Turn the right-hand rotary/push-button
v to highlight “Mix” in the symbol dis-
play and press to confirm.
“Mix” appears in red.
Switching the mix function off

Turn the right-hand rotary/push-button
v to highlight “Mix” in the map or sym-
bol display and press to confirm.
“Mix” appears in black again.Map display before a maneuver, mix func-
tion is switched on
-Before a maneuver off e.g. a U-turn, CO-
MAND will activate the symbol display.
After you have made the U-turn, the map
will appear again.
Mix of map and symbol display

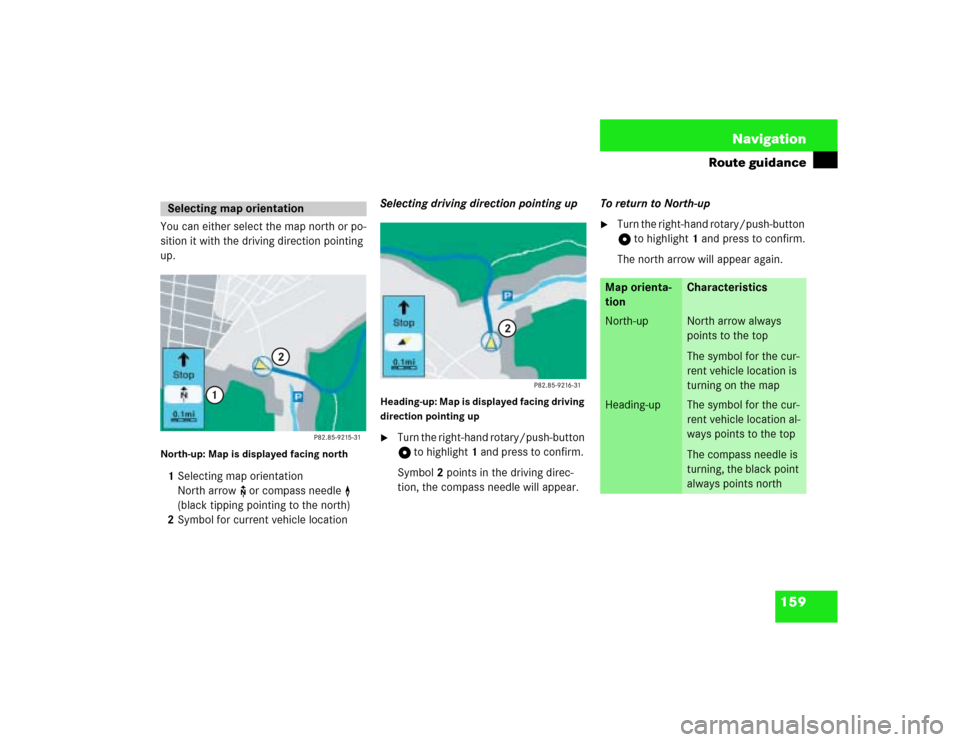

159 Navigation
Route guidance
You can either select the map north or po-
sition it with the driving direction pointing
up.North-up: Map is displayed facing north 1Selecting map orientation
North arrow ! or compass needle <
(black tipping pointing to the north)
2Symbol for current vehicle locationSelecting driving direction pointing up
Heading-up: Map is displayed facing driving
direction pointing up
Turn the right-hand rotary/push-button
v to highlight 1 and press to confirm.
Symbol 2 points in the driving direc-
tion, the compass needle will appear.To return to North-up

Turn the right-hand rotary/push-button
v to highlight 1 and press to confirm.
The north arrow will appear again.
Selecting map orientation
Map orienta-
tion
Characteristics
North-up
North arrow always
points to the top
The symbol for the cur-
rent vehicle location is
turning on the map
Heading-up
The symbol for the cur-
rent vehicle location al-
ways points to the top
The compass needle is
turning, the black point
always points north

162 NavigationRoute guidanceCancel the calculation
Press the right-hand rotary/push-
button v to confirm “Cancel”.Deleting way point

Turn the right-hand rotary/push-button
v to highlight “Stop” in the symbol or
map display and press to confirm.
The “Way Point” menu will appear, “De-
lete stop-over...” is highlighted.
If the menu bar is not visible in the
map:
Turn the right-hand rotary/push-
button v.
The menu bar will appear.

Press the right-hand rotary/push-
button v to confirm “Delete stop-
over...”.
The way point has been deleted.
If you do not want to delete the way point

Press *.iIt is also possible to delete a way point
in the menu (
page 167).

165 Navigation
Route guidance
Detour in route list
Turn the right-hand rotary/push-button
v to highlight “Detour in Route List” in
the main detour menu and press to
confirm.
The message “The route list is being
calculated” will appear.
Then the route list will appear.
Route list1Street cannot be blocked off
2Symbol “+”: street contains several
sections which can be blocked off
3Blocked street will appear in redDisplaying an entry in full in a window

Press u.

Press u again to remove the window.

166 NavigationRoute guidanceCalling detailed route list Detailed route list4Symbol “-” - sections of a road are dis-
played
Press +.
The detailed route list will appear.Blocking off several streets/street sec-
tions

Turn the right-hand rotary/push-button
v to the right.
With each turn, you will block another
section.
The road name will appear in red.
Undoing street block

Turn the right-hand rotary/push-button
v to the left.
The street name will appear in black
again.
Switching back to the route list

Press ,.
The symbol “+” appears in front of the
street section.
The blocking function is still active.Canceling blocking function, do not recal-
culate the route

Press *.
The traffic jam menu will appear.
Ending the blocking function, re-calcula-
ting the route with the blocks selected

Press the right-hand rotary/push-
button v.
COMAND re-calculates the route in the
previously selected calculation mode.
A corresponding message will appear.
Then the symbol display will appear
again and COMAND will continue route
guidance.

167 Navigation
Route guidance
1Delete a way point
2Cancel a detour (traffic jam ahead)
3Cancel a detour (street sections blo-
cked in the route list)
4Reset all functions

Press r.
A selection menu will appear.

Turn the right-hand rotary/push-button
v to highlight the desired menu field
and press to confirm.
COMAND will re-calculate the route
using the previously selected calculati-
on mode.
You will see the corresponding infor-
mation.
The corresponding information will appear
on the display.
Resetting functions
iIf you have not selected any way point
(page 160) or detour (
page 163)
menu fields 1 to 4 are shaded out and
cannot be selected.
