Page 9 of 399

9
Product information
Introduction
Product informationPlease observe the following in your own
best interest:
We recommend using Mercedes-Benz orig-
inal parts as well as conversion parts and
accessories explicitly approved by us for
your vehicle model.
We have tested these parts to determine
their reliability, safety and their special
suitability for Mercedes-Benz vehicles.We are unable to make an assessment for
other products and therefore cannot be
held responsible for them, even if in indi-
vidual cases an official approval or authori-
zation by governmental or other agencies
should exist. Use of such parts and acces-
sories could adversely affect the safety,
performance or reliability of your vehicle.
Please do not use them.Mercedes-Benz original parts as well as
conversion parts and accessories ap-
proved by us are available at your autho-
rized Mercedes-Benz Center where you will
receive comprehensive information, also
on permissible technical modifications,
and where proper installation will be per-
formed.
Page 78 of 399

78 Safety and SecurityDriving safety systems
The SBC brake system is automatically ac-
tivated when you:
unlock the vehicle with the key or the
KEYLESS-GO*
open the driver’s or passenger door
turn the key in the starter switch to
position1
in vehicles with KEYLESS-GO*, press
start/stop button on selector lever
once
depress the brake pedal
release the parking brake
Warning!
G
The SBC brake system requires electrical
power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its
limp-home (emergency operation) mode. In
such a case, the red brake warning lamp
(page 291) and warning messages in the
instrument cluster (
page 305) light up
while driving. To brake, the driver must then
apply significantly greater brake pedal pres-
sure and depress the pedal much further to
obtain the expected braking effect. If neces-
sary, apply full pressure to the brake pedal.
Brakes are only applied to the front wheels.
Stopping distance is increased!
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment. A tow bar must be used if cir-
cumstances do not permit the use of the
recommended towing methods and the ve-
hicle requires towing with all four wheels on
the ground. Towing the vehicle with all four
wheels on the ground is only permissible
for distances up to 30 miles (50 km) and at
a speed not to exceed 30 mph (50 km/h).
For more information, refer to "Towing the
vehicle" (
page 348).
Page 139 of 399

139 Controls in detail
Control system
Setting daytime running lamp mode
(USA only)
Move the selection marker with
theæ orç button to the
Light-
ing
submenu.
Press buttonj ork repeatedly
until you see this message in the dis-
play:
Lamp circuit headlamp
.
The selection marker is on the current
setting.
Pressæ orç to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:
Parking lamps and low beam head-
lamps
License plate lamps (in low ambient
light conditions) Setting locator lighting
During darkness, the following lamps will
come on when the locator lighting feature
is activated and the vehicle is unlocked by
remote control:
Parking lamps
Tail lamps
License plate lamps
Front fog lamps
The exterior lamp switch must be set to po-
sition U (
page 112).
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.
Move the selection marker with
theæ orç button to the
Light-
ing
submenu.
Press buttonj ork repeatedly
until you see this message in the dis-
play:
Function Surround lighting
.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the Lighting
submenu to factory settings
(
page 131) will not reset the daytime
running lamp mode.
In the display you will then see the mes-
sage:
Lighting
Page 149 of 399

149 Controls in detail
Control system
Ending a call
Press buttonì.
You have ended the call. In the display
you will again see the standby mes-
sage.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonÿ orè repeatedly
until you see the
Tel
menu in the dis-
play.
Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
display you will see the message Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.
Press buttonj ork repeatedly
until the desired name appears in the
display.
The stored names are displayed in in-
creasing or decreasing alphabetical or-
der.
Press buttoní.
The system dials the selected phone
number.
If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.
If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.
Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press buttonÿ orè repeatedly
until you see the
Tel
menu in the dis-
play.
iIf you press and holdj ork for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressingì.
Page 155 of 399

155 Controls in detail
Automatic transmission
Program mode selector switch
1Program mode selector switch
S Standard For regular driving
W Winter For winter driving
Press the program mode selector
switch repeatedly until the letter of the
desired shift program appears in the
speedometer display field
(page 121).
Select
Wfor winter driving:
The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range1 is selected.
Traction and driving stability are im-
proved on icy roads.
Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.
The power transmission ratio for se-
lector lever positionR changes de-
pending on the program mode
selected (
W or
S).
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO* (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Children could
move the selector lever from positionP,
which could result in an accident or serious
injury.
!Never change the program mode when
the selector lever is out of positionP. It
could result in a change of driving char-
acteristics for which you may not be
prepared.
Page 156 of 399
156 Controls in detailAutomatic transmissionAccelerator position
Your driving style influences the transmis-
sion’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshiftingKickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.
Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.Emergency operation (Limp home
mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode, only 2nd gear and reverse gear can
be activated.
Stop the vehicle.
Move selector lever toP.
Turn off the engine.
Wait at least ten seconds before re-
starting.
Restart the engine.
Move selector lever to positionD (for
2nd gear) orR.
Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
Page 164 of 399

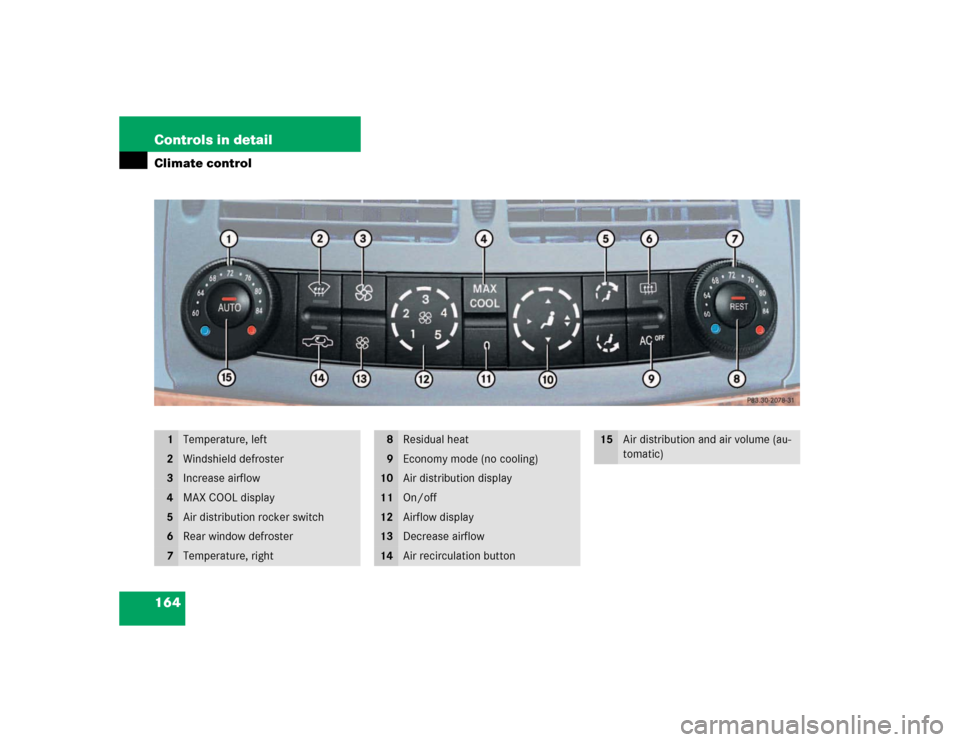

164 Controls in detailClimate control
1
Temperature, left
2
Windshield defroster
3
Increase airflow
4
MAX COOL display
5
Air distribution rocker switch
6
Rear window defroster
7
Temperature, right
8
Residual heat
9
Economy mode (no cooling)
10
Air distribution display
11
On/off
12
Airflow display
13
Decrease airflow
14
Air recirculation button
15
Air distribution and air volume (au-
tomatic)
Page 165 of 399

165 Controls in detail
Climate control
The climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the au-
tomatic or manual mode. The system cools
or heats the interior depending on the se-
lected interior temperature and the cur-
rent outside temperature.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the AC
OFF
mode is selected
(
page 170).
Setting the temperature
Use temperature controls1 and7 to sepa-
rately adjust the air temperature on each
side of the passenger compartment. You
should raise or lower the temperature set-
ting in small increments, preferably start-
ing at 72°F (22°C).
Increasing
Turn the control slightly to the right.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Decreasing
Turn the control slightly to the left.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.iIf the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.
