2003 MERCEDES-BENZ E320 4MATIC WAGON clock setting

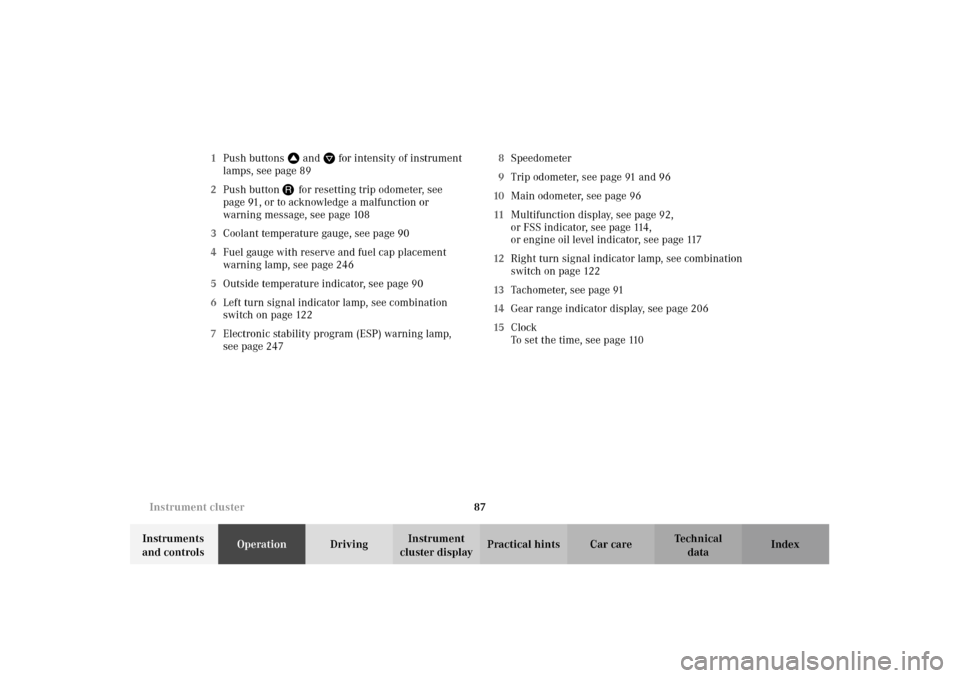

87 Instrument cluster
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 1Push buttonsVandWfor intensity of instrument
lamps, seepage89
2Push buttonJ for resetting trip odometer, see
page 91, or to acknowledge a malfunction or
warning message, see page 108
3Coolant temperature gauge, see page 90
4Fuel gauge with reserve and fuel cap placement
warning lamp, see page 246
5Outside temperature indicator, see page 90
6Left turn signal indicator lamp, see combination
switch on page 122
7Electronic stability program (ESP) warning lamp,
see page 2478Speedometer
9Trip odometer, see page 91 and 96
10Main odometer, see page 96
11Multifunction display, see page 92,
or FSS indicator, see page 114,
or engine oil level indicator, see page 117
12Right turn signal indicator lamp, see combination
switch on page 122
13Tachometer, see page 91
14Gear range indicator display, see page 206
15Clock
To set the time, see page 110

111 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 1Preliminary display of the individual settings
2“SET TIME – HOURS”
(only vehicles without COMAND)
3“SET TIME – MINUTES”
(only vehicles without COMAND)
4“12 / 24 O’CLOCK”, the unit set is displayed in the
instrument cluster
(only vehicles without COMAND)
5“TEMP. INDICATOR” — the unit set is displayed in
the outside temperature display in the instrument
cluster and in the automatic air conditioner display
6“DISPLAY VALUES IN” – the unit set is displayed in
the trip and main odometer.
7“TEXT” – sets the language used in the
multifunction display8“STATION SEARCH USING” — radio adjustment
“FREQUENCY” – use the j or k button to
select a frequency
“MEMORY” – use the j or k button to select
a stored station (preset memory)
9See page 113 for instructions on returning the
setting menus to the factory settings
10Selection marker – indicates the setting selected
Notes:
These settings may only be performed with the vehicle
at standstill and with the key in steering lock position 1
or 2.
The figure depicts the factory setting for the Federal
Republic of Germany.

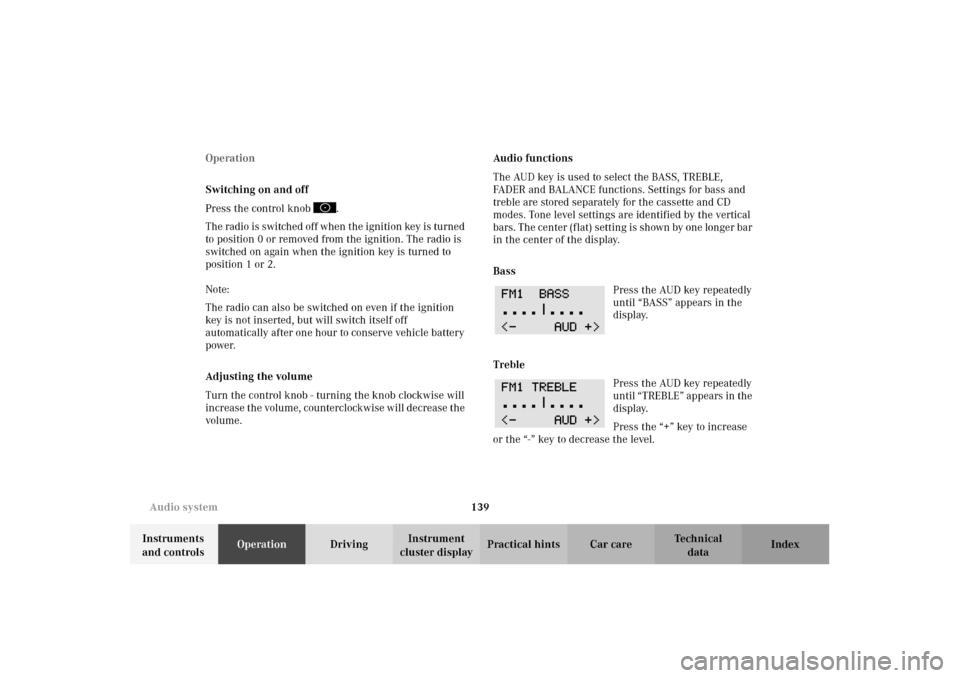

139 Audio system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Operation
Switching on and off
Press the control knob .
The radio is switched off when the ignition key is turned
to position 0 or removed from the ignition. The radio is
switched on again when the ignition key is turned to
position 1 or 2.
Note:
The radio can also be switched on even if the ignition
key is not inserted, but will switch itself off
automatically after one hour to conserve vehicle battery
power.
Adjusting the volume
Turn the control knob - turning the knob clockwise will
increase the volume, counterclockwise will decrease the
volume.Audio functions
The AUD key is used to select the BASS, TREBLE,
FADER and BALANCE functions. Settings for bass and
treble are stored separately for the cassette and CD
modes. Tone level settings are identified by the vertical
bars. The center (flat) setting is shown by one longer bar
in the center of the display.
Bass
Press the AUD key repeatedly
until “BASS” appears in the
display.
Treble
Press the AUD key repeatedly
until “TREBLE” appears in the
display.
Press the “+” key to increase
or the “-” key to decrease the level.

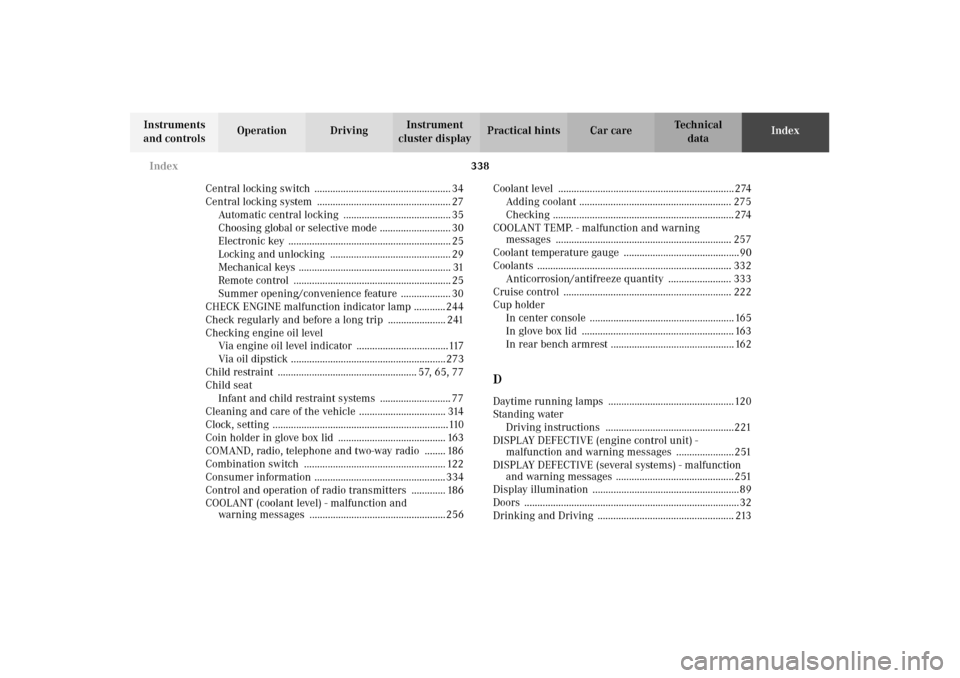

338 Index
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
Central locking switch .................................................... 34
Central locking system ................................................... 27
Automatic central locking ......................................... 35
Choosing global or selective mode ........................... 30
Electronic key .............................................................. 25
Locking and unlocking .............................................. 29
Mechanical keys .......................................................... 31
Remote control ............................................................ 25
Summer opening/convenience feature ................... 30
CHECK ENGINE malfunction indicator lamp ............ 244
Check regularly and before a long trip ...................... 241
Checking engine oil level
Via engine oil level indicator ...................................117
Via oil dipstick ...........................................................273
Child restraint ..................................................... 57, 65, 77
Child seat
Infant and child restraint systems ........................... 77
Cleaning and care of the vehicle ................................. 314
Clock, setting ...................................................................110
Coin holder in glove box lid ......................................... 163
COMAND, radio, telephone and two-way radio ........ 186
Combination switch ...................................................... 122
Consumer information .................................................. 334
Control and operation of radio transmitters ............. 186
COOLANT (coolant level) - malfunction and
warning messages ....................................................256Coolant level ................................................................... 274
Adding coolant .......................................................... 275
Checking ..................................................................... 274
COOLANT TEMP. - malfunction and warning
messages ................................................................... 257
Coolant temperature gauge ............................................90
Coolants .......................................................................... 332
Anticorrosion/antifreeze quantity ........................ 333
Cruise control ................................................................ 222
Cup holder
In center console ....................................................... 165
In glove box lid .......................................................... 163
In rear bench armrest ............................................... 162
DDaytime running lamps ................................................120
Standing water
Driving instructions .................................................221
DISPLAY DEFECTIVE (engine control unit) -
malfunction and warning messages ......................251
DISPLAY DEFECTIVE (several systems) - malfunction
and warning messages ............................................. 251
Display illumination ........................................................89
Doors ..................................................................................32
Drinking and Driving .................................................... 213
