2003 MERCEDES-BENZ E-CLASS maintenance

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside
the USA or Canada......................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
At a glance.......................................... 19
Cockpit ................................................. 20
Instrument cluster ................................ 22
Multifunction steering wheel ................ 24
Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey.......... 30
Unlocking with KEYLESS-GO* ......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts.................. 40
Starting the engine ......................... 43
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47Problems while driving.................... 48
Parking and locking .............................. 50
Parking brake ................................. 50
Switching off headlamps................. 51
Turning off the engine ..................... 51
Safety and Security........................... 55
Occupant safety ................................... 56
Airbags ........................................... 57
Seat belts ....................................... 61
Children in the vehicle .................... 65
Blocking of rear door window
operation ........................................ 71
Panic alarm .......................................... 72
Activating........................................ 72
Deactivating.................................... 72
Driving safety systems ......................... 73
ABS ................................................. 73
BAS ................................................. 74
ESP ................................................. 75
The SBC brake system .................... 77
Anti-theft systems ................................ 81
Immobilizer ..................................... 81
Anti-theft alarm system .................. 82
Tow-away alarm .............................. 82
ProCarManuals.com

ContentsTires and wheels ................................ 268
Important guidelines .................... 268
Life of tire ..................................... 269
Direction of rotation ..................... 269
Checking tire inflation pressure ... 269
Rotating wheels............................ 272
Winter driving..................................... 273
Winter tires................................... 273
Block heater (Canada only) .......... 274
Snow chains ................................. 274
Maintenance ...................................... 275
Flexible Service System PLUS (FSS
PLUS) ........................................... 275
Clearing the service indicator....... 275
Service term exceeded................. 276
Calling up the service indicator .... 276
Resetting the service indicator ..... 276
Setting the date for special works 278
Calling up the service data
information ................................... 279
Vehicle care ....................................... 280
Cleaning and care of vehicle ........ 280
Practical hints.................................. 287
What to do if … .................................. 288
Lamps in instrument cluster ........ 288
Lamp in center console ................ 294
Messages in the display ............... 295
Where will I find ...? ........................... 324
First aid kit ................................... 324
Spare wheel ................................. 324
Luggage box ................................. 325
Vehicle tool kit ............................. 326
Unlocking/locking in an emergency .. 327
Unlocking the vehicle ................... 327
Locking the vehicle ...................... 328
Changing batteries ....................... 328
Fuel filler flap emergency release 329
Manually unlocking the
transmission selector lever .......... 330
Opening/closing in an emergency..... 331
Sliding/pop-up roof* or
panorama sliding/pop-up roof* ... 331Replacing bulbs ................................. 332
Bulbs ............................................ 332
Replacing bulbs for front lamps ... 334
Replacing bulbs for rear lamps .... 336
Replacing wiper blades ...................... 337
Replacing wiper blades ................ 337
Flat tire .............................................. 338
Preparing the vehicle ................... 338
Mounting the spare wheel ........... 338
Batteries ............................................ 343
Disconnecting the battery............ 344
Removing the battery................... 344
Charging and reinstalling the
battery ......................................... 344
Reconnecting the batteries .......... 345
Jump starting ..................................... 346
Towing the vehicle ............................. 348
Towing the vehicle ....................... 348
Installing towing eye bolt ............. 350
Fuses ................................................. 352
Fuse box in passenger
compartment ............................... 352
ProCarManuals.com

12 IntroductionOperator’s ManualMaintenance
The Service Booklet describes all the nec-
essary maintenance work which should be
performed at regular intervals.
Always have the Service Booklet with you
when you take the vehicle to your autho-
rized Mercedes-Benz Center for service.
The service advisor will record each ser-
vice in the booklet for you.
Roadside Assistance
The Mercedes-Benz Roadside Assistance
Program provides factory trained technical
help in the event of a breakdown. Calls to
the toll-free Roadside Assistance number
1-800-FOR-MERCedes (in the USA)
1-800-387-0100 (in Canada)
will be answered by Mercedes-Benz Cus-
tomer Assistance Representatives
24 hours a day, 365 days a year.
For additional information refer to the
Mercedes-Benz Roadside Assistance Pro-
gram brochure in your glove box.
Change of address or ownership
If you change your address, be sure to
send in the "Change of Address Notice"
found in the Service and Warranty Informa-
tion Booklet, or simply call the
Mercedes-Benz Customer Assistance
Center (in the USA) at
1-800-FOR-MER-Cedes, or Customer Ser-
vice (in Canada) at 1-800-387-0100. It is in
your own interest that we can contact you
should the need arise.
If you sell your Mercedes, please leave all
literature with the vehicle to make it avail-
able to the next operator.
If you bought this vehicle used, be sure to
send in the "Notice of Purchase of Used
Car" found in the Service and Warranty In-
formation Booklet, or call the
Mercedes-Benz Customer Assistance Cen-
ter (in the USA) at 1-800-FOR-MERCedes,
or Customer Service (in Canada) at
1-800-387-0100.
ProCarManuals.com

79 Safety and Security
Driving safety systems
The SBC brake servo assistance switches
off automatically when you:

turn the key in the starter switch to
position0 or remove the key (after ap-
proximately two minutes)


lock the vehicle with the SmartKey
from outside (after approximately
20 seconds)
Note on driving with the SBC


Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.
iIf the SBC brake system is activated
when the brake pedal is first de-
pressed, you may feel a reduced pedal
resistance and longer pedal travel than
normal. When releasing the pedal, you
may also feel the brake pedal pulsate
and you may hear a sound which is
caused by the activation of the SBC
pump. This is normal and not an indica-
tion of a malfunction. Pedal travel re-
turns to normal when you release the
brake pedal and the sound soon ceas-
es.
Warning!
G
Have brake pad replacement and other work
on the SBC brake system carried out by
qualified technicians only. Contact your au-
thorized Mercedes-Benz Center for further
information. The SBC brake system must be
deactivated prior to working on the system.
High pressure is intermittently built up in the
system as part of its automatic self-test. In
addition, the system is automatically acti-
vated when the vehicle is unlocked by re-
mote control, when the driver or passenger
door is opened, when the key in the starter
switch is turned to position1, when the
brake pedal is depressed or when the park-
ing brake is released. Failure to deactivate
the system prior to maintenance will cause
brake pistons to extend and brake fluid to
leak, which may result in injuries (contu-
sions and acid burns). Extended brake pis-
tons may also cause injury.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.
ProCarManuals.com

129 Controls in detail
Control system
Distronic deactivated
When Distronic is deactivated, you will see
the standard display in the display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Should-be distance to vehicle ahead
4Your vehicle
5Symbol for activated distance warning
functionDistronic activated
When Distronic is activated,
Distronic

and the set speed are seen in the display.
1Distronic activated
Malfunction memory menu
Use the malfunction memory menu to scan
malfunction and warning messages that
may be stored in the system. What infor-
mation is shown in the display depends on
whether malfunctions have actually oc-
curred.Warning!
G
Malfunction and warning messages are only
indicated for certain systems and displayed
at a low level of detail. The malfunction and
warning messages are simply a reminder
with respect to the operation of certain sys-
tems and do not replace the driver’s respon-
sibility to maintain the vehicle’s operating
safety by having all required maintenance
and safety checks performed on the vehicle
and by bringing the vehicle to an authorized
Mercedes-Benz Center to address the mal-
function and warning messages
(page 295).
ProCarManuals.com

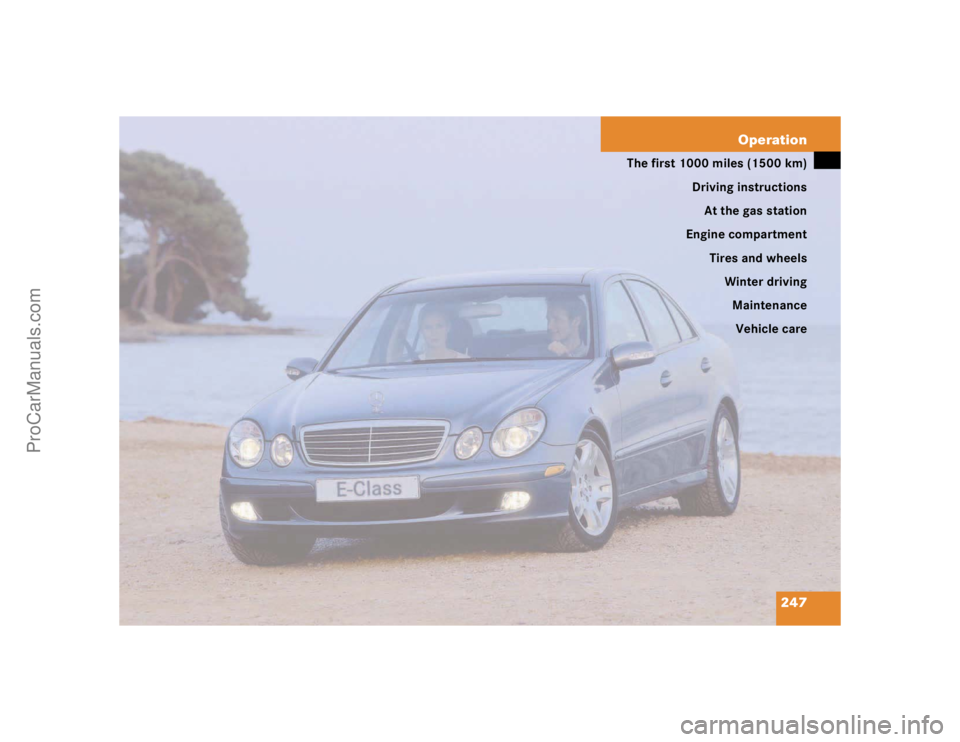

247 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care
ProCarManuals.com

249 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures.


Remove unnecessary loads.


Remove roof rack when not in use.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at regular intervals by an authorized
Mercedes-Benz Center.
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips and in hilly country.
Drinking and driving
Pedals
Warning!
G
Drinking or taking drugs and driving can be
a very dangerous combination. Even a small
amount of alcohol or drugs can affect your
reflexes, perceptions and judgement.
The possibility of a serious or even fatal ac-
cident is sharply increased when you drink
or take drugs and drive.
Please don’t drink or take drugs and drive or
allow anyone to drive after drinking or taking
drugs.
Warning!
G
Keep driver’s foot area clear at all times. Ob-
jects stored in this area may impair pedal
movement.
ProCarManuals.com

256 OperationDriving instructionsControl and operation of radio trans-mitter
COMAND*, radio and telephone*Telephones and two-way radios
Radio transmitters, such as a portable tele-
phone or a citizens band unit should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
Refer to the radio transmitter operation in-
structions regarding use of an external an-
tenna.
Catalytic converter
Your Mercedes-Benz is equipped with
monolithic type catalytic converters, an
important element in conjunction with the
oxygen sensors to achieve substantial con-
trol of the pollutants in the exhaust emis-
sions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. Only op-
erate the COMAND (Cockpit Management
and Data System), radio or telephone
1 if
road and traffic conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.
1Observe all legal requirements
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and personal
injury.
!To prevent damage to the catalytic con-
verters, use only premium unleaded
gasoline in this vehicle.
Any noticeable irregularities in engine
operation should be repaired promptly.
Otherwise, excessive unburned fuel
may reach the catalytic converter,
causing it to overheat, which could
start a fire.
ProCarManuals.com
