2003 MERCEDES-BENZ CLK-Class CABRIOLET display

122 NavigationDestination inputMain destination input menu
Press b.
The display that appears is dependent
on the last navigation function used:Route guidance has been switched off


the main destination input menu or


the location map (
page 149).
Route guidance has been switched on


the symbol display with an arrow in-
dicating your driving direction
(page 144) or


the map with the symbol indicating
current vehicle location
(page 144)
Route guidance has been switched on,
COMAND has been switched off for
more than 2 hours


an inquiry menu (
page 169)Changing over to another system, for
e.g. radio

Press c.
Switching the navigation system on
P82.85-9162-31
iThe following message will appear
when COMAND is preparing for naviga-
tion startup: “Navigation being activa-
ted. Please obey all traffic rules.”. Then,
one of the 3 displays will appear.
!Potential fault messages during prepa-
ration of navigation startup:

“Navigation cannot be activated. An
error has occurred”.


“CD-Reading error. Please use ano-
ther CD”.
Eject the inserted CD and insert a
navigation CD.


“No CD available. Please insert
NAVI-CD type DX only”.
Insert a current DX-coded navigati-
on CD. Using other navigation CDs
might lead to malfunctions.
If the error has been eliminated, you will
see the message “Navigation being ac-
tivated. Please obey all traffic rules”.

125 Navigation
Destination input
Activating the city listCity list10Selected city is highlighted
11Display the previous page, if :
12Display the next page, if ;If the input menu “City/Suburb Entry” is
displayed

Press the right-hand rotary/push-
button v longer than 2 seconds.
or

Turn the right-hand rotary/push-button
v to highlight menu field 9 with and
press to confirm.
The city list will appear.
You can now do the following in the city
list:


Confirm the city/suburb that has alrea-
dy been highlighted


Select another city/suburb
Turn the right-hand rotary/push-
button v until the desired city/
suburb is highlighted.


Display the previous/next page
Turn the right-hand rotary/push-
button v to highlight one of the ar-
rows 11 or 12.

Press the right-hand rotary/push-
button v.
Confirming the city

Press the right-hand rotary/push-
button v longer than 2 seconds.
A selection menu will appear.iIf several options of a city/suburb are
available, another menu will appear
where you must make and confirm your
desired selection.

127 Navigation
Destination input
Activating the street listStreet list21Street previously selected
22Display the previous page, if :
23Display the next page, if ;If the input menu “Street Entry” is display-
ed

Press the right-hand rotary/push-
button v longer than 2 seconds.
or

Turn the right-hand rotary/push-button
v to highlight menu field 20 with and
press to confirm.
The street list appears.
Here you can, as in the city list
(page 125), select another street or
display the previous/next page.

Press the right-hand rotary/push-
button v longer than 2 seconds.
This will confirm city/suburb and street
of the desired destination. The selec-
tion menu “Destination Entry” appears.
P82.85-9169-31
212223
iIf several options of a street are availab-
le, another menu will appear where you
must make and confirm your desired
selection.

128 NavigationDestination input“Destination Entry” selection menu1Adding an intersection
2Adding a house number
3Selecting a destination via the map
(
page 131)
4Saving a destination address in the
destination memory (
page 175)
5Confirming the destination and the cal-
culating route (
page 141)You have now selected the destination and
can define your destination address more
precisely in the following manner:


Adding an intersection


Adding a house number


Selecting it via the map (
page 131)


Selecting a city center, if you do not
want to select a street (
page 130)
or
Confirm the destination and calculate the
route (
page 141)

Press the right-hand rotary/push-
button v to confirm “OK” in the menu
“Destination Entry”.Adding an intersection
If the menu “Destination Entry” is display-
ed

Turn the right-hand rotary/push-button
v to highlight 1 and press to confirm.
A list of roads intersecting with the pre-
viously input street will appear.
Continue destination input
P82.85-9170-31
1
2
3
4
5
iIn order to do so, “House no.” must be
shown in black.

129 Navigation
Destination input

Turn the right-hand rotary/push-button
v to highlight the name of the inter-
section.

Press the right-hand rotary/push-
button v to confirm the selection.

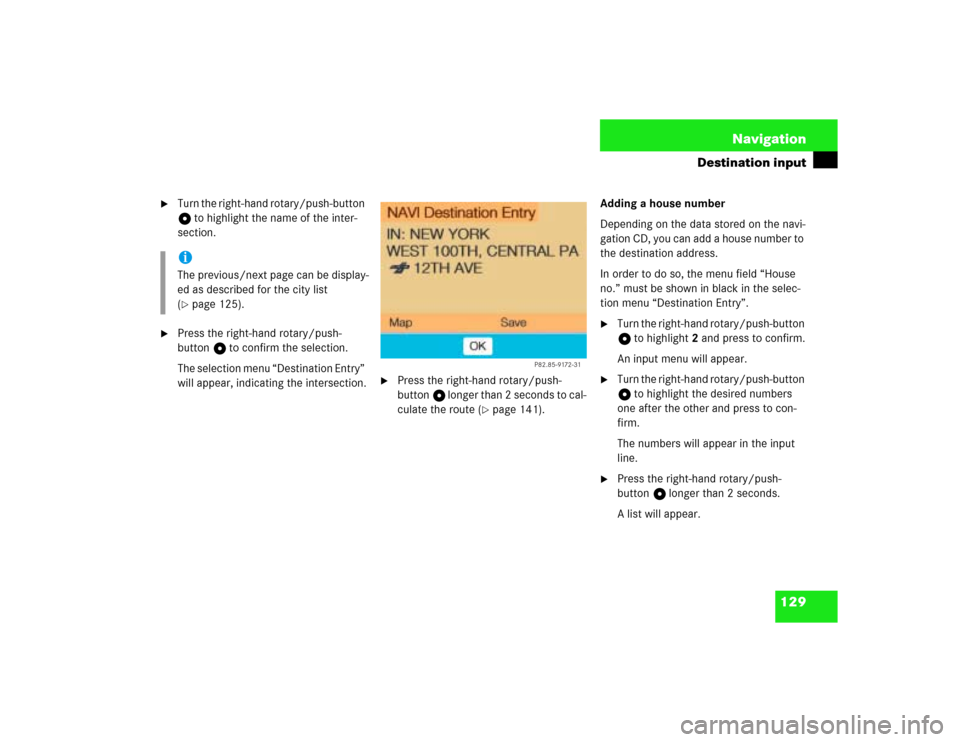

The selection menu “Destination Entry”
will appear, indicating the intersection.

Press the right-hand rotary/push-
button v longer than 2 seconds to cal-
culate the route (
page 141).Adding a house number
Depending on the data stored on the navi-
gation CD, you can add a house number to
the destination address.
In order to do so, the menu field “House
no.” must be shown in black in the selec-
tion menu “Destination Entry”.

Turn the right-hand rotary/push-button
v to highlight 2 and press to confirm.
An input menu will appear.

Turn the right-hand rotary/push-button
v to highlight the desired numbers
one after the other and press to con-
firm.
The numbers will appear in the input
line.

Press the right-hand rotary/push-
button v longer than 2 seconds.
A list will appear.
iThe previous/next page can be display-
ed as described for the city list
(page 125).
P82.85-9172-31

136 NavigationDestination inputConfirming coordinate destination
Press the right-hand rotary/push-
button v longer than 2 seconds.
The above display appears.Starting the adjustment mode

Turn the right-hand rotary/push-button
v to highlight “OK” and press to con-
firm.
Store the coordinate destination in the
destination memory with a name

Turn the right-hand rotary/push-button
v to highlight “Save” and press to
confirm.
This will activate the destination me-
mory (
page 175).Activate the map with crosshairs

Turn the right-hand rotary/push-button
v to highlight “Map” and press to con-
firm.
This will activate the map
(page 132).
P82.85-9180-31

137 Navigation
Destination input
This function allows you to select Points of
Interest such as gas stations, parking faci-
lities or shopping centers.“Points of Interest” selection menuSelect a Point of Interest
1Around the current area of vehicle loca-
tion
2Around the previous destination area
3In the surrounding area of another city
4As regional destination, e.g. airport

Turn the right-hand rotary/push-button
v to highlight “Special destinations”
in the main destination input menu and
press to confirm.
The selection menu “Point of Interest”
will appear.

Turn the right-hand rotary/push-button
v to highlight 1 to 4 and press to con-
firm.
1, 2, 4 A Category list will appear
3 The input menu “City/Area”
will appear (
page 139)Around the current area of vehicle loca-
tion or previous destination area
Category list5Display previous page, if :
6Display next page, if ;
Entering Points of Interest
P82.85-9182-31
56

138 NavigationDestination input
Turn the right-hand rotary/push-button
v to highlight 1 or 2 and press to con-
firm.
The list “Select Category” will appear.

Turn the right-hand rotary/push-button
v to highlight the desired category
and press to confirm.
A corresponding list will appear.
7Point of Interest entry with distance to
destination in miles (as the crow flies)
8Symbol for long entry
9Complete entry in a windowDisplay the entry in full in a window 9

Press u.

Press u again to remove 9.
Selecting the desired destination

Turn the right-hand rotary/push-button
v to highlight the entry in the selec-
tion list and press to confirm.

Then calculate the route (
page 141).
iNot all Points of Interest may be listed
on the CD.
P82.85-9183-31
7
8
9
